Description

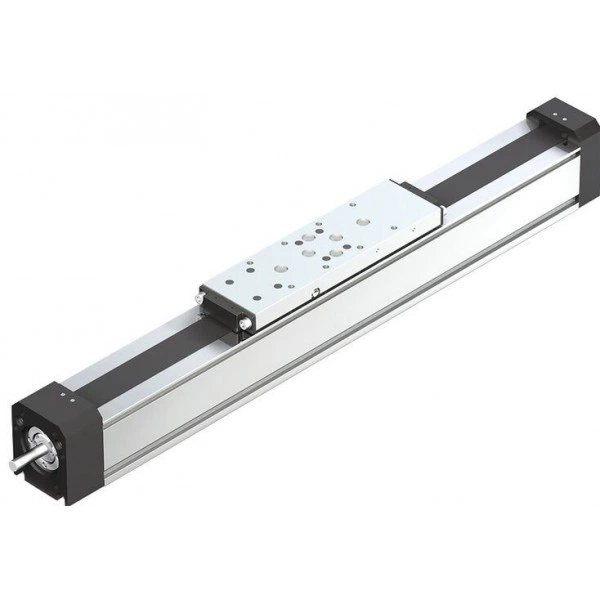

Product description
Types

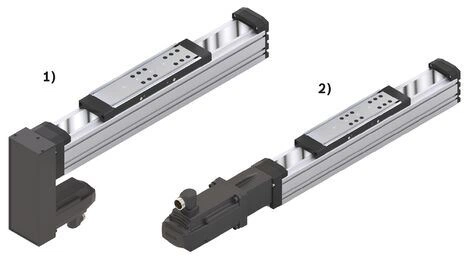

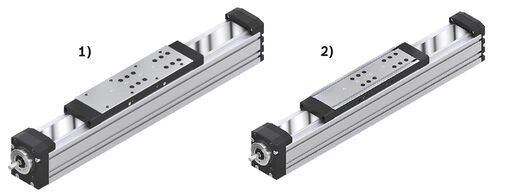

| 1) | Carriage with thread |
| 2) | Carriage with T-slots |
| 1) | Motor mounting with timing belt side drive |
| 2) | Motor mounting with flanged-type coupling |
Material pairing
ALST:
- Main body, carriage and end plates made of anodized aluminum (AL)
- MKK-065/-080/-110/-140: Ball rail, ball runner block and ball screw assembly made of rolling bearing steel (ST)
- MKK-040: Ball rail and ball runner block of rust and acid resistant material. Ball screw assembly made of rolling bearing steel (ST)
- Angular-contact ball bearing and grooved ball bearing of the screw drive bearing made of rolling bearing steel
ALCR:
- Main body, carriage and end plates made of anodized aluminum (AL)
- MKK-065/-080/-110/-140: Ball rail and ball screw assembly made of rolling bearing steel with corrosion resistant coating, matte-silver finish, hard chrome plated (Resist CR), ball runner block from corrosion resistant steel (Resist NR)
- MKK-040: Ball rail and ball runner block of rust and acid resistant material. Ball screw assembly made of rolling bearing steel with corrosion resistant coating, matte-silver finish, hard chrome plated (Resist CR)
- Angular-contact ball bearing and grooved ball bearing of the screw drive bearing made of rolling bearing steel
Lubrication variants
LSS: (Initial lubrication done at the factory)
- Initial standard greasing done at the factory, suitable for normal ambient conditions.
- Simple relubrication via manual grease gun.
MKK-065, MKK-080, MKK-110, MKK-140:
- Grease lubricant Dynalub 510, lithium-based high-performance grease of the NLGI grade 2 according to DIN 51818 (KP2K-20 according to DIN 51825)
MKK-040:
- Grease lubricant Dynalub 520, lithium-based high-performance grease of the NLGI grade 00 according to DIN 51818 (GP00K-20 according to DIN 51826)
LPG: (Corrosion prevention, no initial lubrication)
- Linear module without initial greasing done at the factory.
- Ball rail system and ball screw assembly only with corrosion prevention
- Basic lubrication required
LCF: (prepared for connection to central lubrication systems with liquid grease)
- for liquid grease, NLGI grade 00 lithium-based high-performance grease according to DIN 51818 (GP00K-20 according to DIN 51826)
- Liquid grease lubrication via single-line piston distributor system only
- Basic lubrication required
LCO: (prepared for connection to central lubrication systems with oil)
- ball runner block and ball screw drive nut with integrated non-return valves
- Only use oil lubrication with single-line total-loss lubrication systems via piston distributors.
- Basic lubrication required
Structure and attachments
Structural design

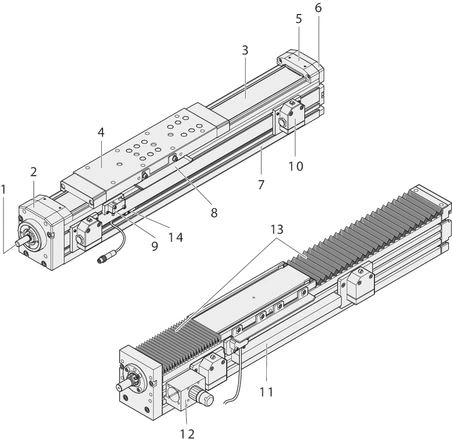

1 Ball screw assembly (BASA) with zero-backlash cylindrical single nut
2 End block fixed bearing
3 Cover strip for MKK-040/-065/-080/-110/-140
4 Carriage with runner blocks
5 Strip fixing
6 End plate floating bearing
7 Main body
Attachments

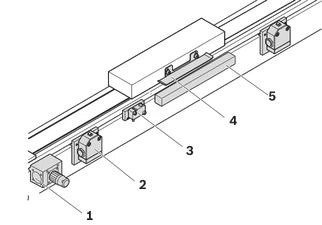

8 Switch bracket
9 Proximity switch
10 Mechanical switch
11 Cable channel
12 Socket/plug
13 Bellows cover for MKK-165
14 Magnetic field sensor
15 Mount
16 Servo motor
17 Timing belt side drive
Motor attachment with mount and coupling
A motor can be attached via a mount and coupling to all linear modules equipped with a ball screw drive.
The mount serves to fasten the motor to the Linear Module and acts as a closed housing for the coupling.
The coupling transmits the motor drive torque free of distortive stresses to the Linear Module’s drive shaft.
Our standard couplings compensate for the system’s thermal expansion.

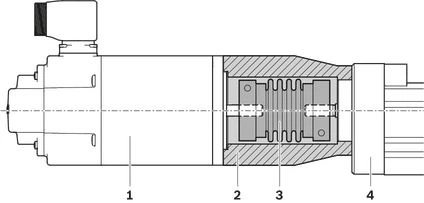

1 Motor
2 Mount
3 Coupling
4 Linear module
Motor attachment via timing belt side drive
On all linear modules with a ball screw drive the motor can be attached via a timing belt side drive.
This makes the overall length shorter than when attaching the motor with a mount and coupling.
The space-saving, closed pulley housing provides protection for the belt and acts as a motor bracket.
In addition, various gear ratios are available.
The timing belt side drive can be mounted in four different directions.

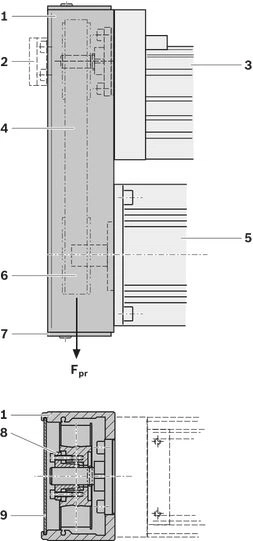

1 Pulley housing made of anodized aluminum
2In some cases with support bearing for Rexroth Ball Screw Assembly screw journal.
3 Linear module
4 Belt drive with gear ratio: i = 1; i = 1,5; i = 2
5 Servo motor
6 Pre-tensioning of the belt drive: Apply preload force Fpr to the motor (Fpr is stated upon delivery).
7 Cover
8 Belt pulleys attached using tensioning units
9 Cover plate
Technical data
General technical instructions
Note on dynamic load capacities and load moments
Determination of the dynamic load capacities and load moments is based on a travel life of 100 000 m. Often only 50 000 m is actually stipulated.
For comparison:
Multiply values C, Mt and ML from the table by 1.26.
Suitable loads
Regarding the desired nominal life, in general loads for Fcomb, Fm up to around 20 % of the dynamic characteristic values (C, Mt, ML) have generally proven suitable.
See the "Calculation" document in the "Project planning instructions" chapter for the respective Linear Module.
Do not exceed the technical data for the Linear Motion System.

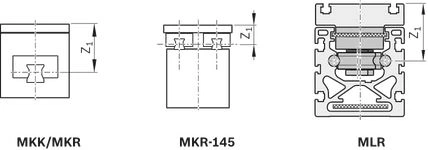

Application point of the effective force (Z1)
Modulus of elasticity E of the Linear Motion System
General technical instructions
Length calculation of the Linear Motion System
For length calculation values, see the "General Technical Data" table.
Note: Adhere to the section "General technical instructions" and the document "Calculation" in the chapter "Project planning instructions".
Load capacities and moments
| Number of carriages | 1 | |||
| Lca | mm | 135 | ||
| d0 x P | mm | 12 x 2 | 12 x 5 | 12 x 10 |
| Cgw | N | 3750 | ||
| Cbs | N | 2420 | 4100 | 2700 |
| Cfb | N | 4000 | ||
| Mt | Nm | 22.3 | ||
| ML | Nm | 93,8 | ||
| Mx max | Nm | 11 | ||
| My max | Nm | 53 | ||
| Mz max | Nm | 53 | ||
| Fy max | N | 1875 | ||
| Fz1 max | N | 1875 | ||
| Fz2 max | N | 1875 | ||
| Z1 | mm | 42 | ||
| ly | cm⁴ | 11.98 | ||
| lz | cm⁴ | 11.56 | ||
General technical data
| Number of carriages | 1 | |||
| Lca | mm | 135 | ||
| d0 x P | mm | 12 x 2 | 12 x 5 | 12 x 10 |
| Lad | mm | 25 | ||
| smin 1) | mm | 50 | ||
| Lmax | mm | 1000 | ||
| mca | kg | 0.39 | ||
| kg fix | kg | 0.26 | ||
| kg var | kg/mm | 028 | ||
| Repeatability (up to ...) | mm | ± 05 | ||
| 1) | Minimum required travel to ensure a reliable lubrication distribution! If this cannot be achieved, please consult Bosch Rexroth. |
Note: Adhere to the section "General technical instructions" and the document "Calculation" in the chapter "Project planning instructions".
Drive data
| Number of carriages | 1 | |||
| Lca | mm | 135 | ||
| d0 x P | mm | 12 x 2 | 12 x 5 | 12 x 10 |
| mca | kg | 0.39 | ||
| kJ fix | kg·mm² | 1.274 | 1.468 | 2.201 |
| kJ var | kg·mm | 0.013 | 0.011 | |
| kJ m | mm² | 0.101 | 0.633 | 2.533 |
| MRs 1) | Nm | 0.09 | 0.1 | 0.11 |
| amax | m/s² | 48.4 | 50 | |
| 1) | at 200 min-1 |
Values also valid for the carriage version with variable centerline-to-centerline distance.
Note: For the max. drive torque Mp and max. speed vmax see section on "Diagrams / Characteristic curves".
Drive data for motor attachment using the timing belt side drive
| Size | Motor | d0 x P | up to L1) | Msd2) | Jsd | MRsd | msd | Bt | ||||
| mm | mm | Nm | 10‑6 kgm2 | Nm | kg | |||||||
| i = 13) | i = 1,53) | i = 13) | i = 1,53) | i = 13) | i = 1,53) | i = 13) | i = 1,53) | |||||
| MKK-040 | MSM019B | 12 x 2 | 1000 | 0,79 | 0,53 | 10,7 | 4,1 | 0,10 | 0,28 | 0,26 | 6 AT3 | 6 AT3 |
| 12 x 5 | 1,31 | 0,87 | ||||||||||
| 12 x 10 | 1,31 | 0,87 | ||||||||||
| MS2N03-B | 12 x 2 | 0,80 | 0,50 | 34,8 | 13,0 | 0,15 | 0,63 | 0,60 | 10 AT3 | 10 AT3 | ||
| 12 x 5 | 1,60 | 1,10 | ||||||||||
| 12 x 10 | 1,60 | 1,10 | ||||||||||
| 1) | For longer lengths, the permissible drive torque is determined from the variable-length value Mp of the linear motion system as per the diagram. See the chapter "Project planning instructions" |
| 2) | Values for Msd without making allowance for the motor torque. |
| 3) | With support bearing |
Drive data for motor attachment via mount and coupling
| Size | Motor | Coupling | Mount and coupling | ||
| McN | Jc | mc | mfc | ||
| Nm | 10‑6 kgm2 | kg | kg | ||
| MKK-040 | MS2N03-B | 3,7 | 7,0 | 0,075 | 0,26 |
| MSM019B | 1,9 | 2,1 | 0,039 | 0,13 | |
| MSM031B | 3,7 | 7,0 | 0,075 | 0,29 | |
Normal operating conditions
| Permissible ambient temperature with Rexroth servo motor 1) | 0 °C ... +40 °C | |
| Permissible ambient temperature for mechanical system 2) | -10 °C ... +60 °C | |
| smin 3) | mm | 50 |
| 1) | Performance losses from 40°C |
| 2) | No passing below the dew point |
| 3) | Minimum required travel to ensure a reliable lubrication distribution! If this cannot be achieved, please consult Bosch Rexroth. |
Note: Application of dirt is not permitted!
Legend
| Symbol | Description | Unit |
| amax | Maximum acceleration travel | m/s2 |
| Bt | Belt type | - |
| Cbs | Dynamic load capacity, ball screw drive | N |
| Cfb | Dynamic load capacity, fixed bearing | N |
| Cgw | Dynamic load capacity, linear guide | N |
| d0 | Nominal diameter of ball screw drive | mm |
| Fy max | Maximum dynamic load in y-direction | N |
| Fz1 max | Maximum dynamic load in z-direction | N |
| Fz2 max | Maximum dynamic load in z-direction | N |
| i | Gear ratio | - |
| Jc | Mass moment of inertia of the coupling | kgm2 |
| Jsd | Reduced mass moment of inertia of timing belt side drive on the motor journal | kgm2 |
| kg fix | Constant for the fixed portion of the mass | kg |
| kg var | Constant for the variable-length portion of the mass | kg/mm |
| kJ fix | Constant for fixed-length portion of mass moment of inertia | kgmm2 |
| kJ m | Constant for mass-specific portion of mass moment of inertia | mm2 |
| kJ var | Constant for variable-length portion of mass moment of inertia | kgmm |
| L | Length | mm |
| Lad | Additional length | mm |
| Lca | Carriage length | mm |
| Lmax | Maximum length | mm |
| LW | Carriage center-to-center distance | mm |
| ly | Y-axis planar moment of inertia | cm4 |
| lz | Z-axis planar moment of inertia | cm4 |
| mc | Mass of the coupling | kg |
| mca | Moved mass of system (carriage) | kg |
| McN | Rated torque of coupling | Nm |
| mfc | Mass of mount and coupling | kg |
| ML | Dynamic longitudinal moment load capacity | Nm |
| MRs | Frictional torque of the system | Nm |
| msd | Mass of timing belt side drive | kg |
| Msd | Maximum permissible drive torque of the timing belt side drive | Nm |
| Mt | Dynamic torsional moment load capacity | Nm |
| Mx max | Maximum admissible torsional moment around the x-axis | Nm |
| My max | Maximum admissible torsional moment around the y-axis | Nm |
| Mz max | Maximum admissible torsional moment around the z-axis | Nm |
| P | Lead | mm |
| se | Excess travel | mm |
| seff | Effective travel distance | mm |
| smax | Maximum travel range | mm |
| smin | Minimum travel | mm |
| Z1 | Application point of the effective force | mm |
Diagrams/characteristic curves

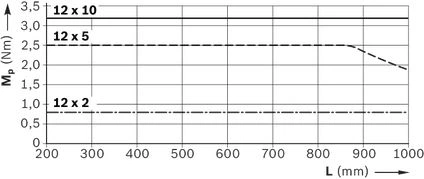

Permissible drive torque
The values for Mp apply for the following conditions:
- Screw journal without keyway
- No radial load on screw journal

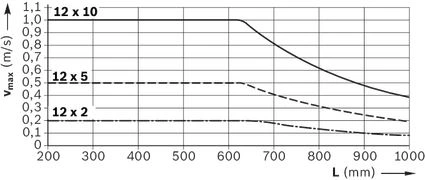

Permissible speed vmax

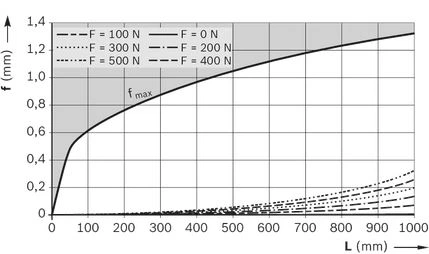

Deflection
Take note of the "General Technical Instructions" section of the "Technical Data" chapter.
Example
Linear Module MKK-080: L = 3000 mm, F = 1500 N
From diagram MKK-080: f = 1.8 mm, fmax = 3.5 mm
The deflection f is significantly less than the maximum permissible deflection fmax, and no additional support is therefore necessary.
The following diagram is valid for:
- both ends firmly fixed (200 to 250 mm per side)
- 6 to 8 screws per side
- solid mounting base
- Lmax must be noted; see the "General Technical Data" table in the "Technical Data" chapter
Dimensions
All dimensions in mm. Drawings not to scale.

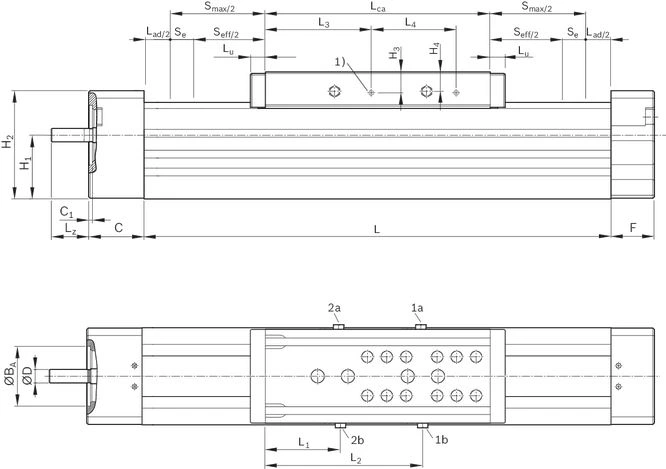

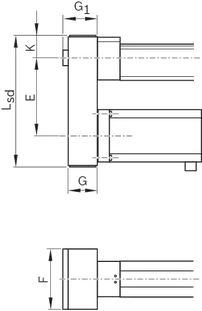

Frame dimension drawings

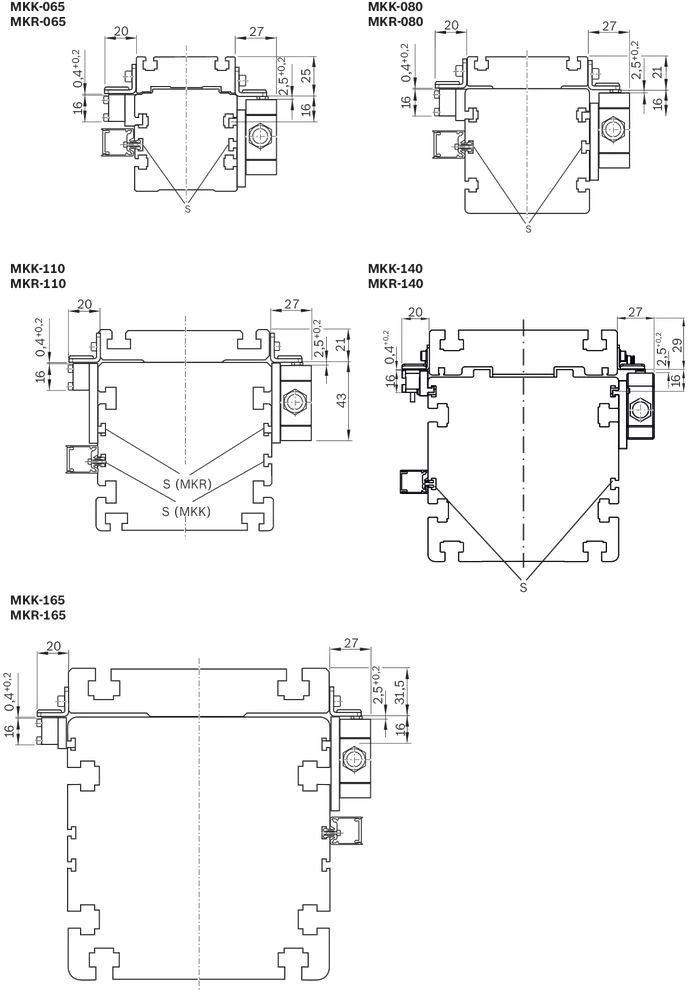

| 1) | Fastening thread M4 - 10 deep (4x) for switching angle |
Dimensions
| Number of carriages | 1 | ||||
| Lca | mm | 135 | |||
| d0 x P | mm | 12 x 2 | 12 x 5 | 12 x 10 | |
| B | mm | 40 | |||
| ØBA | h7/H7 | mm | 28 | ||
| C | mm | 25 | |||
| C1 | mm | 2.5 | |||
| ⌀D | h7 | mm | 6 | ||
| F | mm | 17 | |||
| H1 | mm | 25 | |||
| H2 | mm | 48 | |||
| H3 | mm | 3.7 | |||
| H4 | mm | 8 | |||
| L1 | mm | 75 | |||
| L2 | mm | 86.85 | |||
| L3 | mm | 20 | |||
| L4 | mm | 27 | |||
| Lu | mm | 6.5 | |||
| Lz | mm | 18 | |||

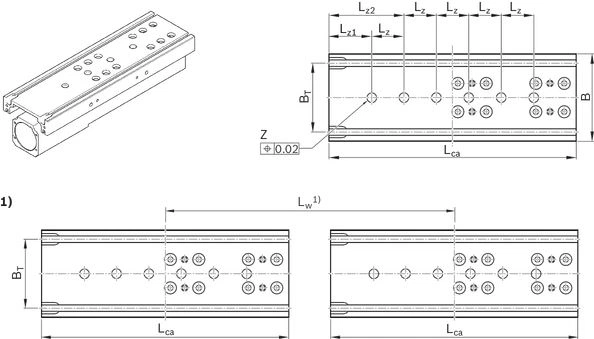

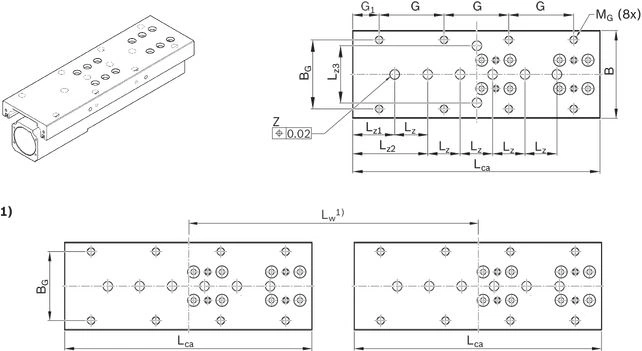

Optional frame with centering holes and elongated hole on the underside
| 1) | 5 x ZH7 – T deep |
| 2) | ZH8 – T deep |
| 1) | For clamping fixtures |
| 2) | For mounting duct |
| 3) | For sensor |
| 4) | Side sealing in carriage |
Dimensions
| Number of carriages | 1 | |||
| Lca | mm | 135 | ||
| d0 x P | mm | 12 x 2 | 12 x 5 | 12 x 10 |
| B | mm | 40 | ||
| E1 | mm | 23 | ||
| E2 | mm | 33 | ||
| H | mm | 52 | ||
| Mx | M4 ‒ 8 mm deep | |||
| N1 | mm | 3.3 | ||
| N2 | mm | 3.3 | ||
| N3 | mm | 4.9 | ||
| N4 | mm | 1.3 | ||
| N5 | mm | 2.8 | ||
| N7 | mm | 2.5 | ||
| S1 | mm | 4.5 | ||
| S3 | mm | 36.5 | ||
| T | mm | 1.6 | ||
| Z | mm | 7 | ||
Carriage dimension drawings
Carriage with thread
| 1) | 2 carriages (optional) |
| 2) | Centerline-to-centerline distance specified according to customer design. Centerline-to-centerline distance freely selectable between minimum and maximum distance in millimeter increments. |
Dimensions
| Number of carriages | 1 | ||||
| Lca | mm | 135 | |||
| d0 x P | mm | 12 x 2 | 12 x 5 | 12 x 10 | |
| B | mm | 39.5 | |||
| BG | mm | 30 | |||
| G | mm | 25 | |||
| G1 | mm | 30 | |||
| Lz | mm | 20 | |||
| Lz2 | mm | 37.5 | |||
| Lz3 | mm | 20 - - - - | |||
| MG | M4 ‒ 9 mm deep | ||||
| ⌀Z | H7 | 7 ‒ 1.6 mm deep | |||
Carriage with T-slots
| 1) | 2 carriages (optional) |
| 2) | Centerline-to-centerline distance specified according to customer design. Centerline-to-centerline distance freely selectable between minimum and maximum distance in millimeter increments. |
Dimensions
| Number of carriages | 1 | ||||
| Lca | mm | 135 | |||
| d0 x P | mm | 12 x 2 | 12 x 5 | 12 x 10 | |
| B | mm | 39.5 | |||
| BG | mm | 30 | |||
| G | mm | 25 | |||
| G1 | mm | 30 | |||
| Lz | mm | 20 | |||
| MG | M4 ‒ 9 mm deep | ||||
| ØZ | H7 | 7 ‒ 1.6 mm deep | |||
Project planning information
Calculation
Calculation example MKK with timing belt side drive
Mounting
Mounting
General information
The linear modules are mounted using various fastening elements:
- Clamping fixtures
- Sliding blocks for size -110 and up
- Square nuts
- Spring nuts
- Screws for T-slots as per DIN 787 (no picture).
Length depends on base.
When mounting Linear Modules, please note the maximum tightening torques listed in the table.
Tightening torques of fastening screws
with friction factor 0.125 strength class 8.8
 | 8.8 | M4 | M5 | M6 | M8 | M10 | M12 |
 | (Nm) | 2,7 | 5,5 | 9,5 | 23 | 46 | 80 |
Mounting with clamping fixtures
Mounting with sliding blocks
| 1) | 85 (size .. -110) 120 (size -165) |
| Size | A | B | C |
| (mm) | (mm) | (mm) | |
| -040 | 52,2 | 65,5 | - |
| -065 | 81,0 | 95,0 | - |
| -080 | 96,0 | 110,0 | - |
| -110 | 132,0 | 150,0 | 85,0 |
| -140 | 170,0 | 196,0 | 105,0 |
| -145 | 172,0 | 198,0 | 78,0 |
| -165 | 192,0 | 218,0 | 120,0 |
Do not support the linear module on end enclosures, end blocks or on end plates!
The frame is the load-bearing part!
Overview of the switching system
1 Socket and plug
2 Mechanical switch with attachments
3 Proximity switch
4 Switch bracket
5 Mounting channel / cable channel
6 Magnetic field sensor with fixed potted cable
(Reed/Hall sensor (for mounting channel))
7 Reed/Hall sensor with plug and sensor holder
7a: Magnetic sensor
7b: Sensor holder incl. set screws (loose) and square nut
7c: Cable holder (3 pcs) incl. set screw (loose)
7d: M8x1 plug (3-pin)
8 Magnetic switch with M8x1 plug
9 Clamping screw
10 Sliding block
Switch mounting MKK/MKR/MLR-xxx-NN-x
MKK/MKR-xxx-NN-3
Further switch connection options (MKK/MKR-040-NN-3)
Magnetic field sensor (6) and mounting channel (5)
Mounting instructions:
A mounting channel is needed to fasten the magnetic field sensors and cable guides.
This is suspended at the side in the upper slot at the linear module MKK / MKR-040 and secured with set screws.
The magnetic field sensors are pushed into the top (MKK) or bottom T-grooves (MKR) in the mounting channel and
fixed with set screws. The switch activator is a magnet (on both sides) that is integrated in the carriage (no switch bracket necessary). The switch activation points can be positioned anywhere along the stroke. For position of solenoid switch, see the linear module instructions R320103169.
Switch connection MKK/MKR-040-NN-3
Magnetic sensor with M8x1 plug, switch mounting plate and cable holder
The switch activator is a magnet (on both sides) that is integrated in the carriage (no switch bracket necessary). The switch activation points can be positioned anywhere along the stroke. For position of solenoid switch, see the linear module instructions R320103169.
Mounting instructions:
The magnetic sensor is inserted into the corresponding slot of the sensor holder and fixed by turning the clamping screw in the sensor mount.
Sensors may only be mounted on one side (left or right) of the linear module and should not be installed until the linear module has been screwed down on its substructure. For a description of the mounting procedure and determination of the switching positions, see the mounting instructions for linear modules. See "Accessories" section for technical data.
MKK/MKR/MLR-xxx-NN-x
Proximity sensors, mechanical switches and accessories (MKK/MKR/MLR)
Mounting instructions:
The mechanical switches, the proximity sensors and the socket with plug and cable channel are fastened with attachments in T-grooves of the main body. Switch activation is carried out by a switch bracket on the carriage.
| Position | Name | Size -065/-080/-140 /-145-NN-3 | -110-NN-3 | -165-NN-2 |
| Material number | ||||
| 1 | Socket-plug | R117500153 | ||
| 2 | Mechanical switch | see accessories | ||
| Mechanical switch with attachments | R117500151 | |||
| 3 | Proximity sensor | see accessories | ||
| - Attachment parts without sensor | R117500152 | R117520152 | R117500152 | |
| 4 | Switching angle | R117500149 | R117500150 | |
| 5 | Cable duct | R039662017 | ||
| These switching versions can only be ordered with these material numbers. |
| Proximity sensor with additional attachment for | Proximity sensor with additional attachment for | Mechanical switch with attachment for |
 |  |  |
| 1) | Cable length: 3 m |
Socket and plug, cable duct
Attach the socket to the side with the most switches. The socket and plug are not pre-wired. The variable sliding attachment allows switching positions to be optimized during start-up. The plug can be mounted in three directions.
Cable duct
The cable duct is fastened in the T-slots on the side of the frame. Fastening screws widen the profile and ensure that the cable duct is securely mounted.
See the illustration for the position of the slot.
The cable duct will accommodate up to two cables for mechanical switches and three cables for proximity switches.
Fastening screws and cable grommets are included.
Socket and plug
Attach the socket to the side with the most switches. The socket and plug are not pre-wired. The variable sliding attachment allows switching positions to be optimized during start-up. The plug can be mounted in three directions.
Mounting examples of switches
Determination of the switching position
Switching distance: The switching distance is the distance between the carriage center (TM) and the zero point (0) when a switch is actuated (indicated in mm). Example of a mechanical limit switch (assuming the zero point is at L/2):
Maximum switching distance = 0.5 x (max. travel distance) – excess travel = 0.5 x effective stroke
For safe operation of the linear module the excess travel must be greater than the braking path.
For MKR... and MLR...: The acceleration travel sa can be assumed as the reference value for the braking distance.
For MKK...: In most cases, the following is sufficient as a guideline value for the excess travel (braking path): Excess travel = 2 x screw lead P.
Note the smallest possible switching distance (determined by attachments):
mechanical-mechanical = 60 mm; mechanical-proximity = 45 mm; proximity-proximity = 28 mm.
for MKR-145: mechanical-mechanical = 62 mm; mechanical-proximity = 49 mm; proximity-proximity = 35 mm
The switches as well as socket with plug are fixed in the upper T-slots of the frame and actuated by a switch tab on the carriage.
Mounting side of the switches:
| 1) | links (L) |
| 2) | right (R) |
| 3) | Direction of travel |
| 4) | 0.5 x stroke |
| 5) | Excess travel |
| 6) | 0.5 x max. travel path |
Commissioning
Parameterization (start-up)
The nameplate contains reference information on the production of the linear motion system as well as technical start-up parameters.
| Position | Symbol | Description |
| 1 | CNR | Customer's part number |
| 2 | TYP | Short product name |
| 3 | 110 | Size |
| 4 | CS | Customer information |
| 5 | MNR | Part number |
| 6 | FD | Manufacturing date |
| 7 | 7210 | Manufacturing location |
| 8 | smax | Maximum travel range |
| 9 | u | Lead constant without motor attachment |
| 10 | vmax | Maximum speed |
| 11 | amax | Maximum acceleration travel |
| 12 | M1max | Maximum drive torque at motor journal |
| 13 | d | Direction of motor rotation to move in positive (+) direction CW = clockwise CCW = counter clockwise  |
| 14 | i | Gear ratio |
| 15 | QR code |
Maintenance
Lubrication
Accessories
Combination examples
| 1) | End of range (‒) |
| 2) | Reference |
| 3) | End of range (+) |

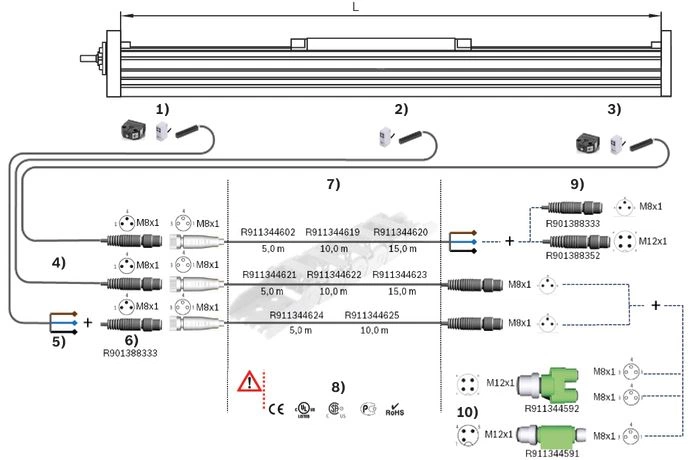

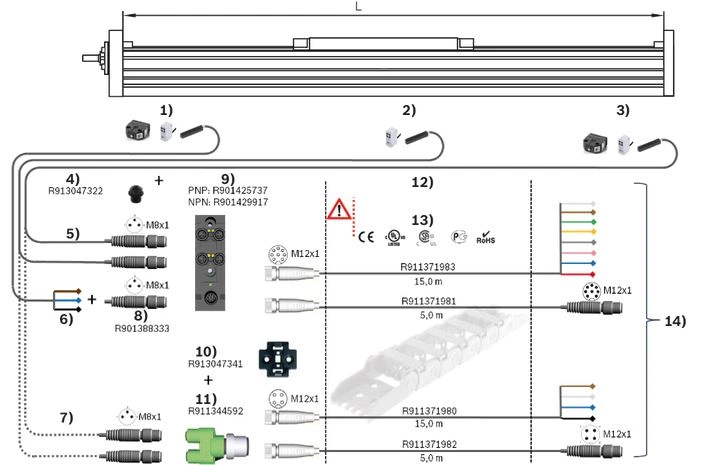

| 4) | Sensors with plug |
| 5) | Sensors with free cable end |
| 6) | Plug |
| 7) | Sensor extensions |
| 8) | Performance specification: suitable for flexing installation, torsion-resistant, weld spark-resistant |
| 9) | Plug |
| 10) | Adapter |
| 1) | End of range (‒) |
| 2) | Reference |
| 3) | End of range (+) |
| 4) | Screw plug |
| 5) | Sensors with plug |
| 6) | Sensors with free cable end |
| 7) | Sensors with plug |
| 8) | Plug |
| 9) | Passive distributor |
| 10) | Holding plate |
| 11) | Passive distributor |
| 12) | Extensions for passive distributors |
| 13) | Performance specification: suitable for flexing installation, torsion-resistant, weld spark-resistant |
| 14) | Higher-level control system |
Clamping fixtures for Linear Modules
Clamping fixtures for Linear Modules
Sliding blocks and springs for Linear Modules
Sliding blocks and springs for Linear Modules
Centering rings for Linear Modules
Centering rings for Linear Modules
Square nuts for Linear Modules
Square nuts for Linear Modules
Cable duct
Cable duct
Proximity sensor with free line end
Proximity sensor with free line end
Proximity sensor with M8x1 plug
Proximity sensor with M8x1 plug
Additional components for inductive sensor
Additional components for inductive sensor
Magnetic sensors
Magnetic sensors
Mechanical switch
Mechanical switch
Mechanical switch with M8x1 plug
Mechanical switch with M8x1 plug
Additional components for mechanical switch
Additional components for mechanical switch
Extension pieces - assembled on one side
Extension pieces - assembled on one side
Extension pieces - assembled on two sides
Extension pieces - assembled on two sides
Extension pieces
Extension pieces
Plug-in connector
Plug-in connector
Passive distributors
Passive distributors
Holding clip
Holding clip
Plug screw
Plug screw
Socket and plug
R117500153
Socket and plug
R117500153
Switching angle
Switching angle
Adapter
Adapter
Frequency meter
Frequency meter
Nozzle pipe
R3455 031 06
Nozzle pipe
R3455 031 06
- For manual grease guns
- For the lubrication of funnel-type and ball-type lube nipples
Delivery notes
Form of delivery
Product generation 3:
Linear Modules with a ball screw drive or belt drive are delivered fully assembled.
Gear/motor attachment interface:
If a combination of attachment interface, gears and motor has been selected, the attachment of the components is done as shown in the figure below. When ordering Linear Modules with only an attachment interface (without gears and motor!), not all parts can be mounted. Final assembly must then be carried out by the customer. All necessary instructions and parameters for professional assembly are included. The installation version is selected and determined during product configuration, and it is a part of the order key.
MKK with mount and coupling (F001)
MKK with timing belt side drive (S000 - S270)
1 Linear module
2 Motor
3 Mount and coupling
4 Timing belt side drive
5 Carriage
6 Motor connector
7 Gearing

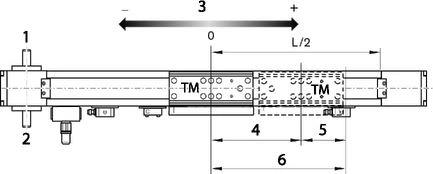

Motor connector position
- Linear Module in horizontal installation position (carriage at the top)
- View toward the motor from the rear
- For selectable motor connector locations, see "Order details" chapter, "Configuration and ordering" document.
Example:
timing belt side drive S270
Motor connector position 180°
Switching system
Magnetic sensors are included as loose parts. Further switching system components can be ordered from the range of accessory products. The exact setting of the position must be carried out before start-up. See “Mounting” chapter.
Lubrication
On delivery, Linear Modules of product generation 3 are supplied with initial greasing, preserved or prepared for connection to a central lubrication system according to the optionally selected lubricant version. For information on lubricants, see section “Maintenance”.
Documentation
Each Linear Module is supplied with the appropriate documentation.
Safety Instructions
Required and supplementary documentation
For further instructions and information, please refer to the documentation for this product.
You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.
We would also be happy to send you the documents that you want.
If you are unsure about using this product, please contact Bosch Rexroth.
Motor attachment
All dimensions in mm. Drawings not to scale.
Motor attachment via mount and coupling
Abmessungen
| Size | Motor coding | ▢ E | Lf |
| mm | mm | ||
| MKK-040-NN-3 | MS2N03-BOBYN | see dimension ▢ A → "Motors" chapter | 50 |
| MSM019B-0300 | 45 | ||
| MSM031B-0300 | 50 |
Motor attachment via timing belt side drive
Abmessungen
| Size | Motor coding | E | F | G | G1 | K | Lsd | |
| i = 1 | i = 1,5 | |||||||
| mm | mm | mm | mm | mm | mm | mm | ||
| MKK-040-NN-3 | MS2N03-BOBYN | 78,0 | 75,0 | 64,5 | 37,0 | 43,5 | 33,5 | 154 |
| MSM019B-0300 | 76,5 | 48,0 | 27,5 | 29,0 | 27,5 | 140 | ||
| MSM031B-0300 | 78,0 | 75,0 | 64,5 | 37,0 | 43,5 | 33,5 | 157 | |
Measurement and test reports
Documentation
Standard report, Option 001
The standard report serves to confirm that the checks listed in the report have been carried out and that the measured values lie within the permissible tolerances.
Checks listed in the standard report:
- Functional check of mechanical components
- Functional check of electrical components
- Design according to order confirmation
Frictional torque measurement of complete system, option 002
The frictional torque (MRS) is measured over the entire travel range.

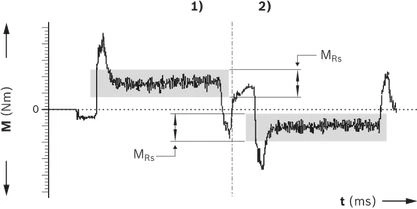

Example diagram
| 1) | Advance |
| 2) | Return |

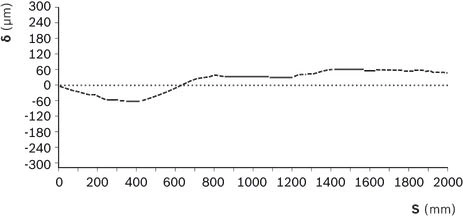

Lead deviation of the ball screw drive for Linear Modules MKK, option 003
In addition to graphical representation (see illustration), a measurement report is supplied in table form.
Example diagram
| δ = deviation (μm) | |
| s = measured travel (mm) | |
Positioning accuracy as per VDI/DGQ 3441 option 005
Measurement points are selected at irregular intervals along the travel distance. This enables even periodical deviations to be detected during positioning.
Each measurement point is approached several times from both sides.
This provides the following parameters.
Example diagram
Positional uncertainty P
The positional uncertainty equals the total deviation.
It encompasses all the systematic and random deviations in relation to positioning.
Positional uncertainty is a parameter for the positioning accuracy and corresponds to the total deviation. It encompasses all the systematic and random deviations in relation to positioning.
Positional uncertainty takes the following characteristic values into consideration:
- Positioning deviation
- Reversal range
- Position variation range
Positioning deviation Pa
The positioning deviation equals the maximum difference arising between the mean values of all the measurement points.
It describes systematic deviations.
Reversal range U
The reversal range corresponds to the difference in mean values of the two approach directions. The reversal range is determined at every measurement point.
It describes systematic deviations.
Position variation range PS
The position variation range describes the effects of random deviations.
It is determined at every measurement point.
Ordering codes
Order overview
| Short product name | Configuration and ordering |
| MKK-040-NN-3 | Configurator |
Explanation of short product name
| Linear Module MKK example | MKK-110-NN-3 | |
| System | M | Linear module |
| Linear guide | K | ball rail system (BSHP) |
| Drive | K | Ball screw assembly |
| Size | 110 | 040/065/080/110/145/165 |
| Version | NN | Normal version |
| Generation | 3 | Product generation 2/3 |
Configuration and ordering
General ordering example – Linear Modules
Downloads
 | Declaration of Incorporation for single axis Linear Motion Systems Certificate | R320103141 | 2020-06-01 | All languages | PDF | 409k Product Groups: Linear axes and electromechanical cylinders |
| Safety Instructions for Linear Motion Systems Manual | R320103152_en | 2015-01-01 | English | PDF | 593k Product Groups: Linear axes and electromechanical cylinders |
| Linear Modules MKK/MKR/MLR -040/-065/-080/-110/-140/-145-NN-3/-165-NN-2 Manual | R320103169_EN | 2021-11-01 | English | PDF | 6.9MB Product Groups: Linear Modules only available as PDF |
| Linear Modules MKK / MKR / MLR Catalog | R999000496 | 2021-03-01 | English | PDF | 17.5MB Product Groups: Linear Modules |
Нет отзывов об этом товаре.
