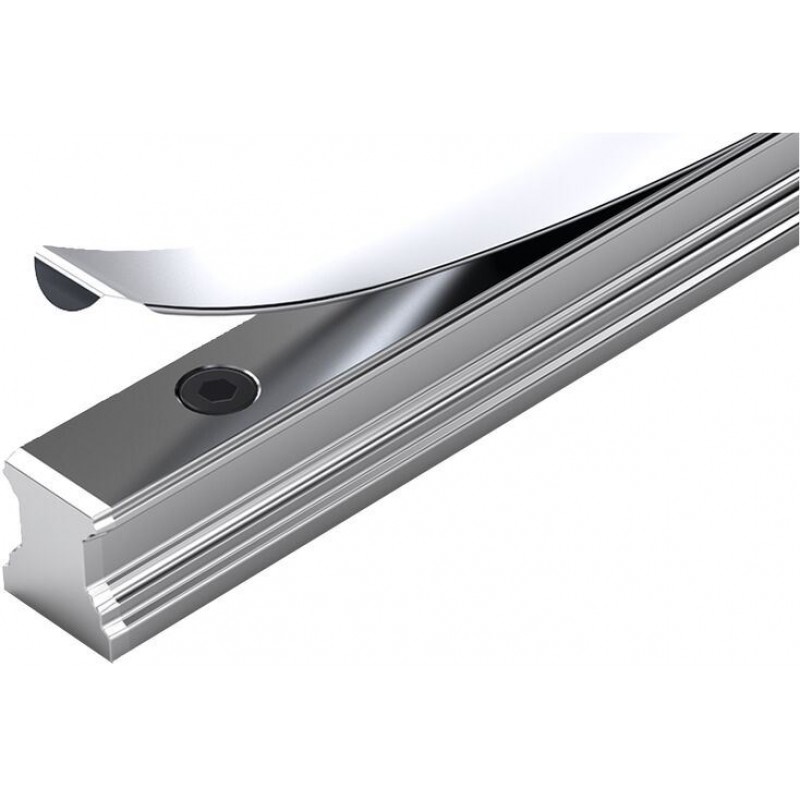

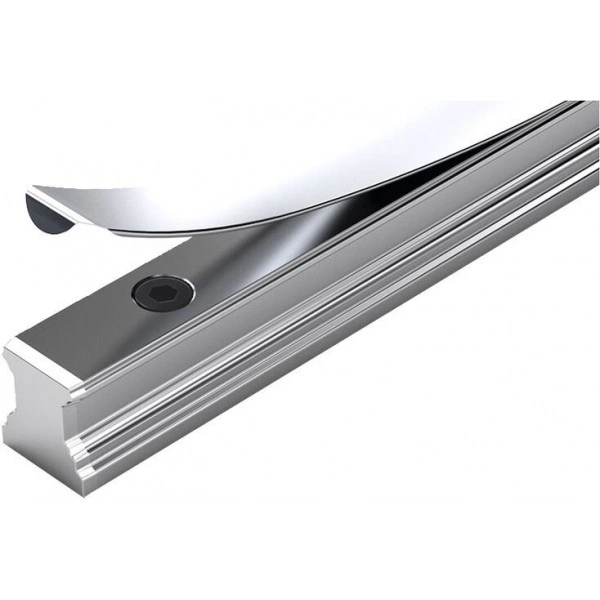

Standard loose cover strip with snap fit

Description

• The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
• No need to plug every single hole.
• No time delay while waiting for adhesive to harden when using adhesive tape.
• Can be mounted and removed several times (up to four times).
• For initial installation, storage and replacement

Project planning information

The cover strip is clipped on before the Ball Runner Block is mounted and fits tightly.

Note:

• The cover strip is a precision part that you must handle carefully. Above all, you must not bend it.

• There is a risk of injury on the edges and ends of the cover strip!

• Wear gloves.

Note

A suitable cover strip with snap fit or with sliding fit is available for each Ball Guide Rail SNS.

Mounting

Notes for mounting cover strip

Secure the cover strip!

• Observe the notes for mounting! Please request the "Mounting instructions for cover strip".

Ordering codes

Material numbers

Ordering example – standard cover strip with snap fit

• Ball Guide Rail SNS

• Size 35

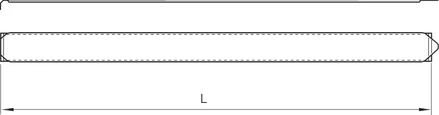

• Rail length L = 2,696 mm

Code

Part number, length L (mm)

R1619 330 20, 2,696 mm

Observe the notes for mounting! Please request the "Mounting instructions for cover strip".
