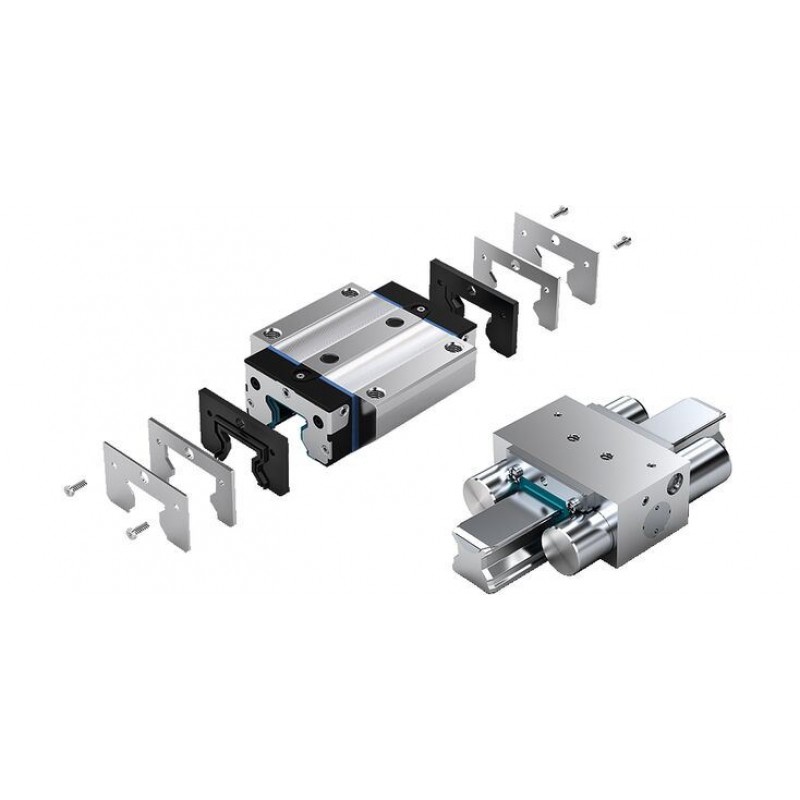

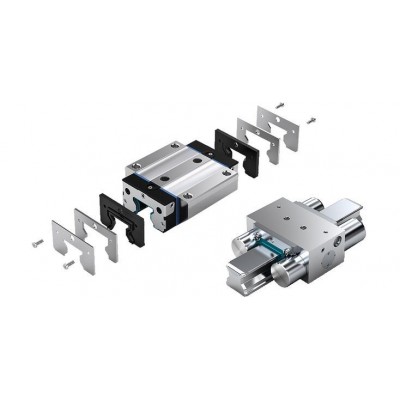

Loose cover strip with sliding fit

Description

• The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
• Can be mounted and removed several times.
• For initial installation, storage and replacement

Project planning information

Notes on cover strip

For detailed information, see "Mounting instructions for cover strip".

~

• For mounting or replacing a cover strip, if the roller runner block or connection structure cannot be removed.

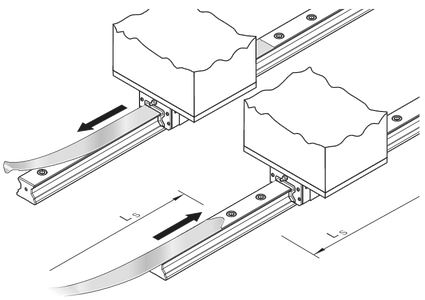

• A section of the snap fit cover strip is very slightly widened and can then be easily slid under the roller runner block.

Preparing the sliding-fit section subsequently

An expanding tool for cover strips can be used to create a sliding fit after installation. The main advantage is that the sliding length LS can be optimized accordingly for the installation.

Observe the detailed mounting instructions!

Note:

• The cover strip is a precision-machined part that must be handled with great care. It must on no account be bent.

• Do not execute stroke continuously to the end of the rail!

• The seals on the roller runner block can get damaged on the bevel of the cover strip.

Note

A suitable cover strip with snap fit or with sliding fit is available for each roller guide rail length.

Mounting

Keep minimum distance Lmin from rail end.

Minimum distance, rail end

Ordering codes

LS = length of the sliding section (mm)

L = rail length (mm)

Material numbers

Ordering example – cover strip with sliding fit

• Roller guide rail size 35

• Rail length L = 2,696 mm

• Length of sliding fit LS = 1,200 mm

Code

Material number, length L (mm), length of sliding fit LS (mm)

R1619 330 30, 2696, 1,200 mm

For additional, detailed information the order and assembly of cover strips, see "Mounting instructions for cover strip".
