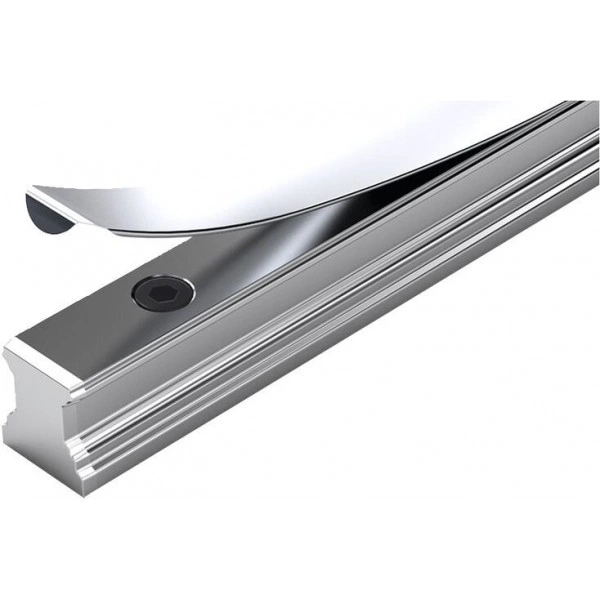

Loose cover strip with sliding fit

Description

• The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
• No need to plug every single hole.
• No time delay while waiting for adhesive to harden when using adhesive tape.
• Can be mounted and removed several times (up to four times).
• For initial installation, storage and replacement

Project planning information

• For mounting or replacing a cover strip, if the Ball Runner Block or connection structure cannot be removed.

• A section of the snap fit cover strip is very slightly widened and can then be easily slid under the Ball Runner Block.

Preparing the sliding-fit section subsequently

An expanding tool for cover strips can be used to create a sliding fit after installation. The main advantage is that the sliding length LS can be optimized accordingly for the installation.

Note:

• The cover strip is a precision-machined part that requires careful handling. Above all, it must not be bent.

• Risk of injury at the edges and ends of the cover strip!

• Wear gloves.

Note

A suitable cover strip with snap fit or with sliding fit is available for each Ball Guide Rail SNS.

Mounting

Notes for mounting cover strip

Secure the cover strip!

• Observe the notes for mounting! Please request the "Mounting instructions for cover strip".

Ordering codes

LS = length of the sliding section (mm)

L = rail length (mm)

Material numbers

Ordering example – cover strip with sliding fit

• Ball Guide Rail SNS

• Size 35

• Rail length L = 2,696 mm

• Length of sliding fit LS = 1,200 mm

Code

Material number, length L (mm), length of sliding fit LS (mm)

R1619 330 30, 2696, 1,200 mm

Observe the notes for mounting! Please request the "Mounting instructions for cover strip".

Downloads

Ball and Roller Rail Systems Measuring Instuctions for the Rail Seal Manual | R320103021 | 2003-04-01 | English, French, German, Italian | PDF | 1.4MB Product Groups: Linear guides
