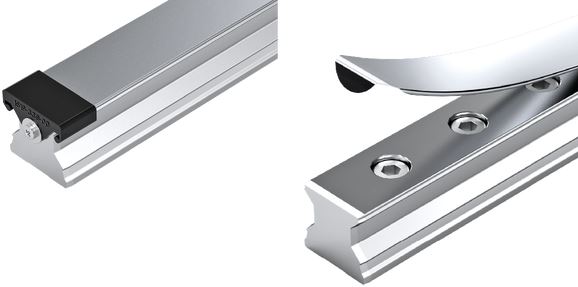

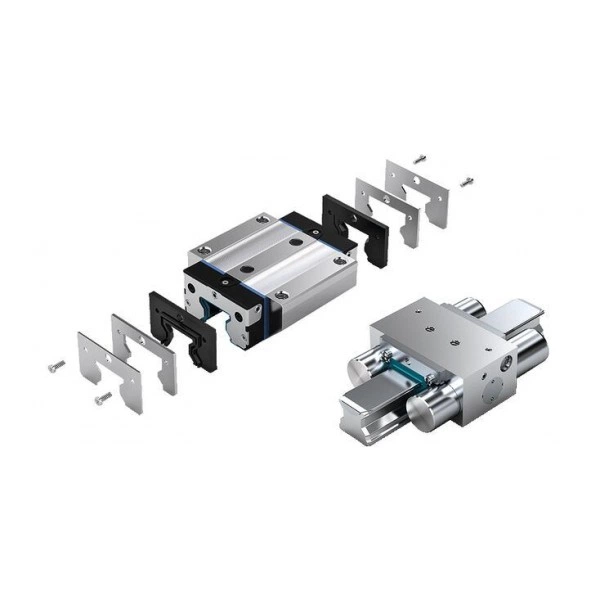

Standard loose cover strip with snap fit

Description

• The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
• Can be mounted and removed several times.
• For initial installation, storage and replacement

Project planning information

Notes on cover strip

For detailed information, see "Mounting instructions for cover strip".

The cover strip is clipped on before the roller runner block is mounted and fits tightly.

Note:

• The cover strip is a precision-machined part that must be handled with great care. It must on no account be bent.

• Do not execute stroke continuously to the end of the rail!

• The seals on the roller runner block can get damaged on the bevel of the cover strip.

Note

A suitable cover strip with snap fit or with sliding fit is available for each roller guide rail length.

Mounting

Keep minimum distance Lmin from rail end.

Minimum distance, rail end

Ordering codes

Material numbers

Ordering example – standard cover strip with snap fit

• Roller guide rail size 35

• Rail length L = 2,696 mm

Code

Material number, length L (mm)

R1619 330 20, 2,696 mm

For additional, detailed information the order and assembly of cover strips, see "Mounting instructions for cover strip".
