Loose Cover Strip with snap fit for Miniature Ball Rail Systems

Description

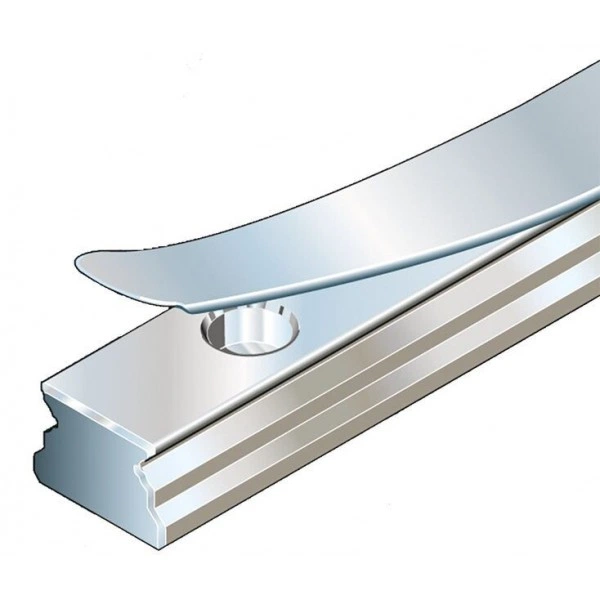

• The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
• No need to plug every single hole.
• No time delay while waiting for adhesive to harden when using adhesive tape.
• Can be mounted and removed several times.
• For initial installation, storage and replacement

Project planning information

The cover strip is clipped on before the Ball Runner Block is mounted and fits tightly.

Note:

• The cover strip is a precision part that you must handle carefully. Above all, you must not bend it.

• There is a risk of injury on the edges and ends of the cover strip!

• Wear gloves.

Mounting

Keep minimum distance Lmin from rail end.

Notes for mounting cover strip

Secure the cover strip!

• Observe the notes for mounting! Please request the "Mounting instructions for cover strip".

Ordering codes

Material numbers

Ordering example – Cover strip with snap fit for Miniature Guide Rail

• Miniature Guide Rail

• Size 9

• Rail length L = 771 mm

Code

Part number, length L (mm)

R0419 830 00, 771 mm

Observe the notes for mounting! Please request the "Mounting instructions for cover strip".

Downloads
