Plastic plain bearing, R13207..00

Name: Plastic plain bearing, R13207..00
Brand: Bosch Rexroth
SKU: RX8092

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

Product description

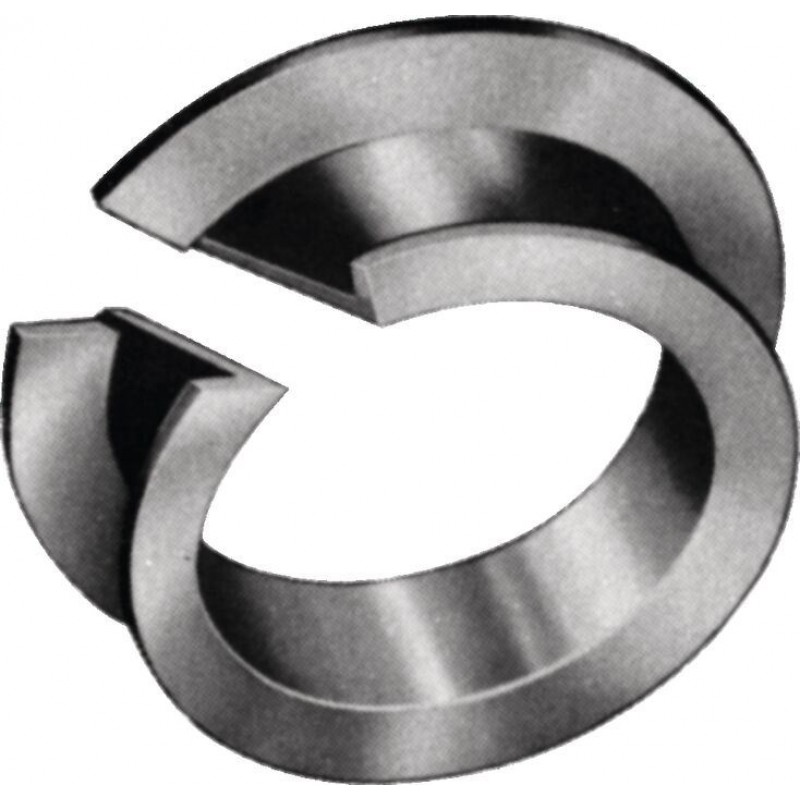

Type R13207..00 is equipped with two flanges with different diameters. This type is specially designed for mounting in sheet metal shields up to a maximum thickness of 2 mm, ensuring the secure fit of the plastic plain bearings in the bearing plates.

Compensation gap

The flange is provided with a compensating gap “A” in the longitudinal direction. This almost compensates for dimensional deviations that occur as a result of moisture absorption or temperature changes, saves lubricant in lubricated bearings, and contributes to its distribution in the bearing.

Technical data

Permissible p • v-values [N/cm2 • m/s]

d	Dry running	One-time grease lubrication	Continuous grease lubrication
mm	Dry running	One-time grease lubrication	Continuous grease lubrication
3	37	110	150
4
5
6
8	35	100	135
10
12

Permissible p ∙ v-values for an ambient temperature of 20°C

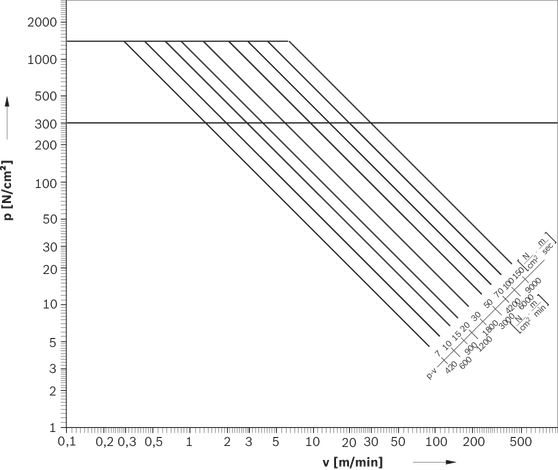

From the following diagram, the specific bearing pressures p in N/cm2 can be read for the peripheral speeds depending on the permissible p ∙ v value. For static loading capacity, a specific bearing pressure of p = 1400 N/cm2 is selected.

Radial load capacity

d		mm	3	4	5	6	8	10	12
Static load capacity		N	85	112	140	168	225	280	335
50 min–1	Dry running	N	85	112	140	168	225	265
	One-time grease lubrication	N	85	112	140	168	225	280	335
	Continuous grease lubrication	N	85	112	140	168	225	280	335
100 min–1	Dry running	N	85	112	140	143	133
	One-time grease lubrication	N	85	112	140	168	225	280	335
	Continuous grease lubrication	N	85	112	140	168	225	280	335
250 min–1	Dry running	N	57				53
	One-time grease lubrication	N	85	112	140	166	154
	Continuous grease lubrication	N	85	112	140	168	205

	The axial load which can be absorbed by the collar must not exceed 25 % of the radial load capacity; for this, shaft collar diameter must correspond to dimension "D" (see dimensions).
	The specified values are valid for a bearing temperature ≤ 80 °C and an ambient temperature of 20 °C.

Technical data

Dimensions

d	D	D1	I	s	Tolerance for s	s1	Tolerance for s1
mm	mm	mm	mm	mm	mm	mm	mm
3	6	4.8	2	0.6	0 - 0.06	0.6	0 - 0.06
4	7	5.9
5	8	6.8
6	11	7.8
8	13	10.4		0.8		0.8
10	15	12.4
12	17	14.4			0 - 0.07

Project planning information

Calculation of the load capacity, service life and bearing clearance

Mounting

▶ When mounting this type, be sure that the large flange comes to the side upon which the occurring axial forces are applied. The compensating gap “A” allows the plastic plain bearings to be compressed until the small flange can be easily rotated through the receiving bore in the bearing plate. For this, not that the gap points upwards during assembly and the left end is inserted first into the receiving bore. With a clockwise rotation, the plastic plain bearing pulls itself into the bore. If the assembly has been done properly, plastic plain bearings spring up again and are seated properly.

Mounting

Maintenance

Lubrication

Downloads

Plastic Plain Bearings
Catalog | R310EN2950 | 2003-03-01 | English | PDF | 1.1MB
Product Groups: Ball transfer units and tolerance rings
