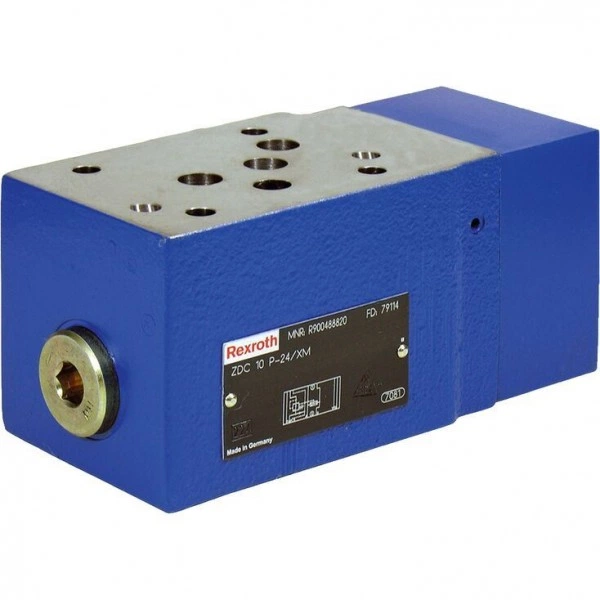

Meter-in pressure compensator, direct operated ZDC 10...32

Name: Meter-in pressure compensator, direct operated ZDC 10...32
Brand: Bosch Rexroth
SKU: RX7665

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

Size 10, 16, 25, 32
Component series 2X
Maximum operating pressure 350 bar
Maximum flow 520 l/min

Features

Sandwich plate valve
Porting pattern according to ISO 4401
Load compensation in channel P → A or P → B by installed shuttle valve
2-way version "P"
3-way version "PT" (NG10 ... 25)
Flow control in case of interaction with proportional directional valve

Product description

Valves of type ZDC are direct operated supply pressure compensators in 2- or 3-way version.

The are used for the load compensation as supply pressure compensator in channel P.

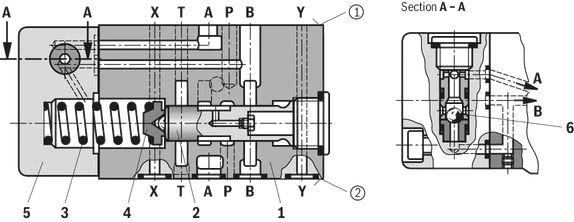

These valves basically consist of the housing (1), the control spool (2), compression spring (3) with spring plate (4) and the cover (5) with installed shuttle valve (6).

The compression spring (3) holds the control spool (2) in the opened position from P2 to P1 if the pressure differential P1 → A1 or P1 → B1 is smaller than 10 bar.

If the pressure differential exceeds 10 bar, the control spool (2) is moved to the left until the pressure differential is restored again.

In connection with the supply pressure compensator, the pilot-operated proportional directional valve is to be used with “external pilot oil supply“!

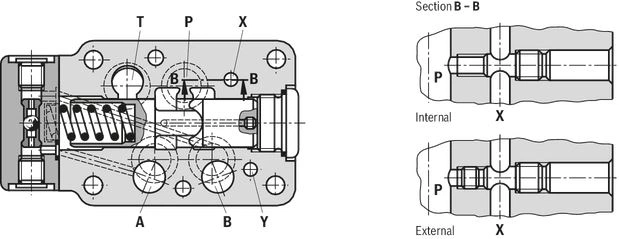

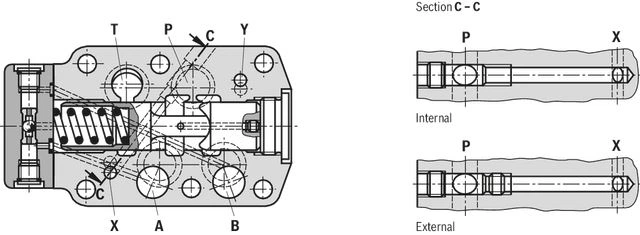

With external pilot oil supply, the connection to channel P is blocked. The pilot oil is sampled from a separate control circuit.

With internal pilot oil supply, the connection to channel P is open. The pilot oil is sampled upstream the throttle side of the pressure compensator (port X in the subplate is blocked).

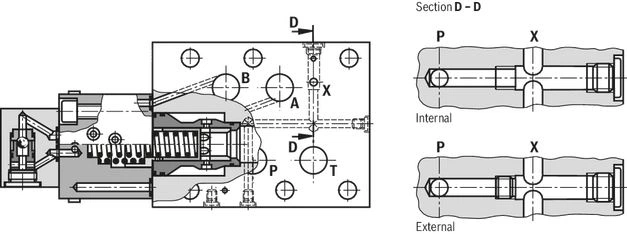

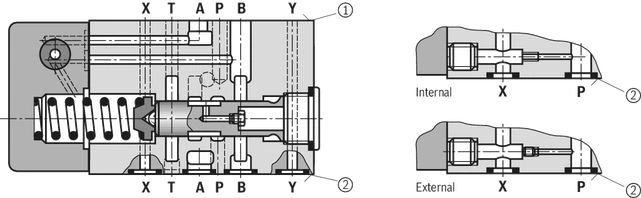

Type ZDC..P-2X/X...

Type ZDC..P-2X/...

Type code

01	02	03	04		05		06	07	08	09
Z	DC			-	2X	/				*

01	Sandwich plate valve	Z
02	Meter-in pressure compensator	DC
03	Size 10	10
	Size 16	16
	Size 25	25
	Size 32	32
04	2-way version (pressure reducing function)	P
04	3-way version (pressure limiting function)	PT
05	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6	2X
06	Internal pilot oil supply	no code
	External pilot oil supply	X
	Pilot oil supply extern, port X closed on the component side (only NG10)	XL
07	Without special type of protection	no code
07	Sea water-resistant	J
Seal material
08	NBR seals	M
08	FKM seals	V
09	Further details in the plain text	*

Technical data

allgemein

Nenngröße		10	16	25	32
Geräteserie		2X
Einbaulage		Any
Masse	kg	3	3.5	8.9	64.7

hydraulisch

Maximaler Betriebsdruck		bar	350
Maximaler Betriebsdruck	Anschluss A	bar	350
	Anschluss B	bar	350
	Port P	bar	350
	Port T	bar	250
	Port Y 1)	bar	150
Betriebsdruckbereich	Anschluss X	bar	30 ... 100
Maximum flow		l/min	85	150	325	520
Druckflüssigkeit			see table
Druckflüssigkeitstemperaturbereich		°C	-20 … +70
Maximal zulässiger Verschmutzungsgrad der Druckflüssigkeit; Reinheitsklasse nach ISO 4406 (c) 2)			Class 20/18/15 according to ISO 4406 (c)
Viskositätsbereich		mm²/s	15 … 380

1)	up to 30 bar in connection with pilot-operated proportional directional valve
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Mineral oils and related hydrocarbons

HL, HLP, HLPD, HVLP, HVLPD

NBR

DIN 51524

Important information on hydraulic fluids:

For more information and data on the use of other hydraulic fluids please contact us.

There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).

Diagrams/characteristic curves

(measured with HLP46, ϑOil = 40 ±5 °C)

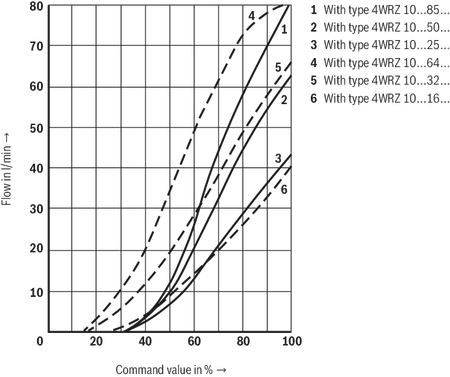

Flow control P → A, P → B

Size 10

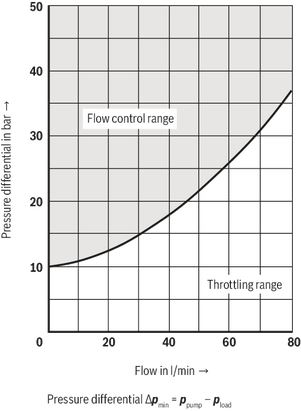

Flow control P → A, P → B

Size 10

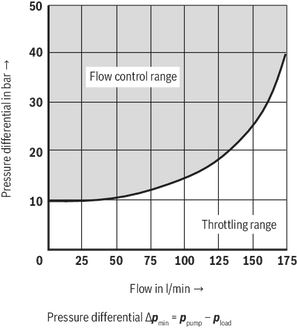

Flow control P → A, P → B

Size 16

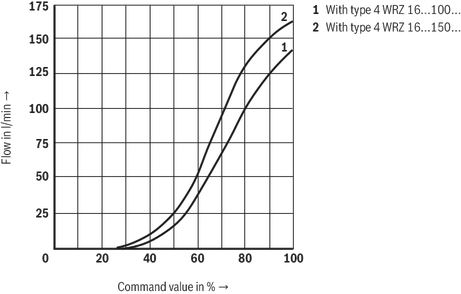

Flow control P → A, P → B

Size 16

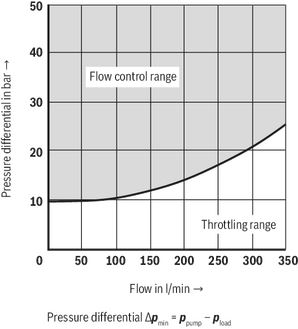

Flow control P → A, P → B

NG25

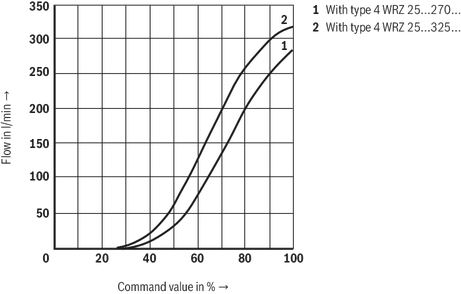

Flow control P → A, P → B

NG25

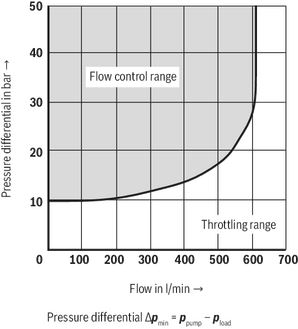

Flow control P → A, P → B

Size 32

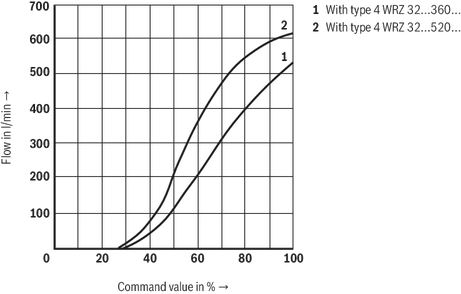

Flow control P → A, P → B

Size 32

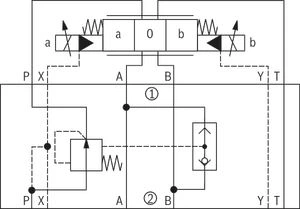

Symbols/Circuit diagrams

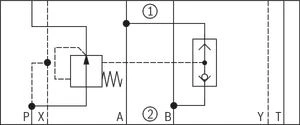

Internal pilot oil supply, type ZDC . P-2X/...

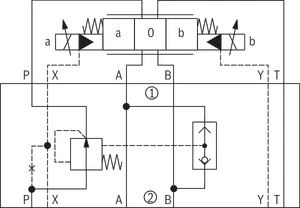

External pilot oil supply, type ZDC . P-2X/X...

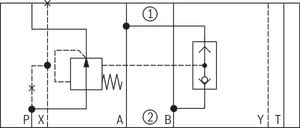

Pilot oil supply extern, port X closed on the component side (only r NG10), type ZDC 10 P-2X/XL...

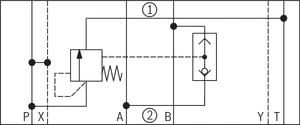

Internal pilot oil supply, type ZDC . PT-2X/...

External pilot oil supply, type ZDC . PT-2X/X...

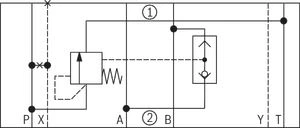

Pilot oil supply extern, port X closed on the component side (only r NG10), type ZDC 10 PT-2X/XL...

Dimensions

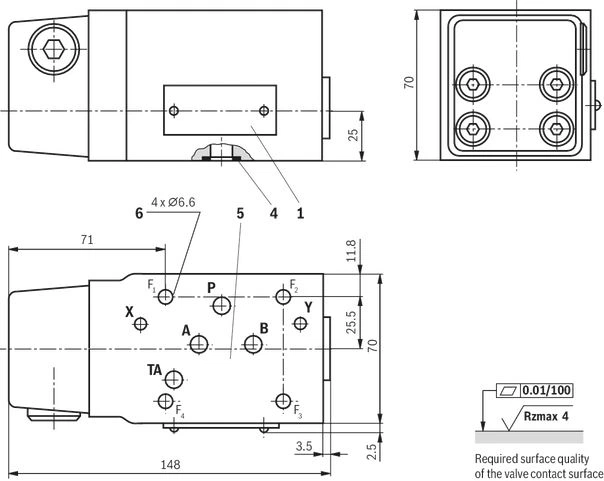

Size 10

Dimensions in mm

1	Name plate
4	Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y (plate side)
5	Porting pattern according to ISO 4401-05-05-0-05
6	Valve mounting bores
Valve mounting screws (separate order) 4 hexagon socket head cap screws ISO 4762 - M6 - 10.9 Notice: Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.

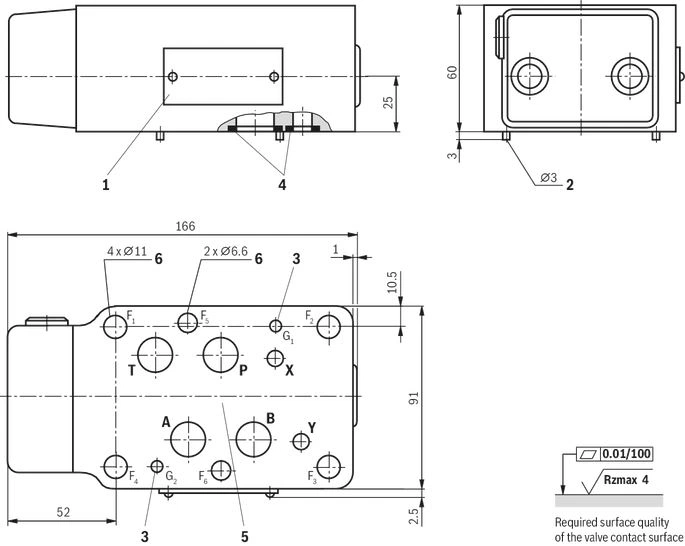

Size 16

Dimensions in mm

1	Name plate
2	Locating pin
3	Bore for locating pin
4	Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y (plate side)
5	Porting pattern according to ISO 4401-07-07-0-05
6	Valve mounting bores
Valve mounting screws (separate order) 4 hexagon socket head cap screws ISO 4762 - M10 - 10.9 2 hexagon socket head cap screws ISO 4762 - M6 - 10.9 Notice: Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.

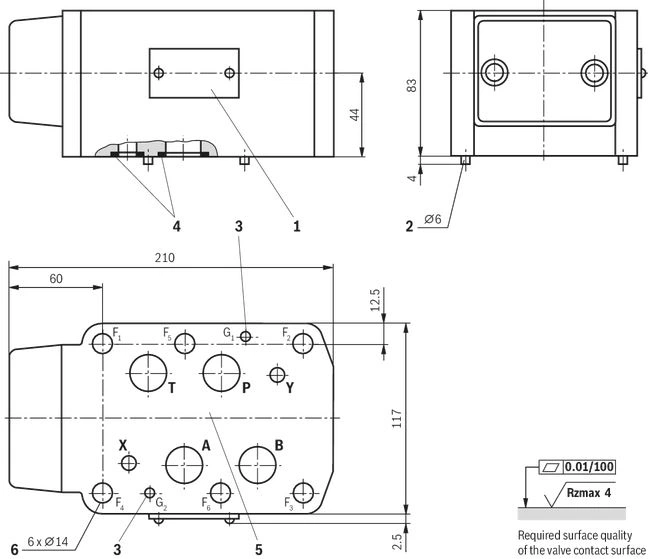

NG25

Dimensions in mm

1	Name plate
2	Locating pin
3	Bore for locating pin
4	Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y (plate side)
5	Porting pattern according to ISO 4401-08-08-0-05
6	Valve mounting bores
Valve mounting screws (separate order) 6 hexagon socket head cap screws ISO 4762 - M12 - 10.9 Notice: Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.

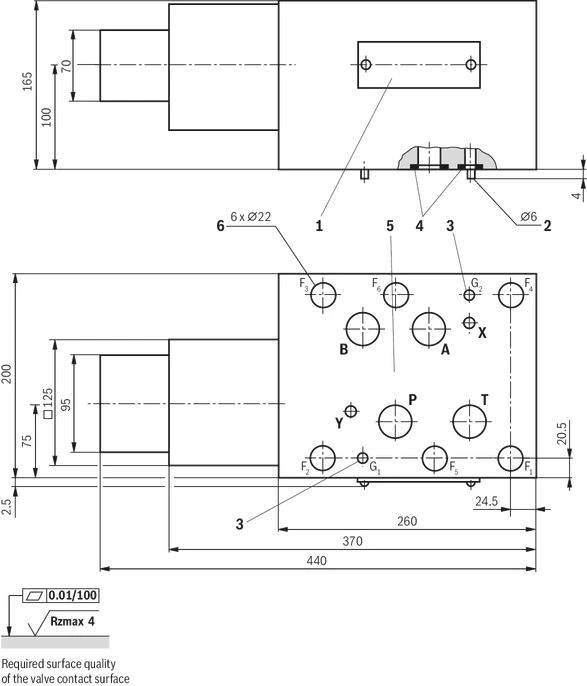

Size 32

Dimensions in mm

1	Name plate
2	Locating pin
3	Bore for locating pin
4	Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y (plate side)
5	Porting pattern according to ISO 4401-10-09-0-05
6	Valve mounting bores
Valve mounting screws (separate order) 6 hexagon socket head cap screws ISO 4762 - M20 - 10.9 Notice: Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
