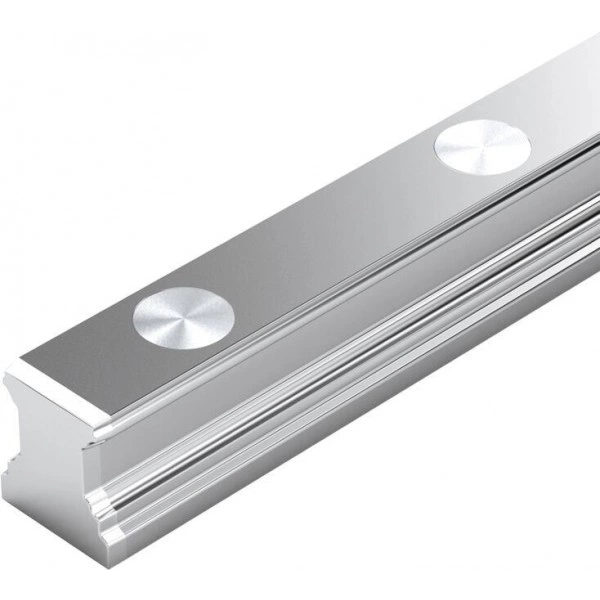

Ball Guide Rails SNS with steel mounting hole plugs R1606 .5. ..
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Area of application: For very harsh environments
- More resistant to mechanical influences (e.g. shocks)
- For mounting from above
- For steel caps
- Top rigidity in all load directions
Features
- High torque capacity
Product description
Ball rails can be cut to the length required by the customer.
The maximum lengths for one-piece guide rails can be found in the "Technical data" chapter.
If longer rails are required, Bosch Rexroth supplies them as composite ball guide rails.
Ball guide rail with temperature control
Product description of Ball Rail Systems
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 25 | 30 | 35 | 45 | 55 | 65 | |
| m | kg/m | 3.2 | 5 | 6.8 | 10.5 | 16.2 | 22.4 |
| Lmax | mm | 5816 | 5836 | 5771 | 3836 | 3746 | |
| Material | CS | ||||||
| Operating conditions | |||||||
| Size | 25 | 30 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) 1) | 0 °C ... +80 °C | ||||||
| 1) | Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes

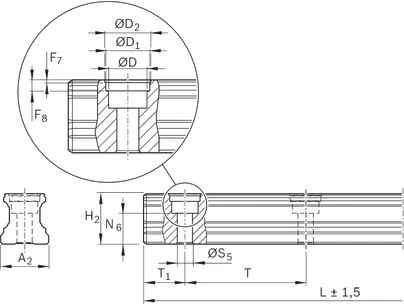

Dimensions
Dimensions
| Size | 25 | 30 | 35 | 45 | 55 | 65 | |
| A2 | mm | 23 | 28 | 34 | 45 | 53 | 63 |
| F7 | mm | 0.9 | 1.45 | ||||
| F8 | mm | 3.7 | 3.6 | 8 | |||
| D | mm | 11 | 15 | 20 | 24 | 26 | |
| D1 | mm | 12.55 | 17.55 | 22.55 | 27.55 | 29.55 | |
| D2 | mm | 13 | 18 | 23 | 28 | 30 | |
| H2 | mm | 24.25 | 28.35 | 31.85 | 39.85 | 47.85 | 59.85 |
| N6 | 15.2 mm ±0.5 | 17 mm ±0.5 | 20.5 mm ±0.5 | 23.5 mm ±0.5 | 29 mm ±0.5 | 38.5 mm ±0.5 | |
| ØS5 | mm | 7 | 9 | 14 | 16 | 18 | |
| T | mm | 60 | 80 | 105 | 120 | 150 | |
| T1 min | mm | 13 | 16 | 18 | 20 | 21 | |
| T1 s | mm | 28 1) | 38 1) | 50.5 1) | 58 1) | 73 1) | |
| T1 max | mm | 50 | 68 | 89 | 102 | 130 | |
| nB | 64 | 48 | 36 | 32 | 25 | ||
| 1) | Preferred dimension T1S Recommended with tolerances ± 0.75. |
Legend
| Symbol | Description | Unit |
| T1 min | Minimum distance | mm |
| T1 max | Maximum distance | mm |
| T1 s | Preferred dimension | mm |
| T | Spacing of guide rail | mm |
| nB | Maximum number of holes |
Mounting
Notes
▶ Steel caps not included in scope of delivery.
▶ Observe the notes for mounting!
▶ Please request "Mounting instructions for Ball Rail Systems".
▶ Composite Ball Guide Rail also available.
General mounting instructions
Certification
Safety Instructions
Downloads
