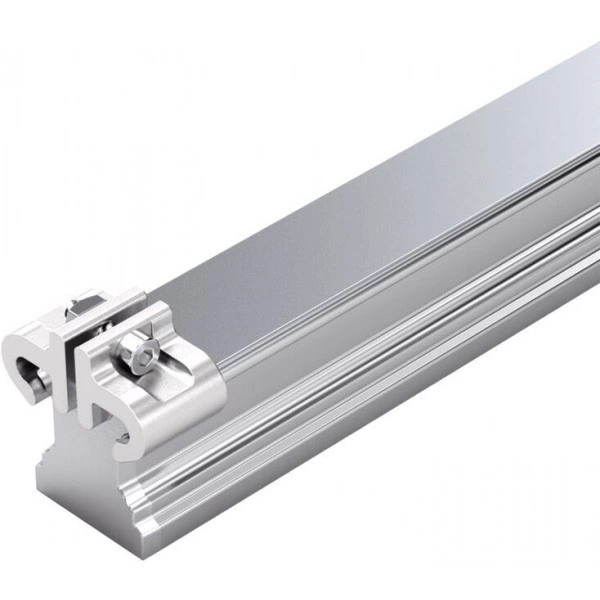

Ball Guide Rails SNS with cover strips and strip clamps R1605 .3. ..
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Area of application: For very harsh environments
- Robust strip clamp
- For mounting from above
- With cover strip made of corrosion-resistant spring steel as per DIN EN 10088
- Aluminum strip clamps (without threaded holes on end faces)
Features
- Top rigidity in all load directions
- High torque capacity
- A single cover for all holes. No end-face hole required for strip clamp.
Product description
Ball rails can be cut to the length required by the customer.
The maximum lengths for one-piece guide rails can be found in the "Technical data" chapter.
If longer rails are required, Bosch Rexroth supplies them as composite ball guide rails.
Proven cover strip for the Ball Guide Rail mounting holes
▶ One cover for all bore holes saves time and costs
▶ Made of corrosion-resistant spring steel as per DIN EN 10088
▶ Easy and safe during mounting
▶ Clip on and secure
Ball guide rail with temperature control
Product description of Ball Rail Systems
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| m | kg/m | 1.4 | 2.4 | 3.2 | 5 | 6.8 | 10.5 | 16.2 | 22.4 |
| Lmax | mm | 3836 | 5816 | 5836 | 5771 | 3836 | 3746 | ||
| Material | CS | ||||||||
| Operating conditions | |||||||||
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) 1) | 0 °C ... +80 °C | ||||||||
| 1) | Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions
load errorMounting
Notes
▶ Secure cover strip!
▶ Strip clamps included in scope of delivery.
▶ Observe the notes for mounting!
▶ Please request the "Mounting instructions for roller rail systems" and "Mounting instructions for cover strip".
▶ Composite Ball Guide Rail also available.
