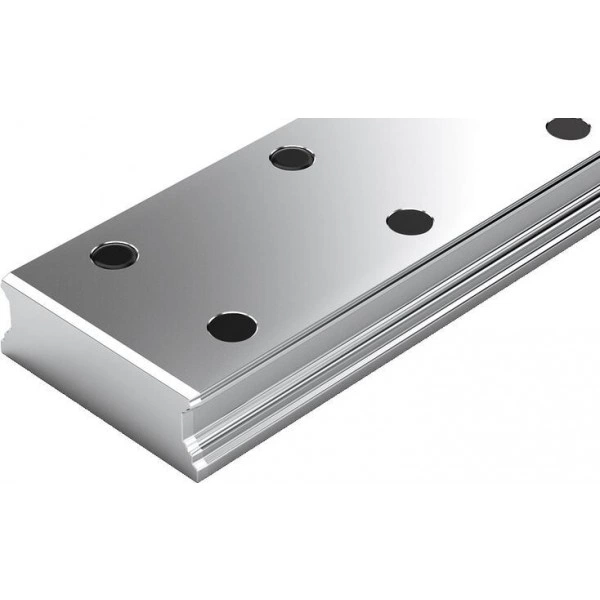

Ball Guide Rails BNS Resist CR with plastic mounting hole plugs R1673 .0. ..
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Very high torque load capacity
- Top rigidity in all load directions
- Corrosion-resistant coating Resist CR, matte silver hard chrome plated
- Top rigidity in all load directions
- Very high torque load capacity
- Double-rowed for mounting from above
- Plastic mounting hole plugs
- Corrosion-resistant coating Resist CR, matte silver hard chrome plated
Features
- No extra space needed at rail ends
- Observe the notes for mounting! Please request the "Mounting Instructions for Ball Rail Systems".
Product description
Ball rails can be cut to the length required by the customer.
The maximum lengths for one-piece guide rails can be found in the "Technical data" chapter.
If longer rails are required, Bosch Rexroth supplies them as composite ball guide rails.
Attention! Size 20/40:
New Ball Rail Systems with different ball diameters. Not interchangeable with the old 20/40 size!
Ball guide rail with temperature control
Product description of Ball Rail Systems
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 20/40 1) | 25/70 | 35/90 | |
| m | kg/m | 5.3 | 11.6 | 21 |
| Lmax | mm | 3836 | ||
| Material | CR | |||
| Operating conditions | ||||
| Size | 20/40 1) | 25/70 | 35/90 | |
| Permissible ambient temperature (min ... max) 2) | 0 °C ... +80 °C | |||
| 1) | Attention: Ball Guide Rail, not combinable with Ball Runner Block R1671 8.. ..! |
| 2) | Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions

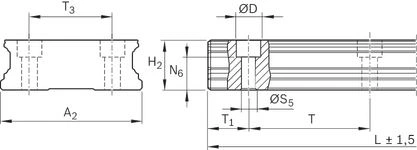

Dimensions
| Size | 20/40 1) | 25/70 | 35/90 | |
| A2 | mm | 42 | 69 | 90 |
| D | mm | 7.4 | 11 | 15 |
| H2 | mm | 18.3 | 23.55 | 31.85 |
| N6 | 12.45 mm ±0.5 | 14.5 mm ±0.5 | 20.5 mm ±0.5 | |
| ØS5 | mm | 4.4 | 7 | 9 |
| T | mm | 60 | 80 | |
| T1 min | mm | 10 | 12 | |
| T1 s | mm | 28 2) | 38 2) | |
| T1 max | mm | 50 | 70 | 68 |
| T3 | mm | 24 | 40 | 60 |
| nB | 64 | 48 | ||
| 1) | Attention: Ball Guide Rail, not combinable with Ball Runner Block R1671 8.. ..! |
| 2) | Preferred dimension T1S Recommended with tolerances ± 0.75. |
Legend
| Symbol | Description | Unit |
| T1 min | Minimum distance | mm |
| T1 max | Maximum distance | mm |
| T1 s | Preferred dimension | mm |
| T | Spacing of guide rail | mm |
| nB | Maximum number of holes |
Mounting
General mounting instructions
Accessories
Pneumatic clamping units MK
R1619 .42 6.
Pneumatic clamping units MK
R1619 .42 6.
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio
- Easy mounting
- Clamps with pressure (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.
Pneumatic clamping units MKS
R1619 .40 6.
Pneumatic clamping units MKS
R1619 .40 6.
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio
- Easy mounting
- Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies.
Manual clamping units HK
R1619 .42 83
Manual clamping units HK
R1619 .42 83
- Simple and safe design in compact format
- Manually operated clamping unit without auxiliary power
- Freely adjustable hand lever
- Exact positioning, high dynamics, powerful drive and long service life through the use of high-precision linear screw drives
- Manual clamping unit
Plastic mounting hole plugs for Ball Rail Systems
R1605 .0
Plastic mounting hole plugs for Ball Rail Systems
R1605 .0
Steel caps for Ball Rail Systems
R1606 75
Steel caps for Ball Rail Systems
R1606 75
Mounting tool for steel caps
Mounting tool for steel caps
- Two-piece, with mounting instructions
- The two-piece mounting tool is suitable for mounting hole plugs in built-in guide rails (mounting instructions enclosed)
