Артикул: RX8605
В наличии

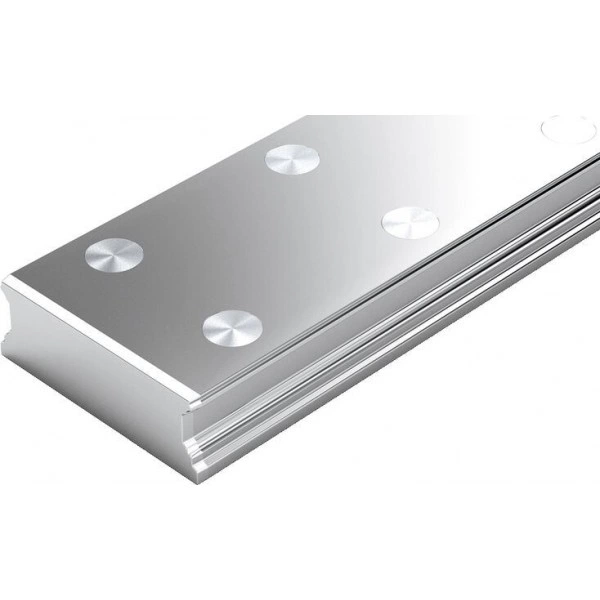

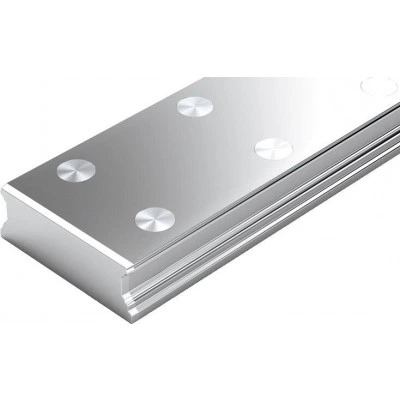

Ball Guide Rails BNS with steel mounting hole plugs R1676 .5. ..
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Very high torque load capacity
- Top rigidity in all load directions
- Area of application: For very harsh environments
- More resistant to mechanical influences (e.g. shocks)
- Double-rowed for mounting from above
- Steel caps (not included in scope of delivery, order separately).
- Top rigidity in all load directions
Features
- Very high torque load capacity
- No extra space needed at rail ends
- Observe the notes for mounting! Please request the "Mounting Instructions for Ball Rail Systems".
Product description
Ball rails can be cut to the length required by the customer.
The maximum lengths for one-piece guide rails can be found in the "Technical data" chapter.
If longer rails are required, Bosch Rexroth supplies them as composite ball guide rails.
Ball guide rail with temperature control
Product description of Ball Rail Systems
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 25/70 | 35/90 | |
| m | kg/m | 11.6 | 21 |
| Lmax | mm | 3836 | |
| Material | CS | ||
| Operating conditions | |||
| Size | 25/70 | 35/90 | |
| Permissible ambient temperature (min ... max) 1) | 0 °C ... +80 °C | ||
| 1) | Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions

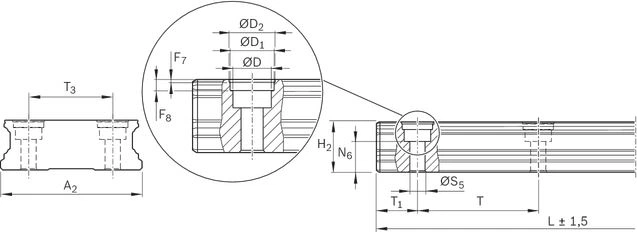

Dimensions
| Size | 25/70 | 35/90 | |
| A2 | mm | 69 | 90 |
| F7 | mm | 0.9 | |
| F8 | mm | 3.7 | 3.6 |
| D | mm | 11 | 15 |
| D1 | mm | 12.55 | 17.55 |
| D2 | mm | 13 | 18 |
| H2 | mm | 23.55 | 31.85 |
| N6 | 14.5 mm ±0.5 | 20.5 mm ±0.5 | |
| ØS5 | mm | 7 | 9 |
| T | mm | 80 | |
| T1 min | mm | 10 | 12 |
| T1 s | mm | 38 1) | |
| T1 max | mm | 70 | 68 |
| T3 | mm | 40 | 60 |
| nB | 48 | ||
| 1) | Preferred dimension T1S Recommended with tolerances ± 0.75. |
Legend
| Symbol | Description | Unit |
| T1 min | Minimum distance | mm |
| T1 max | Maximum distance | mm |
| T1 s | Preferred dimension | mm |
| T | Spacing of guide rail | mm |
| nB | Maximum number of holes |
Mounting
Notes
▶ Plastic mounting hole plugs included in scope of delivery.
▶ Observe the notes for mounting!
▶ Please request "Mounting instructions for Ball Rail Systems".
▶ Composite Ball Guide Rail also available.
General mounting instructions
Accessories
Pneumatic clamping units MK
R1619 .42 6.
Pneumatic clamping units MK
R1619 .42 6.
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio
- Easy mounting
- Clamps with pressure (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.
Pneumatic clamping units MKS
R1619 .40 6.
Pneumatic clamping units MKS
R1619 .40 6.
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio
- Easy mounting
- Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies.
Manual clamping units HK
R1619 .42 83
Manual clamping units HK
R1619 .42 83
- Simple and safe design in compact format
- Manually operated clamping unit without auxiliary power
- Freely adjustable hand lever
- Exact positioning, high dynamics, powerful drive and long service life through the use of high-precision linear screw drives
- Manual clamping unit
Plastic mounting hole plugs for Ball Rail Systems
R1605 .00 .0
Plastic mounting hole plugs for Ball Rail Systems
R1605 .00 .0
Steel caps for Ball Rail Systems
R1606 .00 75
Steel caps for Ball Rail Systems
R1606 .00 75
Mounting tool for steel caps
Mounting tool for steel caps
- Two-piece, with mounting instructions
- The two-piece mounting tool is suitable for mounting hole plugs in built-in guide rails (mounting instructions enclosed)
Certification
load errorSafety Instructions
load errorDownloads
 | Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog BSHP Ball Rail Systems Catalog | R999000485 | 2020-10-01 | English | PDF | 15MB Product Groups: Ball Rail Systems only available as PDF |
