Артикул: RX8403
В наличии

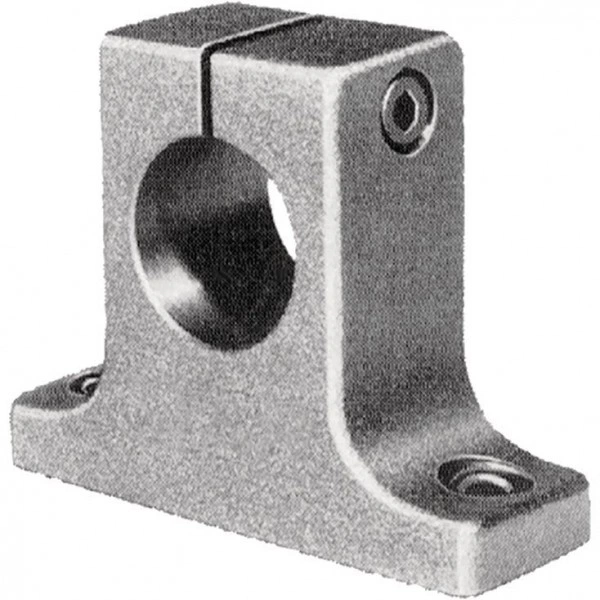

Shaft support blocks, R1055 WBG-..
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Material: Spheroidal graphite cast iron and steel
- Side clamping
Features
- For easy installing and quick aligning
- Precise design with reference edge
- More affordable than in-house designs
Technical data
| Ød | mm | 8 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
| m | kg | 0.04 | 0.06 | 0.12 | 0.22 | 0.37 | 0.55 | 0.97 | 1.9 | 3.6 | 7.3 |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| m | Mass | kg |

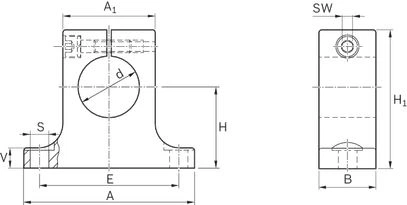

Dimensions
Abmessungen
| Ød | mm | 8 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | |
| A 1) | mm | 32 | 42 | 50 | 60 | 74 | 84 | 108 | 130 | 160 | 200 | |
| A1 1) | mm | 16 | 20 | 26 | 32 | 38 | 45 | 56 | 80 | 100 | 130 | |
| B 1) | mm | 10 | 12 | 16 | 20 | 25 | 28 | 32 | 40 | 48 | 60 | |
| d | H8 | mm | 8 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
| E | 25 mm ±0.15 | 32 mm ±0.15 | 40 mm ±0.15 | 45 mm ±0.15 | 60 mm ±0.15 | 68 mm ±0.2 | 86 mm ±0.2 | 108 mm ±0.2 | 132 mm ±0.25 | 170 mm ±0.5 | ||
| H 2) | 15 mm ±0.01 | 20 mm ±0.01 | 25 mm ±0.01 | 30 mm ±0.01 | 35 mm ±0.01 | 40 mm ±0.01 | 50 mm ±0.01 | 60 mm ±0.015 | 75 mm ±0.015 | 100 mm ±0.015 | ||
| H1 1) | mm | 27 | 35 | 42 | 50 | 58 | 68 | 86 | 100 | 124 | 160 | |
| SW | mm | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | ||||
| S 3) | mm | 4.5 | 5.5 | 6.6 | 9 | 11 | 13.5 | 17.5 | ||||
| V 1) | mm | 5 | 5.5 | 6.5 | 8 | 9 | 10 | 12 | 14 | 15 | 22 | |
| 1) | Tolerance ISO 8062-3 - DCTG 11. |
| 2) | In relation to nominal shaft dimension "d" |
| 3) | Cylinder bolts ISO 4762-8.8 |
Project planning information
Life expectancy calculation
Certification
Directives and standards
Safety Instructions
Notes
Ordering codes
Materialnummern
| Ød | Part number | Short product name | CAD data | Buy |
| mm | ||||
| 8 | R105500800 | WBG-8 | ||
| 12 | R105501200 | WBG-12 | ||
| 16 | R105501600 | WBG-16 | ||
| 20 | R105502000 | WBG-20 | ||
| 25 | R105502500 | WBG-25 | ||
| 30 | R105503000 | WBG-30 | ||
| 40 | R105504000 | WBG-40 | ||
| 50 | R105505000 | WBG-50 | ||
| 60 | R105506000 | WBG-60 | ||
| 80 | R105508000 | WBG-80 |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
Explanation of short product name using sample shaft support block WBA-30-C-FO
| Shaft support block example | WBA-30-C-FO | |
| Type | Shaft support block | = WB |
| Material (housing) | Cast iron | = G |
| Aluminum | = A | |
| Steel | = S | |
| Shaft diameters | = 30 | |
| Design type | Compact | = C |
| Mounting | Top securing | = FO |
| For aluminum framing systems | = P | |
| Flanged type | = F | |
Explanatory example of the short product name
| WB | G | 20 |
| Shaft support block | Spheroidal graphite cast iron | Ø20 |
Downloads
 | Linear Bushings and Shafts Manual | R320103669 | 2005-07-01 | English, French, German, Italian | PDF | 3.6MB Product Groups: Linear Bushings and Shafts |
| Linear Bushings Catalog | R999000488 | 2015-02-01 | English | PDF | 14.9MB Product Groups: Linear Bushings and Shafts |
