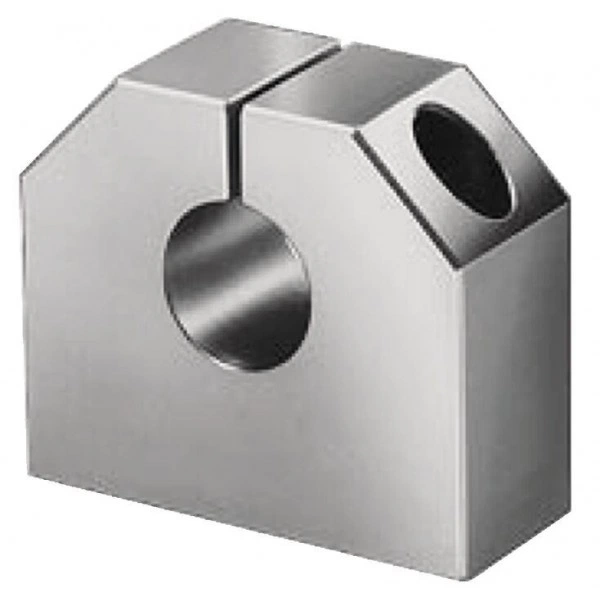

Compact Shaft Support Blocks R1058 7, side clamping WBA-..-C-FO
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Material: Aluminum
- Side clamping
- For easy installing and quick aligning
- Precise design with reference edge
- More affordable than in-house designs
Product description
For use with linear bushing or compact linear sets.
The compact shaft support blocks allow particularly space-saving designs, since they have been specially adapted to the small outer dimensions of the compact linear sets.
Technical data
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 |
| m | kg | 0.045 | 0.065 | 0.11 | 0.17 | 0.22 | 0.47 | 0.82 |
| MA | Nm | 3.8 | 6.6 | 16 | 30 | 52 | ||
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| m | Mass | kg |
| MA | Tightening torque | Nm |

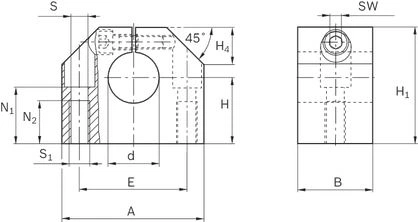

Dimensions
Abmessungen
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 | |
| A | mm | 40 | 45 | 53 | 62 | 67 | 87 | 103 | |
| B | mm | 18 | 20 | 24 | 28 | 30 | 40 | 50 | |
| d | H8 | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 |
| E | 27 mm ±0.15 | 32 mm ±0.15 | 39 mm ±0.15 | 44 mm ±0.15 | 49 mm ±0.15 | 66 mm ±0.15 | 80 mm ±0.15 | ||
| H 1) | 19 mm ±0.01 | 22 mm ±0.01 | 25 mm ±0.01 | 31 mm ±0.01 | 34 mm ±0.01 | 42 mm ±0.01 | 50 mm ±0.01 | ||
| H1 | mm | 33 | 38 | 45 | 54 | 60 | 76 | 92 | |
| H4 | mm | 11 | 13 | 15 | 17 | 19 | 24 | 30 | |
| N1 | mm | 16 | 18 | 22 | 26 | 29 | 38 | 46 | |
| N2 | mm | 13 | 18 | 22 | 26 | 34 | |||
| SW | mm | 3 | 4 | 5 | 6 | 8 | |||
| S 2) | mm | 5.3 | 6.6 | 8.4 | 10.5 | 13.5 | |||
| S1 | M6 | M8 | M10 | M12 | M16 | ||||
| 1) | In relation to nominal shaft dimension d. |
| 2) | Fixing screws ISO 4762-8.8 |
Project planning information
Life expectancy calculation
Certification
Directives and standards
Safety Instructions
Notes
Ordering codes
Materialnummern
| Ød | Part number | Short product name | CAD data | Buy |
| mm | ||||
| 12 | R105871200 | WBA-12-C-FO | ||
| 16 | R105871600 | WBA-16-C-FO | ||
| 20 | R105872000 | WBA-20-C-FO | ||
| 25 | R105872500 | WBA-25-C-FO | ||
| 30 | R105873000 | WBA-30-C-FO | ||
| 40 | R105874000 | WBA-40-C-FO | ||
| 50 | R105875000 | WBA-50-C-FO |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
Explanation of short product name using sample shaft support block WBA-30-C-FO
| Shaft support block example | WBA-30-C-FO | |
| Type | Shaft support block | = WB |
| Material (housing) | Cast iron | = G |
| Aluminum | = A | |
| Steel | = S | |
| Shaft diameters | = 30 | |
| Design type | Compact | = C |
| Mounting | Top securing | = FO |
| For aluminum framing systems | = P | |
| Flanged type | = F | |
Explanatory example of the short product name
| WB | A | 20 | C | FO |
| Shaft support block | Aluminum | Ø20 | Compact series | Top securing |
