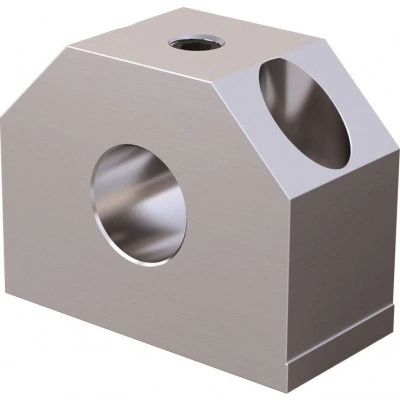

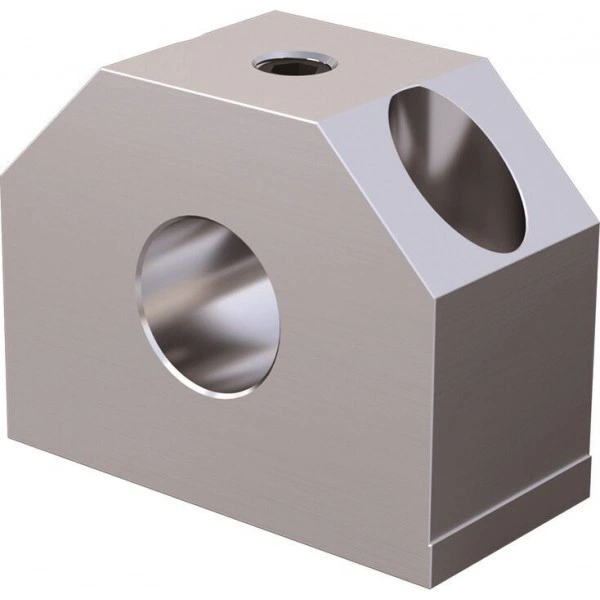

Shaft support blocks, R1057 WBA-..-FO
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Material: Aluminum
- Rigid shaft mounting due to extra-wide design
- Topside clamping for better accessibility
- Better security thanks to clamping screw with larger thread diameter
- Thread for fastening from below
Features
- Drill hole for fastening from above
- Reference edge for easy alignment
- For easy installing and quick aligning
- Precise design with reference edge
- More affordable than in-house designs
Technical data
| Ød | mm | 10 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 |
| m | kg | 0.05 | 0.06 | 0.11 | 0.18 | 0.35 | 0.48 | 0.9 | 1.5 | 3 |
| MA | Nm | 3.8 | 6.6 | 16 | 30 | 52 | 120 | 220 | ||
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| m | Mass | kg |
| MA | Tightening torque | Nm |

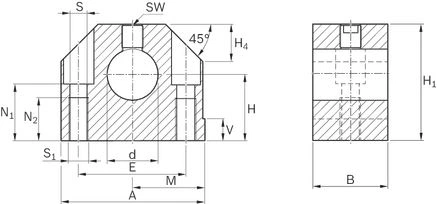

Dimensions
Abmessungen
| Ød | mm | 10 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | |
| A | mm | 40 | 43 | 53 | 60 | 78 | 87 | 108 | 132 | 164 | |
| B | mm | 20 | 24 | 30 | 38 | 40 | 48 | 58 | 74 | ||
| d | H8 | mm | 10 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 |
| E | 27 mm ±0.15 | 30 mm ±0.15 | 38 mm ±0.15 | 42 mm ±0.15 | 56 mm ±0.15 | 64 mm ±0.15 | 82 mm ±0.15 | 100 mm ±0.2 | 124 mm ±0.2 | ||
| H 1) | 18 mm ±0.01 | 20 mm ±0.01 | 25 mm ±0.01 | 30 mm ±0.01 | 35 mm ±0.01 | 40 mm ±0.01 | 50 mm ±0.01 | 60 mm ±0.01 | 75 mm ±0.01 | ||
| H1 | mm | 31 | 35 | 42 | 51 | 61 | 70 | 88 | 105 | 130 | |
| H4 | mm | 10 | 13 | 16 | 20 | 22 | 28 | 37 | 42 | ||
| M 1) | 20 mm ±0.01 | 21.5 mm ±0.01 | 26.5 mm ±0.01 | 30 mm ±0.01 | 39 mm ±0.01 | 43.5 mm ±0.01 | 54 mm ±0.01 | 66 mm ±0.01 | 82 mm ±0.01 | ||
| N1 | mm | 14 | 16.5 | 21 | 25 | 30 | 34 | 44 | 49 | 59 | |
| N2 | mm | 13 | 18 | 22 | 26 | 34 | 42 | ||||
| SW | mm | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | |||
| S 2) | mm | 5.3 | 6.6 | 8.4 | 10.5 | 13.5 | 17.5 | 22 | |||
| S1 | M6 | M8 | M10 | M12 | M16 | M20 | M27 | ||||
| V | mm | 5 | 6.5 | 8 | 10 | 12 | 13 | ||||
| 1) | In relation to nominal shaft dimension "d" |
| 2) | Fixing screws ISO 4762-8.8 |
Project planning information
Life expectancy calculation
Certification
Directives and standards
Safety Instructions
Notes
Ordering codes
Materialnummern
| Ød | Part number | Short product name | CAD data | Buy |
| mm | ||||
| 10 | R105701000 | WBA-10-FO | ||
| 12 | R105701200 | WBA-12-FO | ||
| 16 | R105701600 | WBA-16-FO | ||
| 20 | R105702000 | WBA-20-FO | ||
| 25 | R105702500 | WBA-25-FO | ||
| 30 | R105703000 | WBA-30-FO | ||
| 40 | R105704000 | WBA-40-FO | ||
| 50 | R105705000 | WBA-50-FO | ||
| 60 | R105706000 | WBA-60-FO |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
Explanation of short product name using sample shaft support block WBA-30-C-FO
| Shaft support block example | WBA-30-C-FO | |
| Type | Shaft support block | = WB |
| Material (housing) | Cast iron | = G |
| Aluminum | = A | |
| Steel | = S | |
| Shaft diameters | = 30 | |
| Design type | Compact | = C |
| Mounting | Top securing | = FO |
| For aluminum framing systems | = P | |
| Flanged type | = F | |
Explanatory example of the short product name
| WB | A | 20 | FO |
| Shaft support block | Aluminum | Ø20 | Top securing |
Downloads
 | Linear Bushings and Shafts Manual | R320103669 | 2005-07-01 | English, French, German, Italian | PDF | 3.6MB Product Groups: Linear Bushings and Shafts |
| Linear Bushings Catalog | R999000488 | 2015-02-01 | English | PDF | 14.9MB Product Groups: Linear Bushings and Shafts |
