Артикул: RX7997
В наличии
Adjusting shafts
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Mounting aid for multi-piece roller guide rails
- Adjusting shafts are particularly helpful when there is no reference edge.
Product description

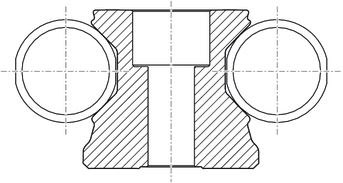

Alignment of the flattened adjustment shafts
Assembly aid for multi-piece Roller Guide Rails
Notes
Adjusting shafts are particularly helpful when there is no reference edge.
Adhere to “Assembly instructions for Profiled Rail Systems”.
Order note
For assembly, always order two adjustment shafts.
Dimensions
Dimensions
| Size | 35 | 45 | 55 | 65 | 100 | 125 | |
| Ø shaft | mm | 20 | 25 | 30 | 35 | 75 | 80 |
| Length | mm | 160 | 200 | 250 | 300 | 400 | 600 |
| Mass | g | 400 | 800 | 1400 | 2300 | 13900 | 23700 |
Ordering codes
Material numbers
| Size | Part number 1) | Buy |
| 35 | R181039001 | |
| 45 | R181049001 | |
| 55 | R181059001 | |
| 65 | R181069001 | |
| 100 | R181029101 | |
| 125 | R181039101 |
| 1) | Adjustment shaft (separate) |
Material numbers
| Size | Part number 1) | Buy | Mass |
| g | |||
| 35 | R181039001 | 400 | |
| 45 | R181049001 | 800 | |
| 55 | R181059001 | 1400 | |
| 65 | R181069001 | 2300 | |
| 100 | R181029101 | 13900 | |
| 125 | R181039101 | 23700 |
| 1) | Adjustment shaft (separate) |
Downloads
 | Profilschienenführungen Manual | R320103885 | 2016-09-01 | German | PDF | 11.4MB Product Groups: Linear guides |
| Sistema de guias lineares Manual | R320103885_PT | 2016-09-01 | Portuguese | PDF | 11.3MB Product Groups: Linear guides |
| Guide profilate Manual | R320103885_IT | 2016-09-01 | Italian | PDF | 11.4MB Product Groups: Linear guides |
| Guidages sur rails Manual | R320103885_FR | 2016-09-01 | French | PDF | 11.3MB Product Groups: Linear guides |
| 型轨导向系统 Manual | R320103885_ZH | 2016-09-01 | Chinese | PDF | 11.9MB Product Groups: Linear guides |
| Sistemas de guiado lineal Manual | R320103885_ES | 2016-09-01 | Spanish | PDF | 11.4MB Product Groups: Linear guides |
| Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
