V-guide for lateral retention of Roller Guide Rails
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Mounting aid for lateral retention of roller guide rails
- Material: Steel
- Design: black finish
Dimensions

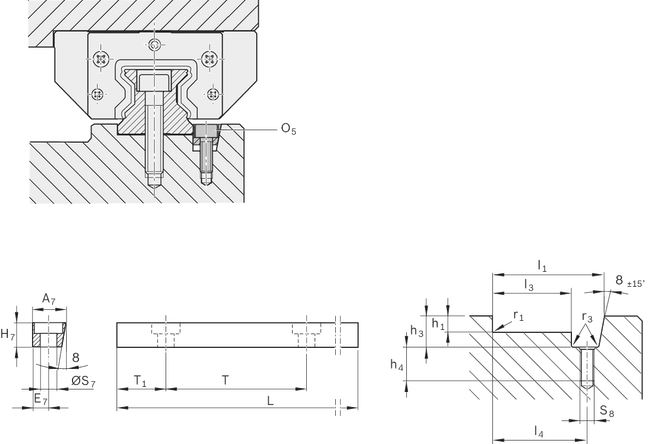

V-guide dimensions
| Part number | R161920001 1) | R161940001 2) | R181029102 3) | R181039102 4) | |
| A7 | mm | 12 | 19 | 34 | 47.5 |
| E7 | mm | 6 | 9 | 16 | 23 |
| H7 | mm | 10 | 16 | 23 | 30 |
| L | mm | 957 | 942 | 938 | 954 |
| O5 5) | M5x20 | M8x25 | M12x35 | M16x45 | |
| ØS7 | mm | 6 | 9 | 13.5 | 17.5 |
| T | mm | 60 | 105 | 120 | |
| T1 | mm | 28.5 | 51 | 49 | 57 |
| 1) | Suitable for sizes 25, 30 and 35 |
| 2) | Suitable for sizes 45, 55 and 65 |
| 3) | Suitable for size 100 (size on request) |
| 4) | Suitable for size 125 |
| 5) | Screw O5 as per DIN 6912 |
V-guide slot dimensions
| Size | 25 | 35 | 45 | 55 | 65 | 100 1) | 125 | |
| h1 | 4.5 mm -0.2 | 5 mm -0.2 | 7 mm -0.2 | 9 mm -0.2 | 12 mm -0.2 | 20 mm -0.2 | ||
| h3 | 12.5 mm +1 | 19 mm +1 | 26 mm +1 | 34 mm +1 | ||||
| h4 | 15 mm +2 | 16 mm +2 | 20 mm +2 | 29 mm +2 | ||||
| l1 | 35.1 mm ±0.05 | 46.1 mm ±0.05 | 64.1 mm ±0.05 | 72.1 mm ±0.05 | 82.1 mm ±0.05 | 134 mm ±0.05 | 172.6 mm ±0.05 | |
| l3 | 22.9 mm -0.1 | 33.9 mm -0.1 | 44.9 mm -0.1 | 52.9 mm -0.1 | 62.9 mm -0.1 | 99.9 mm -0.1 | 124.9 mm -0.1 | |
| l4 | 29 mm ±0.1 | 40 mm ±0.1 | 54 mm ±0.1 | 62 mm ±0.1 | 72 mm ±0.1 | 116 mm ±0.1 | 148 mm ±0.1 | |
| r1 max | mm | 0.8 | 1.2 | 1.8 | ||||
| r3 max | mm | 0.5 | 1 | |||||
| S8 | M5 | M8 | M12 | M16 | ||||
| 1) | Size 100 upon request |
Ordering codes
Material numbers
| Size | Part number | CAD data | Buy | Mass |
| g | ||||
| 25 | R161920001 2) | 800 | ||
| 35 | R161920001 2) | |||
| 45 | R161940001 3) | 2000 | ||
| 55 | R161940001 3) | |||
| 65 | R161940001 3) | |||
| 100 1) | R181029102 4) | 5300 | ||
| 125 | R181039102 5) | 9500 |
| 1) | Size 100 upon request |
| 2) | Suitable for sizes 25, 30 and 35 |
| 3) | Suitable for sizes 45, 55 and 65 |
| 4) | Suitable for size 100 (size on request) |
| 5) | Suitable for size 125 |
Adhere to “Assembly instructions for Profiled Rail Systems”
