Артикул: RX7893
В наличии

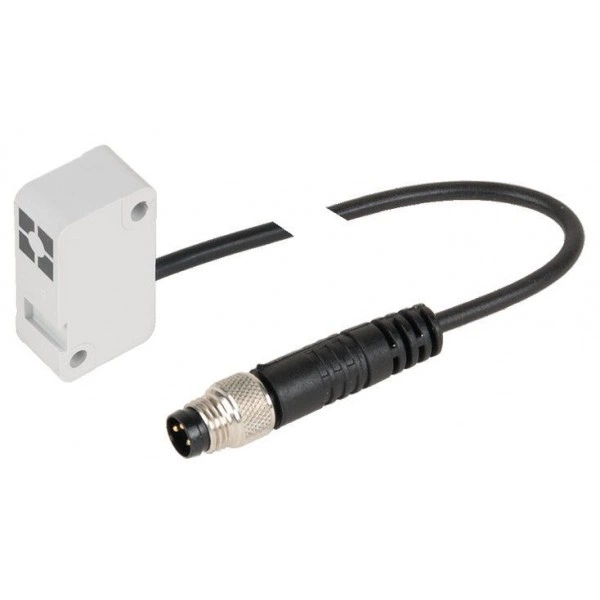

Proximity sensor with M8x1 plug
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Technical data
Technische Daten
| Part number | R901420149 | R901420156 | R901420152 | R901420158 | |
| Functional principle | inductive | ||||
| Operating voltage (min ... max) | 10 V DC ... 30 V DC | ||||
| Load current | mA | ≤ 200 | |||
| Switching function | PNP/normally closed (NC) | PNP/normally open (NO) | NPN/normally closed (NC) | NPN/normally open (NO) | |
| Connection type | Line 0.2 m and plug M8 x 1 3-pin with knurled screws | ||||
| Function indication | ✓ | ||||
| Short-circuit protection | ✓ | ||||
| Reverse polarity protection | ✓ | ||||
| Switching frequency | kHz | 2.5 | |||
| Maximum permissible starting speed | depending on the switch tab | ||||
| Suitable for flexing installation 1) | ‒ | ||||
| Can withstand torsion 1) | ‒ | ||||
| Weld spark resistant 1) | ‒ | ||||
| Cable cross-section 1) | mm2 | 3x0,14 | |||
| Cable diameter D 1) | 3.5 mm ±0.15 | ||||
| Bending radius, stationary 1) | mm | 12 | |||
| Bending radius, flexing 1) | mm | 12 | |||
| Bending cycles 1) | ‒ | ||||
| Permissible ambient temperature (min ... max) | -40 °C ... +70 °C | ||||
| Protection type | IP65 | ||||
| MTTFd (as per EN ISO 13849-1 ) | yrs | 830 | 585 | ||
| 1) | Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. |

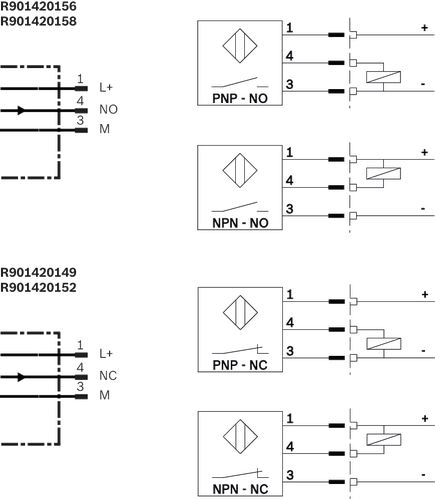

Electrical connection
Dimensions
Certification
| Certifications and approvals |  |  |  |
No certificate for import into
the Chinese market is necessary for these products.
Ordering codes
Material numbers
| Part number | Use | Description | Suitable for | Buy |
| R901420149 | Limit switch | BES 517-351-NOC-S49-00.2 | CKK, CKR, OBB, MKK, MKR, MLR, TKL | |
| R901420156 | Reference switch | BES 517-398-NOC-S49-00.2 | CKK, CKR, OBB, MKK, MKR, MLR, TKL | |
| R901420152 | Limit switch | BES 517-352-NOC-S49-00.2 | CKK, CKR, OBB, MKK, MKR, MLR, TKL | |
| R901420158 | Reference switch | BES 517-399-NOC-S49-00.2 | CKK, CKR, OBB, MKK, MKR, MLR, TKL |
