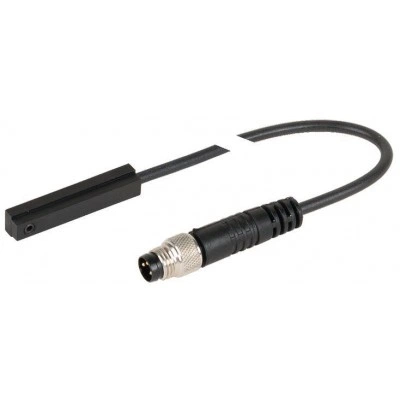

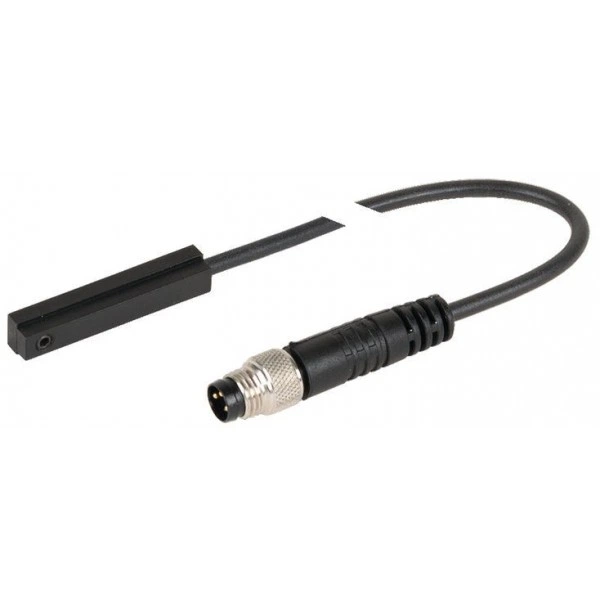

Magnetic sensor with M8x1 plug
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Technical data
Technische Daten
| Part number | R347602403 | R347602303 | |
| Functional principle | Magnetic | ||
| Operating voltage | V DC | 3,8 ... 30 | 30 |
| Load current | mA | ≤ 20 | 500 |
| Switching function | Hall PNP/normally closed (NC) | REED / single-pole changeover, (NC: C+NC, NO: C+NO) | |
| Connection type | Line 0.3 m and plug M8x1 3-pin with knurled screws | ||
| Function indication | ‒ | ||
| Short-circuit protection | ‒ | ||
| Reverse polarity protection | ‒ | ||
| Switch-on suppression | ‒ | ||
| Switching frequency | kHz | 2.5 | |
| Pulse delay (Off delay) | ‒ | ||
| Maximum permissible starting speed | m/s | 2 | |
| Suitable for flexing installation 1) | ‒ | ||
| Can withstand torsion 1) | ‒ | ||
| Weld spark resistant 1) | ‒ | ||
| Cable cross-section 1) | mm2 | 3x0,14 | |
| Cable diameter D 1) | 3.2 mm ±0.2 | ||
| Bending radius, stationary 1) | ‒ | ||
| Bending radius, flexing 1) | ‒ | ||
| Bending cycles 1) | ‒ | ||
| Maximum permissible travel speed 1) | ‒ | ||
| Maximum permissible acceleration 1) | ‒ | ||
| Permissible ambient temperature (min ... max) | -40 °C ... +85 °C | ||
| Protection type | IP66 | ||
| MTTFd (as per EN ISO 13849-1 ) | ‒ | ||
| Certifications and approvals | ‒ | ||
| 1) | Technical data only for the cast-on connection line (0.3 m) at the magnetic sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. |
Electrical connection
Dimensions
| 1) | Set screw M3 |
| 2) | Activation point |
Dimensions
| Part number | Activation point (dimension "X") |
| mm | |
| R347602403 | 13.65 |
| R347602303 | 9 |
Certification
No certificate for import into
the Chinese market is necessary for these products.
Ordering codes
Material numbers
| Part number | Use | Description | Suitable for | Buy |
| R347602403 | Reference / limit switch | H10706 | CKK, CKR, VKK, MKK/MKR-040 | |
| R347602303 | Limit switch | R10705 | CKK, CKR, VKK, MKK/MKR-040 |
