Артикул: RX7886
В наличии

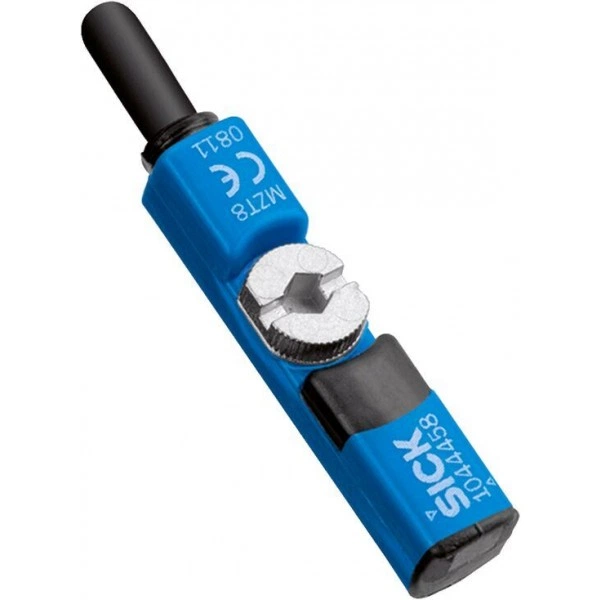

Magnetic sensors
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Technical data
Technische Daten
| Part number | R913037445 | R913037444 | R913037443 | R913037446 | |
| Functional principle | Magnetic | ||||
| Operating voltage (min ... max) | 10 V DC ... 30 V DC | ||||
| Load current | mA | ≤ 200 | |||
| Switching function | PNP/normally closed (NC) | PNP/normally open (NO) | NPN/normally closed (NC) | NPN/normally open (NO) | |
| Connection type | Cable 0.5m and plug M8x1, 3-pin with knurled screws | ||||
| Function indication | ✓ | ||||
| Short-circuit protection | ✓ | ||||
| Reverse polarity protection | ✓ | ||||
| Switch-on suppression | ✓ | ||||
| Switching frequency | kHz | 3 | |||
| Pulse delay (Off delay) | ms | 20 | |||
| Maximum permissible starting speed | m/s | 5 | |||
| Suitable for flexing installation 1) | ✓ | ||||
| Can withstand torsion 1) | ✓ | ||||
| Weld spark resistant 1) | ‒ | ||||
| Cable cross-section 1) | mm2 | 3x0,14 | |||
| Cable diameter D 1) | 2.9 mm ±0.15 | ||||
| Bending radius, stationary 1) | ≧ 5xD | ||||
| Bending radius, flexing 1) | ≧ 10xD | ||||
| Bending cycles 1) | > 2 million | ||||
| Maximum permissible travel speed 1) | m/s | 5 | |||
| Maximum permissible acceleration 1) | m/s² | 5 | |||
| Permissible ambient temperature (min ... max) | -30 °C ... +80 °C | ||||
| Protection type | IP68 | ||||
| MTTFd (as per EN ISO 13849-1 ) | yrs | 2339 | |||
| 1) | Technical data only for the cast-on connection line (0.5 m) at the magnetic sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. |

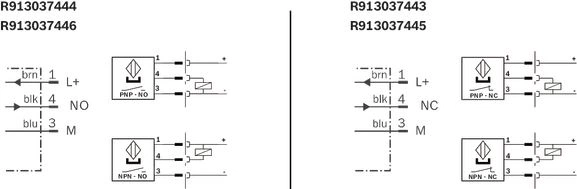

Symbols/Circuit diagrams
Connection scheme
Electrical connection
| 1) | Connection |
| 2) | Fixing screw |
| 3) | LED display |
| 4) | Position of sensor element: 2 mm |
Dimensions
Certification
| Certifications and approvals |  |  |  |
For these products no
certificate is necessary for introduction into the Chinese market. “Sales Information CCC” document available on request.
