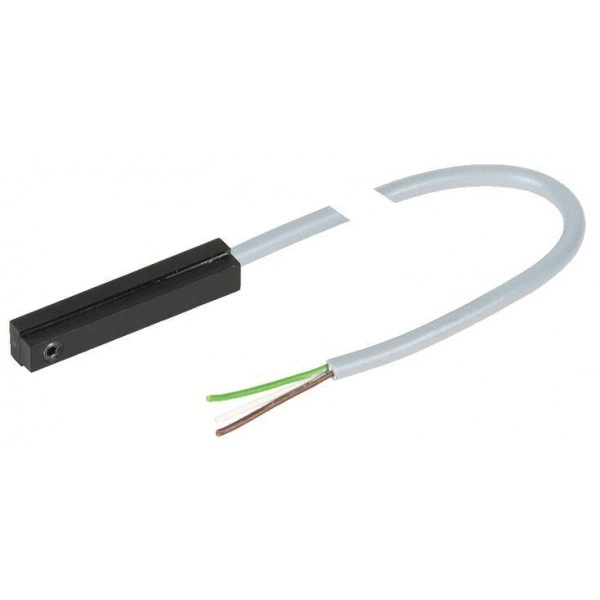

Description
Technical data
Technische Daten
| Part number | R347600903 | R347601003 | R347601203 | R347601303 | R347601403 | R913011323 | R913011324 | R347601903 | R347601803 | |
| Functional principle | Magnetic | |||||||||
| Contact type | Hall, PNP normally closed | REED, changeover | ||||||||
| Operating voltage | V DC | ≤ 30 | 3.8 ... 30 | ≤ 30 | 3.8 ... 30 | |||||
| Current consumption | mA | ≤ 10 | ||||||||
| Output current | mA | ≤ 20 | ||||||||
| Switching voltage | V DC | ≤ 100 | ||||||||
| Switching current | mA | ≤ 500 | ||||||||
| Cable length | mm | 2000 | ||||||||
| Housing protection class | IP66 | |||||||||
| Load current | mA | 500 | ≤ 20 | 500 | ≤ 20 | |||||
| Switching function | REED / changeover contact (NC: C+NC, NO: C+NO) | Hall PNP/normally closed (NC) | Hall, PNP/normally open (NO) | Hall, NPN/normally closed (NC) | Hall, NPN/normally open (NO) | REED / changeover contact (NC: C+NC, NO: C+NO) | Hall PNP/normally closed (NC) | |||
| Connection type | Line 2.0 m, 3-pin | |||||||||
| Galvanized connection ends | ✔ | |||||||||
| Function indication | ‒ | |||||||||
| Short-circuit protection | ‒ | |||||||||
| Reverse polarity protection | ‒ | |||||||||
| Switch-on suppression | ‒ | |||||||||
| Switching frequency | kHz | 2.5 | ||||||||
| Pulse delay (Off delay) | ‒ | |||||||||
| Maximum permissible starting speed | m/s | 2 | ||||||||
| Suitable for flexing installation 1) | ‒ | |||||||||
| Can withstand torsion 1) | ‒ | |||||||||
| Weld spark resistant 1) | ‒ | |||||||||
| Cable cross-section 1) | mm2 | 3x0,14 | ||||||||
| Cable diameter D 1) | 3.2 mm ±0.2 | |||||||||
| Bending radius, stationary 1) | ‒ | |||||||||
| Bending radius, flexing 1) | ‒ | |||||||||
| Bending cycles 1) | ‒ | |||||||||
| Maximum permissible travel speed 1) | ‒ | |||||||||
| Maximum permissible acceleration 1) | ‒ | |||||||||
| Permissible ambient temperature (min ... max) | -40 °C ... +85 °C | |||||||||
| Protection type | IP66 | |||||||||
| MTTFd (as per EN ISO 13849-1 ) | ‒ | |||||||||
| Certifications and approvals | ‒ | |||||||||
| 1) | Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. |
Attention: R347601803 has 2 switching points.

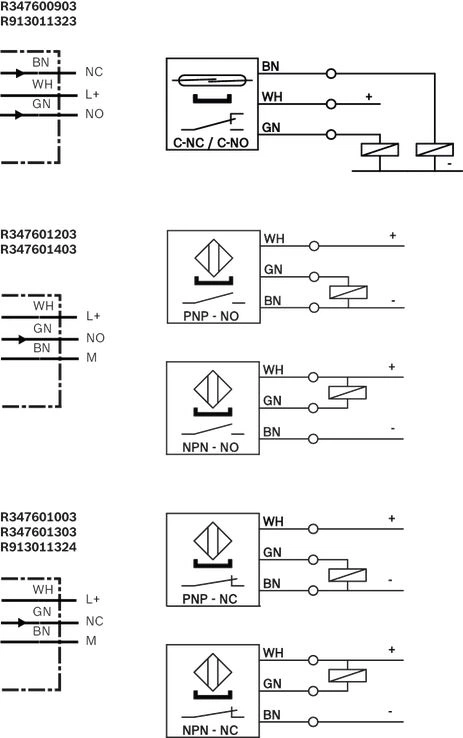

Electrical connection

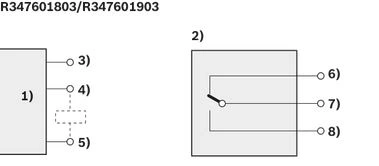

Pin assignment
Dimensions
| 1) | Cable length 10 m |
| 2) | Activation point |
| 3) | Active surface |
| 4) | Set screw for retention |
Dimensions
| Part number | Activation point (dimension "X") |
| mm | |
| R347600903 | 9 |
| R347601003 | 13.65 |
| R347601203 | |
| R347601303 | |
| R347601403 | |
| R913011323 | 9 |
| R913011324 | 13.65 |
| R347601903 | - |
| R347601803 |
Certification
No certificate for import into
the Chinese market is necessary for these products.
