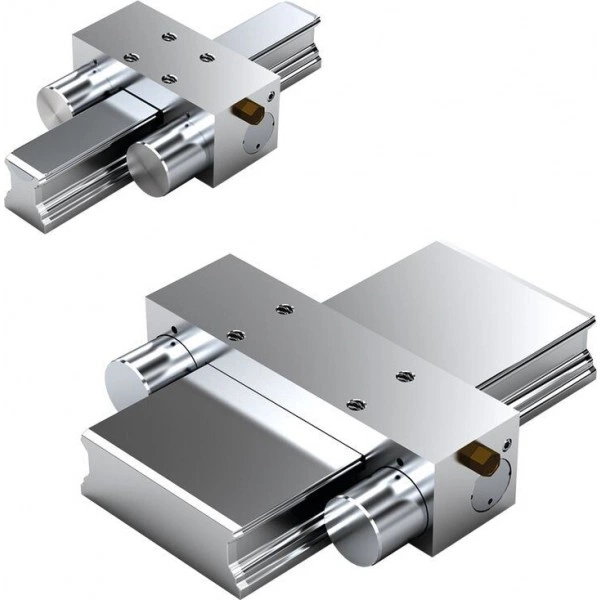

Pneumatic clamping units MKS R1619 .40 6.
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio
- Easy mounting
- Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies.
Features
- Chemically nickel-plated steel housing
- High axial and horizontal rigidity
- Exact positioning, high dynamics, powerful drive and long service life through the use of high-precision linear screw drives
- Higher holding force due to the air-plus port
- Pneumatic decompression Release pressure 5.5 - 8 bar
- 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
- An integrated quick-exhaust valve ensures short response times.
Product description
Functional principle
Clamping with air pressure or spring force
- Clamping profiles are pressed to the web surfaces of the Ball Guide Rail.
Decompression with air pressure or spring force
- The clamping profiles are held apart.
- Free movement is possible
Technical data
General technical data
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | 20/40 | 25/70 | 35/90 | |
| Spring energy holding force with standard air port 1) | N | 400 | 600 | 750 | 1050 | 1250 | 1450 | 400 | 750 | 1250 | ||
| Spring energy holding force with air-plus port 2) | N | 1050 | 1300 | 1500 | 2200 | 3300 | 1050 | 1950 | 2200 | |||
| Air consumption (normal liter) standard air port | dm³/stroke | 0.011 | 0.019 | 0.021 | 0.031 | 0.041 | 0.019 | 0.021 | 0.031 | |||
| Air consumption (normal liter) air-plus port | dm³/stroke | 0.035 | 0.063 | 0.068 | 0.121 | 0.129 | 0.175 | 0.063 | 0.068 | 0.129 | ||
| Max. pneumatic operating pressure | bar | 8 | ||||||||||
| Release pressure min. | bar | 5.5 | ||||||||||
| Mass | kg | 0.29 | 0.41 | 0.5 | 0.81 | 1 | 1.84 | 2.08 | 2.86 | 0.39 | 0.68 | 0.89 |
| Operating conditions | ||||||||||||
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | 20/40 | 25/70 | 35/90 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C | |||||||||||
| 1) | Holding force by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| 2) | Increased holding force by additional air admission at air-plus port with 6.0 bar. Circuit across 5/2- or 5/3-way directional control valve. |
Symbols/Circuit diagrams
Circuit type1) for standard air port
1) Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
a) Air port*) M5 on both sides for release pressure
b) Connection*) M5 on both sides for air-plus port or air filter
*) Only one connection needed
All connections sealed upon delivery.
1 Air port
2 Working connection
3 Venting
Circuit type1) for air-plus port
1) Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2- or 5/3-way directional control valve.
a) Air port*) M5 on both sides for release pressure
b) Connection*) M5 on both sides for air-plus port or air filter
*) Only one connection needed
All connections sealed upon delivery.
1 Air port
2 4 Working connections
3 5 Venting
Fields of application
- Pneumatic clamping of machine axes
- Table crossbars in the timber industry
- Positioning of lifting gear

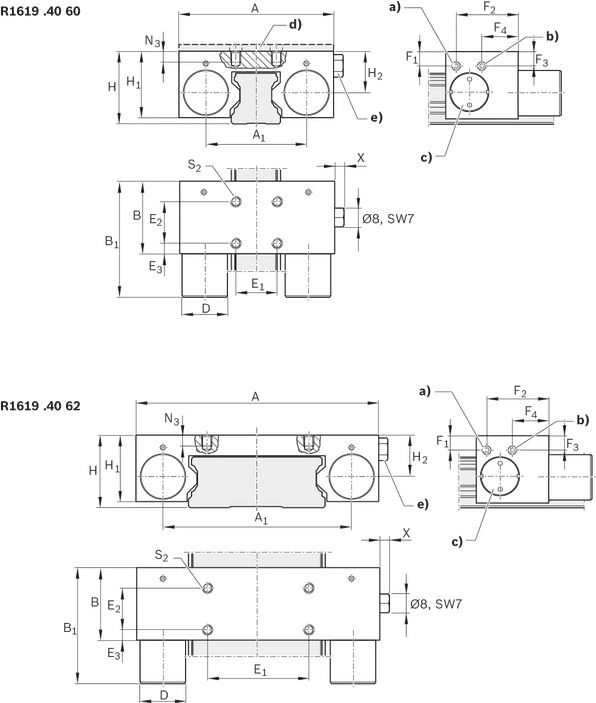

Dimensions
| a) | Air connection*) M5 on two sides for release pressure |
| b) | Connection*) M5 on two sides for Plus-Air connection or air filter |
| c) | Adjusting screw on two sides |
| d) | Spacer plate (accessory) for MKS |
| e) | Air filter: connection M5 (possible on two sides) |
| *) Only one connection needed. | |
| All connections sealed upon delivery. |
Dimensions
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | 20/40 | 25/70 | 35/90 | |
| A | mm | 55 | 66 | 75 | 90 | 100 | 120 | 128 | 138 | 80 | 120 | 156 |
| A1 | mm | 34 | 43 | 49 | 58 | 68 | 78.8 | 86.8 | 96.8 | 59 | 94 | 124 |
| B | mm | 39 | 35 | 39 | 49 | 39 | 35 | 42 | ||||
| B1max | mm | 58.5 | 61.5 | 56.5 | 68.5 | 67.5 | 82.5 | 58.5 | 56.5 | 70.5 | ||
| D | mm | 16 | 20 | 22 | 25 | 28 | 30 | 16 | 22 | 28 | ||
| E1 | mm | 15 | 20 | 22 | 24 | 26 | 30 | 20 | 50 | 60 | ||
| E2 | mm | 15 | 20 | 22 | 24 | 26 | 30 | 20 | ||||
| E3 | mm | 15.5 | 9 | 5 | 8.5 | 7.5 | 11.5 | 9.5 | 15.5 | 5 | 9.5 | |
| F1 | mm | 16.1 | 6 | 7 | 10.3 | 12 | 14.5 | 17 | 14.5 | 5 | 9 | 14 |
| F2 | mm | 34 | 34.5 | 30 | 24.5 | 29.5 | 31 | 30 | 36.5 | |||
| F3 | mm | 5.6 | 4.5 | 7 | 8.5 | 11 | 14.5 | 17 | 14.5 | 5 | 7 | 11.5 |
| F4 | mm | 34 | 17.3 | 17.5 | 15 | 14.5 | 19.5 | 4.5 | 17.5 | 18 | ||
| H | mm | 24 | 30 | 36 | 42 | 48 | 60 | 70 | 90 | 27 | 35 | 50 |
| H1 1) | mm | 20.8 | 27 | 32.5 | 38.5 | 44 | 52 | 57 | 73.5 | 23.5 | 32.5 | 45.5 |
| H2 | mm | 11.6 | 15.5 | 20 | 24 | 28 | 35.5 | 40 | 55 | 14 | 20 | 30 |
| N3 | mm | 4.5 | 6 | 8 | 9 | 10 | 15 | 20 | 4.5 | 8 | 10 | |
| S2 | M4 | M6 | M8 | M10 | M4 | M6 | M10 | |||||
| X | mm | 6.5 | 5.5 | |||||||||
| 1) | Ball runner block .H. (...high...) Spacer plate necessary. |
