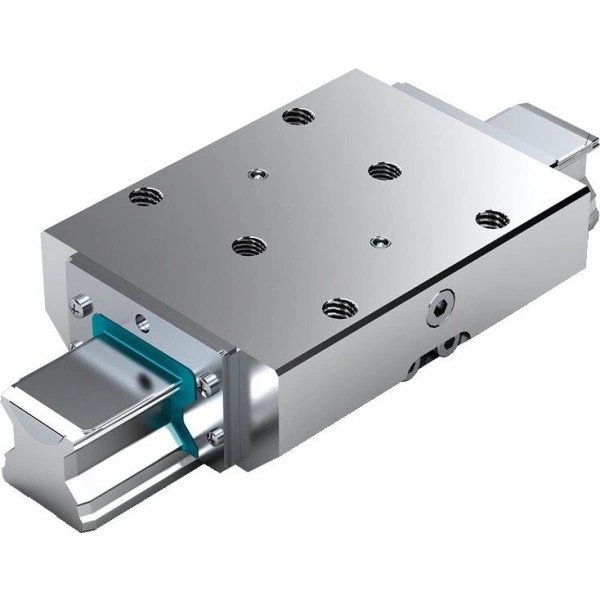

Hydraulic clamping and braking units KBH, FLS R1810 .40 21

Description

• Very high axial holding forces
• Dynamic and static stabilization in the axial direction
• Heavy-duty brake
• Compact design, compatible with DIN 645
• Clamps and brakes with pressure

Features

• Can be used on all SNS roller guide rails
• Up to 1 million clamping cycles
• Up to 2,000 emergency braking operations
• Threaded on both sides for the hydraulic connection
• Solid, rigid steel housing, chemically nickel-plated
• High positioning accuracy
• Release pressure 150 bar
• Integrated all-around sealing
• Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
• Brake shoes with integrated positive-locking, large-surface contact profiles for maximum axial rigidity
• Super heavy-duty model
• Low displacement
• 10 million clamping cycles (B10d value)

Product description

Functional principle

Hydraulic pressure: 50 - 150 bar

Clamps and brakes with pressure

The large-scale clamping profiles are pressed directly through the hydraulic oil via a piston principle to the flanks of the Roller Guide Rail.

Hydraulic pressure: 0 bar

Decompression with spring force

A pre-tensioned return spring allows for short decompression cycles.

Technical data

General technical data

Fields of application

Clamping

• during assembly work and standstill of the machine with energy at KBH

• of heavy handling systems

• clamping of machine tables from heavily machined machining centers

Braking

• support as brake for linear motors

• of heavy handling systems

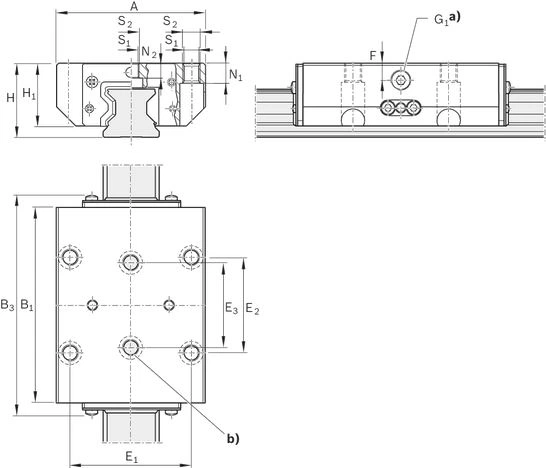

Dimensions

Dimensions

Project planning information

Additional information

Hydraulic connections

The hydraulic clamping elements are pre-filled with HLP 46 at the factory. The hydraulic connection is attached on two sides.

One connection is suitable for the application. Take care when venting the fixed and flexible hydraulic lines, because air connections can damage the sealing elements.

Connection structure, mounting the clamping elements

To prevent detrimental effects, e.g. permanent grinding on the linear guide, the connection structure must be rigidly designed according to its load and requirements. If there is tilt of the clamping elements, this can result in contact, wear and therefore damage to the linear guide.

The setting at the factory is adapted for the linear guide and may not be altered during assembly.

It is imperative to observe the mounting instructions for the clamping and braking units and the linear guides.

Some spring-loaded accumulators are equipped with a transport lock between the contact profiles.

This must be removed during assembly by means of pressurization of the element. When the pressure is removed, the transport lock or the associated linear guide must always lie between the contact profiles.

The clamping elements do not serve any guide function. Therefore, it is not possible to replace a roller runner block with a clamping element. The ideal position of the clamping element lies between two roller runner blocks.

When using several clamping elements, these should be distributed evenly on both roller guide rails in order to attain a maximum rigidity of the overall construction.

Lubrication

When using the prescribed printing medium, lubrication is not required.

Surface finish protection

All housings of the clamping elements are chemically nickel-plated and therefore have limited rust protection. Aluminum subsections are chemically nickel-plated according to their requirement.

B10d-value

The B10d-value specifies the number of switching cycles, until 10% of the components have failed dangerously.
