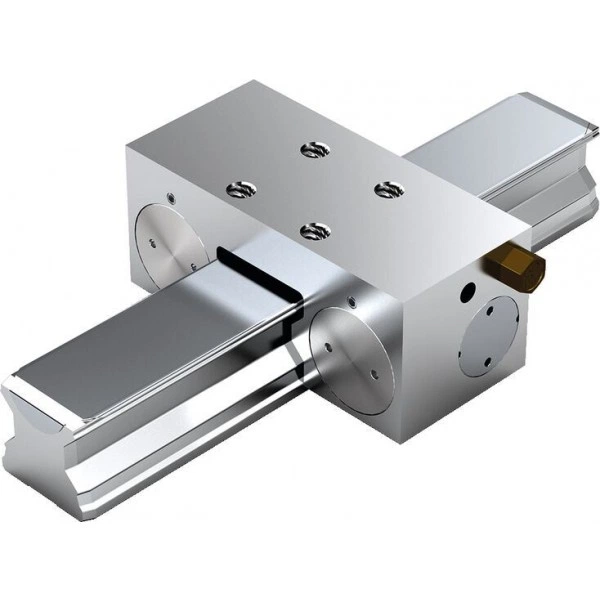

Pneumatic clamping units MK R1810 .42 60
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Easy mounting
- Clamps with pressure (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.
Features
- Chemically nickel-plated steel housing
- High axial and horizontal rigidity
- Exact positioning, high dynamics, powerful drive and long service life through the use of high-precision linear screw drives
- Continuously adjustable pressure from 4 - 8 bar
- Can be used on all SNS roller guide rails
- 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
- Short decompression cycles
Product description
Functional principle
Air pressure: 4.0 - 8 bar
Clamps with air pressure
For MK, the clamping profiles are pressed via compressed air across a dual acting gate valve gear mechanism to the web surfaces of the roller guide rail.
Air pressure: 0 bar
Decompression with spring force
A pre-tensioned return spring allows for short decompression cycles.
Technical data
General technical data
| Size | 25 | 35 | 45 | 55 | 65 | |
| Spring energy holding force with standard air port 1) | N | 1200 | 2000 | 2250 | ||
| Air consumption (normal liter) standard air port | dm³/stroke | 0.021 | 0.031 | 0.041 | ||
| Max. pneumatic operating pressure | bar | 8 | ||||
| Mass | kg | 0.45 | 0.88 | 1.7 | 1.95 | 2.68 |
| Operating conditions | ||||||
| Size | 25 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C | |||||
| 1) | Holding force at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
Symbols/Circuit diagrams
Circuit type1) for standard air port
1) Holding force at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
a) Air port*) M5 on both sides for release pressure
b) Connection*) M5 on both sides for air filter
*) Only one connection needed
All connections sealed upon delivery.
1 Air port
2 Working connection
3 Venting
Fields of application
- Pneumatic clamping of machine axes
- Table crossbars in the timber industry
- Positioning of lifting gear

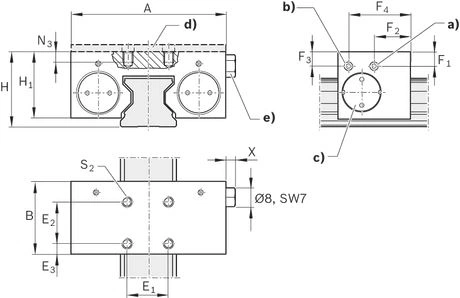

Dimensions
| a) | Air connection*) M5 on two sides for release pressure |
| b) | Connection*) M5 on two sides for air filter |
| c) | Adjusting screw on two sides |
| d) | Spacer plate (accessory) for MK |
| e) | Air filter: connection M5 (possible on two sides) |
| *) Only one connection needed. | |
| All connections sealed upon delivery. |
Dimensions
| Size | 25 | 35 | 45 | 55 | 65 | |
| A | mm | 75 | 100 | 120 | 128 | 138 |
| B | mm | 35 | 39 | 49 | ||
| E1 | mm | 20 | 24 | 26 | 30 | |
| E2 | mm | 20 | 24 | 26 | 30 | |
| E3 | mm | 5 | 7.5 | 11.5 | 9.5 | |
| F1 | mm | 6.5 | 11 | 14.5 | 17 | 14.5 |
| F2 | mm | 17.5 | 14.5 | 19.5 | ||
| F3 | mm | 6.5 | 12 | 14.5 | 17 | 14.5 |
| F4 | mm | 30 | 24.5 | 29.5 | ||
| H | mm | 36 | 48 | 60 | 70 | 90 |
| H1 1) | mm | 32.5 | 44 | 52 | 57 | 73.5 |
| N3 | mm | 8 | 10 | 15 | 20 | |
| S2 | M6 | M8 | M10 | |||
| X | mm | 5.5 | ||||
| 1) | for roller runner block .H. (...high...) Spacer plate necessary. |
Mounting
Note for mounting
- Make sure the connection structure is rigid.
- Use only purified air. The prescribed filter mesh size is 25 μm.
- Observe the mounting instructions prior to commissioning.
Accessories
Spacer plate for clamping units MK, MKS
R1619 .40 65
Spacer plate for clamping units MK, MKS
R1619 .40 65
- Suitable for assembly with high ball runner blocks SNH R1621 and SLH R1624.
- Suitable for assembly with high roller runner blocks SNH R1821 and SLH R1824.
Downloads
 | Profilschienenführungen Manual | R320103885 | 2016-09-01 | German | PDF | 11.4MB Product Groups: Linear guides |
| Sistema de guias lineares Manual | R320103885_PT | 2016-09-01 | Portuguese | PDF | 11.3MB Product Groups: Linear guides |
| Guide profilate Manual | R320103885_IT | 2016-09-01 | Italian | PDF | 11.4MB Product Groups: Linear guides |
| Guidages sur rails Manual | R320103885_FR | 2016-09-01 | French | PDF | 11.3MB Product Groups: Linear guides |
| 型轨导向系统 Manual | R320103885_ZH | 2016-09-01 | Chinese | PDF | 11.9MB Product Groups: Linear guides |
| Sistemas de guiado lineal Manual | R320103885_ES | 2016-09-01 | Spanish | PDF | 11.4MB Product Groups: Linear guides |
| Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog Roller Rail Systems Catalog | R999000354 | 2021-10-01 | English | PDF | 23.5MB Product Groups: Roller Rail Systems only available as PDF file |
