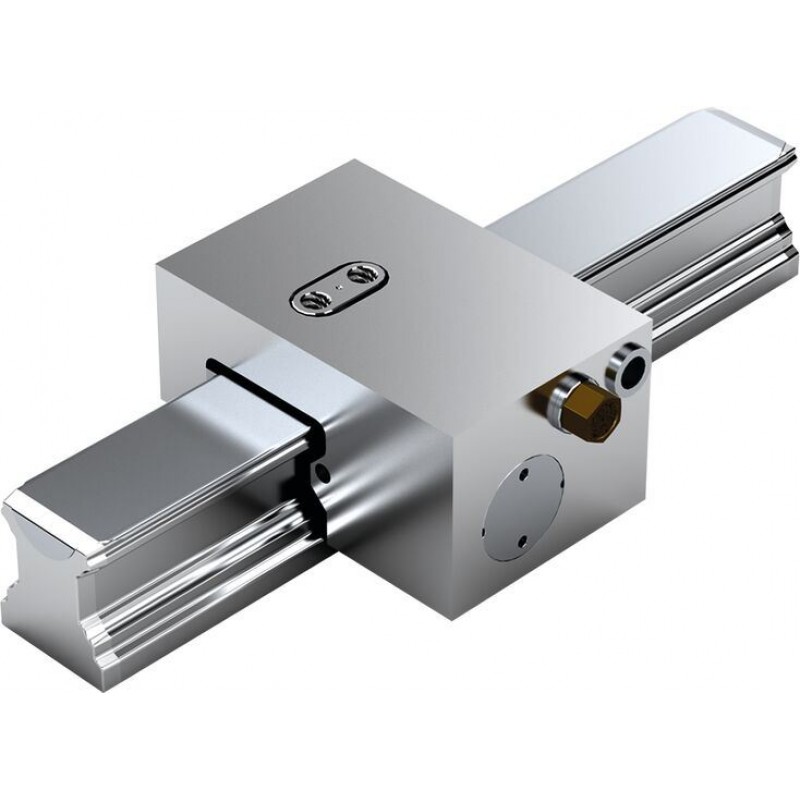

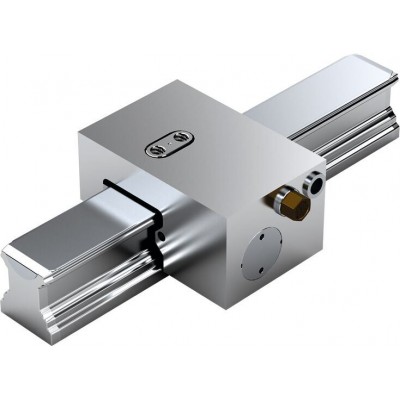

Pneumatic clamping units LCP R1619 242 74
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio
- Easy mounting
- Clamps with pressure (pneumatic) by means of mechanical gripping
Features
- Chemically nickel-plated steel housing
- High axial and horizontal rigidity
- Exact positioning, high dynamics, powerful drive and long service life through the use of high-precision linear screw drives
- Continuously adjustable pressure from 5.5 - 8 bar
- Short decompression cycles
- Decompression with spring force. A pre-tensioned return spring allows for short decompression cycles.
- Can be used on all SNS Ball Guide Rails
Product description
Functional principle
Clamping with air pressure or spring force
- Clamping profiles are pressed to the web surfaces of the Ball Guide Rail.
Decompression with air pressure or spring force
- The clamping profiles are held apart.
- Free movement is possible
Technical data
General technical data
| Size | 25 | |
| Spring energy holding force with standard air port 1) | N | 850 |
| Air consumption (normal liter) standard air port | dm³/stroke | 0.015 |
| Max. pneumatic operating pressure | bar | 8 |
| Mass | kg | 0.27 |
| Operating conditions | ||
| Size | 25 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +60 °C | |
| 1) | Holding force at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
Symbols/Circuit diagrams
Circuit1) with standard air connection
1) Holding force at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
a) Air connection
b) Air filter
1 Air connection
2 Working connection
3 Venting
Fields of application
- Pneumatic clamping of machine axes
- Table crossbars in the timber industry
- Positioning of lifting gear

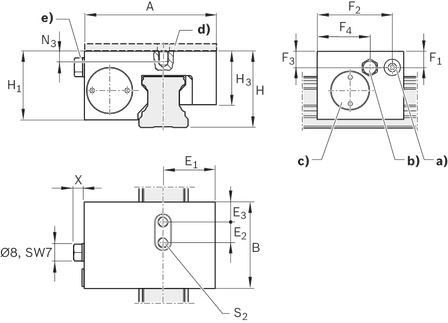

Dimensions
| a) | Air connection*) M5 on two sides for release pressure |
| b) | Connection*) M5 on two sides for air filter |
| c) | Adjusting screw on two sides |
| d) | Spacer plate (accessory) |
| e) | Air filter: connection M5 (possible on two sides) |
| *) Only one connection needed. | |
| All connections sealed upon delivery. |
Dimensions
| Size | 25 | |
| A | mm | 61.4 |
| B | mm | 41 |
| E1 | mm | 23.9 |
| E2 | mm | 9.5 |
| E3 | mm | 9.75 |
| F1 | mm | 6.5 |
| F2 | mm | 36 |
| F3 | mm | 6.5 |
| F4 | mm | 24.5 |
| H | mm | 36 |
| H1 1) | mm | 32.5 |
| H3 | mm | 24.55 |
| N3 | mm | 7.7 |
| S2 | M5 | |
| X | mm | 6.5 |
| 1) | Ball runner block .H. (...high...) Spacer plate necessary. |
Mounting
Note for mounting
- Make sure the connection structure is rigid.
- Use only purified, lubricated air. The prescribed filter mesh size is 25 μm.
- Observe the mounting instructions prior to commissioning.
Downloads
 | Profilschienenführungen Manual | R320103885 | 2016-09-01 | German | PDF | 11.4MB Product Groups: Linear guides |
| Sistema de guias lineares Manual | R320103885_PT | 2016-09-01 | Portuguese | PDF | 11.3MB Product Groups: Linear guides |
| Sistemas de guiado lineal Manual | R320103885_ES | 2016-09-01 | Spanish | PDF | 11.4MB Product Groups: Linear guides |
| Guide profilate Manual | R320103885_IT | 2016-09-01 | Italian | PDF | 11.4MB Product Groups: Linear guides |
| Guidages sur rails Manual | R320103885_FR | 2016-09-01 | French | PDF | 11.3MB Product Groups: Linear guides |
| 型轨导向系统 Manual | R320103885_ZH | 2016-09-01 | Chinese | PDF | 11.9MB Product Groups: Linear guides |
| Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog BSHP Ball Rail Systems Catalog | R999000485 | 2020-10-01 | English | PDF | 15MB Product Groups: Ball Rail Systems only available as PDF |
