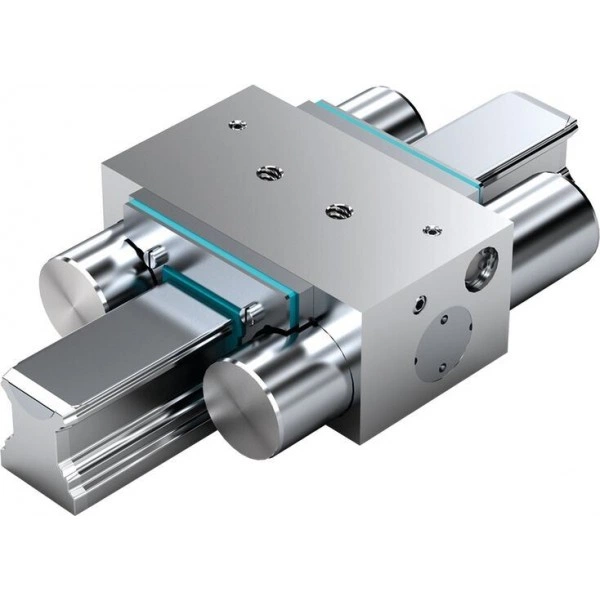

Pneumatic clamping and braking units MBPS R1619 .40 31
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Clamps and brakes with spring energy accumulator
- Positive locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect
- Dynamic and static stabilization in the axial direction
- Clamps and brakes without pressurization (spring energy)
- Clamping and braking units in short format
Features
- Up to 1 million clamping cycles
- Up to 2,000 emergency braking operations
- Integrated all-around sealing
- High continuous output
- High positioning accuracy
- Mechanical gate valve gear mechanism
- Solid, rigid steel housing, chemically nickel-plated
- Low air consumption
- Maintenance-free
- 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
- Can be used on all SNS Ball Guide Rails
- Add-ons with three pistons connected in series combined with strong springs result in holding forces up to 3,800 N at just 4.5 bar release pressure
Product description
Functional principle
Air pressure: 0 bar
Clamps and brakes with spring force
In the event of a pressure drop, the clamping or braking effect is achieved via a dual acting gate valve gear mechanism with one spring assembly (spring energy accumulator) in each case.
An integrated quick-exhaust valve provides for short reaction times.
Air pressure: 4.5 - 8 bar (MBPS)
5.5 - 8 bar (UBPS)
Decompression with air pressure
The clamping profiles are held apart by the compressed air.
- Free movement is possible
Technical data
General technical data
| Size | 20 | 25 | 30 | 35 | 45 | 55 | |
| Spring energy holding force with standard air port 1) | N | 750 | 1300 | 2000 | 2600 | 3800 | 4700 |
| Air consumption (normal liter) standard air port | dm³/stroke | 0.034 | 0.048 | 0.065 | 0.093 | 0.099 | 0.244 |
| Max. pneumatic operating pressure | bar | 8 | |||||
| Release pressure min. | bar | 4.5 | |||||
| Mass | kg | 0.7 | 1 | 1.8 | 1.9 | 2.3 | 3.7 |
| Operating conditions | |||||||
| Size | 20 | 25 | 30 | 35 | 45 | 55 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C | ||||||
| 1) | Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
Symbols/Circuit diagrams
Circuit1) with standard air connection
1) Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68)
a) Quick-exhaust valve
1 Air connection
2 Working connection
3 Exhaust
Fields of application
Clamping
- in the event of loss of pressure
- during assembly work and standstill of the machine without energy
- of machine tables from machining centers
- of z-axis positioning in the resting position
Braking
- in the event of energy failure
- in the event of a pressure drop
- support of the emergency stop function
- support as brake for linear motors

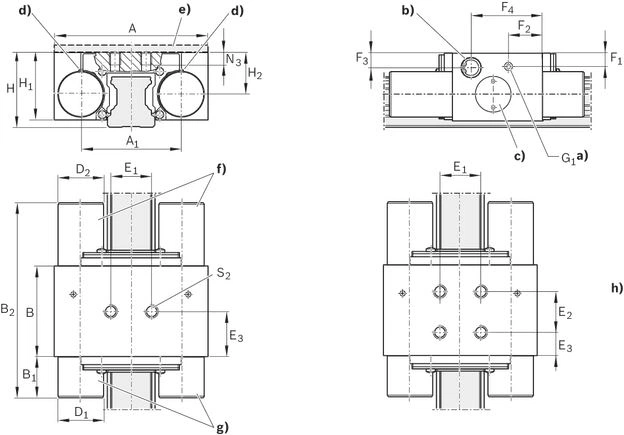

Dimensions
| a) | Air port*) G1 on two sides for release pressure |
| b) | Quick-exhaust on two sides |
| c) | Adjusting screw on two sides |
| d) | Exhaust on two sides |
| e) | Spacer plate (accessory) |
| f) | Piston |
| g) | Spring-loaded accumulator |
| h) | Size 55 - 65 |
| *) Only one connection needed. | |
| All connections sealed upon delivery. |
Dimensions
| Size | 20 | 25 | 30 | 35 | 45 | 55 | |
| A | mm | 66 | 75 | 90 | 100 | 120 | 140 |
| A1 | mm | 45.7 | 49 | 58 | 68 | 78.8 | 97 |
| B | mm | 44 | 47 | 46 | 49 | 62 | |
| B1 | mm | 19 | 20.2 | 29 | 27.7 | 32.2 | 41 |
| B2max | mm | 94.5 | 95.5 | 107.5 | 106.2 | 113.7 | 145 |
| D1 | mm | 16 | 22 | 25 | 28 | 30 | 39 |
| D2 | mm | 18 | 22 | 25 | 28 | 30 | 39 |
| E1 | mm | 20 | 22 | 24 | 26 | 38 | |
| E2 | mm | - | 38 | ||||
| E3 | mm | 22 | 23 | 24.5 | 12 | ||
| F1 | mm | 5.5 | 6.5 | 7.2 | 9 | 15 | 11 |
| F2 | mm | 15.5 | 16.5 | 30.5 | 19 | 31.1 | 23 |
| F3 | mm | 6 | 7 | 7.2 | 9.5 | 12.2 | 11 |
| F4 | mm | 35.5 | 34.7 | 40 | 38 | 41.6 | 40 |
| G1 | 3 Verstellelemente | M5 | G1/8" | M5 | |||
| H | mm | 30 | 36 | 42 | 48 | 60 | 70 |
| H1 1) | mm | 25.8 | 32.5 | 38.5 | 42 | 52 | 59 |
| H2 | mm | 16.2 | 20 | 24 | 26.5 | 35.5 | 38 |
| N3 | mm | 8.6 | 8 | 9 | 10 | 15 | 18 |
| S2 | M6 | M8 | M10 | ||||
| 1) | Ball runner block .H. (...high...) Spacer plate necessary. |
Mounting
