Артикул: RX7847
В наличии

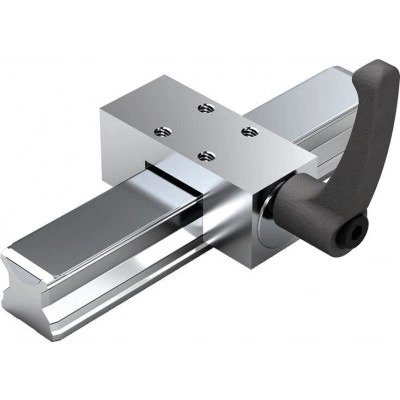

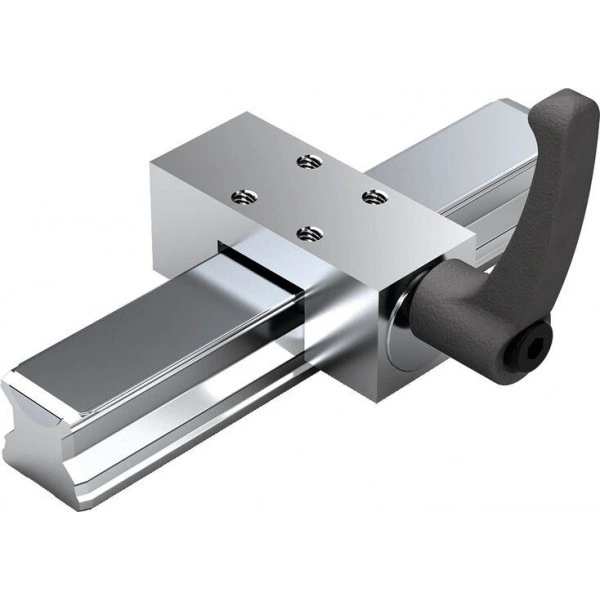

Manual clamping units HK R1619 .42 82
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Simple and safe design in compact format
- Manually operated clamping unit without auxiliary power
- Freely adjustable hand lever
- Exact positioning, high dynamics, powerful drive and long service life through the use of high-precision linear screw drives
- Manual clamping unit
Features
- 500,000 clamping cycles (B10d value)
- Symmetrical force application on roller guide rail via floating contact profiles
- Holding forces up to 2000 N
- Can be used on all SNS roller guide rails
Product description
Functional principle HK
Pressure via hand lever
Clamps with manual pressure
The clamping profiles are pressed through the hand lever to the web surfaces of the roller guide rail.
Decompressing by loosening the hand lever
Technical data
General technical data
| Size | 25 | 35 | 45 | 55 | 65 | |
| Holding force 1) | N | 1200 | 2000 | |||
| Tightening torque | Nm | 7 | 15 | 22 | ||
| Mass | kg | 0.43 | 1.08 | 1.64 | 1.71 | 2.84 |
| Operating conditions | ||||||
| Size | 25 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C | |||||
| 1) | The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
Fields of application
- Table crossbars and carriage
- Width adjustment
- Stops
- Positioning on optical devices and measuring tables

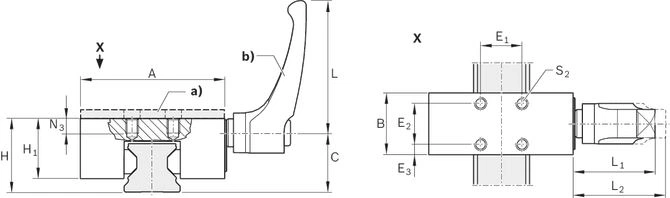

Dimensions
| a) | Spacer plate (accessory) |
| b) | Position of the hand lever can be changed. |
Dimensions
| Size | 25 | 35 | 45 | 55 | 65 | |
| A | mm | 70 | 100 | 120 | 140 | 160 |
| B | mm | 30 | 39 | 44 | 49 | 64 |
| C | mm | 29.3 | 38 | 47 | 56.5 | 69.5 |
| E1 | mm | 20 | 24 | 26 | 30 | 35 |
| E2 | mm | 20 | 24 | 26 | 30 | 35 |
| E3 | mm | 5 | 7.5 | 9 | 9.5 | 14.5 |
| H | mm | 36 | 48 | 60 | 70 | 90 |
| H1 1) | mm | 29 | 41 | 48 | 51 | 66 |
| L | mm | 64 | 78 | 95 | ||
| L1 | mm | 38.5 | 46.5 | 56.5 | ||
| L2 2) | mm | 41.5 | 50.5 | 61.5 | ||
| N3 | mm | 7 | 10 | 14 | 20 | |
| S2 | M6 | M8 | M10 | M14 | M16 | |
| 1) | Ball/Roller Runner Block .H. (...high...) Spacer plate necessary. |
| 2) | Hand lever disengaged |
Mounting
Note for mounting
- Make sure the connection structure is rigid.
- Observe the mounting instructions prior to commissioning.
Downloads
 | Profilschienenführungen Manual | R320103885 | 2016-09-01 | German | PDF | 11.4MB Product Groups: Linear guides |
| Sistema de guias lineares Manual | R320103885_PT | 2016-09-01 | Portuguese | PDF | 11.3MB Product Groups: Linear guides |
| Sistemas de guiado lineal Manual | R320103885_ES | 2016-09-01 | Spanish | PDF | 11.4MB Product Groups: Linear guides |
| Guide profilate Manual | R320103885_IT | 2016-09-01 | Italian | PDF | 11.4MB Product Groups: Linear guides |
| Guidages sur rails Manual | R320103885_FR | 2016-09-01 | French | PDF | 11.3MB Product Groups: Linear guides |
| 型轨导向系统 Manual | R320103885_ZH | 2016-09-01 | Chinese | PDF | 11.9MB Product Groups: Linear guides |
| Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog Roller Rail Systems Catalog | R999000354 | 2021-10-01 | English | PDF | 23.5MB Product Groups: Roller Rail Systems only available as PDF file |
Отзывы о товаре
Аналогичные товары
Официальный поставщик Bosch Rexroth
Продажи на территории России
Оптовые и розничные продажи
Снижение логистических расходов
Индивидуальные условия
Выгода без посредников
Единая система поставок
Весь ассортимент на складе
