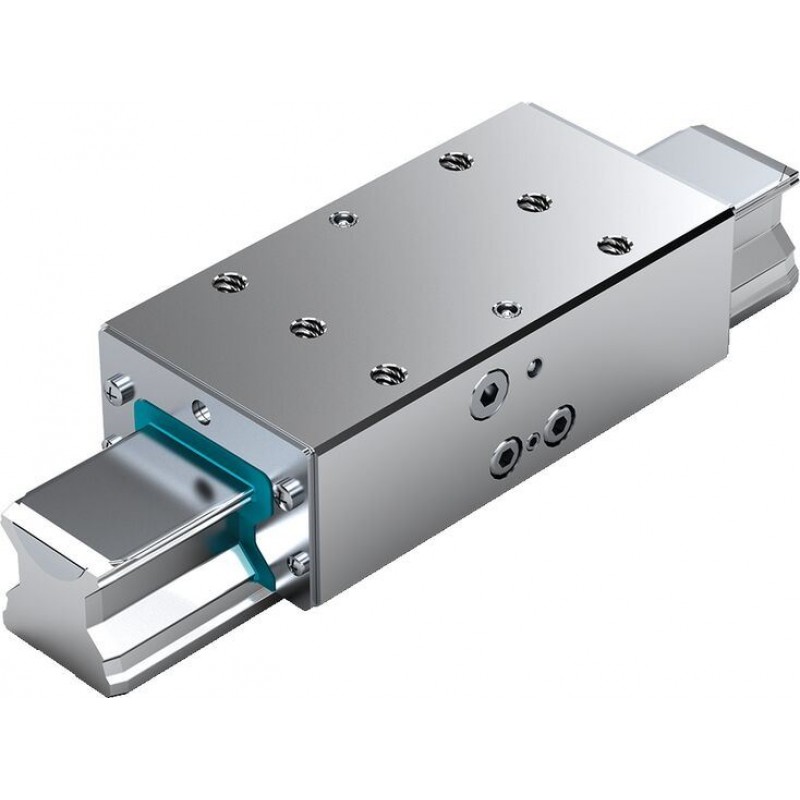

Hydraulic clamping units KWH, SLS R1810 642 51
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Very high axial holding forces
- Dynamic and static stabilization in the axial direction
- Compact design, compatible with DIN 645
- Clamps and brakes with pressure
Features
- Can be used on all SNS roller guide rails
- Threaded on both sides for the hydraulic connection
- Solid, rigid steel housing, chemically nickel-plated
- High positioning accuracy
- Continuously adjustable pressure from 50 - 150 bar
- Integrated all-around sealing
- Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
- Integrated positive-locking, large-surface contact profiles for maximum axial rigidity
- 10 million clamping cycles (B10d value)
Product description
Functional principle
Hydraulic pressure: 50 - 150 bar
Clamps and brakes with pressure
The large-scale clamping profiles are pressed directly through the hydraulic oil via a piston principle to the flanks of the Roller Guide Rail.
Hydraulic pressure: 0 bar
Decompression with spring force
A pre-tensioned return spring allows for short decompression cycles.
Technical data
General technical data
| Size | 65 | |
| Holding force 1) 2) | N | 22700 |
| Displacement 3) | cm³ | 3.8 |
| Max. hydraulic operating pressure | bar | 150 |
| Mass | kg | 15.4 |
| Operating conditions | ||
| Size | 65 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C | |
| 1) | The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see “Technical data and calculations.” |
| 2) | At 150 bar |
| 3) | Per clamping |
Technical data and calculations
Fields of application
- Clamping of heavy handling systems
- clamping of machine tables from heavily machined machining centers

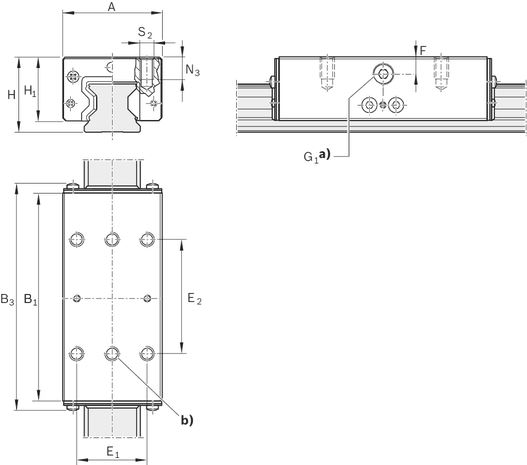

Dimensions
| a) | Hydraulic connection*) G1 on two sides |
| b) | In addition, both middle mounting holes must be used! |
| *) Only one connection needed. | |
| All connections sealed upon delivery. |
Dimensions
| Size | 65 | |
| A | mm | 126 |
| B1 | mm | 227 |
| B3 | mm | 245.1 |
| E1 | mm | 76 |
| E2 | mm | 120 |
| F | mm | 20 |
| G1 | 3 Verstellelemente | 1/4" |
| H | mm | 90 |
| H1 | mm | 76 |
| N3 | mm | 21 |
| S2 | M16 |
Mounting
Notes for mounting
- Stop surfaces can be used on two sides.
- Make sure the connection structure is rigid.
- Observe the mounting instructions prior to commissioning.
- Check whether the sealing lips of the end seals are resting evenly on the roller guide rail. Realign if necessary.
Maintenance
Notes on lubrication
- Initial filling of hydraulic oil HLP46
- Check for compatibility when using different oils
Ordering codes
Materialnummern
| Size | Part number | CAD data | Buy |
| 65 | R181064251 |
Attention: Observe safety notes on clamping and braking units. See general technical notes and information, chapter "Safety instructions".
