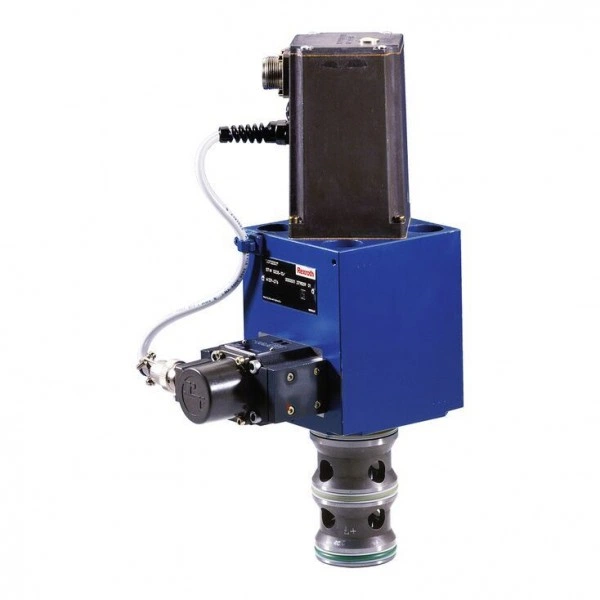

Directional high-response cartridge valve, pilot-operated, with integrated electronics (OBE) 3WRCE…S
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Size 32 … 50
- Component series 2X
- Maximum operating pressure 420 bar
- Maximum flow 2200 l/min
Features
- 3-way directional cartridge valve
- Pilot control valve: 2-stage directional servo valve
- Main stage: position-controlled
- Flexible:
– Suitable for position, pressure, force and velocity control - Typical applications:
- Presses
- Die casting machines
- Nibbling axes
Product description
Valves of type 3WRCE are pilot-operated, 3-stage directional high-response cartridge valves. They control the quantity and direction of a flow and are mainly used in control loops.

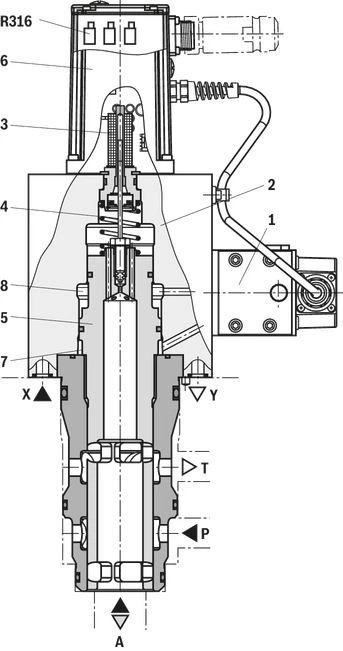

Set-up
The valves consist of the following assemblies:
- 2-stage pilot control valve (1)
- with dry torque motor
- low-friction nozzle flapper plate amplifier
- mechanical feedback of the control spool position
- Main stage (2) for flow control
- An inductive position transducer (3) the core (4) of which is attached to the main control spool (5) of the third stage
- Integrated electronics (6).

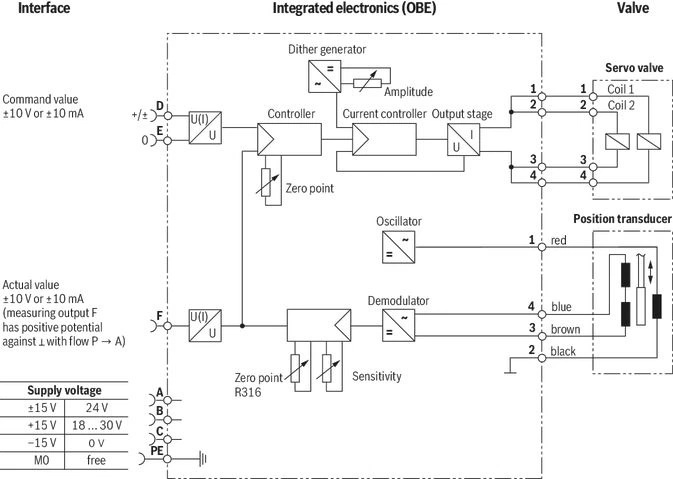

Function
The integrated electronics compares command and actual values and the torque motor of the pilot control valve is actuated with a proportional current according
to the control deviation.
The pilot control valve (1) takes a proportionally controlled position and controls the flow in and out of the control chambers A (7) and B (8) that actuate the main control spool (5) through the closed valve control loop up to 0 control deviation.
This means that the stroke of the main control spool (5) is regulated proportionally to the command value. It must be noted that the flow also depends on the valve pressure drop.
Valve features
The opening point of 0% (symbol V) is set at the factory. Upon replacement of the pilot control valve (1) or the control integrated electronics (6), the opening point can be readjusted using the zero adjustment potentiometer R316 (accessible via a plug screw).
During the exchange, no settings must be made at the control electronics (= controller or control electronics) and the pilot control valve (1), except for the zero adjustment at the position transducer.
At the pilot control valve (1), only the filter element may be exchanged. The pilot control valve (1) is trimmed so that the pilot pressure is connected to control chamber B (8) in case of a power failure, i.e. the main stage opens from A to T and/or closes the connection from P to A.
The spring behind the main control spool (5) moves it into position so that P to A is closed if no pressure is applied (e.g. prior to installation, before the pressures are reapplied after tool change).
The integrated electronics (6) features an offset to compensate the trimming (pilot trimming) of the pilot control valve (1).
Notice:
Version "3WRCE" is not recommended for new applications. If version "3WRCE" is used, ports A and P have to be exchanged. Upon request.
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | |||
| 3 | WRCE | ‒ | 2X | / | S | K31 | / | * |
| 01 | 3 main ports | 3 |
| 02 | Directional high-response cartridge valve, pilot-operated, with integrated electronics (OBE) | WRCE |
| 03 | Size 32 | 32 |
| Size 40 | 40 | |
| Size 50 | 50 | |
| 04 | Control spool in spool design – zero overlap (+0.5 … +1.5%) | V |
| Control spool in spool design – positive overlap 10 … 13% | E | |
| Rated flow (Δp = 5 bar) | ||
| 05 | Size 32 | |
| 250 l/min 1) | 250 | |
| 290 l/min 2) | 290 | |
| Size 40 | ||
| 410 l/min 1) | 410 | |
| 460 l/min 2) | 460 | |
| Size 50 | ||
| 620 l/min 1) | 620 | |
| 720 l/min 2) | 720 | |
| Flow characteristic | ||
| 06 | Linear | L |
| Linear with progressive fine control range | R | |
| 07 | Component series 20 … 29 (20 … 29: unchanged installation and connection dimensions) | 2X |
| Pilot control valve | ||
| 08 | Directional servo valve | S |
| Power supply | ||
| 09 | Direct voltage 24 V | G24 |
| Direct voltage ±15 V | G15 | |
| Electrical connection | ||
| 10 | Without mating connector, connector according to DIN EN 175201-804 | K31 3) |
| Electrical interface | ||
| 11 | Command value/actual value ±10 V | A1 |
| Command value/actual value ±10 mA | C1 | |
| Sandwich plate shut-off valve | ||
| 12 | Without shut-off valve | no code |
| With shut-off valve 3) | ||
| Shut-off valve switched to de-energized actively closes "3WRCE" with applied pilot pressure | WK15 | |
| Shut-off valve switched to de-energized actively opens "3WRCE" with applied pilot pressure | WL15 | |
| Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data") | ||
| 13 | NBR seals | M |
| FKM seals | V | |
| 14 | Further details in the plain text | * |
| 1) | Only version "E" and "P" |
| 2) | Only version "V" and "L" |
| 3) | Mating connectors, separate order, see "Accessories" and datasheet 08006. |
Notice:
Version "3WRCE" is not recommended for new applications, see "Product description".
Technical data
(For applications outside these values, please consult us!)
general
| Size | 32 | 40 | 50 | ||
| Installation position; commissioning | any, preferably horizontal | ||||
| Storage temperature range | °C | -20 … +80 | |||
| Ambient temperature range | °C | -20 … +60 | |||
| Earth | Without shut-off valve | kg | 11.5 | 18.9 | 29.2 |
| With shut-off valve | kg | 12.7 | 20.1 | 32.9 | |
hydraulic
| Size | 32 | 40 | 50 | |||
| Maximum operating pressure | Main stage | Anschluss A | bar | 315 | ||
| Port B | bar | 315 | ||||
| Port T | bar | 315 | ||||
| Pilot control valve | Port X | bar | 315 | |||
| Port Y | Pressure peaks < 100, static < 10 | |||||
| Nominal flow 1) | Version “L” | l/min | 290 | 460 | 720 | |
| Version "P" | l/min | 250 | 410 | 620 | ||
| Maximum flow | Version “L” | l/min | 900 | 1400 | 2200 | |
| Version "P" | l/min | 900 | 1400 | 2200 | ||
| Pilot flow 2) | l/min | 27 | 42 | 65 | ||
| Zero flow | Pilot control valve | See characteristic curves | ||||
| Main stage 3) | l/min | 4 | 6 | 8 | ||
| Control flow | cm³ | ± 2.26 | ± 4.24 | ± 8.65 | ||
| Nominal stroke | mm | ± 5 | ± 6 | ± 7.5 | ||
| Hydraulic fluid | see table "Hydraulic fluid" | |||||
| Hydraulic fluid temperature range | Maximum admissible | °C | -20 … +80 | |||
| Recommended | °C | +40 … +50 | ||||
| Viscosity range | Maximum admissible | mm²/s | 20 … 380 | |||
| Recommended | mm²/s | 30 … 45 | ||||
| Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 4) | Pilot control valve | Class 18/16/13 | ||||
| Main stage | Class 20/18/15 | |||||
| Hysteresis | % | ≤ 0.2 | ||||
| Range of inversion | % | ≤ 0.1 | ||||
| Response sensitivity | % | ≤ 0.1 | ||||
| Closing time 5) | Pilot control valve | ms | ≤ 500 | |||
| With shut-off valve | ms | ≤ 200 | ||||
| 1) | +10 %;Δp = 5 bar |
| 2) | Stepped input signal (seat position at 100%, pilot pressure 315 bar) |
| 3) | pP = 300 bar |
| 4) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 5) | With pilot pressures from 40 bar … 315 bar |
| Hydraulic fluid | Classification | Suitable sealing materials | Standards | Data sheet | |
| Mineral oils | HL, HLP, HLPD, HVLP, HVLPD | NBR, FKM | DIN 51524 | 90220 | |
| Bio-degradable | Insoluble in water | HETG | NBR, FKM | ISO 15380 | 90221 |
| HEES | FKM | ||||
| Soluble in water | HEPG | FKM | ISO 15380 | ||
| Flame-resistant | Water-free | HFDU (glycol base) | FKM | ISO 12922 | 90222 |
| HFDU (ester base) | FKM | ||||
| HFDR | FKM | ||||
| Containing water | HFC (Fuchs: Hydrotherm 46M, Renosafe 500; | NBR | ISO 12922 | 90223 | |
| Important information on hydraulic fluids:
| |||||
electrical
| Voltage type | Direct voltage | ||
| Type of signal | analog | ||
| Protection class according to EN 60529 | IP65 (If a suitable and a correctly mounted mating connector are used.) | ||
| Zero point calibration | % | ≤ 1 | |
| Zero shift upon change of | Hydraulic fluid temperature | %/10 K | ≤ 0.3 |
| Pilot pressure | %/100 bar | ≤ 0.7 | |
| Return flow pressure 1) | %/bar | ≤ 0.3 | |
| 1) | 0 … 10% of the pilot pressure |
Notice:
For information on the environment simulation testing for the areas EMC (electromagnetic compatibility), climate and mechanical load see data sheet 29136-U (declarations on environmental compatibility).
Diagrams/characteristic curves
(measured with HLP32, ϑOil = 40 ±5 °C)
Pressure-signal characteristic curve
("3WRCE…V"; limit and average characteristic curves)
Size 32

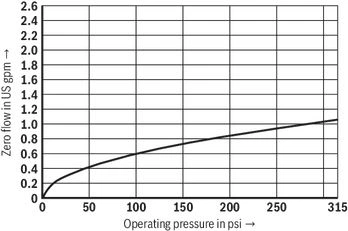

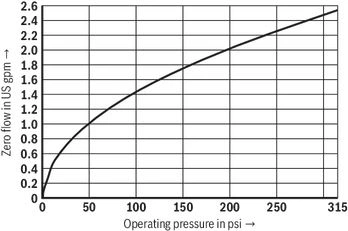

Zero flow at the pilot control valve

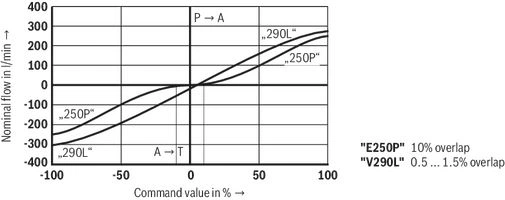

Nominal flow
(Δp = 5 bar)
Transition function

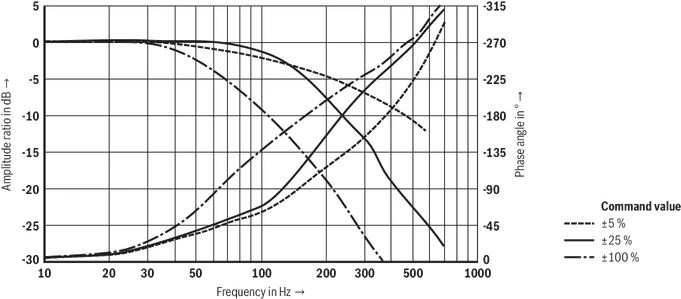

Frequency response
(pP = 315 bar)

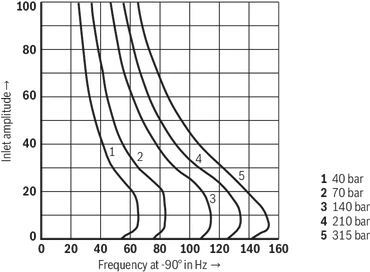

Frequency f dependent on operating pressure and inlet amplitude
Size 40

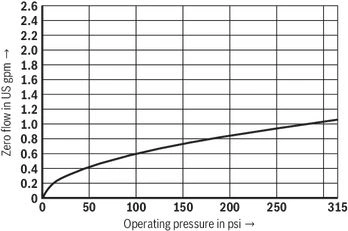

Zero flow at the pilot control valve

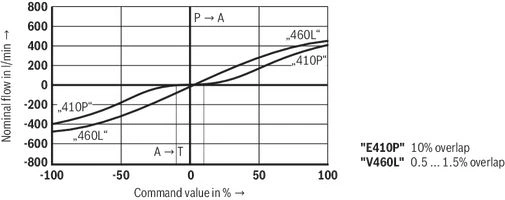

Nominal flow
(Δp = 5 bar)

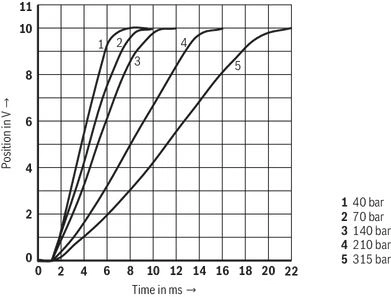

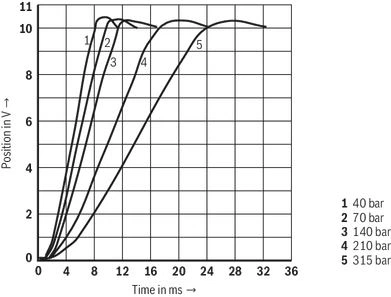

Transition function

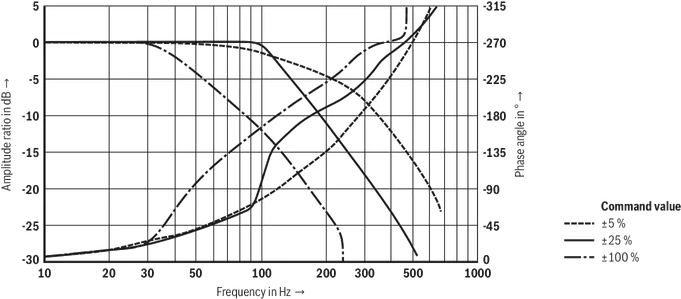

Frequency response
(pP = 315 bar)

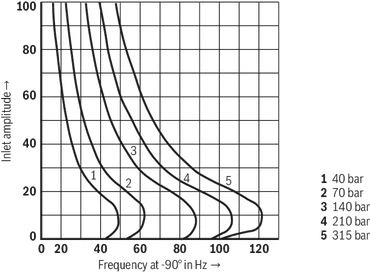

Frequency f dependent on operating pressure and inlet amplitude
Size 50
Zero flow at the pilot control valve

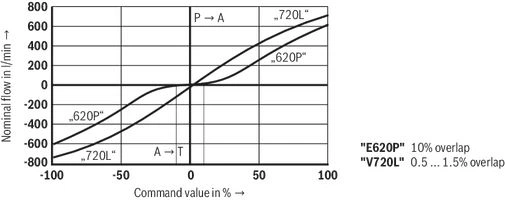

Nominal flow
(Δp = 5 bar)

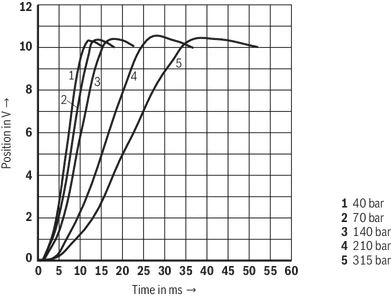

Transition function

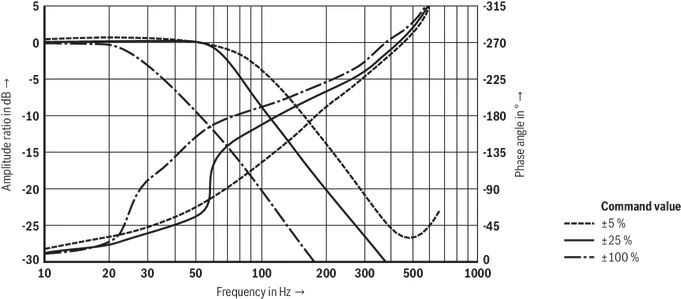

Frequency response
(pP = 315 bar)

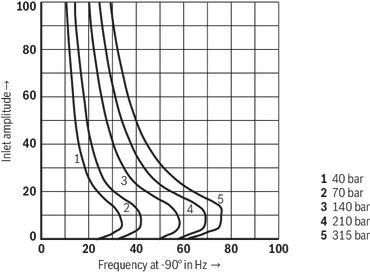

Frequency f dependent on operating pressure and inlet amplitude

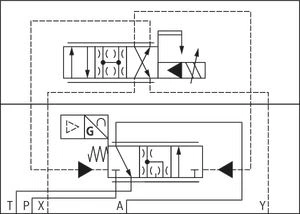

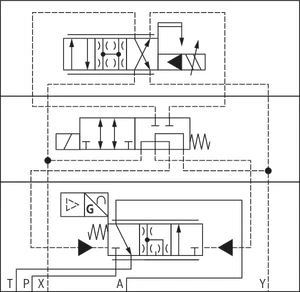

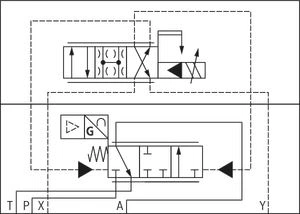

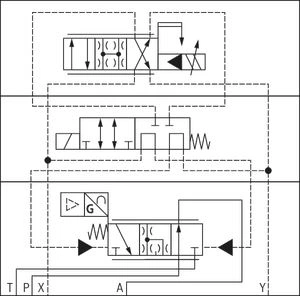

Symbols/Circuit diagrams
Simplified
| "V…No code" and "V…WK15" version | Version "V…WL15" | "E…No code" version |
 |  |  |
Detailed
| "V…No code" version | "V…WK15" version |
 |  |
| Version "V…WL15" | "E…No code" version |
 |  |
Notice:
Representation according to ISO 1219-1.
Electrical connection
Connector pin assignment
| Pin | Signal | Interface | |
| "A1" | "C1" | ||
| A | Power supply | +24 VDC (+15 VDC) | |
| B | 0 VDC (-15 VDC) | ||
| C | M0 with ± 15 V "G15" | n.c. (reference to pins A, B) | |
| D | Differential command value input | 0 ... ±10 V | 0 ... ±10 mA |
| E | |||
| F | Actual value Reference with "G15" is pin C Reference with "G24" is pin B | 0 ... ±10 V | 0 ... ±10 mA |
| PE | Functional ground (directly connected to the valve housing) | ||
Power supply
- +24 VDC ±6 V; full bridge rectification with smoothing capacitor 2200 µF = Imax = 230 mA
- ±15 VDC ±0.45 V; stabilized and smoothened; Imax = 180 mA
Command value
- 0 … +10 mA / ±10 mA → input resistance 100 Ω
Actual value
- 0.5 mA … +10 mA / ±10 mA → maximum load resistance 1 kΩ
Notices:
- Do not connect PE if the valve has already been grounded via the system.
- Command value and actual value have the same polarity.
- Electrical signals provided via control electronics (e.g. actual value) must not be used to switch off safety-relevant machine functions.
- Mating connectors, separate order, see "Accessories" and datasheet 08006.
Nominal command value range
0 … ±10 V; 0 … ±10 mA (0 … ±100 %)
- In case of a slow command value modification from 0 V ... ±10 V, the actual value follows the command value within ±0.1 V.
- With command values of more than ±10 V, the actual value will follow to approx. ±13 V
- At a command value step to +10 V, the actual value can temporarily reach values of up to approx. +10.5 V.
Effect of the control:
A positive signal at pin D and a reference potential at pin E results in Flow P → A
Dimensions

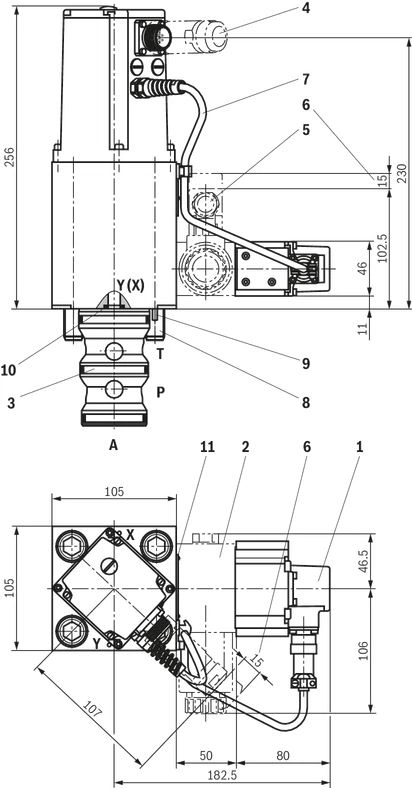

Size 32
Dimensions in mm
| 1 | Pilot control valve (directional servo valve NG6) |
| 2 | Sandwich plate shut-off valve (only with versions “WK15” and “WL15”) |
| 3 | Socket |
| 4 | Mating connectors for valves with round connector, 6-pole, separate order, see "Accessories" |
| 5 | Mating connectors for valves with connector "K4", separate order, see "Accessories" |
| 6 | Space required to remove the mating connector |
| 7 | Cabling |
| 8 | Valve mounting screws (included in the scope of delivery) (see below) |
| 9 | Locking pin |
| 10 | Identical seal rings for ports X and Y |
| 11 | Name plate |

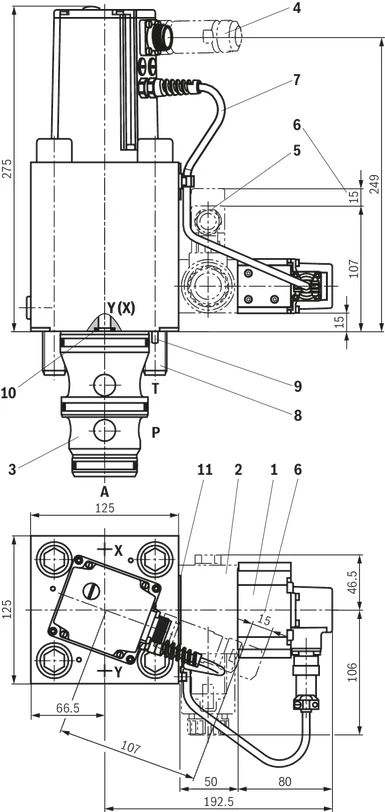

Size 40
Dimensions in mm
| 1 | Pilot control valve (directional servo valve NG6) |
| 2 | Sandwich plate shut-off valve (only with versions “WK15” and “WL15”) |
| 3 | Socket |
| 4 | Mating connectors for valves with round connector, 6-pole, separate order, see "Accessories" |
| 5 | Mating connectors for valves with connector "K4", separate order, see "Accessories" |
| 6 | Space required to remove the mating connector |
| 7 | Cabling |
| 8 | Valve mounting screws (included in the scope of delivery) (see below) |
| 9 | Locking pin |
| 10 | Identical seal rings for ports X and Y |
| 11 | Name plate |

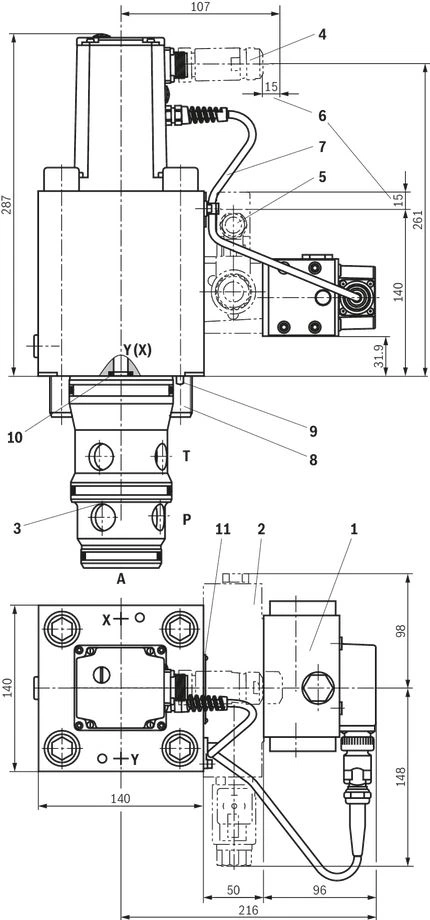

Size 50
Dimensions in mm
| 1 | Pilot control valve (directional servo valve NG10) |
| 2 | Sandwich plate shut-off valve (only with versions “WK15” and “WL15”) |
| 3 | Socket |
| 4 | Mating connectors for valves with round connector, 6-pole, separate order, see "Accessories" |
| 5 | Mating connectors for valves with connector "K4", separate order, see "Accessories" |
| 6 | Space required to remove the mating connector |
| 7 | Cabling |
| 8 | Valve mounting screws (included in the scope of delivery) (see below) |
| 9 | Locking pin |
| 10 | Identical seal rings for ports X and Y |
| 11 | Name plate |
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
Valve mounting screws (included in the scope of delivery)
| Size | Quantity | Hexagon socket head cap screws |
| 32 | 4 | ISO 4762 - M16 x 100 - 10.9-flZn/nc/480h/C Tightening torque MA = 250 Nm ±10 % |
| 40 | 4 | ISO 4762 - M20 x 180 -10.9 Tightening torque MA = 590 Nm ±10 % |
| 50 | 4 | ISO 4762 - M20 x 190 -10.9 Tightening torque MA = 590 Nm ±10 % |
Notice:
For tightening, use a manual torque wrench with a tolerance ≤10 %.

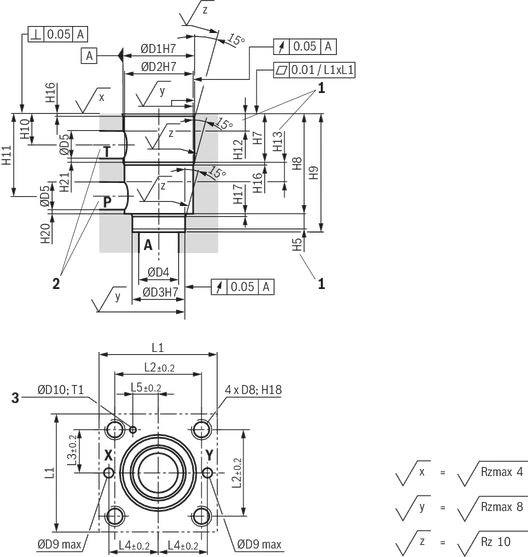

Installation bore
Dimensions in mm
| 1 | Depth of fit, minimum dimension |
| 2 | The ports P, T and B can be positioned around the central axis of port A. However, it must be observed that the mounting bores and the control bores are not damaged. |
| 3 | Bore for locating pin |
| NG | 32 | 40 | 50 | |
| ØD1H7 | mm | 60 | 75 | 90 |
| ØD2H7 | mm | 58 | 73 | 87 |
| ØD3H7 | mm | 55 | 55 | 68 |
| ØD4 | 32 | 40 | 50 | |
| ØD5 | mm | 24 | 30 | 35 |
| ØD6H7 | mm | 45 | 55 | 68 |
| ØD7 | mm | 32 | 40 | 50 |
| D8 | M16 | M20 | M20 | |
| ØD9 max | mm | 8 | 10 | 10 |
| ØD10 | mm | 6 | 6 | 8 |
| H1 | mm | 70 | 87 | 100 |
| H2 | mm | 85 | 105 | 122 |
| H3 | mm | 52 | 64 | 72 |
| H4 | mm | 30 | 30 | 35 |
| H5 | mm | 13 | 15 | 17 |
| H7 | mm | 43.5 | 54 | 87 |
| H8 | mm | 85 | 105 | 143 |
| H9 | mm | 100 | 125 | 165 |
| H10 | mm | 30 | 36 | 66 |
| H11 | mm | 70.5 | 87 | 122 |
| H12 | mm | 18 | 21 | 48 |
| H13 | mm | 15 | 18 | 18 |
| H16 | mm | 2.5 | 3 | 4 |
| H17 | mm | 2.5 | 3 | 3 |
| H18 | mm | 35 | 45 | 45 |
| H19 | mm | 2 | 3 | 3 |
| H20 | mm | 2.5 | 3 | 3.5 |
| H21 | mm | 1.5 | 3 | 3.5 |
| L1 | mm | 105 | 125 | 140 |
| L2 | mm | 70 | 85 | 100 |
| L3 | mm | 35 | 42.5 | 50 |
| L4 | mm | 41 | 50 | 58 |
| L5 | mm | 17 | 23 | 30 |
| T1 | mm | 10 | 10 | 10 |
| R1 max | mm | 2 | 4 | 4 |
| R2 max 1) | mm | 1 | 1 | 1 |
| 1) | Deviating from ISO 7368 |
Notice:
Tolerances according to: General tolerances ISO 2768-mK
Accessories
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Mating connectors for valves with one or two solenoids (individual connection)
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Mating connectors for valves with one or two solenoids (individual connection)
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Mating connectors for valves with one or two solenoids (individual connection)
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Mating connectors for valves with one or two solenoids (individual connection)
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
- For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328
Ordering codes
Downloads
 | Directional high-response cartridge valve, pilot-operated, with integrated electronics (OBE) Data Sheet | RE29136 | 2019-12-01 | English | PDF | 1.3MB Product Groups: Proportional flow control valves Type WRCE |
Нет отзывов об этом товаре.
