Description

  • Size 25 … 50
  • Component series 1X
  • Maximum operating pressure 315 bar
  • Maximum flow 2250 l/min
  • Nominal flow 190 … 750 l/min

Features

  • 3/3-directional cartridge valve
  • Control spool with anti-rotation feature and control edges in servo-type quality
  • With inductive position transducer at the main control spool and pilot control valve
  • Position-controlled with integrated electronics (OBE)
  • Completely adjusted unit

Product description

Valves of type 3WRCBEE are pilot-operated, 2-stage directional high-response cartridge valves. They control the flow direction and size.

Set-up

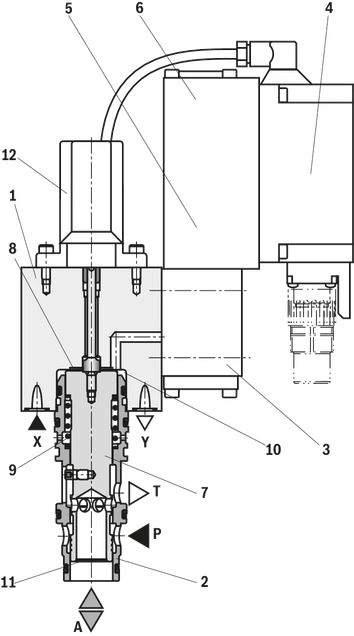

The valves consist of the following assemblies:

  • Cover (1) with connection surfaces,
  • Main control spool (7) with control edges,
  • Socket (2),
  • Pilot control valve (3) with paired control spool socket unit and inductive position transducer (6)
  • Integrated electronics (OBE) (4) with inductive position transducer (12) of the main control spool

Function

  • Switching of the main control spool (7) via the pilot control valve (3); pressure build-up in the control chamber (10) acts on the surface (8) – the pressure of the connection A counteracts on the area (11)
  • and the spring force (9).
  • Control of the control spool of the pilot control valve through the proportional solenoid (5) against the spring force in the pilot control valve.
  • Linking the command values (4) and actual values (12 and 6) in the microcontroller of the integrated electronics (OBE) (4).
  • Pilot oil supply Y to pilot control valve connection P; pilot oil drain via Y to the container.
  • With a command value of 0 V or 12 mA, the electronics controls the main control spool (7) in central position. This way, fifty percent of the system pressure (pP/2) will be set in connection A.
  • Area ratio of area (11) to area (8) at:
    • Size 25 = 1:1.5
    • Size 32 = 1:1.5
    • Size 50 = 1:1

Failure of supply voltage

  • Integrated electronics (OBE) de-energize the solenoid in case of supply voltage failure or cable break
  • Depressurizing the control spool surface (8) via the pilot control valve (3) after Y to the container.
  • Spring force (9) and pressure in connection A of the area (11) will cause the main control spool (7) to open the connection A to T and close P to A

Notice:

Supply voltage failure will cause an abrupt standstill of the control loop. The acceleration forces occurring in this connection may cause machine damage.

Type code

01

02

03

04

05

06

07

08

09

10

11

12

13

14

3

WRCB

EE

V

M

1X

/

G24

K31

M

*

01

3 main ports

3

02

Directional high-response cartridge valve, pilot-operated

WRCB

03

Integrated electronics (OBE)

EE

04

Size 25

25

Size 32

32

Size 50

50

05

Control spool with zero overlap

V

Area ratio at the control spool (determined at the factory)

06

1:1 (NG50)

no code

1:1,5 (NG25, 32)

F

Rated flow (Δp = 5 bar)

07

Size 25

[si]190 l/min[/si][imp]50.2 US gpm[/im

190

Size 32

380 l/min

380

Size 50

750 l/min

750

Flow characteristic

08

Inflected characteristic curve, progressive with linear fine control range

M

09

Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)

1X

Power supply

10

Direct voltage 24 V

G24

Electrical connection

11

Without mating connector, connector according to DIN EN 175201-804

K31 1)

Electrical interface

12

Command value/actual value ±10 V

A1

Command value/actual value 4 … 20 mA

F1

Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")

13

NBR seals

M

14

Further details in the plain text

*

1)Mating connectors, separate order, see "Accessories" and datasheet 08006.

Technical data

(For applications outside these values, please consult us!)

general

Size

253250

Installation position

any (for set-up of the valve on an actuator, avoid arranging the main control spool in parallel to the acceleration or delay direction of the actuator.)

Earth

kg

11.816.223.2

Storage temperature range

°C

-20 … +80

Ambient temperature range

°C

-20 … +50

hydraulic

Size

253250

Maximum operating pressure

Port P

bar

315

Anschluss A

bar

315

Port T

bar

315

Port X

bar

315

Maximum return flow pressure

Port Y

bar

250

Nominal flow 1)

l/min

190380750

Maximum flow

l/min

60010002250

Pilot flow 2)

l/min

121630

Maximum zero flow 3)

l/min

1.52.53.5

Leakage in spring-centered position 4)

l/min

0.20.40.8

Area ratio at the main control spool

1:1.51:1

Pressure differential main control spool spring on control spool area at port A

bar

2.5

Hydraulic fluid

see table "Hydraulic fluid"

Hydraulic fluid temperature range

°C

-20 … +80

Viscosity range

mm²/s

15 … 380

Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 5)

Pilot control valve

Class 18/16/13

Main valve

Class 20/18/15

Hysteresis

%

≤ 0.1

Response sensitivity

%

≤ 0.1
1)Δp = 5 bar
2)X or Y for minimum actuating time (command value ±100%)
3)pP = 315 bar
4)pP = 315 bar; command value -100%
5)The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Data sheet

Mineral oils

HL, HLP, HLPD, HVLP, HVLPD

NBR, FKM

DIN 51524

90220

Bio-degradable

Insoluble in water

HETG

NBR, FKM

ISO 15380

90221

HEES

FKM

Soluble in water

HEPG

FKM

ISO 15380

Flame-resistant

Water-free

HFDU (glycol base)

FKM

ISO 12922

90222

HFDU (ester base)

FKM

HFDR

FKM

Containing water

HFC (Fuchs: Hydrotherm 46M, Renosafe 500;
Petrofer: Ultra Safe 620;
Houghton: Safe 620;
Union: Carbide HP5046)

NBR

ISO 12922

90223

Important information on hydraulic fluids:

  • For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us.
  • There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).
  • The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature.
  • Bio-degradable and flame-resistant – containing water: If components with galvanic zinc coating (e.g. version "J3" or "J5") or parts containing zinc are used, small amounts of dissolved zinc may get into the hydraulic system and cause accelerated aging of the hydraulic fluid. Zinc soap may form as a chemical reaction product, which may clog filters, nozzles and solenoid valves - particularly in connection with local heat input.
  • Flame-resistant – containing water:
    • Due to increased cavitation tendency with HFC hydraulic fluids, the life cycle of the component may be reduced by up to 30% as compared to the use with mineral oil HLP. In order to reduce the cavitation effect, it is recommended - if possible specific to the installation - to back up the return flow pressure in ports T to approx. 20% of the pressure differential at the component.
    • Dependent on the hydraulic fluid used, the maximum ambient and hydraulic fluid temperature must not exceed 50 °C. In order to reduce the heat input into the component, the command value profile is to be adjusted for proportional and high-response valves.

electrical

Size

253250

Power supply

Nominal voltage

VDC

24

Lower limit value

VDC

21

Upper limit value

VDC

35

Current consumption

Maximum

A

1.8

Impulse load

A

3

Duty cycle

%

100

Protection class according to EN 60529

IP65 (If a suitable and a correctly mounted mating connector are used.)

Temperature drift main control spool

%/10 K

0.160.340.02

Diagrams/characteristic curves

(measured with HLP32, ϑOil = 40 ±5 °C)

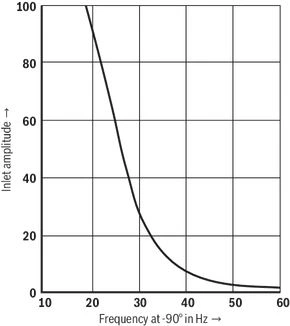

Size 25

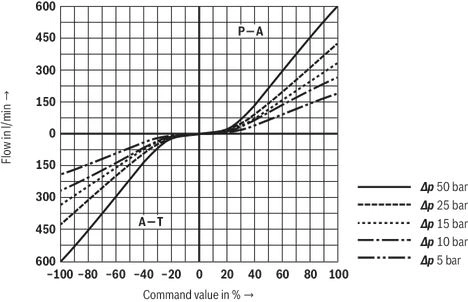

Nominal flow

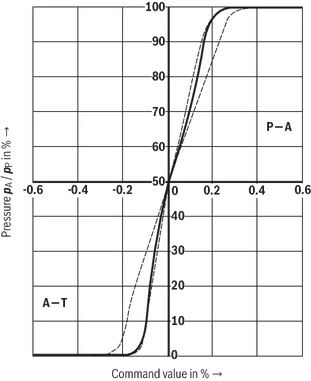

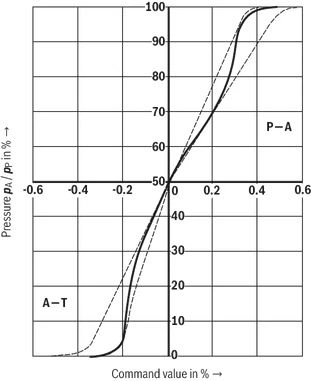

Pressure-signal characteristic curve

Dependency of the frequency f at -90°

(pSt = 100 bar, pA = 50 bar)

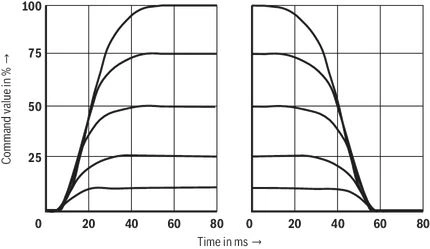

Transition function with stepped electric input signals

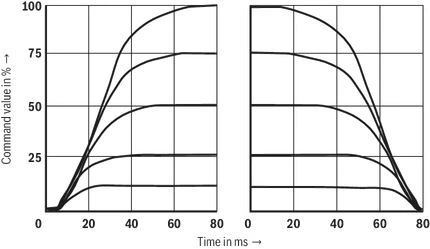

(pSt = 100 bar, pA = 50 bar)

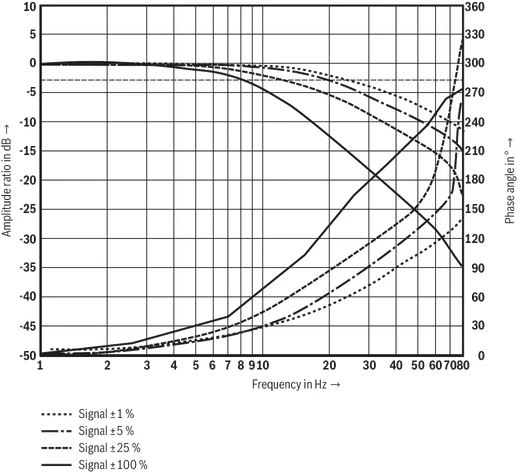

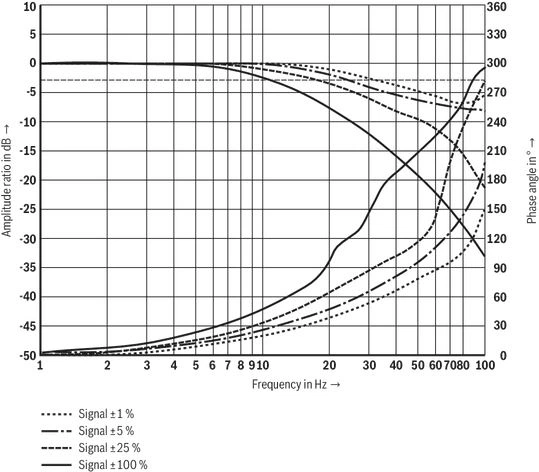

Frequency response

(pSt = 100 bar, pA = 50 bar)

Size 32

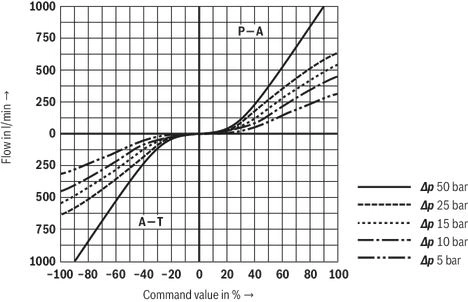

Nominal flow

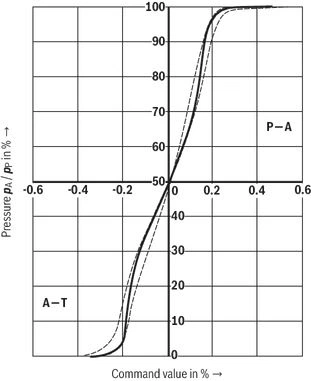

Pressure-signal characteristic curve

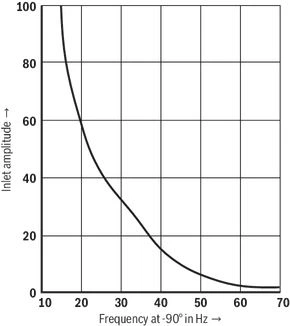

Dependency of the frequency f at -90°

(pSt = 100 bar, pA = 50 bar)

Transition function with stepped electric input signals

(pSt = 100 bar, pA = 50 bar)

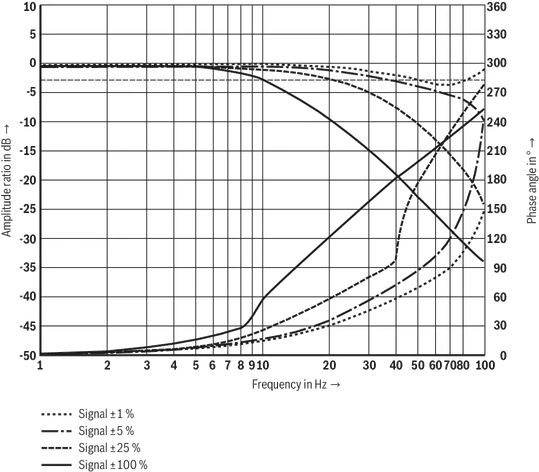

Frequency response

(pSt = 100 bar, pA = 50 bar)

Size 50

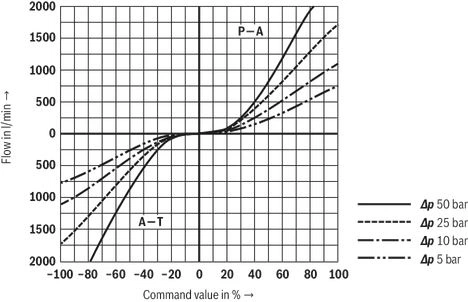

Nominal flow

Pressure-signal characteristic curve

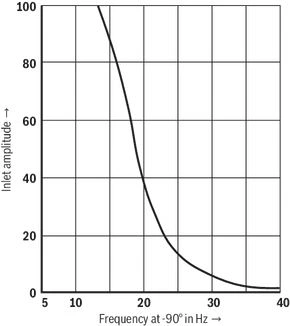

Dependency of the frequency f at -90°

(pSt = 100 bar, pA = 50 bar)

Transition function with stepped electric input signals

(pSt = 100 bar, pA = 50 bar)

Frequency response

(pSt = 100 bar, pA = 50 bar)

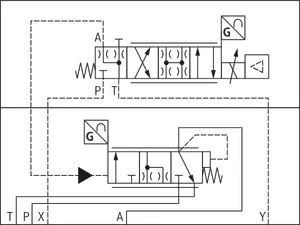

Symbols/Circuit diagrams

Simplified

Version "no code"

Area ratio 1:1

Version "F"

Area ratio 1:1.5

Detailed

Version "F"

Electrical connection

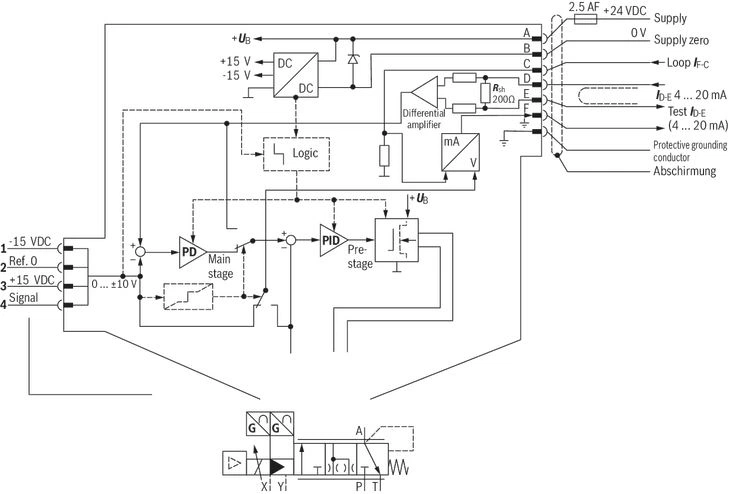

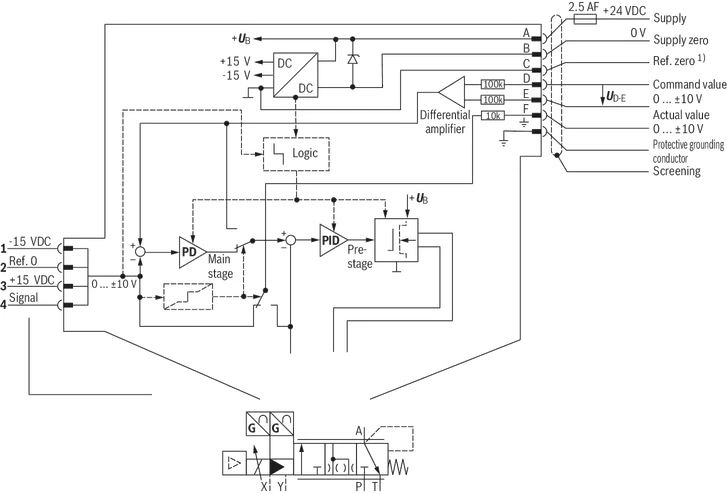

Block diagram / controller function block

Version "A1"

1)Do not connect with the supply zero

Block diagram / controller function block

Version "F1"

Contact

Interface assignment

"A1" (6+PE)

"F1" (6+PE)

A

24 VDC supply voltage

B

GND

C

Reference potential actual value

D

Command value ±10 V

Command value 4 … 20 mA

E

Reference potential command value

F

Actual value ±10 V

Actual value 4 … 20 mA

PE

Functional ground (directly connected to the valve housing)

Effect of the control:

  • Version "A1"
    • Reference potential at pin E and positive command value at pin D causes volume flow P → A
    • Reference potential at pin E and negative command value at pin D causes volume flow A → T
  • Version "F1"
    • Reference potential at pin E and signal 12 … 20 mA at pin D causes volume flow P → A
    • Reference potential at pin E and signal 12 … 4 mA at pin D causes volume flow A → T

Recommendation connection cable

  • Up to 25 m – min. 0,75 mm2 per conductor
  • Up to 50 m – min. 1,5 mm2 per conductor
  • With shield braid (connect screening on one side of the supply zero of the power supply unit)
  • Maximum external diameter 7 … 11 mm

Notices:

  • Do not connect PE if the valve has already been grounded via the system.
  • Mating connectors, separate order, see "Accessories"

Dimensions

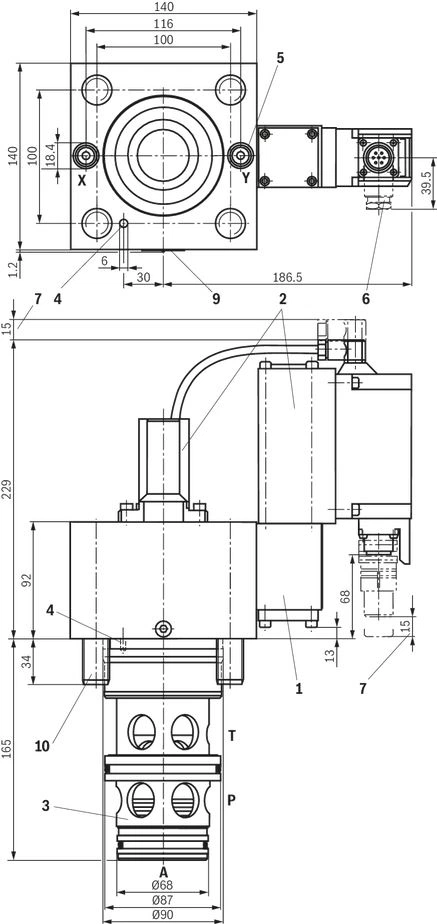

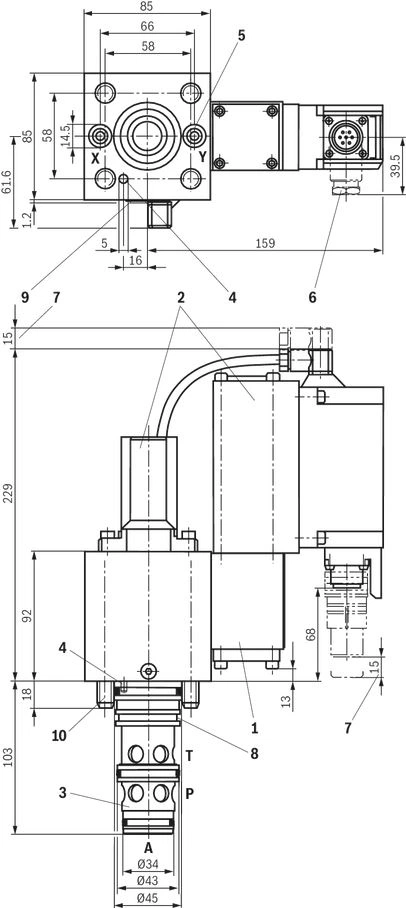

Size 25

Dimensions in mm

1

Pilot control valve with integrated electronics (OBE)

2

Position transducer pilot control and main stage

3

Socket

4

Locating pin

5

Identical seal rings for ports X and Y

6

Mating connectors, separate order, see "Accessories"

7

Space required to remove the mating connector

8

No seal admissible

9

Name plate

10

Valve mounting screws (included in the scope of delivery)

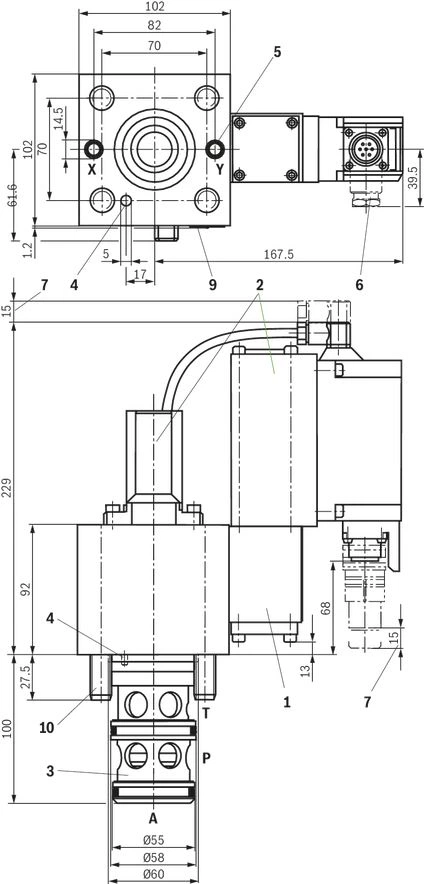

Size 32

Dimensions in mm

1

Pilot control valve with integrated electronics (OBE)

2

Position transducer pilot control and main stage

3

Socket

4

Locating pin

5

Identical seal rings for ports X and Y

6

Mating connectors, separate order, see "Accessories"

7

Space required to remove the mating connector

9

Name plate

10

Valve mounting screws (included in the scope of delivery)

Size 50

Dimensions in mm

1

Pilot control valve with integrated electronics (OBE)

2

Position transducer pilot control and main stage

3

Socket

4

Locating pin

5

Identical seal rings for ports X and Y

6

Mating connectors, separate order, see "Accessories"

7

Space required to remove the mating connector

9

Name plate

10

Valve mounting screws (included in the scope of delivery)

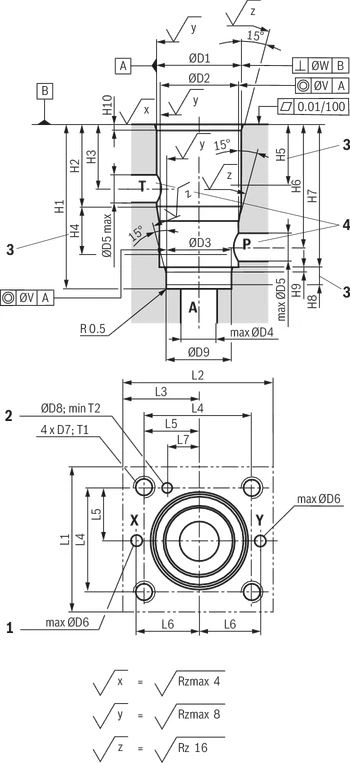

Installation bore

Dimensions in mm

1

Connect port X to port P or connect externally

2

Bore for locating pin

3

Depth of fit

4

The ports P and T can be positioned around the central axis of port A. However, it must be observed that the mounting bores and the control bores are not damaged.

NG

253250

ØD1H7Ⓔ

mm

456090

ØD2H7Ⓔ

mm

435887

ØD3H7Ⓔ

mm

345568

ØD4

203035

ØD5

mm

202435

ØD6

mm

6810

D7

M12M16M20

ØD8H13

mm

668

ØD9+0,2

mm

33.754.767.7

H1+0,1

mm

103100165

H2

mm

5643.587

H3

mm

453066

H4

mm

151640

H5

mm

151820

H6±0,3

mm

7870.5122

H7+0,3

mm

8985143

H8

mm

11.513.518

H9

mm

2.533

H10

mm

2.52.54

L1

mm

85102140

L2

mm

85102140

L3

mm

42.55170

L4±0,2

mm

5870100

L5±0,1

mm

293550

L6±0,2

mm

334158

L7±0,2

mm

161730

T1

mm

253545

T2

mm

101010

V

mm

0.030.030.03

W

mm

0.050.10.1

Notice:

Tolerances according to: General tolerances ISO 2768-mK

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

25

4

ISO 4762 - M12 x 35 -10.9-flZn-240h-L

(Friction coefficient μtotal = 0.09 … 0.14)

Tightening torque MA = 110 Nm ±20 %

32

4

ISO 4762 - M16 x 50 - 10.9-flZn/nc/480h/C

(Friction coefficient μtotal = 0.09 … 0.14)

Tightening torque MA = 250 Nm ±10 %

50

4

ISO 4762 - M20 x 70 -10.9-flZn-240h-L

(Friction coefficient μtotal = 0.09 … 0.14)

Tightening torque MA = 540 Nm ±10 %

Downloads

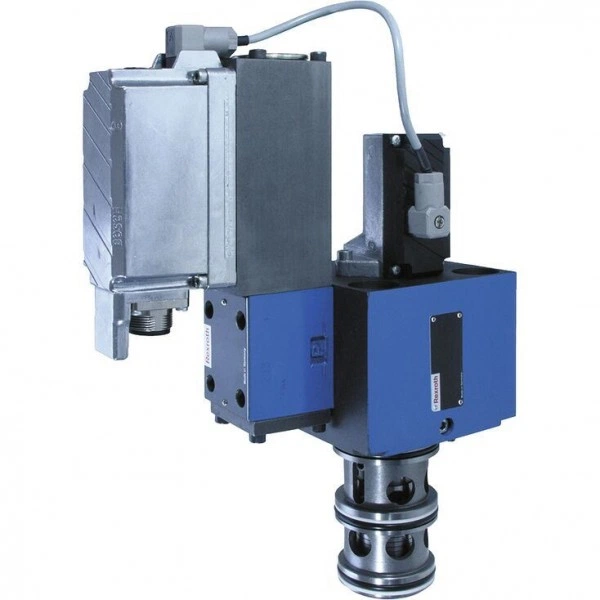

Directional high-response cartridge valve, pilot-operated, with integrated electronics (OBE)
Data Sheet | RE29222 | 2019-07-01 | English | PDF | 810k

Product Groups: Pilot-operated
Type 3WRCBEE

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.


Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.


Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Специалист по решениям Bosch Rexroth:

  • Окажет профессиональную консультацию.
  • Сообщит вашу цену на продукцию.
  • Сообщит информацию об актуальных акциях и скидках.
  • Подскажет ближайшее к вам отделение с наличием нужной продукции.
  • Согласует с вами возможную дату и время доставки.

Запрос цены или КП

Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
НовостиВсе новости
Bosch Rexroth A4FO: надежность в условиях высокого давления

Гидравлическое оборудование остается важной частью современных промышленных и строительных систем. Аксиально-поршневой насос Bosch Rexroth A4FO демонстрирует, как сочетание универсальности, долговечности и инженерной точности помогает решать сложные задачи, связанные с подачей гидравлической жидкост..

17 Января, 2025
Bosh Rexroth: Эффективность и надежность в одном решении

Синхронные моментные двигатели MBT130, представляющие серию MST130+MRT130 от Bosh Rexroth, выделяются рядом особенностей, которые могут быть важны для самых различных применений в автоматизации и промышленности. Кратко о характеристиках: - Максимальный крутящий момент до 180 Нм, что позвол..

14 Декабря, 2024
Bosh Rexroth HED 5-3X: Надежный контроллер для современных систем

Гидроэлектрические реле давления поршневого типа HED 5-3X от производителя Bosh Rexroth завоевали признание среди специалистов благодаря своим выдающимся характеристикам и функциональности. Эти устройства обеспечивают надежный контроль давления в различных промышленных системах. Серия компонентов..

16 Ноября, 2024
Bosch Rexroth - новая эра измерения давления в гидравлических системах

В условиях современного производства всегда важно обеспечивать стабильность и безопасность работы гидравлических систем. Преобразователь давления HM20-2X становится эффективным решением для этой задачи. Среди ключевых характеристик HM20-2X стоит выделить следующие - Серия компонент..

14 Октября, 2024
Boschrexroth Датчик давления HED 8 OA-2X/100K14: надежность и точность в контроле давления

Датчик давления Boschrexroth HED 8 OA-2X/100K14 (арт. R901102706) используется в различных промышленных приложениях, обеспечивая высокую точность и надежность измерений давления. Он способен функционировать в строгих условиях, что делает его незаменимым инструментом для автоматизации и управления пр..

13 Сентября, 2024
Bosh Rexort - аккумуляторы HAD оптимизируют энергосистемы

В мире гидропневматических систем появилась новинка, которая уже привлекла внимание специалистов. Гидропневматические аккумуляторы серии HAD демонстрируют инновационный подход к управлению энергией и стабилизации давления в различных системах, как мобильных, так и стационарных. Высокая эффективно..

23 Августа, 2024
Bosh Rexort представило двухходовой патронный клапан!

Двухходовой патронный клапан с активным управлением LC2A Bosch Rexroth представляет собой прецизионное гидравлическое устройство, разработанное для контроля и регулирования потока рабочей жидкости в системах гидравлики. Этот клапан работает по принципу двухпозиционного управления потоком, обеспечива..

17 Июля, 2024
Bosch Rexroth - надежный партнер для вашего бизнеса в области гидравлики!

Компания Bosch Rexroth предлагает широкий спектр продукции, включая гидронасосы, гидромоторы, гидроклапана, гидроцилиндры, пневмоцилиндры, клапаны, регуляторы, датчики и многое другое. Благодаря высокому качеству продукции и многолетнему опыту работы в отрасли, Bosch Rexroth является предпочтит..

20 Июня, 2024
Как правильно выбрать насос от BOSCH REXROTH?

В мире мобильной и промышленной гидравлики, где надежность и качество стоят на первом месте, насосы Bosch Rexroth выделяются как эталон долговечности и технического совершенства. Эти изделия, зарекомендовавшие себя в России и за её пределами, стали символом немецкого качества и профессионального под..

30 Мая, 2024
Bosch Rexroth – гидравлические шестерённые насосы серии AZPF

Гидравлические шестерённые насосы серии AZPF - это оборудование, которое обеспечивает преобразование механической энергии в гидравлическую с высоким КПД. Они обладают длительным сроком службы благодаря уплотнению зазоров и высокоточной технологии производства. Приводные валы в соответствии с межд..

8 Апреля, 2024
Bosch Rexroth на выставке LogiMAT

На выставке LogiMAT компания Bosch Rexroth представила передовые компоненты, подсистемы и системные решения для автоматизации и оптимизации логистики. Среди предложений компании - практические решения для трансмиссии и рабочих функций промышленных грузовиков и автономных мобильных роботов (AMR), вкл..

22 Марта, 2024
Bosch Rexroth открывает новые возможности в управлении машинами и подключении к IoT

Bosch Rexroth предлагает одну из самых производительных систем ЧПУ на рынке. Компания является лидером в области автоматизации и устанавливают стандарты в этой области. От датчиков и сервоприводов до революционной новой платформы, Bosch Rexroth предлагает широкий спектр решений для автоматизации. ..

16 Февраля, 2024

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг
