Directional high-response cartridge valve, pilot-operated, with integrated electronics (OBE) and analog or field bus interface 2WRCE; 2WRCF

Description

• Size 32 … 100
• Component series 4X
• Maximum operating pressure 420 bar
• Maximum flow 22000 l/min
• Nominal flow 1100 … 12500 l/min

Features

• 2-way cartridge valve
• Pilot control valve: Highly dynamic directional control valve with control spool and sleeve in servo quality
• Open
  - Integrated electronics (OBE)
  - Analog or field bus interface (IFB Multi-Ethernet) (EtherNet/IP, PROFINET RT, Sercos, EtherCAT, VARAN)
• Robust:
  - Pressure resistance up to 420 bar
  - High vibration resistance (acc. to DIN EN60068-2)
  - Ambient temperature up to +60 °C
• Precise:
  - High response sensitivity and little hysteresis
• Normalized:
  - Installation dimensions according to ISO 7368
• Flexible:
  – Suitable for position, pressure, force and velocity control

Product description

Set-up

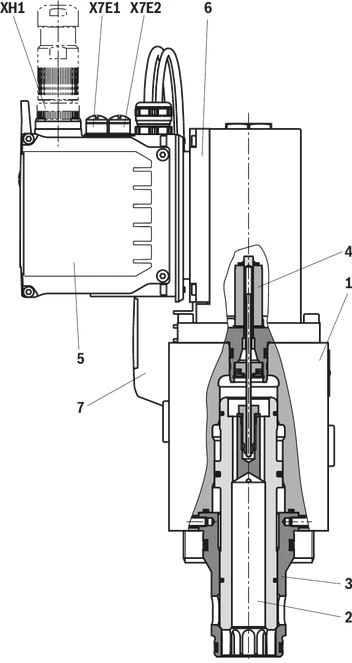

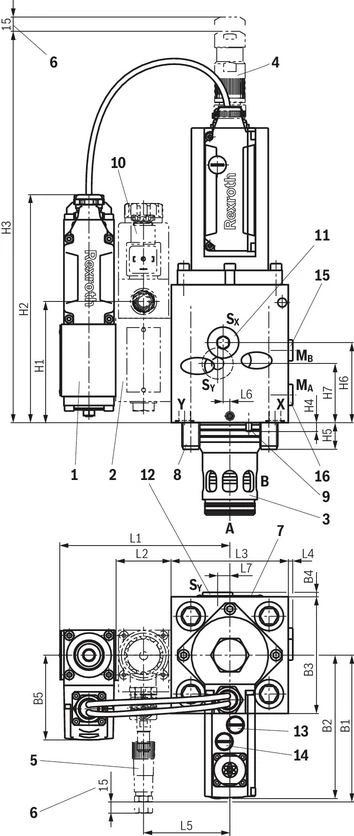

The pilot-operated directional high-response cartridge valve type 2WRC. basically consists of:

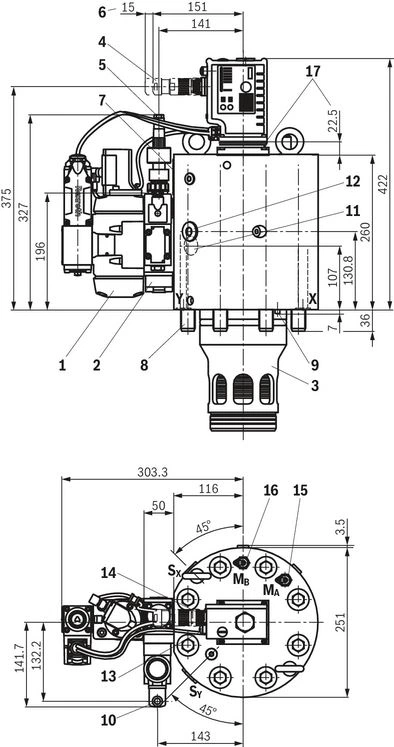

• Cover (1)

• Control spool (2)

• Socket (3)

• Position transducer (4)

• Integrated electronics (5)

• Damping plate (6)

• Pilot control valve (7)

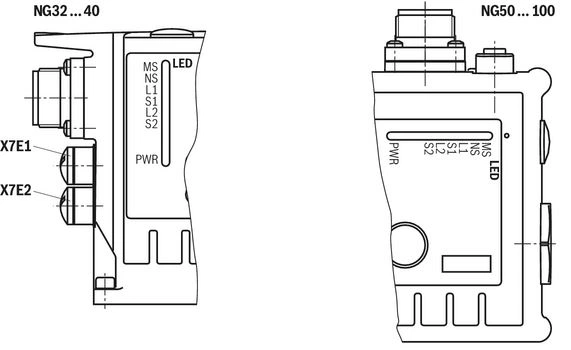

• Ethernet IN (X7E1); Ethernet OUT (X7E2)

• Connector, voltage supply (XH1)

Function

The integrated electronics (5) compares command and actual values and actuates the solenoid of the pilot control valve with a proportional current according to the control deviation.

The pilot control valve (7) takes a proportionally controlled position and controls the flows that actuate the control spool (2) through the closed valve control loop up to zero control deviation.

This means that the stroke of the control spool (2) is regulated proportionally to the command value. It must be noted that the flow also depends on the valve pressure drop.

Valve features

The flow can pass through the valve from A to B or from B to A. The control spool (2) closes or opens at 5 % of the command value. At lower command values, the valve control loop attempts to guide the control spool (2), thus presses it onto the seat at full pilot pressure and blocks the connection in a leakage-free way. The specified valve dynamics only apply to the control area of the valve.

At command value steps from the seat to lower opening values, additional delay times occur.

The opening point of 5 % (= 0.5 V or 4.8 mA) is set at the factory. The pilot control valve (7) is designed as bi-directionally controlled longitudinal spool valve with double stroke solenoid and control sleeve and has a mechanical trimming in case of power failure. The integrated electronics (5) regulates the position of the control spools of main and pilot control stage and offers either the analog interfaces “A1” and “F1” or the full bus functionality with interface “D9”.

Damping plate "D"

The damping plate (6) reduces the acceleration amplitudes on the on-board electronics (frequencies >300 Hz).

Notice:

Use of the damping plate is not recommended for applications with mainly low-frequency excitation <300 Hz.

IndraWorks DS PC program

To implement the project planning task and for the parameterization, the user may use the IndraWorks DS engineering tool (see “Accessories”):

• Project planning

• Parameterization

• Commissioning

• Diagnosis

• Comfortable management of all data on a PC

• PC operating systems: Windows 7 … 10

Type code

01	02	03	04	05	06	07		08		09	10	11	12		13	14	15	16	17
2	WRC			S			‒	4X	/	H				/	24				*

01	2 main ports	2
02	Directional high-response cartridge valve, pilot-operated	WRC
03	With integrated electronics (OBE)	E
	With integrated field bus electronics (IFB)	F
04	Size 32	32
	Size 40	40
	Size 50	50
	Size 63	63
	Size 80	80
	Size 100	100
05	Seat control spool	S
Rated flow (Δp = 5 bar)
06	Size 32
	1000 l/min 1)	1K0
	1100 l/min 2)	1K1
	Size 40
	1600 l/min 1)	1K6
	1800 l/min 2)	1K8
	Size 50
	2600 l/min 1)	2K6
	2700 l/min 2)	2K7
	Size 63
	4300 l/min 1)	4K3
	4500 l/min 2)	4K5
	Size 80
	6700 l/min 1)	6K7
	7200 l/min 2)	7K2
	Size 100
	12000 l/min 1)	12K0
	12500 l/min 2)	12K5
Flow characteristic
07	Linear	L
	Linear with progressive fine control range	R
	Other versions available on request
08	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
Pilot control valve
09	Highly dynamic directional control valve in servo quality	H
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
10	NBR seals	M
	FKM seals	V
Sandwich plate shut-off valve
11	Without shut-off valve
	De-energized pilot control valve actively closes “2WRC” with applied pilot pressure	K
	De-energized pilot control valve actively opens “2WRC” with applied pilot pressure	L
	With shut-off valve
	De-energized shut-off valve actively closes “2WRC” with applied pilot pressure	WK
	De-energized shut-off valve actively opens “2WRC” with applied pilot pressure	WL
Spool position monitoring (at the sandwich plate shut-off valve)
12	Without position switch	no code
	With position switch	E
13	Supply voltage 24 VDC	24
Ethernet interface
14	Without (only with integrated electronics (OBE) “E”)	no code
	EtherNet/IP	E
	PROFINET RT	N
	Sercos	S
	EtherCAT (Profil CANopen)	T
	VARAN	V
Electrical interface
15	Command value 0 ... 10 V (only with integrated electronics (OBE) “E”)	A1
	Command value 4 ... 20 mA (only with integrated electronics (OBE) “E”)	F1
	Command value Ethernet interface (only with integrated field bus electronics (IFB) “F”)	D9
16	Without damping plate	no code
	With damping plate (size 32 and 40)	D
17	Further details in the plain text	*

1)	Only version "R"
2)	Only version "L"

Technical data

general

Type			2WRCE, 2WRCF
Size			32	40	50	63	80	100
Installation position			any, preferably horizontal
Earth	Version "K", "L"	kg	15.6	21.2	32.3	56.8	115	164
	Version “WK”, "WL"	kg	17.2	22.8	33.9	64.5	123	172
	Position switch “E”	kg	1.1			0.9
Ambient temperature range		°C	-20 … +60
Maximum storage time 1)		yrs	1
Sine test according to DIN EN 60068-2-6			10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes
Noise test according to DIN EN 60068-2-64	Without damping plate		20 ... 2000 Hz / 10 gRMS / 30 g peak / 30 min / 3 axes		20 ... 2000 Hz / 10 gRMS / 30 gpeak/24 h/3 axes
	With damping plate 2)		20 ... 2000 Hz / 10 gRMS / 30 gpeak/24 h/3 axes
Transport shock according to DIN EN 60068-2-27			15 g / 11 ms / 3 axes
Shock test according to DIN EN 60068-2-27 2)	With damping plate		35 g / 6 ms / 3 axes
Maximum relative humidity 3)		%	95
Load cycles		million	10
Conformity	CE according to EMC directive 2014/30/EU tested according		EN 61000-6-2 and EN 61000-6-3		EN 61000-6-2 and EN 61000-6-4
	RoHS directive 4)		2015/65/EU

1)	If the storage conditions are observed; refer to the operating instructions 07600-B
2)	Not recommended for applications with mainly low-frequency excitation < 300 Hz
3)	No condensation
4)	The product fulfills the substance requirements of the RoHS directive 2011/65/EU.

hydraulic

Size				32	40	50	63	80	100
Maximum operating pressure	Port A		bar	420
	Port B 1)		bar	420
Maximum pilot pressure	Port X	Version "K", "L"	bar	350
		Version “WK”, "WL"	bar	315
Minimum pilot pressure 2)	A → B		%	70
	B → A		%	35
Maximum return flow pressure	Port Y		bar	210
Nominal flow 3) 4)	Version “L”	Standard	l/min	1100	1800	2700	4500	7200	12500
		2 opposite, radial bores B with maximum diameter	l/min	1500	2200	3900	6200	10200	16500
	Version “R”	Standard	l/min	1000	1600	2600	4300	6700	12000
		2 opposite, radial bores B with maximum diameter	l/min	1300	1950	3600	5800	9700	15500
Maximum flow 5)			l/min	2900	4300	6600	9100	17000	22000
Pilot flow 6)			l/min	78		95	220	350	380
Zero flow at 100 bar	Maximum		cm³/min	900
	Average value		cm³/min	400
Control flow			cm³	5.9	8.5	22.5	42.8	84.5	154
Hydraulic fluid				see table "Hydraulic fluid"
Hydraulic fluid temperature range	Recommended		°C	+40 … +60
	Maximum admissible		°C	-20 … +70
Viscosity range	Recommended		mm²/s	30 … 45
	Maximum admissible		mm²/s	20 … 380
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 7)	Pilot control valve			Class 18/16/13
	Main valve			Class 20/18/15

1)	In port B, in a closed state 500 bar (valve must not be opened). If the valve is opened, a value of 420 bar applies.
2)	in % of the pilot pressure
3)	Δp = 5 bar/control edge; flow with deviating Δpsee formula.
4)	Recommended direction of flow B → A (from A → B increased cavitation erosion)
5)	Flow velocity 30 m/s in port A (otherwise increased cavitation erosion)
6)	Stepped input signal (seat position at 100%, pilot pressure 350 bar)
7)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	FKM	ISO 15380	90221
		HEES	FKM
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Water-free	HFDU (glycol base)	FKM	ISO 12922	90222
		HFDU (ester base)	FKM
		HFDR	FKM
	Containing water	HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Bio-degradable and flame-resistant – containing water: If components with galvanic zinc coating (e.g. version "J3" or "J5") or parts containing zinc are used, small amounts of dissolved zinc may get into the hydraulic system and cause accelerated aging of the hydraulic fluid. Zinc soap may form as a chemical reaction product, which may clog filters, nozzles and solenoid valves - particularly in connection with local heat input. Flame-resistant – containing water: Due to increased cavitation tendency with HFC hydraulic fluids, the life cycle of the component may be reduced by up to 30% as compared to the use with mineral oil HLP. In order to reduce the cavitation effect, it is recommended - if possible specific to the installation - to back up the return flow pressure in ports T to approx. 20% of the pressure differential at the component. Dependent on the hydraulic fluid used, the maximum ambient and hydraulic fluid temperature must not exceed 50 °C. In order to reduce the heat input into the component, the command value profile is to be adjusted for proportional and high-response valves.

static / dynamic

Size			32	40	50	63	80	100
Hysteresis		%	< 0.2
Range of inversion		%	< 0.1
Response sensitivity		%	< 0.1
Step response according to ISO 10770-1 1)		ms	12	14	24	25	27	34
Reaching of the preferred position 2)		ms	52 … 38	62 … 48	130 … 85	160 … 90	335 … 198	612 … 356
Zero point calibration (set in the plant)		%	± 1
Zero shift upon change of	Hydraulic fluid temperature	%/10 K	≤ 0.3
	Control pressure in X	%/100 bar	≤ 0.2

1)	Without shut-off valve; 10 % → 100 %, pilot pressure 150 bar
2)	With shut-off valve “WK” and “WL”, pilot pressure 100 … 315 bar

electrical, integrated electronics (OBE)

Relative duty cycle 1)		%	100
Protection class according to EN 60529			IP65 (If a suitable and a correctly mounted mating connector are used.)
Power supply	Nominal voltage	VDC	24
	Lower limit value	VDC	18
	Upper limit value	VDC	36
Maximum residual ripple 2)		Vpp	2.5
Current consumption	Maximum	A	2.5
	Impulse current	A	4
Maximum power consumption		W	40
Functional earth and screening		AT	See connector pin assignment (CE-compliant installation), "Electrical connection"
Required fuse protection		AT	4, time-lag
Adjustment			Calibrated in the plant, see "characteristic curves"

1)	Continuous operation
2)	Observe the absolute limit values of the supply voltage.

(For applications outside these values, please consult us!)

Diagrams/characteristic curves

(measured with HLP32, ϑOil = 40 ±5 °C)

Size 32

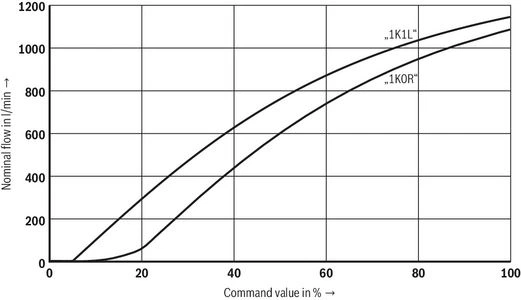

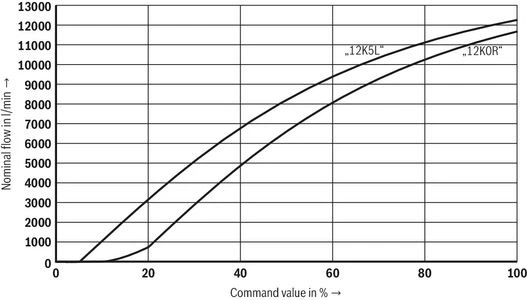

Rated flow (Δp = 5 bar)

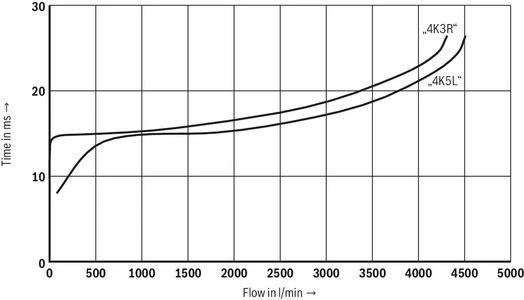

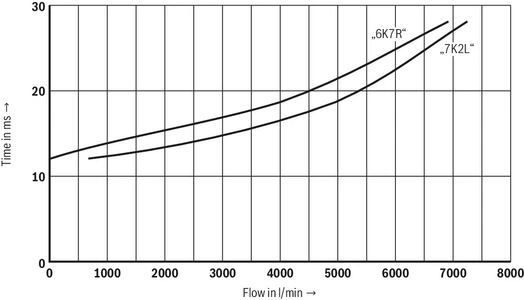

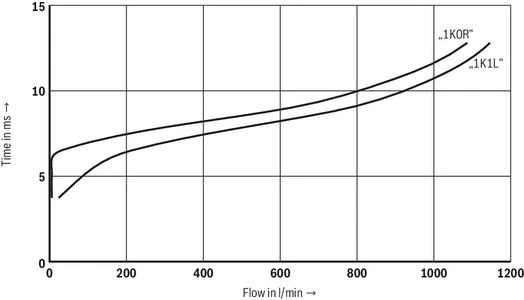

Step response time (pilot pressure 150 bar, Δp = 5 bar)

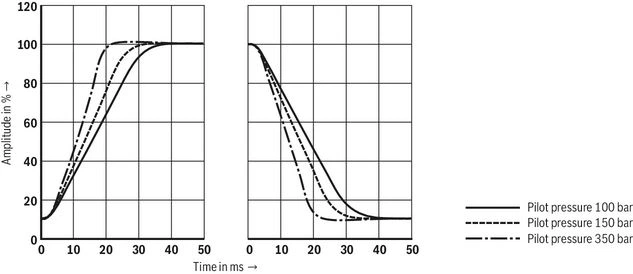

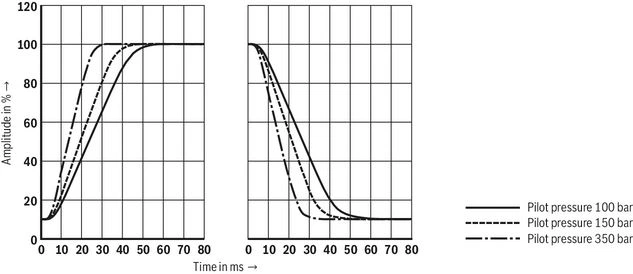

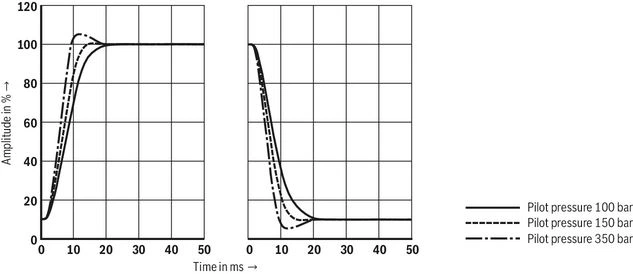

Transition function with stepped electric input signals

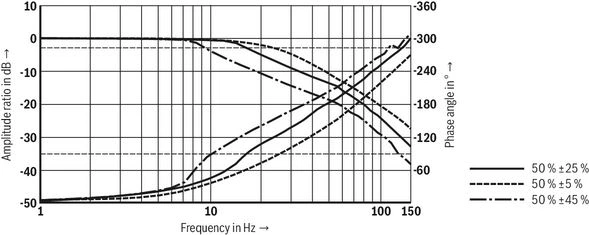

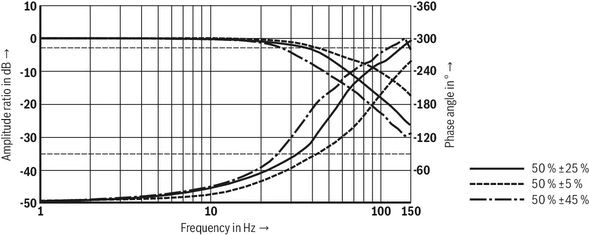

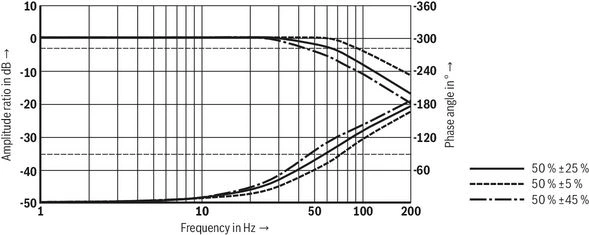

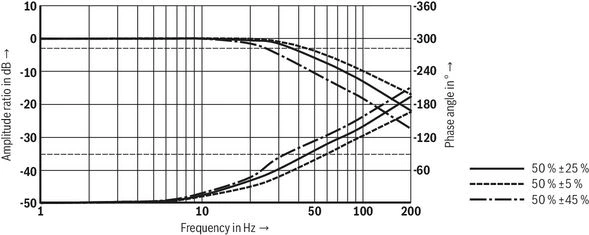

Frequency response (pilot pressure 210 bar)

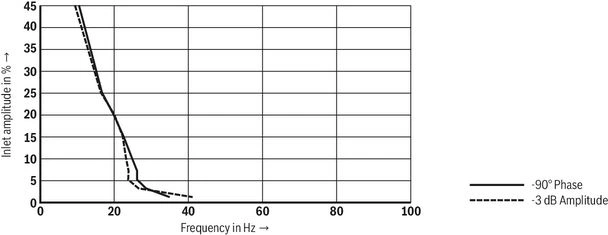

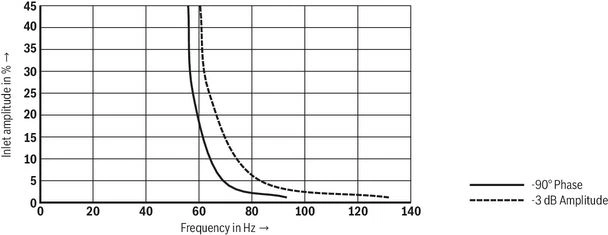

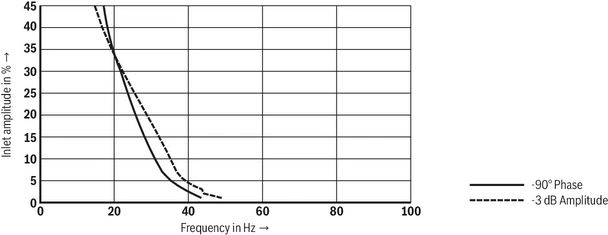

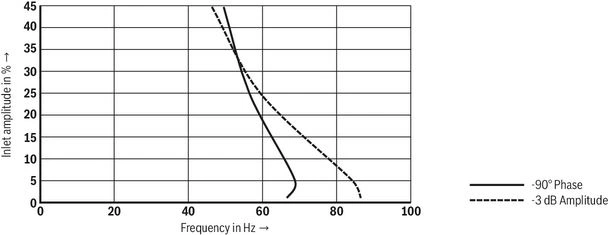

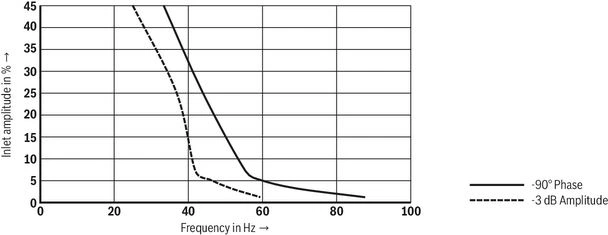

Information volume (pilot pressure 210 bar)

Size 40

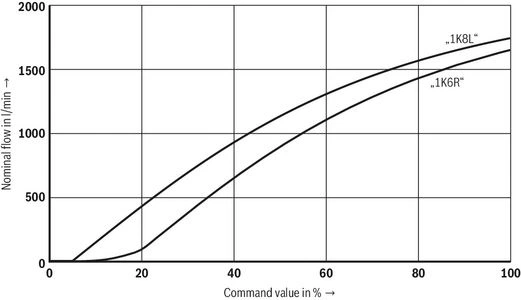

Rated flow (Δp = 5 bar)

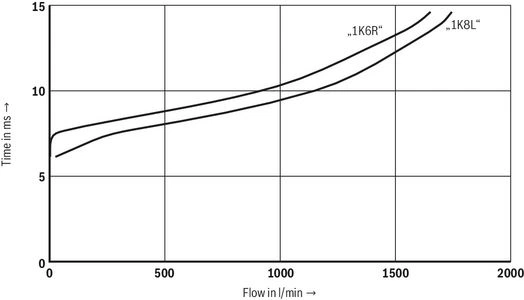

Step response time (pilot pressure 150 bar, Δp = 5 bar)

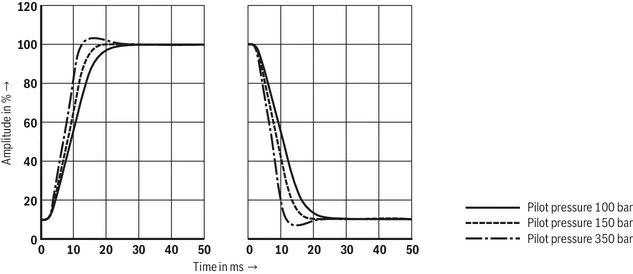

Transition function with stepped electric input signals

Frequency response (pilot pressure 210 bar)

Information volume (pilot pressure 210 bar)

Size 50

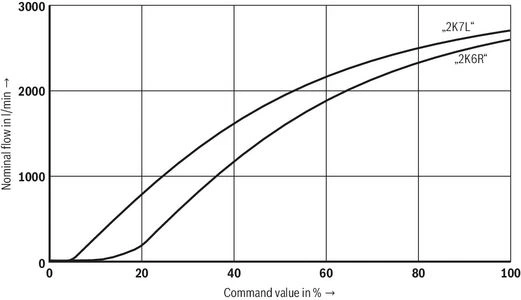

Rated flow (Δp = 5 bar)

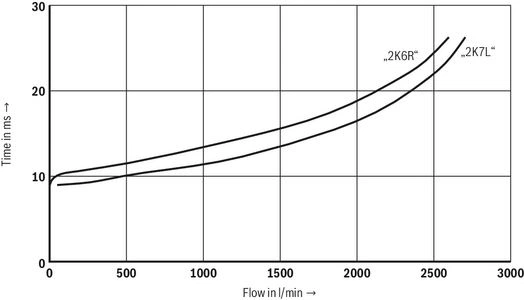

Step response time (pilot pressure 150 bar, Δp = 5 bar)

Transition function with stepped electric input signals

Frequency response (pilot pressure 210 bar)

Information volume (pilot pressure 210 bar)

Size 63

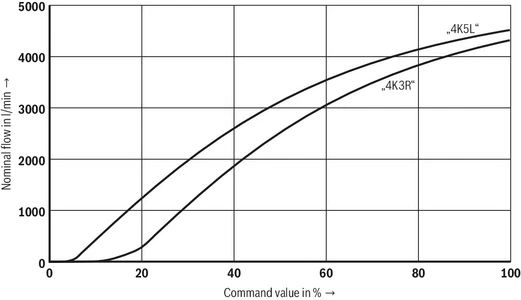

Rated flow (Δp = 5 bar)

Step response time (pilot pressure 150 bar, Δp = 5 bar)

Transition function with stepped electric input signals

Frequency response (pilot pressure 210 bar)

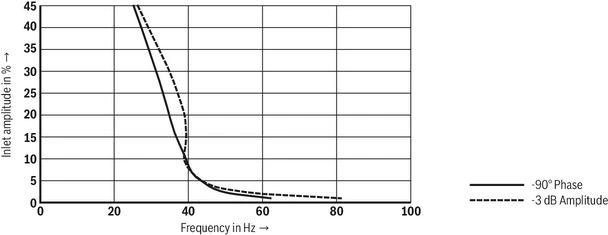

Information volume (pilot pressure 210 bar)

Size 80

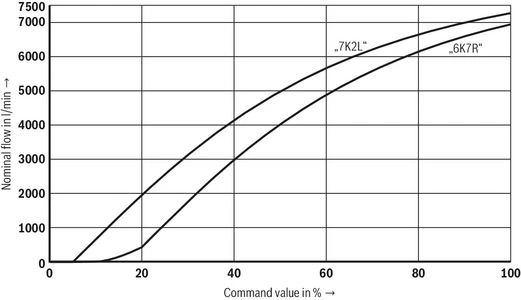

Rated flow (Δp = 5 bar)

Step response time (pilot pressure 150 bar, Δp = 5 bar)

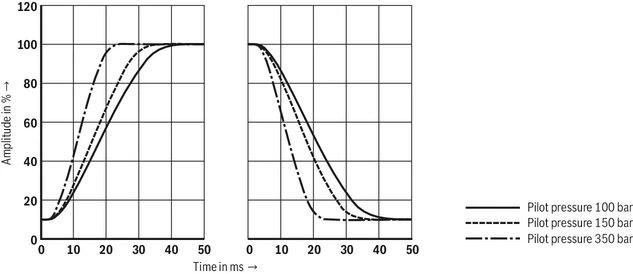

Transition function with stepped electric input signals

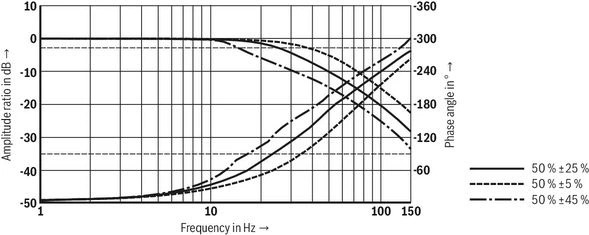

Frequency response (pilot pressure 210 bar)

Information volume (pilot pressure 210 bar)

Size 100

Rated flow (Δp = 5 bar)

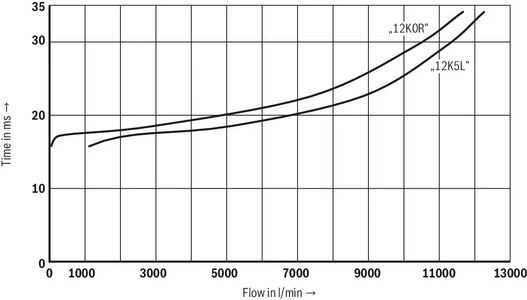

Step response time (pilot pressure 150 bar, Δp = 5 bar)

Transition function with stepped electric input signals

Frequency response (pilot pressure 210 bar)

Information volume (pilot pressure 210 bar)

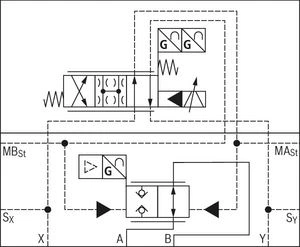

Symbols/Circuit diagrams

Sizes 32...50

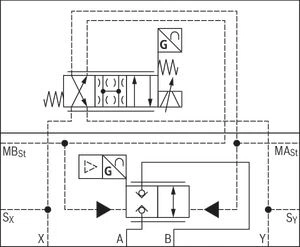

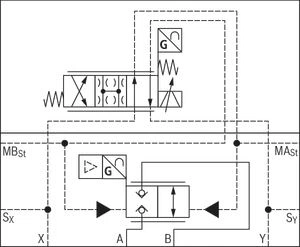

Simplified

Version “K” and “WK”	Version “L” and “WL”

1)	Version with position switch “E”

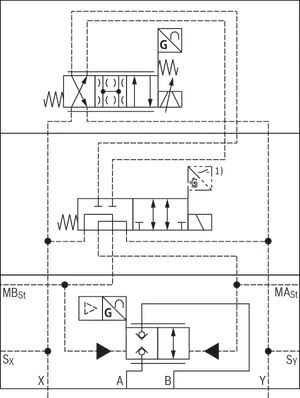

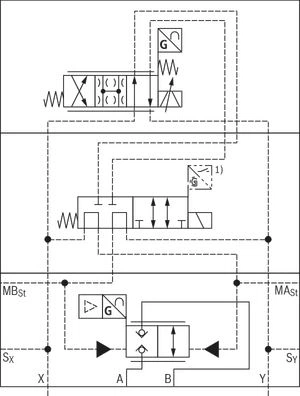

Detailed

Version "K"	Version “L”
Version “WK”	Version “WL”

1)	Version with position switch “E”

Notice: Representation according to DIN ISO 1219-1.

Size 63 … 100

Simplified

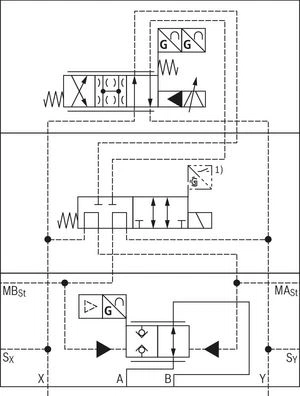

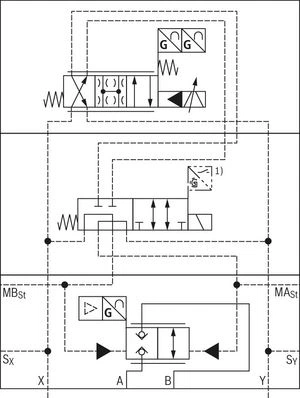

Version “K” and “WK”	Version “L” and “WL”

1)	Version with position switch “E”

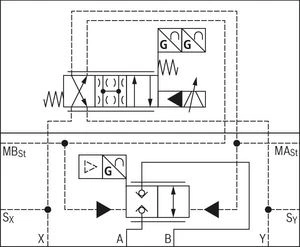

Detailed

Version "K"	Version “L”
Version “WK”	Version “WL”

1)	Version with position switch “E”

Notice: Representation according to DIN ISO 1219-1.

Electrical connection

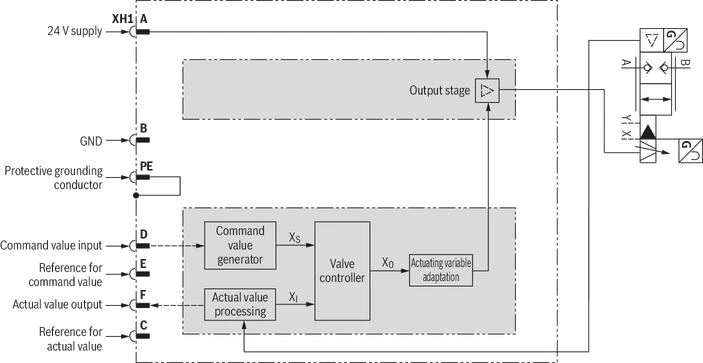

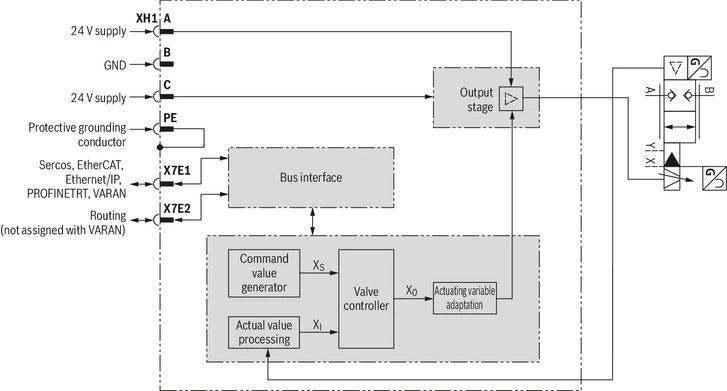

Block diagram / controller function block

With integrated electronics (version “WRCE“)

Block diagram / controller function block

With integrated field bus electronics (version “WRCF“)

Connector pin assignment "A1", "F1" and "D9"

Pin 6 + PE	Signal	Interface assignment
		With integrated electronics (version “WRCE“)		With integrated field bus electronics (version “WRCF“)
		"A1" 1)	"F1" 2)	"D9"
A	Power supply	24 VDC
B		GND
C	Reference potential actual value	Reference potential actual value 3)	Reference potential actual value	-
D	Differential amplifier input (command value)	Command value 0 … 10 V	Command value 4 … 20 mA	24 VDC
E		Reference potential command value		-
F	Measuring output (actual value)	Actual value 0.5 … 10 V	Actual value 4.8 … 20 mA	-
PE		Functional ground (directly connected to the valve housing)

1)	Pin D positive against E results in opening of the main control spool
2)	Command value 4 … 20 mA results in opening of the main control spool
3)	With version "A1", pin C should be connected to GND (pin B) at the ground neutral point of the system.

Notices:

• Do not connect PE if the valve has already been grounded via the system.

• In case of cable break, valves of version "K" are - according to the factory setting - regulated and by default held in a closed position. Valves of version "L" are by default held in an open position. On the customer side, a so-called standstill value can be defined in IndraWorks DS by changing the parameters.

Connector pin assignment: M12 x 1, 4-pole, coding D, socket (for Ethernet interfaces "X7E1" and "X7E2")

Pin	Assignment
1	TxD +
2	RxD +
3	TxD -
4	RxD -
5	Not assigned

Connector pin assignment: M12 x 1, 4-pole (position switch for sandwich plate shut-off valve)

Pin	Assignment
1	+ 24 V
2	Switching output: 200 mA
3	0 V, GND
4	Switching output: 200 mA

Nominal command value range

Command value 0 … 10 V (0 … 100 %)	Command value 4 … 20 mA (0 … 100 %)

LED displays

LED	Interface	Analog	Sercos	EtherNet/IP	EtherCAT	PROFINET RT	VARAN
MS	Electronic module	Module Status	Module Status	Module Status	Module Status	Module Status	Module Status
NS		–	S	Network status and others	Network status and others	Network status and others	Network status and others
L1	X7E1	Link and others	Link and others	Link and others	Link/Activity	Link and others	Link and others
S1		Activity and others	Activity and others	Activity and others	not used	Activity and others	Activity and others
L2	X7E2	Link and others	Link and others	Link and others	Link/Activity	Link and others	not used
S2		Activity and others	Activity and others	Activity and others	not used	Activity and others	not used
PWR	XH1	Power	Power	Power	Power	Power	Power

Displays of the Status LEDs

Module status (LED MS)	Display status
Off	No voltage supply
Green-red, flashing	Initialization
Green, flashing	Drive ready for operation
Green	Drive active
Orange, flashing	Warning
Red, flashing	Error
Green, rapidly flashing	Firmware must be loaded
Power LED (LED PWR)	Display status
Off	No voltage supply
Green	Operation
Link-LED (LED L1)	Display status
Permanently lit	Cable plugged in, connection established
Activity-LED (LED S1)	Display status
Flashing	Data sent/received

Notices:

• For the connection to the M12 sockets, we recommend using self-locking mating connectors.

• Module status LED MS relates to the electronics module.

• The network status LED NS indicates the status of the control communication, see application description 30338-FK.

• LEDs L1, S1, L2 and S2 relate to interfaces "X7E1" and "X7E2"

• For a detailed description of the diagnosis LEDs, please refer to the functional description "Rexroth HydraulicDrive HDx".

• Function is only available after start-up of the electronics.

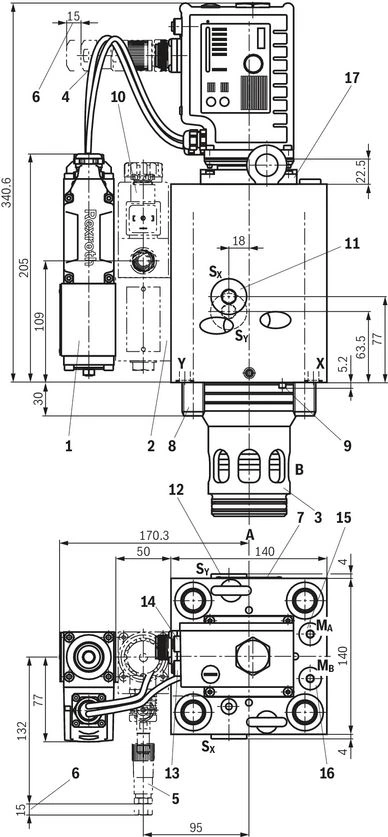

Dimensions

Sizes 32 and 40

Dimensions in mm

NG	H1	H2	H3	H4	H5	H6	H7	L1	L2	L3	L4	L5	L6	L7	B1	B2 1)	B3
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
32	109	205	352	8	24	81	56	153	50	105	4	77.5	6	11	132	129	105
40	109	205	355	8	30	89	56	163	50	125	4	87.5	0	10	132	129	125

1)	+ 22,5 mm for version with damping plate "D"

1	Pilot control valve (proportional directional valve NG6)
2	Sandwich plate shut-off valve (version "WK" and "WL")
3	Socket
4	Mating connectors for valves with round connector, 6-pole, separate order, see "Accessories"
5	Mating connector M12 x 1, 4-pole, for spool position monitoring, separate order, see "Accessories"
6	Space required to remove the mating connector
7	Name plate
8	Valve mounting screws (separate order, see table)
9	Locking pin
10	Mating connectors for valves with connector "K4", separate order, see "Accessories"
11	Accumulator port for pilot pressure in channel X (G1/2)
12	Accumulator port for pilot pressure in channel Y (G1/2)
13	Field bus interface "Ethernet OUT" (X7E2); (cable sets, separate order, see "Accessories")
14	Field bus interface "Ethernet IN" (X7E1); (cable sets, separate order, see "Accessories")
15	Measuring port for pilot pressure in channel A (G1/4)
16	Measuring port for pilot pressure in channel B (G1/4)

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
32	4	ISO 4762 - M16 x 110 - 10.9-flZn/nc/480h/C Tightening torque MA = 250 Nm ±10 %	R913015642
	or
	4	ISO 4762 - M16 x 110 - 10.9 Tightening torque MA = 300 Nm ±10 %	Not included in the Rexroth delivery range
40	4	ISO 4762 - M20 x 120 - 10.9-flZn/nc/480h/C Tightening torque MA = 480 Nm ±10 %	R913015672
	or
	4	ISO 4762 - M20 x 120 - 10.9 Tightening torque MA = 590 Nm ±10 %	Not included in the Rexroth delivery range

Size 50

Dimensions in mm

1	Pilot control valve (proportional directional valve NG6)
2	Sandwich plate shut-off valve (version "WK" and "WL")
3	Socket
4	Mating connectors for valves with round connector, 6-pole, separate order, see "Accessories"
5	Mating connector M12 x 1, 4-pole, for spool position monitoring, separate order, see "Accessories"
6	Space required to remove the mating connector
7	Name plate
8	Valve mounting screws (separate order, see table)
9	Locking pin
10	Mating connectors for valves with connector "K4", separate order, see "Accessories"
11	Accumulator port for pilot pressure in channel X (G3/4)
12	Accumulator port for pilot pressure in channel Y (G3/4)
13	Field bus interface "Ethernet OUT" (X7E2); (cable sets, separate order, see "Accessories")
14	Field bus interface "Ethernet IN" (X7E1); (cable sets, separate order, see "Accessories")
15	Measuring port for pilot pressure in channel A (G1/4)
16	Measuring port for pilot pressure in channel B (G1/4)
17	Damping plate "D"

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
50	4	ISO 4762 - M20 x 160 - 10.9-flZn/nc/480h/C Tightening torque MA = 480 Nm ±10 %	R913015677
	or
	4	ISO 4762 - M20 x 160 - 10.9 Tightening torque MA = 590 Nm ±10 %	Not included in the Rexroth delivery range

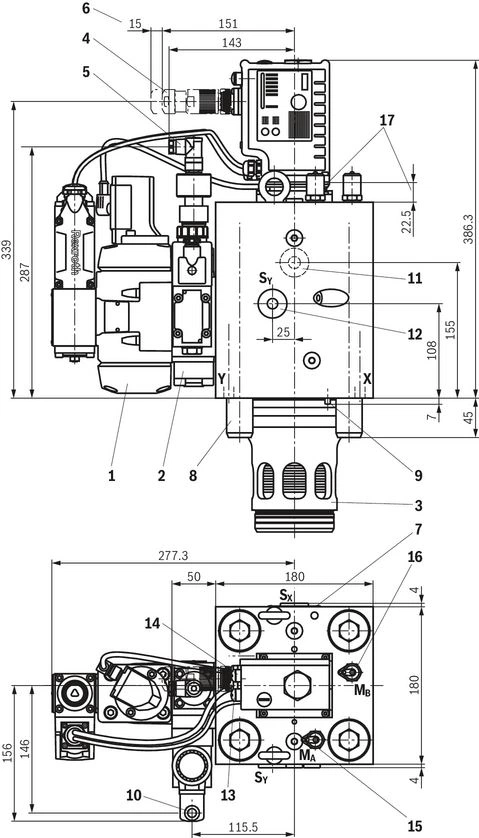

Size 63

Dimensions in mm

1	Pilot control valve (proportional directional valve NG10)
2	Sandwich plate shut-off valve (version "WK" and "WL")
3	Socket
4	Mating connectors for valves with round connector, 6-pole, separate order, see "Accessories"
5	Mating connector M12 x 1, 4-pole, for spool position monitoring, separate order, see "Accessories"
6	Space required to remove the mating connector
7	Name plate
8	Valve mounting screws (separate order, see table)
9	Locking pin
10	Mating connectors for valves with connector "K4", separate order, see "Accessories"
11	Accumulator port for pilot pressure in channel X (G3/4)
12	Accumulator port for pilot pressure in channel Y (G3/4)
13	Field bus interface "Ethernet OUT" (X7E2); (cable sets, separate order, see "Accessories")
14	Field bus interface "Ethernet IN" (X7E1); (cable sets, separate order, see "Accessories")
15	Measuring port for pilot pressure in channel A (G1/4)
16	Measuring port for pilot pressure in channel B (G1/4)
17	Damping plate "D"

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
63	4	ISO 4762 - M30 x 220 - 10.9-flZn/nc/480h/C Tightening torque MA = 1650 Nm ±10 %	R913015755
	or
	4	ISO 4762 - M30 x 220 - 10.9 Tightening torque MA = 2000 Nm ±10 %	Not included in the Rexroth delivery range

Size 80

Dimensions in mm

1	Pilot control valve (proportional directional valve NG10)
2	Sandwich plate shut-off valve (version "WK" and "WL")
3	Socket
4	Mating connectors for valves with round connector, 6-pole, separate order, see "Accessories"
5	Mating connector M12 x 1, 4-pole, for spool position monitoring, separate order, see "Accessories"
6	Space required to remove the mating connector
7	Name plate
8	Valve mounting screws (separate order, see table)
9	Locking pin
10	Mating connectors for valves with connector "K4", separate order, see "Accessories"
11	Accumulator port for pilot pressure in channel X (G3/4)
12	Accumulator port for pilot pressure in channel Y (G3/4)
13	Field bus interface "Ethernet OUT" (X7E2); (cable sets, separate order, see "Accessories")
14	Field bus interface "Ethernet IN" (X7E1); (cable sets, separate order, see "Accessories")
15	Measuring port for pilot pressure in channel A (G1/4)
16	Measuring port for pilot pressure in channel B (G1/4)
17	Damping plate "D"

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
80	8	ISO 4762 - M24 x 240 - 10.9-flZn/nc/480h/C Tightening torque MA = 830 Nm ±10 %	R913015721
	or
	8	ISO 4762 - M24 x 240 - 10.9 Tightening torque MA = 1000 Nm ±10 %	Not included in the Rexroth delivery range

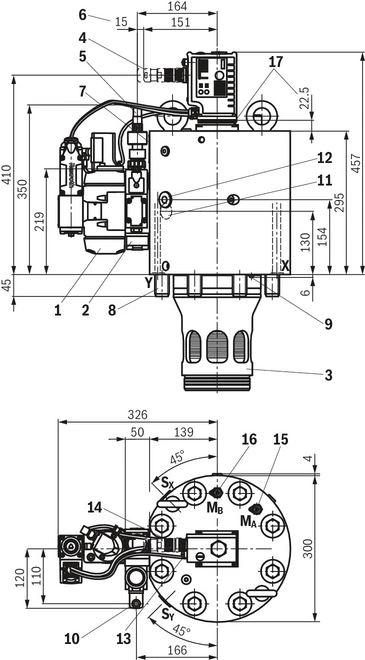

Size 100

Dimensions in mm

1	Pilot control valve (proportional directional valve NG10)
2	Sandwich plate shut-off valve (version "WK" and "WL")
3	Socket
4	Mating connectors for valves with round connector, 6-pole, separate order, see "Accessories"
5	Mating connector M12 x 1, 4-pole, for spool position monitoring, separate order, see "Accessories"
6	Space required to remove the mating connector
7	Name plate
8	Valve mounting screws (separate order, see table)
9	Locking pin
10	Mating connectors for valves with connector "K4", separate order, see "Accessories"
11	Accumulator port for pilot pressure in channel X (G3/4)
12	Accumulator port for pilot pressure in channel Y (G3/4)
13	Field bus interface "Ethernet OUT" (X7E2); (cable sets, separate order, see "Accessories")
14	Field bus interface "Ethernet IN" (X7E1); (cable sets, separate order, see "Accessories")
15	Measuring port for pilot pressure in channel A (G1/4)
16	Measuring port for pilot pressure in channel B (G1/4)
17	Damping plate "D"

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
100	8	ISO 4762 - M30 x 290 - 10.9-flZn/nc/480h/C Tightening torque MA = 1650 Nm ±10 %	R913015761
	or
	8	ISO 4762 - M30 x 290 - 10.9 Tightening torque MA = 2000 Nm ±10 %	Not included in the Rexroth delivery range

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

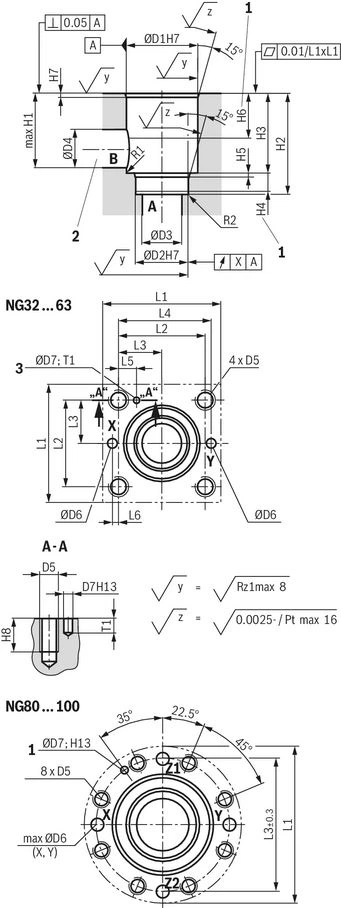

Installation bore

Dimensions in mm

Installation dimensions according to ISO 7368

NG		32	40	50	63	80	100
ØD1H7	mm	60	75	90	120	145	180
ØD2H7	mm	45	55	68	90	110	135
ØD3 max 1) 2)	mm	45	55	68	90	110	135
ØD4 max 1) 2)	mm	48	58	70	80	110	125
ØD5		M16	M20	M20	M30	M24	M30
ØD6 max	mm	8	10	10	12	16	20
ØD7H13	mm	6	6	8	8	10	10
H1 max	mm	68.5	84.5	97.5	127	170.5	205.5
H2+1	mm	85	105	122	155	205	245
H3±0,2	mm	70	-	-	-	-	-
H3±0,3	mm	-	87	100	130	-	-
H3±0,4	mm					175	210
H4 min	mm	13	15	17	20	25	29
H5	mm	2.5	3	3	4	5	5
H6 min 1)	mm	20	20	27	40	40	50
H7	mm	2.5	3	3	4	5	5
H8 1)	mm	26	33	33	48	39	48
L1	mm	105 1)	125	140	180	251 1)	300
L2±0,2	mm	70	85	100	125
L3±0,2	mm	35	42.5	50	62.5	-	-
L3±0,3	mm	-	-	-	-	200	245
L4±0,2	mm	76	92.5	108	137.5	-	-
L5±0,2	mm	18	19.5	20	24.5	-	-
L6±0,2	mm	6	7.5	8	12.5	-	-
X	mm	0.03	0.05	0.05	0.05	0.05	0.05
R1 max	mm	2	4	4	4	4	4
R2 max 1)	mm	1	1	1	1	1	1
T1 min	mm	8	8	8	8	8	8

1)	Deviating from ISO 7368
2)	Smaller bore causes a reduction of the flow

Size	Installation dimensions according to ISO 7368
32	7368-09-5-1-16
40	7368-10-7-1-16
50	7368-11-9-1-16
63	7368-12-11-1-16
80	7368-13-13-1-16
100	7368-14-14-1-16

1	Depth of fit, minimum dimension
2	Port B can be any size within the range between H6 min and H1 max. The durability of the block depends on its material and geometry.
3	Locating hole for locking pin

Notice:

Tolerances according to: General tolerances ISO 2768-mK

Project planning information

Project planning and maintenance instructions

• The supply voltage must be permanently connected, as otherwise bus communication is not possible.

• If electro-magnetic interference is to be anticipated, suitable measures must be taken to ensure the function (depending on the application, e.g. shielding, filtration).

• The devices have been tested in the plant and are supplied with default settings.

• Only complete devices can be repaired. Repaired devices are returned with default settings. User-specific settings will not be applied. The machine end-user will have to retransfer the corresponding user parameters.

Accessories

Ethernet connections X7E1 and X7E2

Cable set (Ethernet interface)	Length in m	Material number
Cable set, shielded, 4-pole, D coding, straight connector M12, on straight connector M12, line cross-section 0.25 mm2, CAT 5e	freely selectable (= xx.x)	R911172111 1)
Cable set, shielded, 4-pole, straight connector M12, on straight connector RJ45, line cross-section 0,25 mm2, CAT 5e	freely selectable (= xx.x)	R911172135 1)

1)	Additionally indication of type designation RKB0044/xx.x

Protective cap

Denomination		Material number
Protective cap		R901075563

Parameterization

The following is required for the parameterization via PC:		Material number
Commissioning software	IndraWorks, Indraworks D, Indraworks DS	www.boschrexroth.com/IAC
Connection cable, 3 m	Shielded, M12 on RJ45, length can be freely selected (= xx.x)	R911172135 1)

1)	Additionally indication of type designation RKB0044/xx.x

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

• For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
• Mating connectors for valves with one or two solenoids (individual connection)

• Data sheet

• Spare parts and repair

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

• For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
• Mating connectors for valves with one or two solenoids (individual connection)

• Data sheet

• Spare parts and repair

Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit

3P Z5L1

Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit

3P Z5L1

• For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
• Mating connectors for valves with one or two solenoids (individual connection)

• Data sheet

• Spare parts and repair

Mating connectors for valves with connector “K4”, with rectifier

3P RZ5

Mating connectors for valves with connector “K4”, with rectifier

3P RZ5

• For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
• Mating connectors for valves with one or two solenoids (individual connection)

• Data sheet

• Spare parts and repair

Mating connectors for valves with round connector, 6-pole + PE

7P Z31

Mating connectors for valves with round connector, 6-pole + PE

7P Z31

• For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328

• Data sheet

• Spare parts and repair

Mating connectors for valves with round connector, 6-pole + PE, shielded, with assembled connection line

7P Z31 +

Mating connectors for valves with round connector, 6-pole + PE, shielded, with assembled connection line

7P Z31 +

• For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328

• Data sheet

• Spare parts and repair

Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1

4P Z24

Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1

4P Z24

• For sensors and valves with connector “K24”, “K35” and “K72”
• Mating connectors M12, 4-pole, line cross-section 0.75 mm2

• Data sheet

• Spare parts and repair

Ordering codes

2WRCS-4X/H/24Result count41 von41Display results listMain ports2

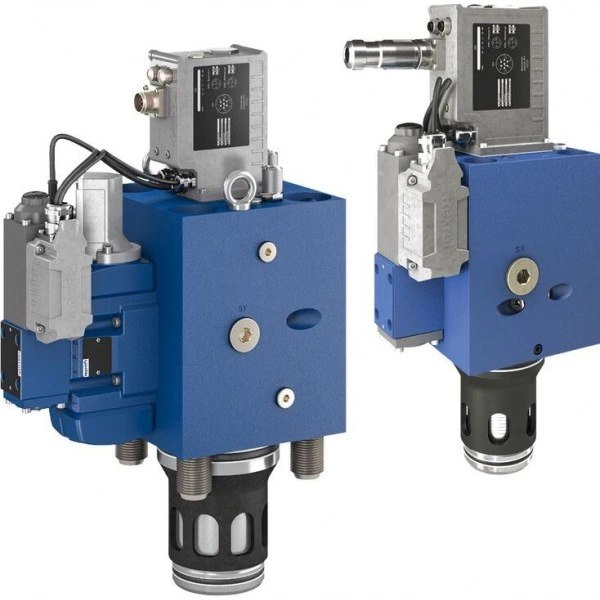

2TypeDirectional high-response cartridge valve, pilot-operated

WRCDirectional high-response cartridge valve, pilot-operatedIntegrated electronics

EWith integrated electronics (OBE)FWith integrated field bus electronics (IFB)Size

3240506380100Control spoolSeat control spool

SSeat control spoolRated flow (Δp = 5 bar/control edge)

1K01000 l/min1K11100 l/min1K61600 l/min1K81800 l/min2K62600 l/min2K72700 l/min4K34300 l/min4K54500 l/min6K76700 l/min7K27200 l/min12K01200 l/min12K512500 l/minFlow characteristicOther versions available on request

LLinearRLinear with progressive fine control rangeSeriesComponent series 40 … 49

(40 ... 49: unchanged installation and connection dimensions)4XComponent series 40 … 49Pilot control valveHighly dynamic directional control valve in servo quality

HHighly dynamic directional control valve in servo qualitySeal materialObserve compatibility of seals with hydraulic fluid used.

MNBR sealsVFKM sealsSandwich plate shut-off valve

KWithout - De-energized pilot control valve actively closes “2WRC” with applied pilot pressureLWithout - De-energized pilot control valve actively opens “2WRC” with applied pilot pressureWKWith - De-energized shut-off valve actively closes “2WRC” with applied pilot pressureWLWith - De-energized shut-off valve actively opens “2WRC” with applied pilot pressureSpool position monitoring (at the sandwich plate shut-off valve)

Without position switchEWith position switchSupply voltageSupply voltage 24 V DC

24Supply voltage 24 V DCEthernet interface

WithoutEEtherNet/IPNPROFINET RTSSercosTEtherCAT (CANopen profile)VVARANElectrical interface

A10 ... 10 VF14 ... 20 mAD9Command value Ethernet interfaceDamping plate

Without damping plateDWith damping plateFurther details

-181-181-183-183No further detailsYou have successfully finished your selection.

DocumentationAdd to basketProduct descriptionData sheetRequest CAD

Product description

Type code:2WRCS-4X/H/24

Material number:

The following data were selected.
Main ports	2
Type	WRC	Directional high-response cartridge valve, pilot-operated
Control spool	S	Seat control spool
Series	4X	Component series 40 … 49
Pilot control valve	H	Highly dynamic directional control valve in servo quality
Supply voltage	24	Supply voltage 24 V DC

Downloads

	Hydraulic valves and hydroelectric pressure switches for industrial applications Manual | RE07600-B | 2021-06-21 | English | PDF | 306k Product Groups: Industrial Hydraulics On/off, proportional, high-response and servo valves, pressure switches
	High-response directional cartridge valve, pilot-operated with integrated electronics (OBE) and analog or field bus interface Data Sheet | RE29406 | 2021-06-01 | English | PDF | 1.4MB Product Groups: High-response directional valves Type 2WRCE and 2WRCF
	Rexroth HydraulicDrive HDS-16, HDx-17 to HDx-20 Parameters Reference Book | RE30330-PA | 2020-04-01 | English | PDF | 12.6MB Product Groups: Axis control Reference Book
	Rexroth HydraulicDrive HDS-16, HDx-17 to HDx-20, Diagnostic Messages Manual | RE30330-WA | 2020-04-01 | English | PDF | 4.9MB Product Groups: Axis control Reference
	Rexroth HydraulicDrive HDx-20 Functions Manual | RE30338-FK | 2020-04-01 | English | PDF | 59.1MB Product Groups: Axis control
