Артикул: RX7207

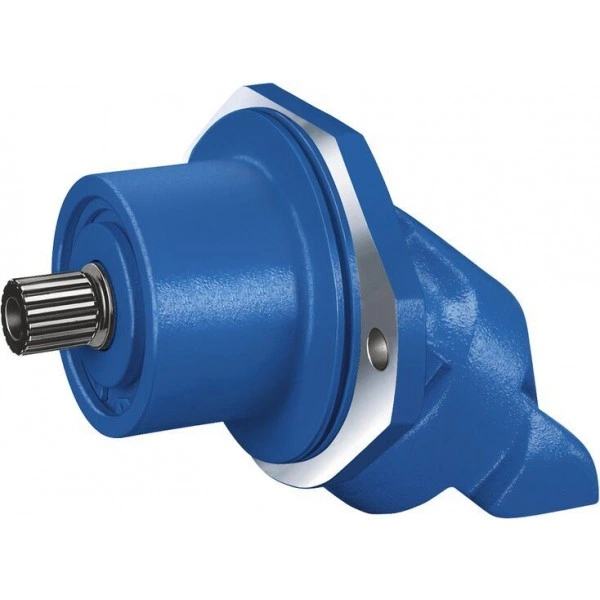

Axial piston fixed motor A2FE series 6x

Name: Axial piston fixed motor A2FE series 6x
Brand: Bosch Rexroth
SKU: RX7207
Price: 2850 RUB
Availability: InStock

Доступно к заказу

Цена по запросу

Запросить КП

Получи КП от 5 лучших поставщиков

С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

Description

High pressure motor for integration in mechanical gearboxes
Size 28 … 355
Nominal pressure up to 400 bar
Maximum pressure up to 450 bar
Open and closed circuits

Features

Space-saving construction due to recessed mounting flange
Easy to install, simply slide into the mechanical gearbox
High power density
Very high total efficiency
High starting efficiency

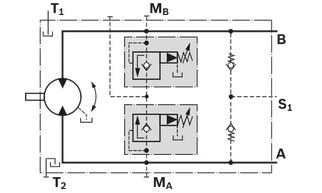

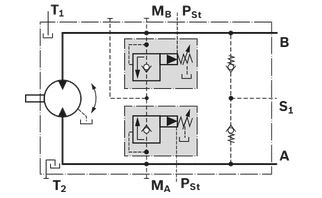

Optional with integrated pressure relief valve
Optional with mounted additional valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valve
Bent-axis design

Type code

1)	Sizes 45, 56, 63, 80, 90 see data sheet 91071 (A2FE series 70)

1)	Please contact us.
2)	Specify ordering code of counterbalance valve according to data sheet 95522 (BVD) respectively data sheet 95526 (BVE) separately.

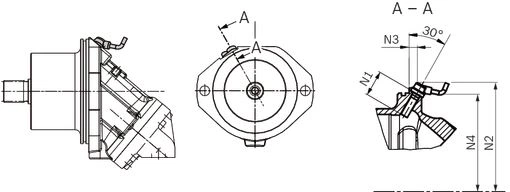

3)	Specify ordering code of sensor according to data sheet 95133 (DSA) separately.

Notice

Please note the project planning notes in chapter Project planning notes

Please note that not all type code combinations are available although the individual functions are marked as being available

Technical data

Table of values

Size				28	32	45	56	63	80	90	107	125	160	180	250	355
Displacement geometric, per revolution		Vg	cm³	28.1	32	45.6	56.1	63	80.4	90	106.7	125	160.4	180	250	355
Nominal pressure		pnom	bar	400	400	400	400	400	400	400	400	400	400	400	350	350
Maximum pressure		pmax	bar	450	450	450	450	450	450	450	450	450	450	450	400	400
Maximum speed 1)		nnom	rpm	6300	6300	5600	5000	5000	4500	4500	4000	4000	3600	3600	2700	2240
Maximum speed 1)		nmax 2)	rpm	6900	6900	6200	5500	5500	5000	5000	4400	4400	4000	4000
Inlet flow 3)	at nnom	qV	l/min	177	202	255	281	315	362	405	427	500	577	648	675	795
Torque 4)	at pnom	M	Nm	179	204	290	357	401	512	573	679	796	1021	1146	1393	1978
Rotary stiffness		c	kNm/rad	2.93	3.12	4.18	5.94	6.25	8.73	9.14	11.2	11.9	17.4	18.2	73.1	96.1
Moment of inertia for rotary group		JTW	kg·m²	012	012	024	042	042	072	072	0.0116	0.0116	0.022	0.022	0.061	0.102
Case volume		V	l	0.2	0.2	0.33	0.45	0.45	0.55	0.55	0.8	0.8	1.1	1.1	2.5	3.5
Weight (approx.)		m	kg	10.5	10.5	15	18	19	23	25	34	36	47	48	82	110

1)	These values are valid at: - for the optimum viscosity range from vopt = 36 to 16 mm2/s - with hydraulic fluid based on mineral oils
2)	Intermittent maximum speed: overspeed for unload and overhauling processes, t < 5 s and Δp < 150 bar
3)	Restriction of input flow with counterbalance valve
4)	Torque without radial force, with radial force see table "Permissible radial and axial forces of the drive shafts"

Note

The values in the table are theoretical values, without consideration of efficiencies and tolerances. The values are rounded.

Exceeding the maximum or falling below the minimum permissible values can lead to a loss of function, a reduction in operational service life or total destruction of the axial piston unit. Other permissible limit values, such as speed variation, reduced angular acceleration as a function of the frequency and the permissible angular acceleration at start (lower than the maximum angular acceleration) can be found in data sheet 90261.

Speed range

No limit to minimum speed nmin. If uniformity of motion is required, speed nmin must not be less than 50 rpm.

Determining the operating characteristics
Inlet flow		[l/min]
Rotational speed		[rpm]
Torque		[Nm]
Power		[kW]

Key
Vg	Displacement per revolution [cm3]
Δp	Differential pressure [bar]
n	Rotational speed [rpm]
ηv	Volumetric efficiency
ηhm	Hydraulic-mechanical efficiency
ηt	Total efficiency (ηt = ηv • ηhm)

Hydraulic fluids

The axial piston unit is designed for operation with mineral oil HLP according to DIN 51524.

Application instructions and requirements for hydraulic fluids should be taken from the following data sheets before the start of project planning:

90220: Hydraulic fluids based on mineral oils and related hydrocarbons

90221: Environmentally acceptable hydraulic fluids

90222: Fire-resistant, water-free hydraulic fluids (HFDR, HFDU)

90223: Fire-resistan, water-containing hydraulic fluids (HFAE, HFAS, HFB, HFC)

90225: Restricted technical data for operation with fire-resistant hydraulic fluids

Viscosity and temperature of hydraulic fluids

	Viscosity	Shaft seal	Temperature1)	Comment
Cold start	νmax ≤ 1600 mm²/s	NBR2)	ϑSt ≥ -40 °C	t ≤ 3 min, without load (p ≤ 50 bar), n ≤ 1000 rpm (size 28 to 180), n ≤ 0.25 • nnom (size 250 to 355), permissible temperature difference between axial piston unit and hydraulic fluid max. 25 K
Cold start	νmax ≤ 1600 mm²/s	FKM	ϑSt ≥ -25 °C
Warm-up phase	ν = 400 … 1600 mm²/s			t ≤ 15 min, p ≤ 0.7 • pnom and n ≤ 0.5 • nnom
Continuous operation	ν = 10 … 400 mm²/s3)	NBR2)	ϑ ≤ +78 °C	measured at port T
	ν = 10 … 400 mm²/s3)	FKM	ϑ ≤ +103 °C	measured at port T
	νopt = 16 … 36 mm²/s			range of optimum operating viscosity and efficiency
Short-term operation	νmin = 7 … 10 mm²/s	NBR2)	ϑ ≤ +78 °C	t ≤ 3 min, p ≤ 0.3 • pnom measured at port T
Short-term operation	νmin = 7 … 10 mm²/s	FKM	ϑ ≤ +103 °C	t ≤ 3 min, p ≤ 0.3 • pnom measured at port T

1)	If the specified temperatures cannot be maintained due to extreme operating parameters, please contact us.
2)	Special version, please contact us.
3)	Equates e.g. with the VG 46 a temperature range of +5 °C to +85 °C (see selection diagram)

Note

To reduce high temperature of the hydraulic fluid in the axial piston unit we recommend the use of a flushing and boost pressure valve (see chapter Extended functions and versions).

Selection of hydraulic fluid

Bosch Rexroth evaluates hydraulic fluids on the basis of the Fluid Rating according to the technical data sheet 90235.

Hydraulic fluids with positive evaluation in the Fluid Rating are provided in the following technical data sheet:

90245: Bosch Rexroth Fluid Rating List for Rexroth hydraulic components (pumps and motors)

The hydraulic fluid should be selected so that the operating viscosity in the operating temperature range is within the optimum range (νopt; see selection diagram).

Selection diagram

Filtration of the hydraulic fluid

Finer filtration improves the cleanliness level of the hydraulic fluid, which increases the service life of the axial piston unit.

A cleanliness level of at least 20/18/15 is to be maintained according to ISO 4406.

At a hydraulic fluid viscosity of less than 10 mm²/s (e.g. due to high temperatures in short-term operation) at the drain port, a cleanliness level of at least 19/17/14 according to ISO 4406 is required.

For example, the viscosity is 10 mm²/s at:

HLP 32 a temperature of 73°C

HLP 46 a temperature of 85°C

Operating pressure range

Pressure at working port A or B (high-pressure side)			Definition
Nominal pressure	pnom	see table of values	The nominal pressure corresponds to the maximum design pressure.
Maximum pressure	pmax	see table of values	The maximum pressure corresponds to the maximum operating pressure within the single operating period. The sum of the single operating periods must not exceed the total operating period.
Single operating period		10 s
Total operating period		300 h
Minimum pressure	pHP min	25 bar	Minimum pressure on high-pressure side (port A or B) required to prevent damage to the axial piston unit.
Minimum pressure at inlet (pump operating mode)	pE min	see diagram	To prevent damage to the axial piston motor in pump mode (change of high-pressure side with unchanged direction of rotation, e.g. when braking),a minimum pressure must be guaranteed at the working port (inlet). The minimum pressure depends on the rotational speed and displacement of the axial piston unit.
Total pressure	pSu	700 bar	The summation pressure is the sum of the pressures at both work ports (A and B).
Rate of pressure change			Definition
with integrated pressure relief valve	RA max	9000 bar/s	Maximum permissible rate of pressure build-up and reduction during a pressure change over the entire pressure range.
without pressure relief valve	RA max	16000 bar/s
Case pressure at port T			Definition
Continuous differential pressure	ΔpT cont	2 bar	Maximum averaged differential pressure at the shaft seal (case to ambient pressure)
Pressure peaks	pT peak	10 bar	t < 0.1 s

Note

Working pressure range valid when using hydraulic fluids based on mineral oils. Values for other hydraulic fluids, please contact us.

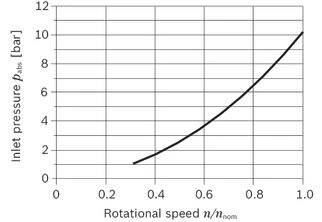

Minimum pressure at inlet (pump operating mode)

This diagram is only valid for the optimum viscosity range of vopt = 16 to 36 mm2/s.

If the above mentioned conditions cannot be ensured, please contact us.

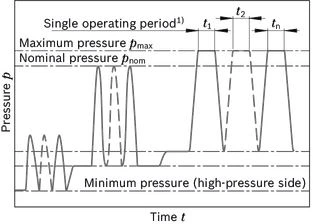

Pressure definition

1)	Total operating period = t1 + t2 + ... + tn

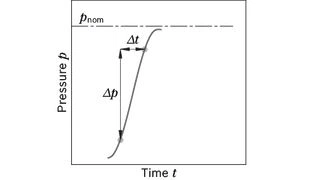

Rate of pressure change

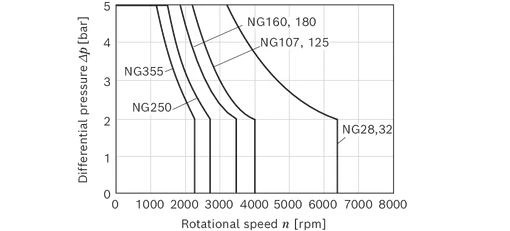

Maximum differential pressure at the shaft seal

Note

The service life of the shaft seal is influenced by the speed of the axial piston unit and the case pressure.

The service life decreases with an increase of the mean differential pressure between the case and the ambient pressure and with a higher frequency of pressure spikes.

The case pressure must be equal to or higher than the ambient pressure.

Direction of flow

Direction of rotation, viewed on drive shaft
clockwise	counter-clockwise
A to B	B to A

Permissible radial and axial forces of the drive shaft

Size			28		32	45	56		63	80		90	107		125	160		180	250	355
Drive shaft	Code		Z	A	A	Z	Z	A	A	Z	A	A	Z	A	A	Z	A	A	Z	Z
Drive shaft	⌀	mm	25	30	30	30	30	35	35	35	40	40	40	45	45	45	50	50	50	60
Maximum radial force at distance a (from shaft collar)	Fq max	kN	5.7	5.4	5.4	7.6	7.8	9.1	9.1	11.1	11.4	11.4	13.6	14.1	14.1	18.1	18.3	18.3	1.2 1)	1.5 1)
Maximum radial force at distance a (from shaft collar)	a	mm	16	16	16	18	18	18	18	20	20	20	20	20	20	25	25	25	41	52.5
Permitted torque at Fq max	Tq max	Nm	179	179	204	290	294	357	401	488	512	573	679	679	796	1021	1021	1146
Permitted differential pressure at Fq max	Δpq max	bar	400	400	400	400	330	400	400	380	400	400	400	400	400	400	400	400
Maximum axial force, when standstill or in non-pressurized conditions	+ Fax max	N	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
	- Fax max	N	500	500	500	630	800	800	800	1000	1000	1000	1250	1250	1250	1600	1600	1600	2000	2500
Maximum axial force, per bar operating pressure	+ Fax max	N/bar	5.2	5.2	5.2	7	8.7	8.7	8.7	10.6	10.6	10.6	12.9	12.9	12.9	16.7	16.7	16.7

1)	When at a standstill or when axial piston unit operating in non-pressurized conditions. Higher forces are permissible when under pressure, please contact us.

General instructions

The values given are maximum values and do not apply to continuous operation.

The axial force in direction −Fax is to be avoided as the service life of the bearing is reduced.

Special requirements apply in the case of belt drives. Please contact us.

Notes for sizes 250 ... 355:

In case of radial forces limited performance data is valid. Please contact us.

In case of axial forces during operation of the unit please contact us.

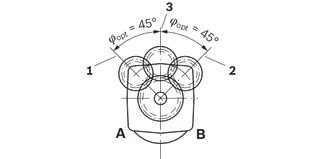

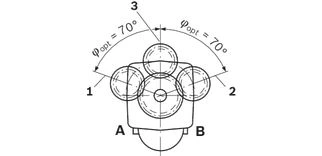

Effect of radial force Fq on the service life of bearings

By selecting a suitable direction of radial force Fq the load on the bearings caused by the internal rotary group forces can be reduced, thus optimizing the service life of the bearings. Recommended position of mating gear is dependent on direction of rotation. Examples:

Toothed gear drive, size 28 … 180

Toothed gear drive, size 250 … 355

1	Direction of rotation "counter-clockwise", pressure at port B
2	Direction of rotation "clockwise", pressure at port A
3	Direction of rotation "bidirectional"

Long-Life bearing

Sizes 250 and 355

For long service life and use with HF hydraulic fluids. Identical external dimensions as version with standard bearings. Subsequent conversion to long-life bearings is possible.

Dimensions

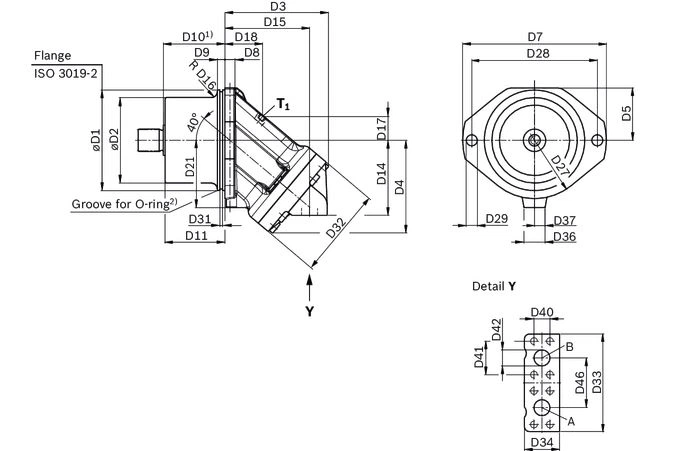

Size 28 ... 180

Port plate 10

1)	To shaft collar
2)	The O-ring is not included in the delivery contents.

Size	D1		D2	D3	D4	D5	D7	D8	D9	D10	D11	D14	D15	D16	D17	D18	D21	D27	D28	D29	D31	D32	D33	D34	D36	D37	D40	D41	D42	D46	O-Ring
Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
28	135	0 - 0.025	94	114	106	71	188	16	15	88.8	87.1	91	94	10	27	45	95	154	160	14	5.2	106	115	40	42	13	18.2	40.5	13	59	Ø126 × 4
32	135	0 - 0.025	94	114	106	71	188	16	15	88.8	87.1	91	94	10	27	45	95	154	160	14	5.2	106	115	40	42	13	18.2	40.5	13	59	Ø126 × 4
45	160	0 - 0.025	118.5	133	119	82	235	18	15	92.3	90	102	109	10	31.3	50	106	190	200	18	5.2	118	147	49	47.5	15	23.8	50.8	19	75	Ø150 × 4
56	160	0 - 0.025	121	146	130	82	235	18	15	92.3	90	107	122	10	34	59	109	190	200	18	5.2	128	147	48	36	0	23.8	50.8	19	75	Ø150 × 4
63	160	0 - 0.025	121	146	130	82	235	18	15	92.3	90	107	122	10	34	59	109	190	200	18	5.2	128	147	48	36	0	23.8	50.8	19	75	Ø150 × 4
80	190	0 - 0.029	140.3	157	145	98	260	20	15	110.5	106	121	127	10	41	54	123	220	224	22	5.2	138	166	60	40	0	27.8	57.2	25	84	Ø180 × 4
90	190	0 - 0.029	140.3	157	145	98	260	20	15	110.5	106	121	127	10	41	54	123	220	224	22	5.2	138	166	60	40	0	27.8	57.2	25	84	Ø180 × 4
107	200	0 - 0.029	152.3	178	157	103	286	20	15	122.8	119	136	143	16	41	58	135	232	250	22	5.2	150	194	70	40	0	31.8	66.7	32	99	Ø192 × 4
125	200	0 - 0.029	152.3	178	157	103	286	20	15	122.8	119	136	143	16	41	58	135	232	250	22	5.2	150	194	70	40	0	31.8	66.7	32	99	Ø192 × 4
160	200	0 - 0.029	171.6	206	185	104	286	20	15	122.8	119.3	149	169	12	47	75	134	232	250	22	5.2	180	194	70	42	0	31.8	66.7	32	99	Ø192 × 4
180	200	0 - 0.029	171.6	206	185	104	286	20	15	122.8	119.3	149	169	12	47	75	134	232	250	22	5.2	180	194	70	42	0	31.8	66.7	32	99	Ø192 × 4

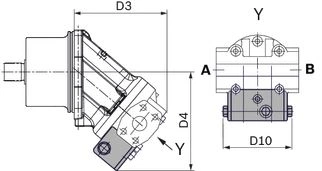

Note

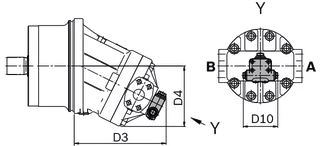

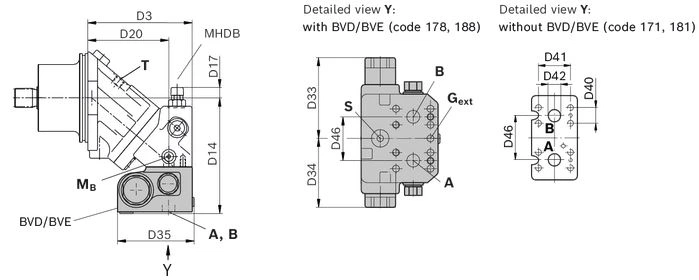

The dimensional drawings of the port plates with valves can be found in the chapter "Extended functions and versions".

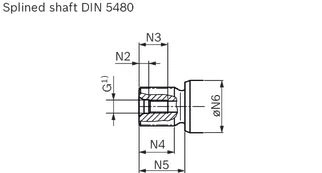

Drive shafts Z and A

1)	Center bore according to DIN 332 (thread according to DIN 13)

Splined shaft DIN 5480

NG	Code	Designation	Thread G	N2	N3	N4	N5	ØN6
NG	Code	Designation	Thread G	mm	mm	mm	mm	mm
28	Z	W25×1.25×18×9g	M8 × 1.25	6	19	28	43	35
28	A	W30×2×14×9g	M10 × 1.5	7.5	22	27	35	35
32	A	W30×2×14×9g	M10 × 1.5	7.5	22	27	35	35
45	Z	W30×2×14×9g	M12 × 1.75	9.5	28	27	35	35
56	Z	W30×2×14×9g	M12 × 1.75	9.5	28	27	35	40
56	A	W35×2×16×9g	M12 × 1.75	9.5	28	32	40	40
63	A	W35×2×16×9g	M12 × 1.75	9.5	28	32	40	40
80	Z	W35×2×16×9g	M12 × 1.75	9.5	28	32	40	45
80	A	W40×2×18×9g	M16 × 2	12	36	37	45	45
90	A	W40×2×18×9g	M16 × 2	12	36	37	45	45
107	Z	W40×2×18×9g	M12 × 1.75	9.5	28	37	45	50
107	A	W45×2×21×9g	M16 × 2	12	36	42	50	50
125	A	W45×2×21×9g	M16 × 2	12	36	42	50	50
160	Z	W45×2×21×9g	M16 × 2	12	36	42	50	60
160	A	W50×2×24×9g	M16 × 2	12	36	44	55	60
180	A	W50×2×24×9g	M16 × 2	12	36	44	55	60

Ports

Size			28	32	45	56	63	80	90	107	125	160	180
A, B	Working port	Size	1/2 in		3/4 in			1 in		1 1/4 in
		Standard	Dimensions according to SAE J518
		Fastening thread 1)	M8 × 125; 15 mm deep		M10 × 15; 17 mm deep			M12 × 175; 17 mm deep		M14 × 2; 19 mm deep
		State on delivery	With protective cover (must be connected)
T1	Drain port	Size	M16 × 15; 12 mm deep		M18 × 15; 12 mm deep							M22 × 15; 14 mm deep
		Standard 2)	DIN 3852
		State on delivery 3)	With protective cover (must be connected)

1)	Thread according to DIN 13
2)	The spot face can be deeper than specified in the appropriate standard.
3)	Unless otherwise specified. Other layouts on request.

Size 250

1)	To shaft collar
2)	The O-ring is not included in the delivery contents.

1)	Center bore according to DIN 332 (thread according to DIN 13)

Ports

Size			250
A, B	Working port	Size	1 1/4 in
		Standard	Dimensions according to SAE J518
		Fastening thread 1)	M14 × 2; 19 mm deep
		State on delivery	With protective cover (must be connected)
T1	Drain port	Size	M22 × 15; 14 mm deep
		Standard 2)	DIN 3852
		State on delivery 3)	With protective cover (observe installation instructions)
T2	Drain port	Size	M22 × 15; 14 mm deep
		Standard 2)	DIN 3852
		State on delivery 3)	Plugged (observe installation instructions)

1)	Thread according to DIN 13
2)	The spot face can be deeper than specified in the appropriate standard.
3)	Unless otherwise specified. Other layouts on request.

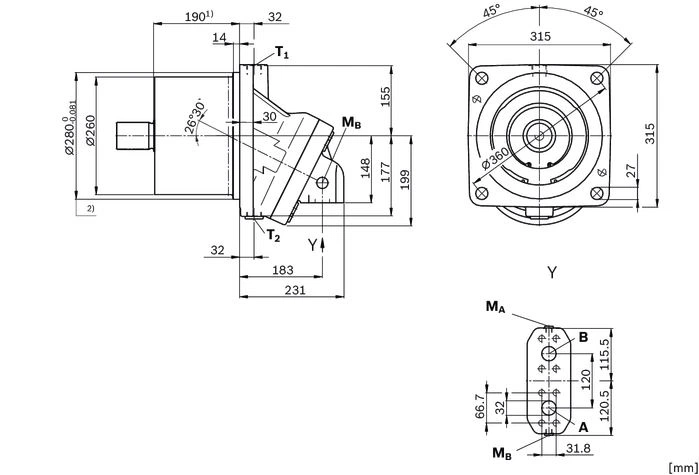

Size 355

1)	To shaft collar
2)	Flange ISO 3019-2

1)	Center bore according to DIN 332 (thread according to DIN 13)

Ports

Size			355
A, B	Working port	Size	1 1/4 in
		Standard	Dimensions according to SAE J518
		Fastening thread 1)	M14 × 2; 22 mm deep
		State on delivery	With protective cover (must be connected)
T1	Drain port	Size	M33 × 2; 18 mm deep
		Standard 2)	DIN 3852
		State on delivery 3)	With protective cover (observe installation instructions)
T2	Drain port	Size	M33 × 2; 18 mm deep
		Standard 2)	DIN 3852
		State on delivery 3)	Plugged (observe installation instructions)
MA, MB	Measuring port pressure A, B	Size	M14 × 15; 12 mm deep
		Standard 2)	DIN 3852
		State on delivery	Plugged

1)	Thread according to DIN 13
2)	The spot face can be deeper than specified in the appropriate standard.
3)	Unless otherwise specified. Other layouts on request.

Extended functions and versions

Flushing and boost pressure valve

The flushing and boost pressure valve is used in closed circuits for the removal of heat and to ensure a minimum boost pressure level.

Hydraulic fluid is directed from the respective low pressure side into the motor housing. This is then fed into the reservoir, together with the leakage. The removed hydraulic fluid must be replaced by cooled hydraulic fluid from the boost pump.

Cracking pressure of pressure retaining valve

(observe when setting the primary valve)

Sizes 107 to 355, fixed setting: 16 bar

Switching pressure of flushing piston Δp

Sizes 107 to 355: 8±1 bar

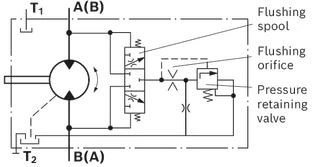

Circuit diagram

Flushing flow qv

Orifices (throttles with integrated valve) can be used to set the flushing flows as required.

The specifications below are based on:

ΔpND = pND – pG = 25 bar and ν = 10 mm²/s

(pND = low pressure, pG = case pressure)

Flushing and boost-pressure valve attached (port plates 027 and 017)

Size	Flushing flow qv	Orifice-⌀	Material number of orifice
Size	l/min	mm	Material number of orifice
45	3.5	1.2	R909651766
107, 125	8	1.8	R909419696
160, 180	10	2	R909419697
250	10	2	R909419697
355	16	2.5	R910803019

With sizes 107 to 180, orifices can be supplied for flushing flows from 8 to 10 l/min. For flushing flows deviating from the values in the table, please state the required flushing flow when ordering. For nominal sizes 250 to 355, please always specify the flushing flow. For sizes 107 to 180 the flushing flow without orifice is approx. 12 to 14 l/min at low pressure ΔpND = 25 bar, for sizes 250 to 355 please contact us.

Flushing and boost-pressure valve integrated (port plate 029)

Size	Flushing flow qv	Throttle-⌀
Size	l/min	mm
56, 63, 80, 90	6	1.5
56, 63, 80, 90	7.3	1.8

Dimensions

Port plate 027

SAE working ports at side, opposite

Size	D3	D4	D10
Size	mm	mm	mm
45	162	151	102
107, 125	211	192	102
160, 180	232	201	102
250	260.5	172	102

Port plate 029

Size	D3	D4	D10
Size	mm	mm	mm
56, 63	165	176	125
80, 90	178	186.7	125

Port plate 107

SAE working ports at bottom

Size	D3	D4	D10
Size	mm	mm	mm
355	260	199	102

Pressure relief valve

The MHDB pressure relief valves protect the hydraulic motor from overload. As soon as the set cracking pressure is reached, the hydraulic fluid flows from the high-pressure side to the low-pressure side.

The pressure relief valves are only available in conjunction with port plates 181, 191 or 192 (port plate 181: see section “BVD and BVE counterbalance valve”).

Setting range of cracking pressure: 50 up to 420 bar

For versions “with pressure sequencing stage” (code 192), a higher pressure setting can be implemented by connecting an external pilot pressure of 25 up to 30 bar at port PSt.

When ordering, state in plain text:

Cracking pressure of pressure relief valve

Cracking pressure with pilot pressure applied to PSt (only with version 192)

Version without pressure boost facility (code 191)

Version with pressure boost facility (code 192)

Permissible input flow or pressure in case of port plate with pressure-relief valves

Size		Code	pnom	pmax	qV
Motor	MHDB	Code	bar	bar	l/min
28 … 32	16	191, 192	350	420	100
56 … 125	22				240
107 … 180	32				400

Dimensions

Size		D3	D14	D17	D18	D19	D20	D21	D22	D40	D41	D42	D46
Motor	MHDB	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
28, 32	16	145	102	25	122	87	110	68	36	23.8	50.8	19	66
45	16	161	113	22	137	98	126	65	36	23.8	50.8	19	66
56, 63	22	189	124	19	162	105	147	61	42	23.8	50.8	19	75
80, 90	22	193	134	17.5	165	114	151	59	42	27.8	57.2	25	75
107, 125	32	216	149.5	10	184	130	168	52	53	31.8	66.7	32	84
160, 180	32	249	170	5	218	149	202	47	53	31.8	66.7	32	84

Ports

Size			28, 32	45	56, 63	80, 90	107, 125	160, 180
A, B	Working port	Size	3/4 in			1 in	1 1/4 in
		Standard	Dimensions according to SAE J518
		Fastening thread 1)	M10 × 15; 17 mm deep		M10 × 15; 13 mm deep	M12 × 175; 18 mm deep	M14 × 2; 19 mm deep
		State on delivery	With protective cover (must be connected)
S1	Boost port	Size	M22 × 15; 14 mm deep		M26 × 15; 16 mm deep
		Standard	DIN 3852
		State on delivery	With protective cover (must be connected)
PSt	Pilot pressure port	Size	G 1/4 2)
PSt	Pilot pressure port	Standard	DIN ISO 228
MA, MB	Measuring port pressure A, B	Size	M20 × 15; 14 mm deep		M26 × 15; 16 mm deep			M30 × 15; 16 mm deep
		Standard 3)	DIN 3852
		State on delivery	Plugged

1)	Thread according to DIN 13
2)	Only with port plate 192
3)	The spot face can be deeper than specified in the appropriate standard.

Counterbalance valve BVD and BVE

Function

Travel drive/winch counterbalance valves are designed to reduce the danger of overspeeding and cavitation of axial piston motors in open circuits. Cavitation occurs if the motor speed is greater than it should be for the given input flow while braking, travelling downhill, or lowering a load.

If the inlet pressure drops, the counterbalance spool throttles the return flow and brakes the motor until the inlet pressure returns to approx. 20 bar.

Note

BVD available for sizes 28 to 180.

BVE on request for sizes 107 to 180.

The counterbalance valve must be ordered additionally. We recommend ordering the counterbalance valve and the motor as a set. Ordering example: A2FM(E)107/61W–VAB188 + BVD20F27S/41B–V03K16D0400S12

The counterbalance valve does not replace the mechanical service brake and park brake.

Observe the detailed notes on the BVD counterbalance valve in data sheet 95522 and BVE counterbalance valve in data sheet 95526!

For the design of the brake release valve, we must know for the mechanical park brake:
- the pressure at the start of opening
- the volume of the counterbalance spool between minimum stroke (brake closed) and maximum stroke (brake released with 21 bar)
- the required closing time for a warm device (oil viscosity approx. 16 mm2/s)

Travel drive counterbalance valve BVD...F

Application option:

Travel drive on wheeled excavators

Example schematic for travel drive on wheeled excavators

A2FM(E)107/61W-VAB188 + BVD20F27S/41B–V03K16D0400S12

Winch counterbalance valve BVD...W

Application options:

Winch drive in cranes

Track drive in excavator crawlers

Permissible input flow or pressure in case of port plate with counterbalance valves

Size			Code	pnom	pmax	qV
Motor	BVD	MHDB	Code	bar	bar	l/min
28 … 32	20	16	181, 188	350	420	100
56 … 90		22	181, 188			220
107 … 125		32	171, 178			220
107 … 180	25	32	181, 188			320

Dimensions

Size		Code	D3	D14	D17	D20	D33	D34	D35 1)	D40	D41	D42	D46
Motor	Counterbalance valve	Code	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
28, 32	BVD20..16	188	145	175	25	110	139	98	142	23.8	50.8	19	66
45	BVD20..16	188	161	196	22	126	139	98	142	23.8	50.8	19	66
56, 63	BVD20..17	188	189	197	19	147	139	98	142	23.8	50.8	19	75
80, 90	BVD20..27	188	193	207	17.5	151	139	98	142	27.8	57.2	25	75
107, 125	BVD20..28	178	216	238	10	168	139	98	142	27.8	57.2	25	84
	BVD25..38	188	216	239	10	168	175	120.5	158	31.8	66.7	32	84
	BVE25..38	188	216	240	10	168	214	137	167	31.8	66.7	32	84
160, 180	BVD25..38	188	249	260	5	202	175	120.5	158	31.8	66.7	32	84
160, 180	BVE25..38	188	249	260	5	202	214	137	167	31.8	66.7	32	84

1)	For version with brake release valve (BV...L): Dimension D35 +5 mm

Ports

Size			28, 32	45	56, 63	80, 90	107, 125		160, 180
A, B	Working port	Size	3/4 in			1 in	1 in 1)	1 1/4 in 2)	1 1/4 in
		Standard	Dimensions according to SAE J518
		Fastening thread 3)	M10 × 15; 17 mm deep		M10 × 15; 13 mm deep	M12 × 175; 18 mm deep	M12 × 175; 16 mm deep	M14 × 2; 19 mm deep
		State on delivery	With protective cover (must be connected)
S	Boost port	Size	M22 × 15; 14 mm deep					M27 × 2; 16 mm deep
		Standard 4)	DIN 3852
		State on delivery	Plugged
Br	Brake release port (only BV...L)	Size	M12 × 1.5
		Standard 4)	DIN 3852
		State on delivery	With protective cover (must be connected)
Gext	Brake release port (only BV...S)	Size	M12 × 1.5
		Standard 4)	DIN 3852
		State on delivery	Plugged
MA, MB	Measuring port pressure A, B	Size	M12 × 15; 12 mm deep
		Standard 4)	ISO 6149
		State on delivery	Plugged

1)	With BVD20
2)	With BVD25 / BVE25
3)	Thread according to DIN 13
4)	The spot face can be deeper than specified in the appropriate standard.

Speed sensors

The versions A2FE...U ("prepared for speed sensor", i.e. without sensor) are equipped with a toothed ring on the rotary group.

On deliveries "prepared for speed sensor", the port is plugged with a pressure-resistant cover.

With the DSA speed sensor mounted a signal proportional to motor speed can be generated. The sensors measures the speed and direction of rotation.

Ordering code, technical data, dimensions and details on the connector, plus safety information about the sensor can be found in the relevant data sheet.

DSA: data sheet 95133

The sensor is mounted at the specially provided port as follows:

DSA: with one mounting bolt

We recommend ordering the A2FE plug-in motor complete with sensor mounted.

DSA speed sensor mounted (code V)

Size 28 … 250

Motor	Number of teeth	N1	N2	N3	N4
Size	Number of teeth	mm	mm	mm	mm
28 ... 32	38	32	86	15	66
45	45	32	88.8	28	69.7
56 ... 63	47	32	93	35	74.5
80 ... 90	53	32
107 ... 125	59	32	104	28	85
160 ... 180	67	32	114	33	95
250	78	32

Project planning information

Installation instructions

General

During commissioning and operation, the axial piston unit must be filled with hydraulic fluid and air bled. This must also be observed following a relatively long standstill as the axial piston unit may drain back to the reservoir via the hydraulic lines.

The case drain fluid in the housing must be directed to the reservoir via the highest available drain port (T1,T2).

If a shared drain line is used for several units, make sure that the respective case pressure is not exceeded. The shared drain line must be dimensioned to ensure that the maximum permissible case pressure of all connected units is not exceeded in any operating conditions, specifically on cold start. If this is not possible, separate reservoir lines must be laid as required.

To achieve favorable noise values, all connecting lines should be decoupled by using elastic elements and above-reservoir installation is to be avoided.

In all operating conditions, the drain line must flow into the reservoir below the minimum fluid level.

Installation position

See the following examples 1 to 6.

Further installation positions are possible upon request. Recommended installation position: 1 and 2.

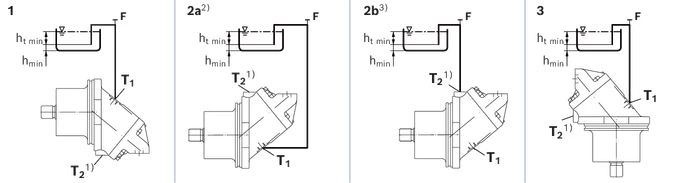

Below-tank installation (standard)

Below-tank installation is at hand if the axial piston unit is installed below the minimum liquid level outside the tank.

1)	Standard for sizes 250 and 355, special version for sizes 28 to 180.
2)	Piping suggestion without port T2 (sizes 28 to 180)
3)	Piping suggestion with Port T2 (sizes 250 to 355).

Installation position	Air bleeding	Filling
1	F	T1
2a	F	T1
2b	F	T2
3	F	T1

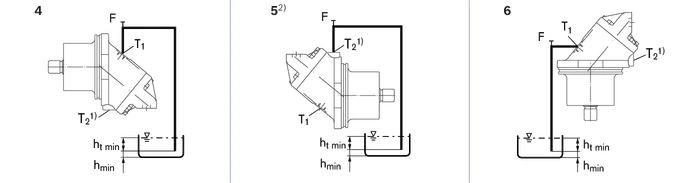

Above-reservoir installation

Above-reservoir installation means that the axial piston unit is installed above the minimum fluid level of the reservoir.

1)	Standard for sizes 250 and 355, special version for sizes 28 to 180.
2)	Installation position only permissible if port T2 is fitted (sizes 250 and 355).

Installation position	Air bleeding	Filling
4	F	T1 (F)
5	F	T2 (F)
6	F	T1 (F)

Key
F	Filling / Air bleeding
T1, T2	Drain port
ht min	Minimum required immersion depth (200 mm)
hmin	Minimum required spacing to reservoir bottom (100 mm)

Note: Connection F is part of the external piping and must be provided on the customer side to simplify the filling and bleeding.

General project planning notes

The axial piston motor is designed to be used in open and closed circuits.

The project planning, installation and commissioning of the axial piston unit require the involvement of qualified skilled personnel.

Before using the axial piston unit, please read the corresponding instruction manual completely and thoroughly. If necessary, request it from Bosch Rexroth.

Before finalizing your design, request a binding installation drawing.

The specified datas and notes must be observed.

Preservation: Our axial piston units are supplied as standard with preservative protection for a maximum of 12 months. If longer preservative protection is required (maximum 24 months), please specify this in plain text when placing your order. The preservation times are valid under optimal storage conditions. Details of these conditions can be found in the data sheet 90312 or the instruction manual.

Not all versions of the product are approved for use in a safety function according to ISO 13849. Please consult the responsible contact person at Bosch Rexroth if you require reliability parameters (e.g. MTTFD) for functional safety.

A pressure relief valve is to be provided in the hydraulic system.

Observe the instructions in the instruction manual regarding tightening torques of connection threads and other threaded joints used.

The notes in the instruction manual on tightening torques of the port threads and other screw joints must be observed.

The ports and fastening threads are designed for the permissible maximum pressure pmax (see instruction manual). The machine or system manufacturer must ensure that the connecting elements and lines correspond to the specified operating conditions (pressure, flow, hydraulic fluid, temperature) with the necessary safety factors.

The working ports and function ports are designated only to accommodate hydraulic lines.

Safety Instructions

During and shortly after operation, there is a risk of getting burnt on the axial piston unit and especially on the solenoids. Take the appropriate safety measures (e.g. by wearing protective clothing).

Moving parts in control equipment (e.g. valve spools) can, under certain circumstances, get stuck in position as a result of contamination (e.g. contaminated hydraulic fluid, abrasion, or residual dirt from components). As a result, the hydraulic fluid flow and the build-up of torque in the axial piston unit can no longer respond correctly to the operator‘s specifications. Even the use of various filter elements (external or internal flow filtration) will not rule out a fault but merely reduce the risk. The machine/system manufacturer must test whether remedial measures are needed on the machine for the application concerned in order to bring the driven consumer into a safe position (e.g. safe stop) and ensure any measures are properly implemented.

In certain conditions, moving parts in high pressure relief valves might get stuck in an undefined position due to contamination (e.g. contaminated hydraulic fluid). This can result in restriction or loss of load holding functions in lifting winches. Therefore it is the machine and/or system manufacturers responsibility to make sure that the load can always be put in a safe mode if needed. Also, he needs to ensure that these measures are properly implemented.

Ordering codes

Downloads

	Einschub-Konstantmotor A2FE, Baureihe 6x Data Sheet \| RD91008 \| 2020-03-05 \| German \| PDF \| 355k Product Groups: Pumps, Fixed motors
	Fixed Displacement Plug-In Motor A2FE, Series 6x Data Sheet \| RE91008 \| 2020-03-05 \| English \| PDF \| 352k Product Groups: Pumps, Fixed motors
	Einschub-Konstantmotor A2FE, Baureihe 6 Manual \| RD91008-01-B \| 2011-08-01 \| German \| PDF \| 1.9MB Product Groups: Pumps, Fixed motors
	Fixed Plug-In Motor A2FE, Series 6 Manual \| RE91008-01-B \| 2011-08-01 \| English \| PDF \| 1.9MB Product Groups: Pumps, Fixed motors
	插入式固定马达 A2FE, 6 系列 Manual \| RC91008-01-B \| 2011-08-01 \| Chinese \| PDF \| 1.3MB Product Groups: Pumps, Fixed motors 说明手册
	Moteur à insérer à cylindrée fixe A2FE Manual \| RF91008-01-B \| 2011-08-01 \| French \| PDF \| 1.3MB Product Groups: Pumps, Fixed motors

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.

Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.

Мы предлагаем следующие способы оплаты товара:

Оплата наличными

Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.

Безналичная оплата

Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.

Электронные способы

Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.

Если у вас возникнут вопросы по оформлению заказа, вы можете обратиться к нам, позвонив по телефону +7 495 137-07-02 или связавшись по электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Запрос цены или КП

Мы предоставляем официальную гарантию на всю поставляемую продукцию Bosch Rexroth.

Гарантийный сервис включает в себя:

Приемку продукции в сервисный центр для выполнения диагностики дефекта.
Ремонт продукции.
Доставку продукции до объекта заказчика.

Контакты гарантийного отдела:

Телефон: +7 495 137-07-02
E-mail: support@boschrexroth-russia.ru

Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Специалист по решениям Bosch Rexroth:

Окажет профессиональную консультацию.
Сообщит вашу цену на продукцию.
Сообщит информацию об актуальных акциях и скидках.
Подскажет ближайшее к вам отделение с наличием нужной продукции.
Согласует с вами возможную дату и время доставки.

Запрос цены или КП

Запрос цен, наличия или консультация

Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

НовостиВсе новости

Bosch Rexroth A4FO: надежность в условиях высокого давления

Гидравлическое оборудование остается важной частью современных промышленных и строительных систем. Аксиально-поршневой насос Bosch Rexroth A4FO демонстрирует, как сочетание универсальности, долговечности и инженерной точности помогает решать сложные задачи, связанные с подачей гидравлической жидкост..

17 Января, 2025 Bosh Rexroth: Эффективность и надежность в одном решении

Синхронные моментные двигатели MBT130, представляющие серию MST130+MRT130 от Bosh Rexroth, выделяются рядом особенностей, которые могут быть важны для самых различных применений в автоматизации и промышленности. Кратко о характеристиках: - Максимальный крутящий момент до 180 Нм, что позвол..

14 Декабря, 2024 Bosh Rexroth HED 5-3X: Надежный контроллер для современных систем

Гидроэлектрические реле давления поршневого типа HED 5-3X от производителя Bosh Rexroth завоевали признание среди специалистов благодаря своим выдающимся характеристикам и функциональности. Эти устройства обеспечивают надежный контроль давления в различных промышленных системах. Серия компонентов..

16 Ноября, 2024 Bosch Rexroth - новая эра измерения давления в гидравлических системах

В условиях современного производства всегда важно обеспечивать стабильность и безопасность работы гидравлических систем. Преобразователь давления HM20-2X становится эффективным решением для этой задачи. Среди ключевых характеристик HM20-2X стоит выделить следующие - Серия компонент..

14 Октября, 2024 Boschrexroth Датчик давления HED 8 OA-2X/100K14: надежность и точность в контроле давления

Датчик давления Boschrexroth HED 8 OA-2X/100K14 (арт. R901102706) используется в различных промышленных приложениях, обеспечивая высокую точность и надежность измерений давления. Он способен функционировать в строгих условиях, что делает его незаменимым инструментом для автоматизации и управления пр..

13 Сентября, 2024 Bosh Rexort - аккумуляторы HAD оптимизируют энергосистемы

В мире гидропневматических систем появилась новинка, которая уже привлекла внимание специалистов. Гидропневматические аккумуляторы серии HAD демонстрируют инновационный подход к управлению энергией и стабилизации давления в различных системах, как мобильных, так и стационарных. Высокая эффективно..

23 Августа, 2024 Bosh Rexort представило двухходовой патронный клапан!

Двухходовой патронный клапан с активным управлением LC2A Bosch Rexroth представляет собой прецизионное гидравлическое устройство, разработанное для контроля и регулирования потока рабочей жидкости в системах гидравлики. Этот клапан работает по принципу двухпозиционного управления потоком, обеспечива..

17 Июля, 2024 Bosch Rexroth - надежный партнер для вашего бизнеса в области гидравлики!

Компания Bosch Rexroth предлагает широкий спектр продукции, включая гидронасосы, гидромоторы, гидроклапана, гидроцилиндры, пневмоцилиндры, клапаны, регуляторы, датчики и многое другое. Благодаря высокому качеству продукции и многолетнему опыту работы в отрасли, Bosch Rexroth является предпочтит..

20 Июня, 2024 Как правильно выбрать насос от BOSCH REXROTH?

В мире мобильной и промышленной гидравлики, где надежность и качество стоят на первом месте, насосы Bosch Rexroth выделяются как эталон долговечности и технического совершенства. Эти изделия, зарекомендовавшие себя в России и за её пределами, стали символом немецкого качества и профессионального под..

30 Мая, 2024 Bosch Rexroth – гидравлические шестерённые насосы серии AZPF

Гидравлические шестерённые насосы серии AZPF - это оборудование, которое обеспечивает преобразование механической энергии в гидравлическую с высоким КПД. Они обладают длительным сроком службы благодаря уплотнению зазоров и высокоточной технологии производства. Приводные валы в соответствии с межд..

8 Апреля, 2024 Bosch Rexroth на выставке LogiMAT

На выставке LogiMAT компания Bosch Rexroth представила передовые компоненты, подсистемы и системные решения для автоматизации и оптимизации логистики. Среди предложений компании - практические решения для трансмиссии и рабочих функций промышленных грузовиков и автономных мобильных роботов (AMR), вкл..

22 Марта, 2024 Bosch Rexroth открывает новые возможности в управлении машинами и подключении к IoT

Bosch Rexroth предлагает одну из самых производительных систем ЧПУ на рынке. Компания является лидером в области автоматизации и устанавливают стандарты в этой области. От датчиков и сервоприводов до революционной новой платформы, Bosch Rexroth предлагает широкий спектр решений для автоматизации. ..

16 Февраля, 2024

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг

	Einschub-Konstantmotor A2FE, Baureihe 6x Data Sheet \| RD91008 \| 2020-03-05 \| German \| PDF \| 355k Product Groups: Pumps, Fixed motors
	Fixed Displacement Plug-In Motor A2FE, Series 6x Data Sheet \| RE91008 \| 2020-03-05 \| English \| PDF \| 352k Product Groups: Pumps, Fixed motors
	Einschub-Konstantmotor A2FE, Baureihe 6 Manual \| RD91008-01-B \| 2011-08-01 \| German \| PDF \| 1.9MB Product Groups: Pumps, Fixed motors
	Fixed Plug-In Motor A2FE, Series 6 Manual \| RE91008-01-B \| 2011-08-01 \| English \| PDF \| 1.9MB Product Groups: Pumps, Fixed motors
	插入式固定马达 A2FE, 6 系列 Manual \| RC91008-01-B \| 2011-08-01 \| Chinese \| PDF \| 1.3MB Product Groups: Pumps, Fixed motors 说明手册
	Moteur à insérer à cylindrée fixe A2FE Manual \| RF91008-01-B \| 2011-08-01 \| French \| PDF \| 1.3MB Product Groups: Pumps, Fixed motors
