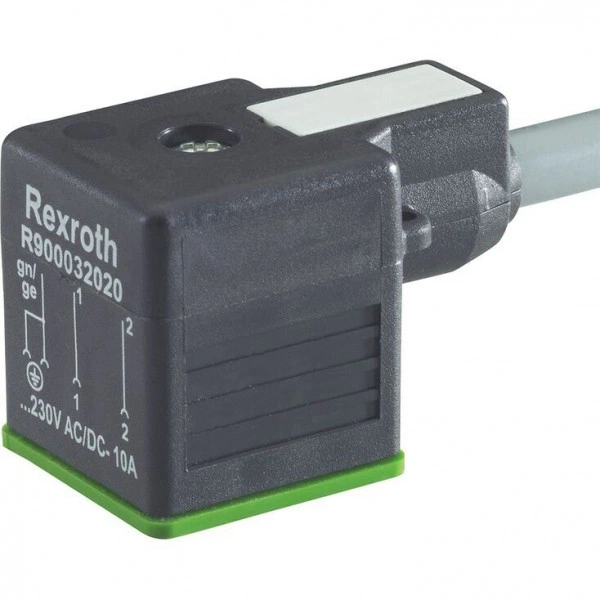

Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit, with assembled connection line 3P Z4L1 +
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Mating connectors for valves with one or two solenoids (individual connection)
Technical data
| Mating connector | Short designation | Z4L1 | ||
| Design | A | |||
| Ambient temperature | Fixed line installation | °C | -20 … +80 | |
| Flexible line | °C | -5 … +70 | ||
| Protection class according to EN 60529 | IP 67 with mating connector mounted and fitted | |||
| Indicator light | LED yellow | |||
| Number of poles | 2 + PE | |||
| Standard | EN 175301-803 | |||
| Certification/conformity | RoHS | |||
| Derating | - | |||
| Connection line | Type | Oilflex 150 PVC, gray | ||
| Wire cross-section | 3 x 1,0 mm2 | |||
| Core marking | PE | green/yellow | ||
| other wires | black with numbers | |||
| Line diameter | mm | 7 | ||
| Bending radius | Fixed line installation | min. 4 x line diameter | ||
| Flexible line | min. 12.5 x line diameter | |||
(For applications outside these values, please consult us!)
Symbols/Circuit diagrams
With indicator light and Zener diode suppression circuit
Dimensions

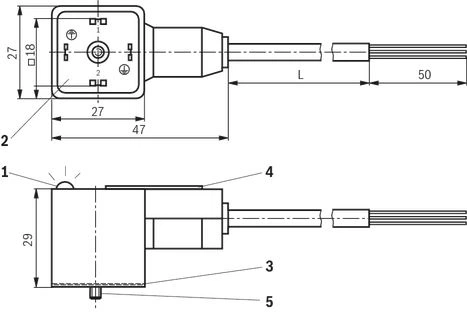

Dimensions in mm
| 1 | LED |
| 2 | Contacting 0 + 180° rotatable |
| 3 | Flat seal (not detachable) |
| 4 | Name plate |
| 5 | Mounting screw M3 (not detachable), tightening torque MA = 0.5 Nm |
| L | Cable length 3.5 or 10 m (see “ordering code”) |
Ordering codes
Order details
| Short designation | Z4L1 | |||||
| Voltage 1) | DC / AC | U | 24 V | |||
| Current | Imax | 4 A | ||||
| Color | black | |||||
| Material number | R900032021 | R900032015 | R900217138 | |||
| 1) | Switch-off voltage peak limitation to 55 V |
Downloads
 | Leitungsdosen und Kabelsätze für Ventile und Sensoren in der Hydraulik Data Sheet | RD08006 | 2021-05-01 | German | PDF | 1.4MB Product Groups: Mating connectors and cable sets |
| Mating connectors and cable sets for valves and sensors in hydraulics Data Sheet | RE08006 | 2021-05-01 | English | PDF | 1.5MB Product Groups: Mating connectors and cable sets |
