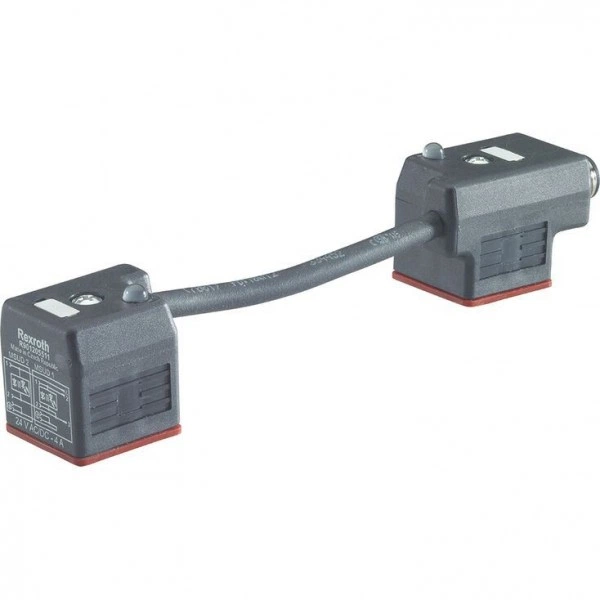

Double mating connectors for valves with two solenoids and connector “K4”, with line connection M12 x 1 3P Z60
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Cable sets for valves with two solenoids (double mating connectors)
Technical data
| Mating connector | Short designation | Z60 | ||
| Design | A | |||
| Connector | M12 metal thread, A coding, version according to EN 61076-2-101 | |||
| Ambient temperature | Fixed line installation | °C | -25 … +80 | |
| Flexible line | °C | -20 … +80 | ||
| Protection class according to EN 60529 | IP 67 with mating connector mounted and fitted | |||
| Number of poles | 2 + PE | |||
| Standard | EN 175301-803A/ISO4400 | |||
| Certification/conformity | RoHS, CSA | |||
| Derating, max. | 2 A | °C | + 95 | |
| Connection line | Type | PUR-JZ black | ||
| Connection line wire cross-section | 3 x 0,75 mm2 | |||
| Bending radius | Fixed line installation | min. 4 x line diameter | ||
| Flexible line | min. 10 x line diameter | |||
(For applications outside these values, please consult us!)
Symbols/Circuit diagrams
With connector M12 x 1
With connector M12 x 1

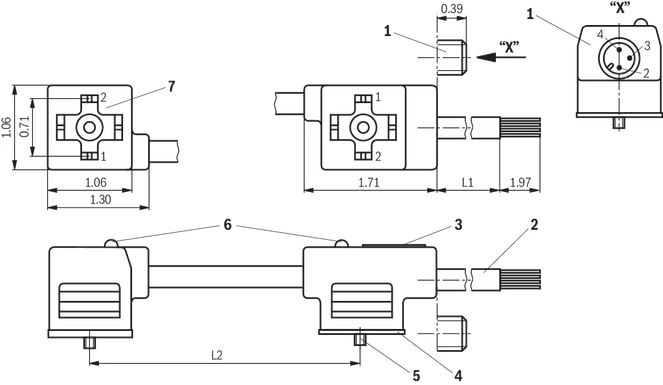

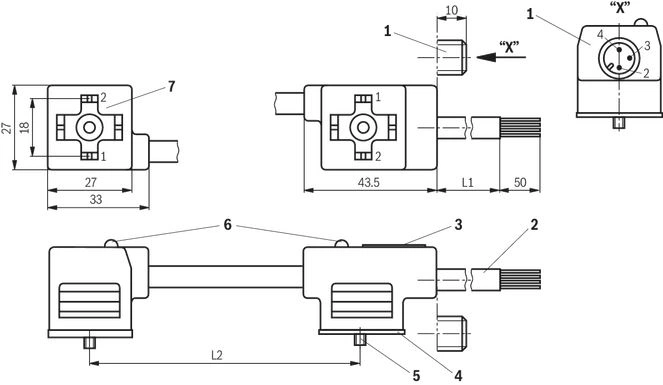

Dimensions
Dimensions in mm
| 1 | Version “Z60…” |
| 2 | Version “Z61…” |
| 3 | Name plate |
| 4 | Flat seal (not detachable) |
| 5 | Mounting screw M3 (not detachable), tightening torque MA = 0.5 Nm |
| 6 | LED (versions “Z60L” and “Z61L” only) |
| 7 | Contacting 0° (PE bridged) |
| L1 | Cable length 3 or 5 m (see “ordering code”) |
| L2 | 113 mm (for valve NG6) |
Downloads
 | Leitungsdosen und Kabelsätze für Ventile und Sensoren in der Hydraulik Data Sheet | RD08006 | 2021-05-01 | German | PDF | 1.4MB Product Groups: Mating connectors and cable sets |
| Mating connectors and cable sets for valves and sensors in hydraulics Data Sheet | RE08006 | 2021-05-01 | English | PDF | 1.5MB Product Groups: Mating connectors and cable sets |
