Double mating connectors for valves with two solenoids and connector “K4”, with indicator light, Zener diode suppression circuit and line connection M12 x 1 3P Z60L8

Name: Double mating connectors for valves with two solenoids and connector “K4”, with indicator light, Zener diode suppression circuit and line connection M12 x 1 3P Z60L8
Brand: Bosch Rexroth
SKU: RX7072

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
Cable sets for valves with two solenoids (double mating connectors)

Technical data

Mating connector	Short designation			Z60L8
	Design			A
	Connector			M12 metal thread, A coding, version according to EN 61076-2-101
	Ambient temperature	Fixed line installation	°C	-25 … +80
	Ambient temperature	Flexible line	°C	-20 … +80
	Protection class according to EN 60529			IP 67 with mating connector mounted and fitted
	Indicator light			LED yellow
	Number of poles			2 + PE
	Standard			EN 175301-803A/ISO4400
	Certification/conformity			RoHS, CSA
	Derating, max.	4 A	°C	+ 40
	Derating, max.	2 A	°C	+ 95
Connection line	Type			PUR-JZ black
	Connection line wire cross-section			3 x 0,75 mm2
	Bending radius	Fixed line installation		min. 4 x line diameter
	Bending radius	Flexible line		min. 10 x line diameter

(For applications outside these values, please consult us!)

Symbols/Circuit diagrams

With connector M12 x 1, indicator light and Zener diode suppression circuit

Dimensions

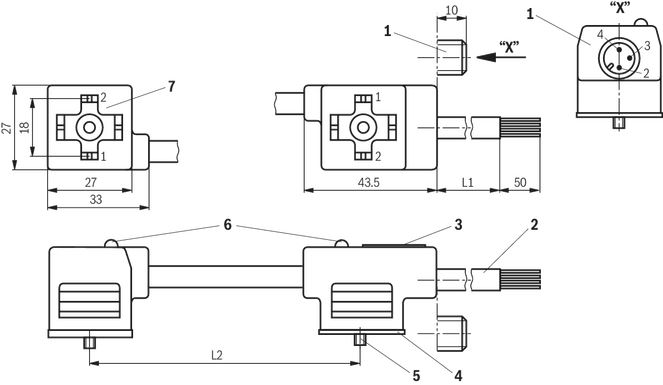

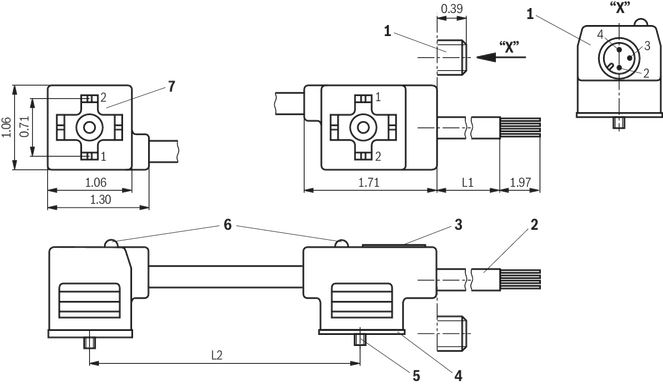

Dimensions in mm

1	Version “Z60…”
2	Version “Z61…”
3	Name plate
4	Flat seal (not detachable)
5	Mounting screw M3 (not detachable), tightening torque MA = 0.5 Nm
6	LED (versions “Z60L” and “Z61L” only)
7	Contacting 0° (PE bridged)
L1	Cable length 3 or 5 m (see “ordering code”)
L2	113 mm (for valve NG6) 135 mm (for valve NG10)

Ordering codes

Currently eShop is not available. Please try again later.

Order details

Short designation			Z60L8
Voltage 1)	DC / AC	U	24 V ± 10 %	24 V only DC
Current		Imax	4 A	4 A 2)
Material number			R901205511	R901207823

1)	Switch-off voltage peak limitation to ≤ 50 V
2)	Please observe the temperature range and/or derating (see technical data)

Downloads

	Leitungsdosen und Kabelsätze für Ventile und Sensoren in der Hydraulik Data Sheet \| RD08006 \| 2021-05-01 \| German \| PDF \| 1.4MB Product Groups: Mating connectors and cable sets
	Mating connectors and cable sets for valves and sensors in hydraulics Data Sheet \| RE08006 \| 2021-05-01 \| English \| PDF \| 1.5MB Product Groups: Mating connectors and cable sets
