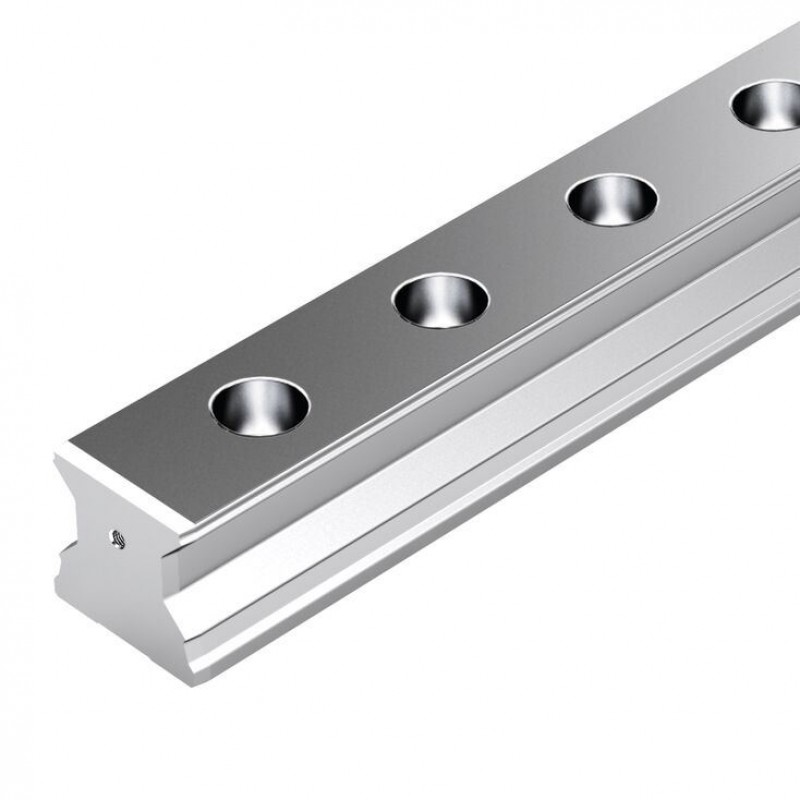

Standard roller guide rails SNS, for cover strip R1805 .2. ..

Артикул: RX8826

В наличии

Standard roller guide rails SNS, for cover strip R1805 .2. ..

Name: Standard roller guide rails SNS, for cover strip R1805 .2. ..
Brand: Bosch Rexroth
SKU: RX8826

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

For mounting from above

Features

Hardened raceways smoothened on all sides
Top rigidity in all load directions
Very high torque load capacity

Product description

Roller guide rail SNS with proven cover strip for covering mounting holes.

Roller Guide Rail with temperature control

Product description high-precision design

Selection of a linear guide acc. to DIN 637

Technical data

General technical data

Size		25	35	45	55	65
m	kg/m	3.1	6.3	10.3	13.1	17.4
Lmax	mm	3986	3996 1)	3986 2)	3956 3)	3971 4)
Material		CS
Operating conditions
Size		25	35	45	55	65
Permissible ambient temperature (min ... max) 5)		-10 °C ... +80 °C

1)	Deliverable in one part up to a length of 5996 mm
2)	Deliverable in one part up to a length of 5981 mm
3)	Deliverable in one part up to a length of 5936 mm
4)	Deliverable in one part up to a length of 5921 mm
5)	Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us.

Legend

Symbol	Description	Unit
Lmax	Maximum length	mm
m	Mass per meter	kg/m

Accuracy classes

Dimensions

	Roller guide rail with threaded holes on end faces and without cover strip
	(order cover strip and strip clamps or protective caps separately).

a)	For Roller Guide Rails of accuracy class H, this
	base area may be without a groove for manufacturing reasons.

Dimensions

Size		25	35	45	55	65
A2	mm	23	34	45	53	63
D	mm	11	15	20	24	26
H2	mm	23.4	30.8	38.8	47.55	57.85
N6		14.3 mm ±0.5	19.4 mm ±0.5	22.4 mm ±0.5	28.7 mm ±0.5	36.5 mm ±0.5
N7	mm	15	22	30		40
ØS5	mm	7	9	14	16	18
T	mm	30	40	52.5	60	75
T1 min	mm	13	16	18	20	21
T1 s	mm	13 1)	18 1)	24.25 1)	28 1)	35.5 1)
nB		133	100	76	66	53

1)	Preferred dimension T1S with tolerances ± 0.75

Legend

Symbol	Description	Unit
T	Hole spacing	mm
T1 min	Minimum distance	mm
T1 s	Preferred dimension	mm
nB	Maximum number of holes

Mounting

Notes

▶ Secure cover strip!

▶ Order cover strip and strip clamps or protective caps separately. See section entitled "Accessories" for material numbers and dimensions.

▶ Observe the notes for mounting!

▶ Please request the "Mounting instructions for roller rail systems" and "Mounting instructions for cover strip".

▶ Roller guide rail also available in composite.

General mounting instructions

Accessories

Packaging Opener Klever Kutter

Not product-specific documents
Service

Hydraulic clamping and braking units KBH, FLS

R1810 .40 21

Hydraulic clamping and braking units KBH, FLS

R1810 .40 21

Very high axial holding forces
Dynamic and static stabilization in the axial direction
Heavy-duty brake
Compact design, compatible with DIN 645
Clamps and brakes with pressure

Not product-specific documents
CAD data
Instructions
Service
Catalog

Hydraulic clamping and braking units KBH, SLS

R1810 440 22

Hydraulic clamping and braking units KBH, SLS

R1810 440 22

Very high axial holding forces
Dynamic and static stabilization in the axial direction
Heavy-duty brake
Compact design, compatible with DIN 645
Clamps and brakes with pressure

Not product-specific documents
CAD data
Instructions
Service
Catalog

Hydraulic clamping units KWH, FLS

R1810 .4. 11

Hydraulic clamping units KWH, FLS

R1810 .4. 11

Very high axial holding forces
Dynamic and static stabilization in the axial direction
Compact design, compatible with DIN 645
Clamps and brakes with pressure

Not product-specific documents
CAD data
Instructions
Service
Catalog

Hydraulic clamping units KWH, SLS

R1810 642 51

Hydraulic clamping units KWH, SLS

R1810 642 51

Very high axial holding forces
Dynamic and static stabilization in the axial direction
Compact design, compatible with DIN 645
Clamps and brakes with pressure

Not product-specific documents
CAD data
Instructions
Service
Catalog

Hydraulic clamping units KWH, SLH

R1810 .42 31

Hydraulic clamping units KWH, SLH

R1810 .42 31

Very high axial holding forces
Dynamic and static stabilization in the axial direction
Compact design, compatible with DIN 645
Clamps and brakes with pressure

Not product-specific documents
CAD data
Instructions
Service
Catalog

Pneumatic clamping and braking units MBPS

R1810 .40 31

Pneumatic clamping and braking units MBPS

R1810 .40 31

Clamps and brakes with spring energy accumulator
Positive locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect
Dynamic and static stabilization in the axial direction
Clamps and brakes without pressurization (spring energy)
Clamping and braking units in short format

Not product-specific documents
CAD data
Instructions
Service
Catalog

Pneumatic clamping and braking units UBPS

R1810 .40 51

Pneumatic clamping and braking units UBPS

R1810 .40 51

Clamps and brakes with spring energy accumulator
Positive locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect
Dynamic and static stabilization in the axial direction
Clamps and brakes without pressurization (spring energy)
Compact design, compatible with DIN 645

Not product-specific documents
CAD data
Instructions
Service
Catalog

Pneumatic clamping units MK

R1810 .42 60

Pneumatic clamping units MK

R1810 .42 60

High axial holding forces with short format
Dynamic and static stabilization in the axial direction
Easy mounting
Clamps with pressure (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.

Not product-specific documents
CAD data
Instructions
Service
Catalog

Pneumatic clamping units MKS

R1810 .40 60

Pneumatic clamping units MKS

R1810 .40 60

High axial holding forces with short format
Dynamic and static stabilization in the axial direction
Easy mounting
Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies.

Not product-specific documents
CAD data
Instructions
Service
Catalog

Mounting Runner Block SLH slimline, long, high

R1829 .20 ..

Mounting Runner Block SLH slimline, long, high

R1829 .20 ..

Not product-specific documents
Service

Standard loose cover strip with snap fit

The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
Can be mounted and removed several times.
For initial installation, storage and replacement

Not product-specific documents
Instructions
Service

Loose cover strip with sliding fit

The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
Can be mounted and removed several times.
For initial installation, storage and replacement

Not product-specific documents
Instructions
Service

Expanding tool

for Roller Rail Systems

Expanding tool

for Roller Rail Systems

For creating a sliding fit in the cover strip

Not product-specific documents
Instructions
Service

Cover strip mounting kit

for Roller Rail Systems

Cover strip mounting kit

for Roller Rail Systems

Mounting aid and lift-off plate

Not product-specific documents
Instructions
Service

Protective caps for Roller Rail Systems

R1619 .39 .0

Protective caps for Roller Rail Systems

R1619 .39 .0

Not product-specific documents
Service

Screws and washers for Roller Rail Systems

R34.. 0.. 0.

Screws and washers for Roller Rail Systems

R34.. 0.. 0.

Not product-specific documents
Service

Strip clamps for Roller Rail Systems

R1619 .39 .0

Strip clamps for Roller Rail Systems

R1619 .39 .0

Not product-specific documents
Service

Plastic mounting hole plugs for Roller Rail Systems

R1605 .00 .0

Plastic mounting hole plugs for Roller Rail Systems

R1605 .00 .0

Not product-specific documents
Instructions
Service

Steel caps for Roller Rail Systems

R1606 .00 7.

Steel caps for Roller Rail Systems

R1606 .00 7.

Not product-specific documents
Instructions
Service

Mounting tool for steel caps

The two-piece mounting tool is suitable for mounting hole plugs in built-in guide rails (mounting instructions enclosed)

Not product-specific documents
Instructions
Service

V-guide for lateral retention of Roller Guide Rails

Mounting aid for lateral retention of roller guide rails
Material: Steel
Design: black finish

Not product-specific documents
CAD data
Instructions
Service

Certification

Directives and standards

Safety Instructions

Notes

Ordering codes

Material numbers

Size	Part number	CAD data	Buy	Rail length 4)	Accuracy class	Number of sections
25	R180522131 1)			L = nB • T ‒ 4 mm	SP	One-piece
	R180522231 1)			L = nB • T ‒ 4 mm	P	One-piece
	R180522331 1)			L = nB • T ‒ 4 mm	H	One-piece
	R180522831 1)			L = nB • T ‒ 4 mm	GP	One-piece
	R180522931 1)			L = nB • T ‒ 4 mm	UP	One-piece
	R180522132 2)			L = nB • T ‒ 4 mm	SP	Composite
	R180522232 2)			L = nB • T ‒ 4 mm	P	Composite
	R180522332 2)			L = nB • T ‒ 4 mm	H	Composite
	R180522832 2)			L = nB • T ‒ 4 mm	GP	Composite
	R180522932 2)			L = nB • T ‒ 4 mm	UP	Composite
35	R180532131 1)			L = nB • T ‒ 4 mm	SP	One-piece
	R180532231 1)			L = nB • T ‒ 4 mm	P	One-piece
	R180532331 1)			L = nB • T ‒ 4 mm	H	One-piece
	R180532831 1)			L = nB • T ‒ 4 mm	GP	One-piece
	R180532931 3) 1)			L = nB • T ‒ 4 mm	UP	One-piece
	R180532132 2)			L = nB • T ‒ 4 mm	SP	Composite
	R180532232 2)			L = nB • T ‒ 4 mm	P	Composite
	R180532332 2)			L = nB • T ‒ 4 mm	H	Composite
	R180532832 2)			L = nB • T ‒ 4 mm	GP	Composite
	R180532932 3) 2)			L = nB • T ‒ 4 mm	UP	Composite
45	R180542131 1)			L = nB • T ‒ 4 mm	SP	One-piece
	R180542231 1)			L = nB • T ‒ 4 mm	P	One-piece
	R180542331 1)			L = nB • T ‒ 4 mm	H	One-piece
	R180542831 1)			L = nB • T ‒ 4 mm	GP	One-piece
	R180542931 3) 1)			L = nB • T ‒ 4 mm	UP	One-piece
	R180542132 2)			L = nB • T ‒ 4 mm	SP	Composite
	R180542232 2)			L = nB • T ‒ 4 mm	P	Composite
	R180542332 2)			L = nB • T ‒ 4 mm	H	Composite
	R180542832 2)			L = nB • T ‒ 4 mm	GP	Composite
	R180542932 3) 2)			L = nB • T ‒ 4 mm	UP	Composite
55	R180552131 1)			L = nB • T ‒ 4 mm	SP	One-piece
	R180552231 1)			L = nB • T ‒ 4 mm	P	One-piece
	R180552331 1)			L = nB • T ‒ 4 mm	H	One-piece
	R180552831 1)			L = nB • T ‒ 4 mm	GP	One-piece
	R180552931 3) 1)			L = nB • T ‒ 4 mm	UP	One-piece
	R180552132 2)			L = nB • T ‒ 4 mm	SP	Composite
	R180552232 2)			L = nB • T ‒ 4 mm	P	Composite
	R180552332 2)			L = nB • T ‒ 4 mm	H	Composite
	R180552832 2)			L = nB • T ‒ 4 mm	GP	Composite
	R180552932 3) 2)			L = nB • T ‒ 4 mm	UP	Composite
65	R180562131 1)			L = nB • T ‒ 4 mm	SP	One-piece
	R180562231 1)			L = nB • T ‒ 4 mm	P	One-piece
	R180562331 1)			L = nB • T ‒ 4 mm	H	One-piece
	R180562831 1)			L = nB • T ‒ 4 mm	GP	One-piece
	R180562931 3) 1)			L = nB • T ‒ 4 mm	UP	One-piece
	R180562132 2)			L = nB • T ‒ 4 mm	SP	Composite
	R180562232 2)			L = nB • T ‒ 4 mm	P	Composite
	R180562332 2)			L = nB • T ‒ 4 mm	H	Composite
	R180562832 2)			L = nB • T ‒ 4 mm	GP	Composite
	R180562932 3) 2)			L = nB • T ‒ 4 mm	UP	Composite

1)	Rail length up to Lmax
2)	Rail length greater than Lmax. The end number changes depending on the number of sections. 2 is preset here as an example.
3)	Available on request
4)	Recommended rail length, other lengths possible.

Ordering example 1 (up to Lmax)	Ordering example 2 (beyond Lmax)
Options:	Options:
Roller guide rails SNS	Roller guide rails SNS
Size 35	Size 35
Accuracy class P	Accuracy class P
One-piece	Composite (2 parts)
Rail length L = 1676 mm	Rail length L = 5036 mm
Material number:	Material number:
R180532231, 1676 mm	R180532232, 5036 mm

Legend

Symbol	Description	Unit
L	Rail length	mm
nB	Maximum number of holes
T	Spacing of guide rail	mm

Ordering roller guide rails in the recommended rail lengths

Downloads

	Profiled rail systems Manual \| R320103885_EN \| 2016-09-01 \| English \| PDF \| 11.5MB Product Groups: Linear guides
	Catalog Roller Rail Systems Catalog \| R999000354 \| 2021-10-01 \| English \| PDF \| 23.5MB Product Groups: Roller Rail Systems only available as PDF file

Отзывы о товаре

Нет отзывов об этом товаре.
