Description
- For mounting from above
- Cover strip made of corrosion-resistant spring steel as per DIN EN 10088
- (with threaded holes at the end faces)
Features
- High torque capacity
- Hardened raceways smoothened on all sides
- One cover for all bore holes saves time and costs
- Top rigidity in all load directions
- Cover strip can be mounted simply and securely
- Clip on cover strip and lock
Product description
Roller guide rail SNS with proven cover strip for covering mounting holes.
Heavy-duty roller guide rails are particularly suitable for heavy machine construction with very high carrying capacity- and rigidity requirements.
Roller Guide Rail with temperature control
Product description high-precision design
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 100 | 125 | |
| m | kg/m | 42.5 | 75.6 |
| Lmax | mm | 3986 | 2760 |
| Material | CS | ||
| Operating conditions | |||
| Size | 100 | 125 | |
| Permissible ambient temperature (min ... max) 1) | -10 °C ... +80 °C | ||
| 1) | Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions

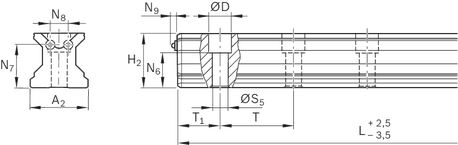

| Roller guide rail with cover strip and front thread holes. | |
| Retaining with screws and washers (included). |
Dimensions
| Size | 100 | 125 | |
| A2 | mm | 100 | 125 |
| D | mm | 40 | 49 |
| Dimension H2 with cover strip | mm | 87.3 1) | 115.3 1) |
| N6 | 55 mm ±0.5 | 74.5 mm ±0.5 | |
| N7 | mm | 65 | 91 |
| N8 | mm | 28 | 38 |
| N9 | mm | 4.8 | |
| ØS5 | mm | 26 | 33 |
| T | mm | 105 | 120 |
| T1 min | mm | 35 2) | 40 2) |
| T1 s | mm | 49 3) | 56.5 3) |
| T1 max | mm | 70 | 80 |
| nB | 35 | 22 | |
| 1) | with cover strip 0.3 mm |
| 2) | with a shortfall of T1 min Front thread not possible. Secure the cover strip! Observe the mounting instructions! |
| 3) | Preferred dimension T1S with tolerance +1/-1.5 |
Legend
| Symbol | Description | Unit |
| T | Hole spacing | mm |
| T1 min | Minimum distance | mm |
| T1 s | Preferred dimension | mm |
| nB | Maximum number of holes |
Project planning information
Notes
▶ Secure cover strip.
▶ Screws and washers in scope of delivery.
▶ Observe the notes for mounting!
▶ Please request the "Mounting instructions for roller rail systems" and "Mounting instructions for cover strip".
▶ Roller guide rail also available in composite.
Mounting
General mounting instructions
Certification
load errorSafety Instructions
load errorDownloads
 | Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog Roller Rail Systems Catalog | R999000354 | 2021-10-01 | English | PDF | 23.5MB Product Groups: Roller Rail Systems only available as PDF file |
