Standard roller guide rails SNO, with steel mounting hole plugs R1806 .C. ..

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

  • With smooth base area for mounting surfaces from cast mineral parts
  • For mounting from above
  • Available in sizes 35-65 and all accuracy classes

Features

  • Hardened raceways smoothened on all sides
  • Top rigidity in all load directions
  • Very high torque load capacity

Product description

Technical data

General technical data

Size

35455565

m

kg/m

6.310.313.117.4

Lmax

mm

3996 1)3986 2)3956 3)3971 4)

Material

CS

Operating conditions

Size

35455565

Permissible ambient temperature (min ... max) 5)

-10 °C ... +80 °C
1)Deliverable in one part up to a length of 5996 mm
2)Deliverable in one part up to a length of 5981 mm
3)Deliverable in one part up to a length of 5936 mm
4)Deliverable in one part up to a length of 5921 mm
5)Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us.

Legend

Symbol

Description

Unit

Lmax

Maximum length

mm

m

Mass per meter

kg/m

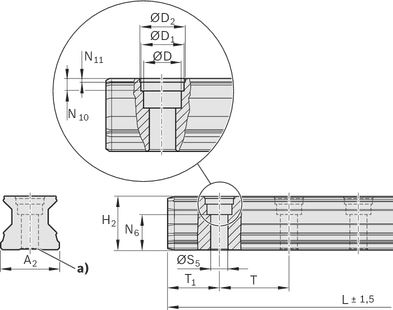

Dimensions

Steel caps are not included in the scope of delivery
for the Roller Guide Rails. Order the mounting tool
as well! To mount steel mounting hole plugs, see
"Mounting instructions for roller rail systems".
a) For Roller Guide Rails of accuracy class H, this
base area may be without a groove for manufacturing reasons.

Dimensions

Size

35455565

A2

mm

34455363

D

mm

15202426

D1

mm

17.5522.5527.5529.55

H2

mm

30.838.847.5557.85

N6

19.4 mm ±0.522.4 mm ±0.528.7 mm ±0.536.5 mm ±0.5

N10

mm

3.68

N11

mm

0.91.45

ØS5

mm

9141618

T

mm

4052.56075

T1 min

mm

12161820

T1 s

mm

18 1)24.25 1)28 1)35.5 1)

nB

100766653
1)Preferred dimension T1S with tolerances ± 0.75

Legend

Symbol

Description

Unit

T

Hole spacing

mm

T1 min

Minimum distance

mm

T1 s

Preferred dimension

mm

nB

Maximum number of holes

Mounting

Notes

▶ Steel mounting hole plugs are not included in the scope of delivery of the roller guide rails. Order separately (see "Accessories for roller guide rails")

▶ Order mounting tool as well (see "Accessories for roller guide rails")!

▶ Observe the notes for mounting!

▶ Please request "Mounting instructions for roller rail systems".

▶ Roller guide rail also available in composite.
