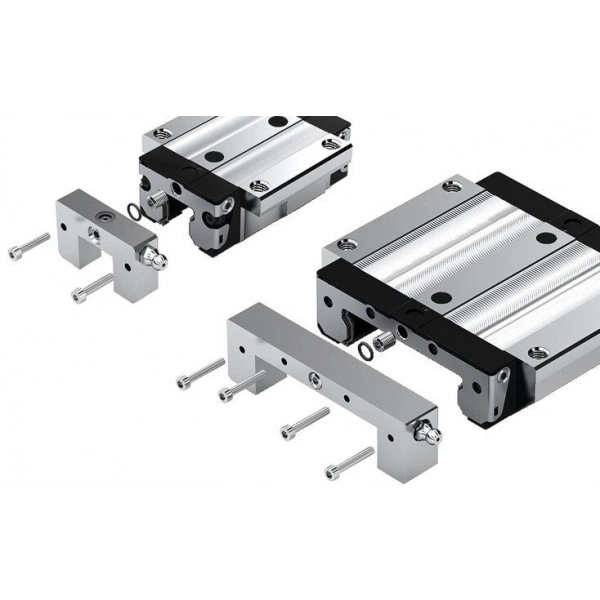

Lube plate for standard lube nipple R1620 .11 20
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Material: Aluminum
Dimensions
Dimensions

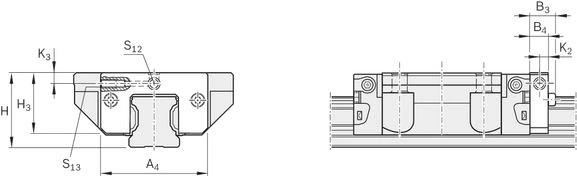

| Size | 15 | 20 1) | 25 1) | 30 | 35 | 45 | 55 | 65 | |
| A4 | mm | 32 | 42 | 47 | 59 | 69 | 85 | 98 | 124 |
| B3 | mm | 13.1 | 15 | 16 | 17 | 18 | |||
| B4 | mm | 11 | 12 | 14 | |||||
| H | mm | 24 | 30 | 36 | 42 | 48 | 60 | 70 | 90 |
| H 2) | mm | 28 | - | 40 | 45 | 55 | 70 | 80 | - |
| H3 3) | mm | 19 | 24.8 | 28.3 | 33.8 | 39.1 | 48.5 | 56 | 75.7 |
| K2 | mm | 5.5 | 6 | 7 | |||||
| K3 3) | mm | 3.4 | 3.5 | 6 | 8 | 9 | 18 | ||
| K3 2) 3) | mm | 7.4 | - | 10 | 11 | 15 | 18 | 19 | - |
| S12 | mm | M3 | M6 | M8x1 | |||||
| S13 | Ø 3 | M6 | M8x1 | ||||||
| 1) | Not for ball runner blocks F.N (flanged ... low) and S.N (slimline ... low) |
| 2) | For ball runner blocks S.H (slimline ... high) |
| 3) | Based on the mounting face of the ball runner block |
Mounting
Note for mounting
- The parts required for mounting are included.
- Size 15 - 20: Funnel-type lube nipple with impact spigot is included.
- Size 25 - 65: The lube nipple of the Ball Runner Block can be used.
- Observe the mounting instructions.

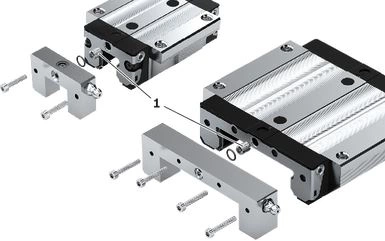

Note: The enclosed lubrication pin (1) must be installed between the lube plate and the Ball Runner Block! (It contains a lube port.)
1) Lubrication pin
Ordering codes
Material numbers
| Size | Part number | CAD data | Buy | Mass |
| g | ||||
| 15 | R162011120 | 15 | ||
| 20 1) | R162081120 | 25 | ||
| 25 1) | R162021120 | 30 | ||
| 30 | R162071120 | 45 | ||
| 35 | R162031120 | 60 | ||
| 45 | R162041120 | 85 | ||
| 55 | R162051120 | 115 | ||
| 65 | R162061120 | 250 |
| 1) | Not for ball runner blocks F.N (flanged ... low) and S.N (slimline ... low) |
Downloads
 | Profilschienenführungen Manual | R320103885 | 2016-09-01 | German | PDF | 11.4MB Product Groups: Linear guides |
| Sistema de guias lineares Manual | R320103885_PT | 2016-09-01 | Portuguese | PDF | 11.3MB Product Groups: Linear guides |
| Sistemas de guiado lineal Manual | R320103885_ES | 2016-09-01 | Spanish | PDF | 11.4MB Product Groups: Linear guides |
| Guide profilate Manual | R320103885_IT | 2016-09-01 | Italian | PDF | 11.4MB Product Groups: Linear guides |
| Guidages sur rails Manual | R320103885_FR | 2016-09-01 | French | PDF | 11.3MB Product Groups: Linear guides |
| 型轨导向系统 Manual | R320103885_ZH | 2016-09-01 | Chinese | PDF | 11.9MB Product Groups: Linear guides |
| Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
