Magnetic strip

Description

• Structure and specification
• Coding
• Installation

Product description

Structure and specification

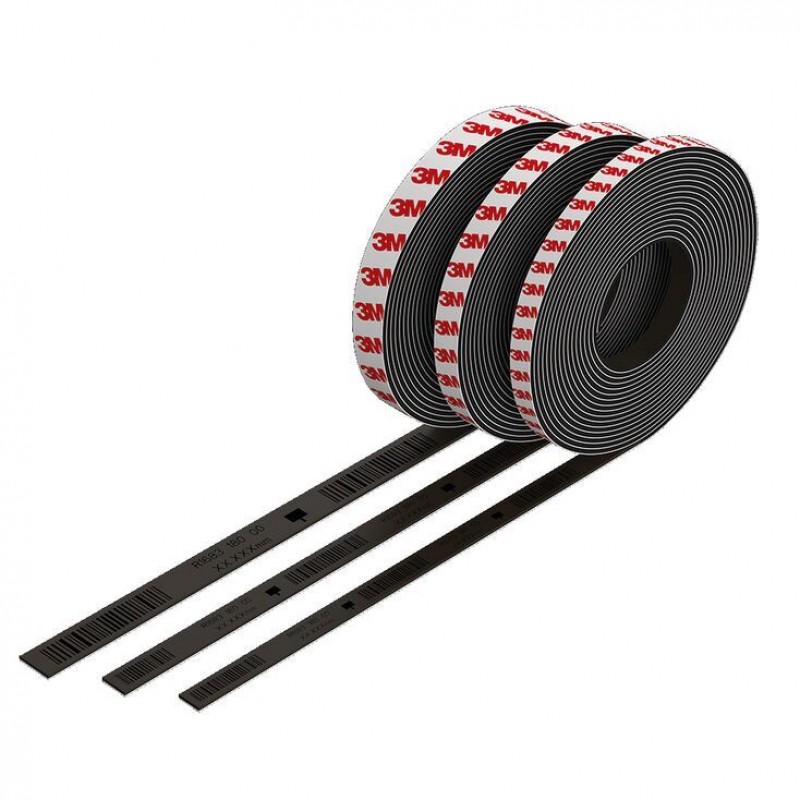

The magnetic strip consists of three firmly glued components:

Pole search film

With the pin search film, the magnetization of the two-track magnetic strip can be checked.

Technical data

Coding

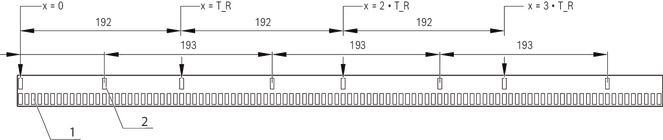

The magnetic strip has two tracks, with an incremental and a reference side. The incremental track comprises 1 mm increments. On the reference side, distance-coded reference marks are provided. The clear arrangement of the reference marks ensures that an absolute position is already available when two marks have been passed. Thus, measuring lengths of up to 17.8 m are possible.

The necessary minimum length 1) of the magnetic strip for evaluating the distance-coded reference marks is 400 mm. If the length of the magnetic strip is shorter than 400 mm, the measuring system may only be used as incremental measuring system without evaluation of reference marks.

1) The minimum length can also be shorter, depending on the mechanical design

Mounting

Mounting

The magnetic strip is mounted by adhesion of the rail slot. Before mounting, the correct mounting orientation is to be ensured since, with the mounted magnetic strip, the push-on direction and thus the position of the reference edge of the runner block are determined. A magnetic strip which has already been glued on is destroyed after its removal and cannot be re-used. Before the adhesion of the magnetic strip, the latter is to be stored near the rail (ideally in the slot) for approx. 30 minutes so that the temperature corresponds to the rail temperature and any tensions due to thermal expansion can be excluded. After mounting, the strip ends are to be secured with strip clamps.

Mounting steps:

• Thoroughly clean the surface

• Acclimatize the magnetic strip

• Remove the protective foil and attach the magnetic strip with a great pressure force (4-5 kg/cm2)

• Cover it with lubricant (if no cover strip is used), push-on the runner block, secure it with strip clamps

The following preparation instructions are to be observed:

Preparing the surface

To guarantee ideal adhesion, any anti-adhesive contamination in the rail slot (e.g. oil, grease, dust, separating agents) must be removed with solvents with residue-free evaporation. Suitable agents are ketones or alcohols. When using solvents, the manufacturer’s instructions are to be observed at all times!

Pressure force:

The rigidity of the adhesion directly depends on the contact developed by the adhesive with the surfaces to be glued. The ideal pressure force is 4 to 5 kg/cm² (use press-on aids if applicable).

Adhesion temperature:

The most favorable adhesion temperature is between +18°C and +30°C. Adhesions in which the surfaces to be glued are colder than +10°C are to be avoided since, in such case, the adhesive becomes too hard and, therefore, a sufficient instant adhesion cannot be achieved. After proper adhesion, the rigidity of the connection is also guaranteed with temperatures in the minus range. According to our experience, the final adhesion force of an adhesion is reached after approx. 72 hours (at +21°C). For adhesion, only the transfer adhesive tape which is included in the scope of delivery and already attached to the magnetic strip is to be used.

Handling

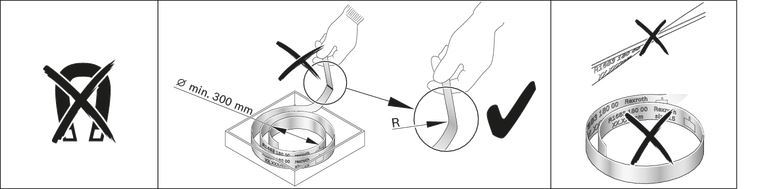

To avoid tensions in the magnetic strip, it must not be stretched, twisted or stored/handled with the magnetized plastic strip directed to the inside. If the magnetic strip is reeled up, inserting a partition layer for avoiding damage is recommended. When being stored in a non-glued condition, the recommended storage temperature is to be complied with to avoid a weakening of the transfer adhesive layer.
