Ball runner blocks SLH
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Area of application: For restricted space in transverse direction and high rigidity requirements
Product description
Product overview
Ball runner blocks are delivered with standard seals (SS) or low-friction seals (LS) in an initially greased/preserved version without Ball Chain. Generally, they comply with accuracy class P. The following versions are available. Special versions are possible upon request.
Technical data
General technical data
| Size | 25 | |
| m | kg | 0.8 |

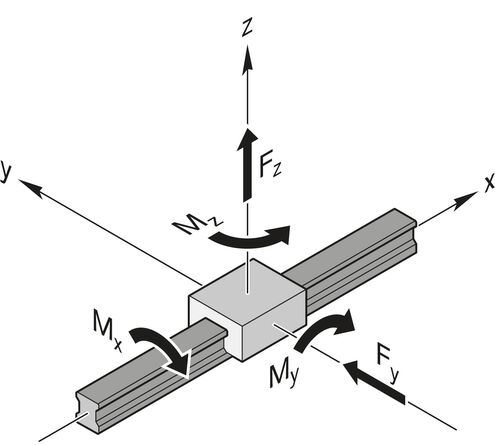

Load capacities and load moments
| Size | 25 | ||
| C | N |  | 37300 |
| C0 | N | 52500 | |
| Mt | Nm |  | 530 |
| Mt0 | Nm | 750 | |
| ML | Nm |  | 530 |
| ML0 | Nm | 740 | |

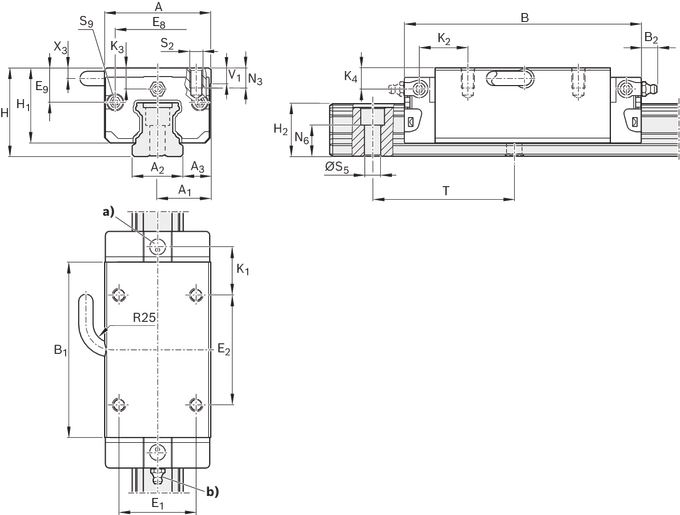

Dimensions
| a) Size 20 Ø 5 · 1.0 (mm) | |
| Open the lube port if required and mount the lubrication adapter. | |
| b) Lube nipple size 25: | |
| Hydraulic-type lube nipple DIN 71412-A M6x8, B2 = 9.5 mm | |
| When using different lube nipples, pay attention to the screw-in depth of 8 mm! | |
| The lube nipple is included in the scope of delivery (not installed). | |
| Connection is possible on all sides. |
Dimensions
| Size | 25 | |
| A | mm | 48 |
| A1 | mm | 24 |
| A2 | mm | 23 |
| A3 | mm | 12.5 |
| B | mm | 107.9 |
| B1 | mm | 79.5 |
| E1 | mm | 35 |
| E2 | mm | 50 |
| E3 | mm | 12.2 |
| E8 | mm | 38.3 |
| E9 | mm | 15.5 |
| H | mm | 40 |
| H1 | mm | 33.9 |
| Dimension H2 with cover strip | mm | 24.45 |
| Dimension H2 without cover strip | mm | 24.25 |
| K1 | mm | 22.8 |
| K2 | mm | 21.95 |
| K3 | mm | 9.5 |
| K4 | mm | 9.5 |
| N3 | mm | 9 |
| N6 | 15.2 mm ±0.5 | |
| S2 | M6 | |
| T | mm | 60 |
| V1 | mm | 7.5 |
Project planning information
Dimensioning and calculations
The IMScompact measuring system runner block is based on the proven BSHP ball runner block in CS design.
The dimensioning and calculation including the nominal life expectancy calculation is implemented analogously to the calculation for the profiled rail system without measuring system according to the catalog information in "BSHP ball rail systems".
The external loads acting on the system are distributed among the runner blocks depending on the arrangement.
The loads caused by forces and torques resulting from the effective forces need to be calculated for each runner block when performing the life expectancy calculation.
The following table shows the arrangements that are most commonly found in practice.
For the IMScompact runner blocks, whichever scenario is selected, the relevant values for Fmax and Mmax must be complied with in the application. The respective values can be obtained from the corresponding tables of dimensions.
Ordering codes
Type abbreviation / ordering code:
Downloads
 | R999001485 Integrated measuring system IMScompact Catalog | R999001485 | 2020-03-01 | English | PDF | 2.9MB Product Groups: Integrated measuring systems Only available as PDF |
| IMScompact integrated measuring system for BSHP ball rail system Manual | R320103196_EN | 2019-12-01 | English | PDF | 2.5MB Product Groups: Integrated measuring systems |
