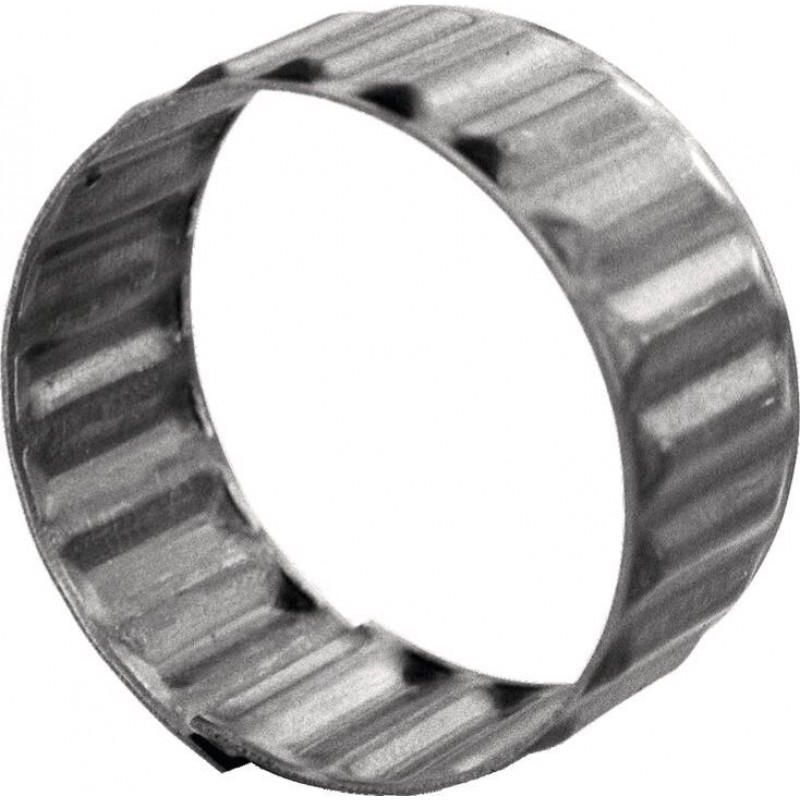

Tolerance ring R0820 (BN) Sizes 5 x 5 to 15 x 14

Артикул: RX8101

В наличии

Tolerance ring R0820 (BN) Sizes 5 x 5 to 15 x 14

Name: Tolerance ring R0820 (BN) Sizes 5 x 5 to 15 x 14
Brand: Bosch Rexroth
SKU: RX8101

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

Quick, economic installation
Compensates the differences in thermal expansion between machine elements made of different materials
Eliminates the need for keyways or other positive-locking connections
Connecting parts have a simple design
High temperature stability

Features

Special sizes available on request
Extremely low-cost machine element
Resistant to various types of chemical stress
Fixed and secure connection of machine parts
Large tolerance zone with connecting parts

Product description

The circumferential flat edges lie on the inner diameter of the tolerance ring. For use with a unit bore system.

Technical data

General technical data

Size	F 1) 2)	M 1) 3)	m 4)
Size	N	Nm	kg
5 x 5	250	0.2	0.09
5 x 6	300	0.25	0.13
5 x 8	400	0.35	0.14
6 x 6	400	0.4	0.15
6 x 8	500	0.55	0.16
6 x 10	700	0.7	0.26
8 x 7	800	0.75	0.28
8 x 8	1000	0.9	0.33
8 x 10	1400	1.3	0.42
10 x 10	1800	3	0.5
10 x 12	2100	3.6	0.6
10 x 14	2500	4.2	0.7
11 x 10	2000	3.5	0.55
11 x 14	2800	5	0.7
12 x 6	900	2	0.4
12 x 8	1600	3	0.5
12 x 10	2300	3.5	0.6
12 x 12	2900	4.5	0.7
12 x 14	3600	5	0.85
12 x 18	5000	7	1.1
14 x 10	2500	5	0.75
14 x 14	4100	7	1
14 x 15	4500	7.5	1.2
14 x 20	5000	10	1.65
15 x 6	1100	3.5	0.5
15 x 8	2000	5	0.6
15 x 10	2800	6	0.75
15 x 12	3500	7	0.9
15 x 14	4300	8	1.05

1)	Observe the general technical notes and information.
2)	Considerably smaller values are permitted for pulsating and alternating loads. Please consult us.
3)	In case of free installation with 20% reduction, see section “Calculations” for the guideline values
4)	Per 1000 pieces

Legend

Symbol	Description	Unit
F	Permissible radial load	N
M	Transferable torque	Nm
m	Mass	kg

Tolerances for shafts and holes

Technical data

Fields of application

Application examples

Dimensions

Size	Tolerance ring dimensions		Connection dimensions 1)
				Antifriction bearing installation	Torque transmission
	d	b	D' H9	d'	d'
mm	mm	mm	mm	mm	mm
5 x 5	5	5	5	4.06 4.01	4.18 4.14
5 x 6		6
5 x 8		8
6 x 6	6	6	6	5.06 5.01	5.18 5.14
6 x 8		8
6 x 10		10
8 x 7	8	7	8	6.75 6.51	6.71 6.65
8 x 8		8
8 x 10		10
10 x 10	10	10	10	8.57 8.51	8.71 8.65
10 x 12		12
10 x 14		14
11 x 10	11	10	11	9.57 9.51	9.71 9.65
11 x 14	11	14	11	9.57 9.51	9.71 9.65
12 x 6	12	6	12	10.59 10.52	10.77 10.7
12 x 8		8
12 x 10		10
12 x 12		12
12 x 14		14
12 x 18		18
14 x 10	14	10	14	12.59 12.52	12.77 12.7
14 x 14		14
14 x 15		15
14 x 20		20
15 x 6	15	6	15	13.59 13.52	13.77 13.7
15 x 8		8
15 x 10		10
15 x 12		12
15 x 14		14

1)	Observe the general technical notes and information.

1)	Free installation
2)	Centered installation

Project planning information

Inquiry/specification

Calculation

Mounting

Notes for mounting

Design notes

Ordering codes

Material numbers

Size	Part number	Material 1)	Old material number	Buy
5 x 5	R082000551	Corrosion-resistant steel	BN 5 x 5
5 x 6	R082000552		BN 5 x 6
5 x 8	R082000553		BN 5 x 8
6 x 6	R082000651		BN 6 x 6
6 x 8	R082000652		BN 6 x 8
6 x 10	R082000653		BN 6 x 10
8 x 7	R082000851		BN 8 x 7
8 x 8	R082000852		BN 8 x 8
8 x 10	R082000853		BN 8 x 10
10 x 10	R082001051		BN 10 x 10
10 x 12	R082001052		BN 10 x 12
10 x 14	R082001053		BN 10 x 14
11 x 10	R082001152		BN 11 x 10
11 x 14	R082001153		BN 11 x 14
12 x 6	R082001251		BN 12 x 6
12 x 8	R082001252		BN 12 x 8
12 x 10	R082001253		BN 12 x 10
12 x 12	R082001254		BN 12 x 12
12 x 14	R082001255		BN 12 x 14
12 x 18	R082001256		BN 12 x 18
14 x 10	R082001452		BN 14 x 10
14 x 14	R082001453		BN 14 x 14
14 x 15	R082001454		BN 14 x 15
14 x 20	R082001455		BN 14 x 20
15 x 6	R082001551		BN 15 x 6
15 x 8	R082001552		BN 15 x 8
15 x 10	R082001553		BN 15 x 10
15 x 12	R082001554		BN 15 x 12
15 x 14	R082001555		BN 15 x 14

1)	Up to 250 °C continuous operation, brief peaks up to 300 °C

Codes (example)	R0820 006 03
Form:
10	=	R0810 (AN)
20	=	R0820 (BN)
01	=	R0801 (ANL)
04	=	R0804 (ANS)
Tolerance ring diameter (d)
d = 6 mm	=	006
Key figure for tolerance ring width (b)/material
Carbon steel	=	0 - 49 (01, 02, 03, 04, 05, 06, 07, 08, 09)
Corrosion-resistant steel	=	51 - 99 (51, 52, 53, 54, 55, 56)

When ordering, please use the nine-digit part number.

We have retained the designation in the following tables in order to make the selection easier for you.

For larger quantities, a variety of special versions are possible on request.

Downloads

Tolerance rings
Catalog | R310EN2970 | 2004-12-01 | English | PDF | 2.1MB
Product Groups: Ball transfer units and tolerance rings
RE 82970
