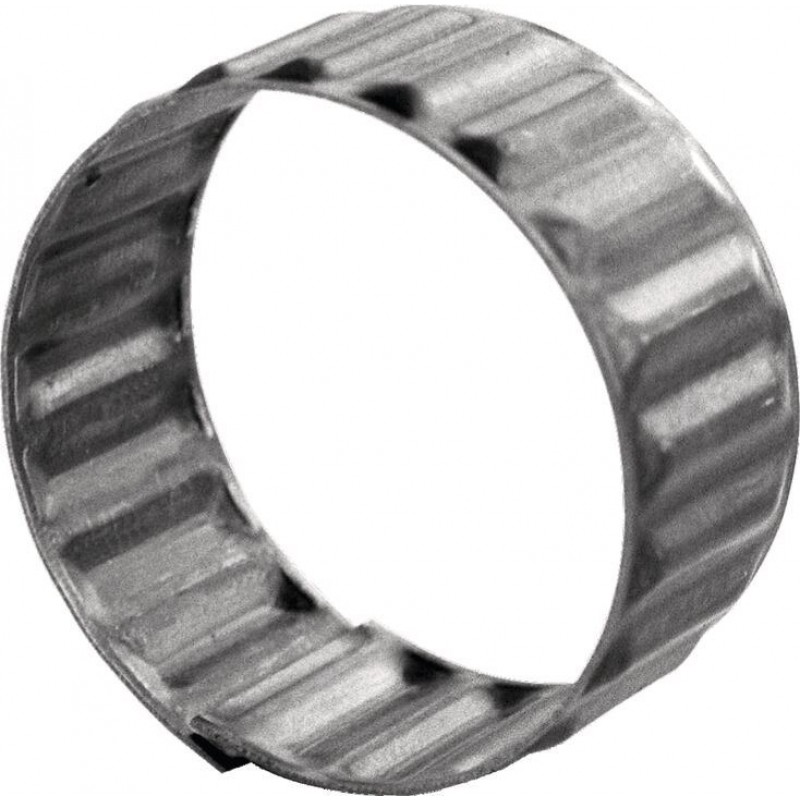

Tolerance ring R0820 (BN) Sizes 16 x 10 to 24 x 15
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Quick, economic installation
- Compensates the differences in thermal expansion between machine elements made of different materials
- Eliminates the need for keyways or other positive-locking connections
- Connecting parts have a simple design
- High temperature stability
Features
- Special sizes available on request
- Extremely low-cost machine element
- Resistant to various types of chemical stress
- Fixed and secure connection of machine parts
- Large tolerance zone with connecting parts
Product description
The circumferential flat edges lie on the inner diameter of the tolerance ring. For use with a unit bore system.
Technical data
General technical data
| Size | F 1) 2) | M 1) 3) | m 4) |
| N | Nm | kg | |
| 16 x 10 | 3100 | 6.5 | 0.8 |
| 16 x 16 | 6000 | 11 | 1.3 |
| 17 x 6 | 1300 | 4.5 | 0.6 |
| 17 x 8 | 2300 | 6 | 0.7 |
| 17 x 10 | 3200 | 8 | 0.85 |
| 17 x 2 | 4100 | 9 | 1.05 |
| 17 x 14 | 5100 | 11 | 1.2 |
| 18 x 10 | 3400 | 9 | 0.9 |
| 18 x 22 | 9500 | 20 | 2 |
| 19 x 10 | 3000 | 9.5 | 0.95 |
| 19 x 19 | 8500 | 20 | 1.8 |
| 19 x 22 | 9900 | 23 | 2.1 |
| 20 x 6 | 1900 | 6.5 | 0.9 |
| 20 x 8 | 3200 | 9 | 1.2 |
| 20 x 10 | 4500 | 11 | 1.5 |
| 20 x 12 | 5800 | 13 | 1.7 |
| 20 x 15 | 7900 | 17 | 2.25 |
| 20 x 20 | 11000 | 23 | 3 |
| 20 x 22 | 12500 | 25 | 3.25 |
| 22 x 12 | 6000 | 18 | 2 |
| 22 x 15 | 8000 | 25 | 2.4 |
| 22 x 22 | 13000 | 33 | 3.6 |
| 24 x 15 | 8400 | 27 | 2.35 |
| 1) | Observe the general technical notes and information. |
| 2) | Considerably smaller values are permitted for pulsating and alternating loads. Please consult us. |
| 3) | In case of free installation with 20% reduction, see section “Calculations” for the guideline values |
| 4) | Per 1000 pieces |
Legend
| Symbol | Description | Unit |
| F | Permissible radial load | N |
| M | Transferable torque | Nm |
| m | Mass | kg |
Tolerances for shafts and holes
Technical data
Fields of application
Application examples
Dimensions
| 1) | Free installation |
| 2) | Centered installation |
Dimensions
| Size | Tolerance ring dimensions | Connection dimensions 1) | |||
| Antifriction bearing installation | Torque transmission | ||||
| d | b | D' H9 | d' | d' | |
| mm | mm | mm | mm | mm | mm |
| 16 x 10 | 16 | 10 | 16 | 14.59 14.52 | 14.77 14.7 |
| 16 x 16 | 16 | ||||
| 17 x 6 | 17 | 6 | 17 | 15.59 15.52 | 15.77 15.7 |
| 17 x 8 | 8 | ||||
| 17 x 10 | 10 | ||||
| 17 x 2 | 12 | ||||
| 17 x 14 | 14 | ||||
| 18 x 10 | 18 | 10 | 18 | 16.95 16.52 | 16.77 16.7 |
| 18 x 22 | 22 | ||||
| 19 x 10 | 19 | 10 | 19 | 17.59 17.52 | 17.77 17.7 |
| 19 x 19 | 19 | ||||
| 19 x 22 | 22 | ||||
| 20 x 6 | 20 | 6 | 20 | 18.11 18.02 | 18.33 18.25 |
| 20 x 8 | 8 | ||||
| 20 x 10 | 10 | ||||
| 20 x 12 | 12 | ||||
| 20 x 15 | 15 | ||||
| 20 x 20 | 20 | ||||
| 20 x 22 | 22 | ||||
| 22 x 12 | 22 | 12 | 22 | 20.11 20.02 | 20.33 20.25 |
| 22 x 15 | 15 | ||||
| 22 x 22 | 22 | ||||
| 24 x 15 | 24 | 15 | 24 | 22.11 22.02 | 22.33 22.25 |
| 1) | Observe the general technical notes and information. |
Project planning information
Inquiry/specification
Calculation
Mounting
Notes for mounting
Design notes
Downloads
 | Tolerance rings Catalog | R310EN2970 | 2004-12-01 | English | PDF | 2.1MB Product Groups: Ball transfer units and tolerance rings RE 82970 |
