Seal kit for Ball Rail Systems R1619 .20 .0
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- The seal kit is recommended when combining the scraper plate with a two-piece front seal.
Product description

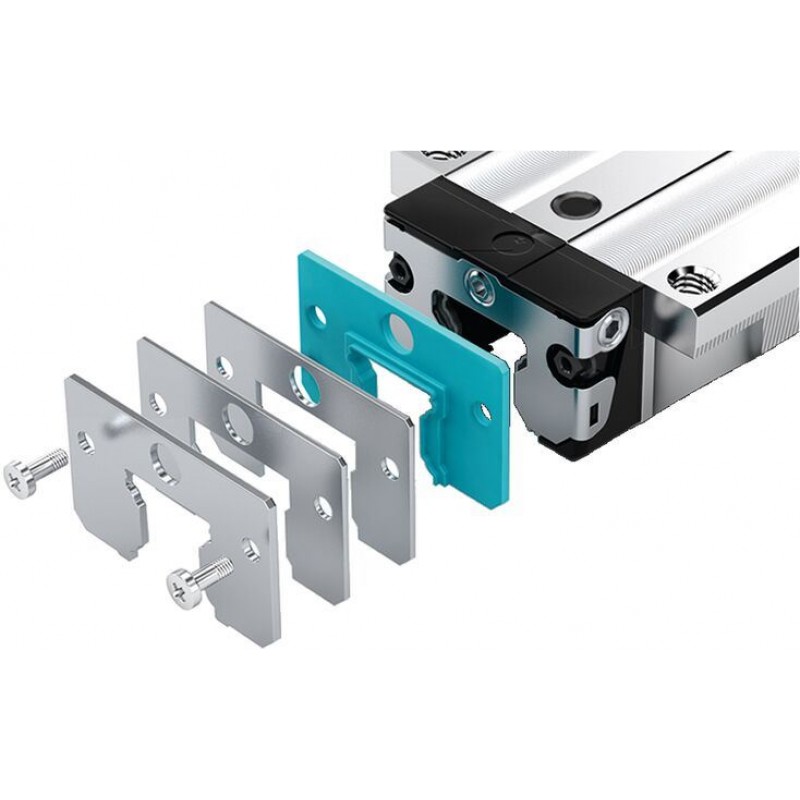

Structural design Seal kit
| 1) | Scraper plate |
| 2) | Reinforcing plate |
| 3) | Two-piece front seal |
Dimensions
Dimensions
| Size | 15 | 20 1) | 25 1) | 30 | 35 | 45 | 55 | ||||
| Part number | R161912050 | R161982050 | R161922050 | R161972050 | R161932040 | R161932050 | R161942040 | R161942050 | R161952040 | R161952050 | |
| A4 | mm | 32 | 42 | 47 | 59 | 69 | 85 | 98 | |||
| B3 | mm | 6.3 | 6.9 | 8.2 | 11.1 | 11.7 | |||||
| B4 | mm | 4.2 | 4.5 | 5.8 | 8 | ||||||
| E8 | mm | 24.55 | 32.4 | 38.3 | 48.4 | 58 | 69.8 | 80 | |||
| E9 | mm | 6.3 | 6.8 | 11 | 14.1 | 17 | 20.5 | 21.5 | |||
| H3 | mm | 19 | 24.3 | 29 | 34.5 | 39.5 | 49.5 | 56 | |||
| Ø S9 | mm | 3,5 | 4 | 5 | 6 | ||||||
| Ø S12 | mm | 4,3 | 5,1 | 7 | |||||||
| 1) | Not for ball runner blocks F.N (flanged ... low) and S.N (slimline ... low) |
Mounting
Note for mounting
- The fastening screws are included.
- Observe the minimum screw-in depth when connecting lube ports to end faces.
- Observe the mounting instructions.
Ordering codes
Material numbers
| Size | Part number | CAD data | Buy | for rail with/without cover strip | Mass |
| g | |||||
| 15 | R161912050 | with/without cover strip | 16 | ||
| 20 1) | R161982050 | 20 | |||
| 25 1) | R161922050 | 26 | |||
| 30 | R161972050 | 42 | |||
| 35 | R161932040 | Without cover strip | 57 | ||
| R161932050 | With cover strip | ||||
| 45 | R161942040 | Without cover strip | 155 | ||
| R161942050 | With cover strip | ||||
| 55 | R161952040 | Without cover strip | 195 | ||
| R161952050 | With cover strip |
| 1) | Not for ball runner blocks F.N (flanged ... low) and S.N (slimline ... low) |
Downloads
 | Profilschienenführungen Manual | R320103885 | 2016-09-01 | German | PDF | 11.4MB Product Groups: Linear guides |
| Sistema de guias lineares Manual | R320103885_PT | 2016-09-01 | Portuguese | PDF | 11.3MB Product Groups: Linear guides |
| Guide profilate Manual | R320103885_IT | 2016-09-01 | Italian | PDF | 11.4MB Product Groups: Linear guides |
| Guidages sur rails Manual | R320103885_FR | 2016-09-01 | French | PDF | 11.3MB Product Groups: Linear guides |
| 型轨导向系统 Manual | R320103885_ZH | 2016-09-01 | Chinese | PDF | 11.9MB Product Groups: Linear guides |
| Sistemas de guiado lineal Manual | R320103885_ES | 2016-09-01 | Spanish | PDF | 11.4MB Product Groups: Linear guides |
| Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
