FKM seals for Roller Rail Systems R1810 .2. 3.
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- For mounting on Roller Runner Blocks for all Roller Guide Rails
- Two-piece FKM seal
- Material: Stainless steel plus FKM seal
- Simple assembly/removal on fixed roller guide rail
- Observe the mounting instructions
Product description

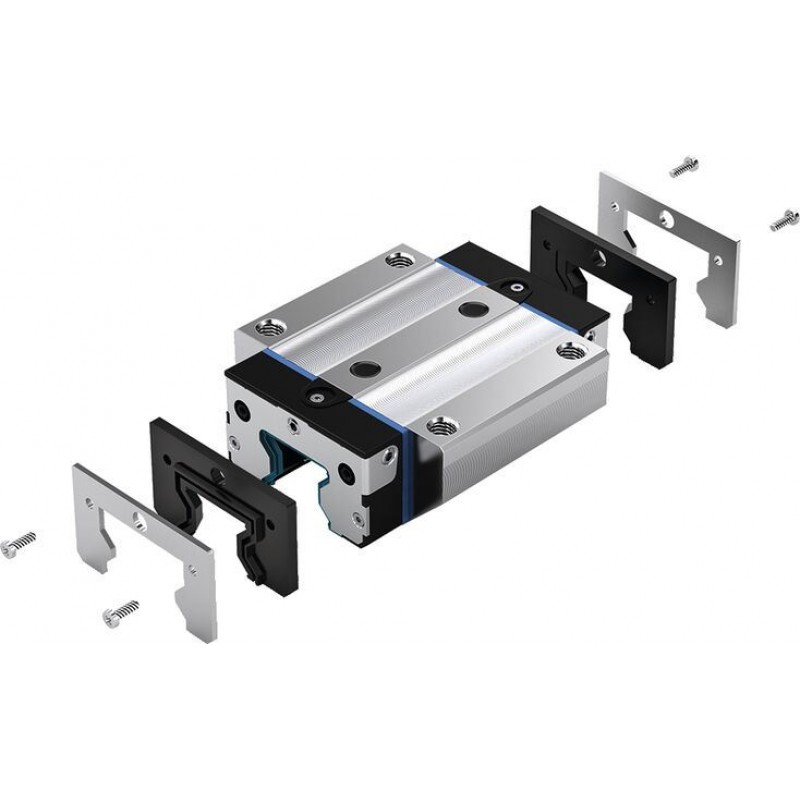

Two-piece FKM seal, R1810 .2 .3
| 1) | Two-piece FKM seal |
Technical data
General technical data
| Size | Maximum tightening torque MA | Mass |
| Nm | g | |
| 25 | 0.4 | 18 |
| 35 | 40 | |
| 45 | 62 | |
| 55 | 76 | |
| 65 | 146 |

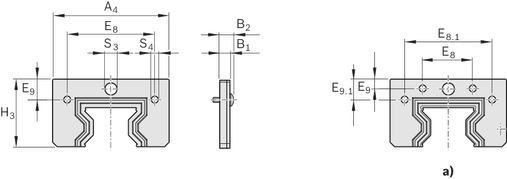

Dimensions
| a) | Size 65 |
Dimensions
| Size | 25 | 35 | 45 | 55 | 65 | |
| A4 | mm | 45.4 | 67.4 | 80.4 | 92.8 | 118.4 |
| B1 | mm | 6 | ||||
| B2 | mm | 8 | 9.1 | 9.8 | 9.1 | |
| E8 | mm | 33.4 | 50.3 | 62.9 | 74.2 | 93 |
| E8.1 | mm | - | 93 | |||
| E9 | mm | 7.45 | 12.05 | 15.7 | 17.8 | 8 |
| E9.1 | mm | - | 24.7 | |||
| H3 | mm | 29.15 | 39.7 | 49.7 | 56.7 | 73.9 |
| Ø S3 | mm | 7 | ||||
| Ø S4 | mm | 4 | 5 | 6 | 5 | |
Mounting
Notes for mounting
The fastening screws are included.
With front lube port: Use special lube nipple or adapter (see Accessories and spare parts).
It is possible to combine with additional sheet steel wiper. For sizes 35 to 65, use Set FKM-seal and sheet steel wiper (see Produkt FKM seals for Roller Rail Systems set).
Ordering codes
Material numbers
| Size | Part number | CAD data | Buy |
| 25 | R181022030 | ||
| 35 | R181032030 | ||
| 45 | R181042030 | ||
| 55 | R181052030 | ||
| 65 | R181062030 |
