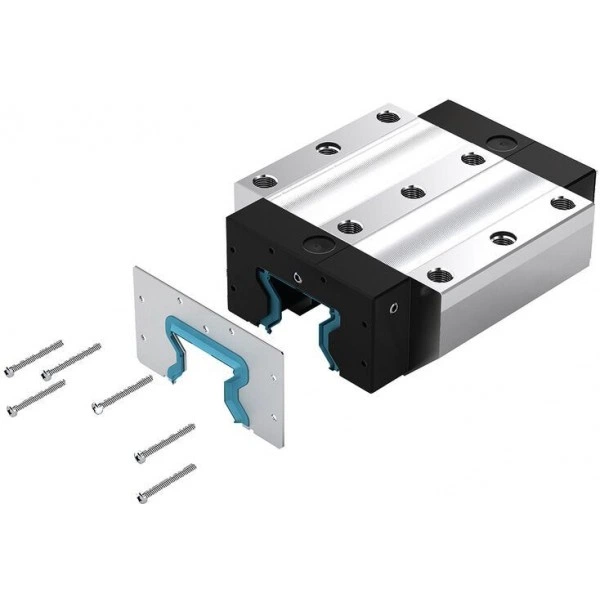

Front seals for Roller Rail Systems R1810 .1. 00
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Already integrated in RSHP (replacement only for first generation roller runner blocks)
- Material: Corrosion-resistant spring steel as per DIN EN 10088 with plastic seal
- Design: bright

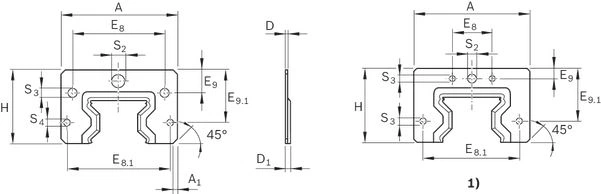

Dimensions
| a) | Size 65 |
Dimensions
| Size | 25 | 35 1) | 45 1) | 55 1) | 65 (FXS) | 100 | 125 | |
| A | mm | 44 | 63 | 77 | 90.5 | 119 | 181 | 230 |
| A1 | mm | 1.2 | 2 | 3 | 2 | 5 | ||
| D | mm | 1 | 2 | 2.5 | 3 | |||
| D1 | mm | 2.6 | 4 | 4.8 | 5 | 5.5 | 6 | |
| E8 | mm | 33.4 | 50.3 | 62.9 | 74.2 | 35 | 130 | 205 |
| E8.1 | mm | 40.2 | 56.6 | 69.6 | 81.6 | 106 | 162.6 | 205 |
| E9 | mm | 7.9 | 12.4 | 16 | 18.2 | 8.3 | 28.4 | 38 |
| E9.1 | mm | 20.7 | 28.4 | 35.8 | 40 | 54 | 61 | 90 |
| H | mm | 28.5 | 39.8 | 49.8 | 56.2 | 74.5 | 104 | 133 |
| Ø S2 | mm | 7 | 9 | |||||
| Ø S3 | mm | 4 | 5 | 6 | 5 | 6 | 6,5 | |
| Ø S4 | mm | 3 | 4 | 5 | 6 | 6,5 | ||
| 1) | Set for runner block R18. ... 18 or ... 68 (wall mounting) upon request |
Mounting
Notes for mounting
The fastening screws are included.
- Dispose of old screws.
For detailed information on assembly, see "Mounting instructions for the Profiled Rail Systems".
Ordering codes
Material numbers
| Size | Part number 2) | CAD data | Buy | Mass |
| g | ||||
| 25 | R181021000 | 13 | ||
| 35 1) | R181031000 | 20 | ||
| 45 1) | R181041000 | 46 | ||
| 55 1) | R181051000 | 58 | ||
| 65 (FXS) | R181061000 | 108 | ||
| 100 | R181021100 | 280 | ||
| 125 | R181031100 | 530 |
| 1) | Set for runner block R18. ... 18 or ... 68 (wall mounting) upon request |
| 2) | Set with screws |
