Sliding blocks and springs for Omega Modules
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Product description

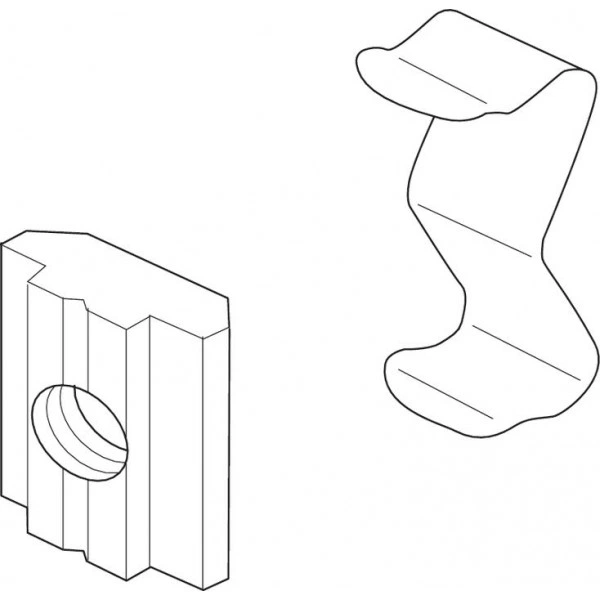

The spring serves as a mounting and positioning aid.
(only for OBB-085 and OBB-120)
Technical data
Technische Daten
| Size | Part number | MA 1) |
| Nm | ||
| OBB | R039171038 | 2.7 |
| CKK-/CKR-090/110; OBB; VKK-070; FMS/FMB | R344701401 | |
| CKK-/CKR-090/110; OBB; VKK-070 | R344701501 | 5.5 |
| R039171009 | ||
| CKK-/CKR-145; OBB; VKK-100 | R344701701 | 2.7 |
| R344701801 | 5.5 | |
| R344701901 | 9.5 | |
| CKK-/CKR-145; OBB | R344702001 | 23 |
| CKK-/CKR-145; OBB; VKK-100 | R039171008 | 9.5 |
| CKK-/CKR-200; OBB | R344701201 | 2.7 |
| R344701101 | 5.5 | |
| R344701001 | 9.5 | |
| R344700901 | 23 | |
| R039171007 | ||
| CKK-/CKR-090/110; OBB-085; VKK-070; VKK-100; FMS/FMB | R341201002 | - |
| CKK-/CKR-145; OBB-085; OBB-120 | R341201102 | |
| CKK-/CKR-200; OBB-085; OBB-120 | R341200902 |
| 1) | for friction factor 0.125, as per strength class 8.8 |
Legend
| Symbol | Description | Unit |
| MA | Tightening torques of fastening screws | Nm |
Dimensions
Dimensions
| Size | Part number | A | B | C | D | E | F1 | Thread |
| mm | mm | mm | mm | mm | mm | |||
| OBB | R039171038 | 5 | 9.2 | 4 | 1.7 | 10 | - | M4 |
| CKK-/CKR-090/110; OBB; VKK-070; FMS/FMB | R344701401 | 6 | 11.5 | 1 | 12 | |||
| CKK-/CKR-090/110; OBB; VKK-070 | R344701501 | M5 | ||||||
| R039171009 | 45 | 30 | ||||||
| CKK-/CKR-145; OBB; VKK-100 | R344701701 | 8 | 16 | 6 | 2 | 16 | - | M4 |
| R344701801 | M5 | |||||||
| R344701901 | M6 | |||||||
| CKK-/CKR-145; OBB | R344702001 | M8 | ||||||
| CKK-/CKR-145; OBB; VKK-100 | R039171008 | 50 | 36 | M6 | ||||
| CKK-/CKR-200; OBB | R344701201 | 10 | 19.5 | 10.5 | 5 | 20 | - | M4 |
| R344701101 | M5 | |||||||
| R344701001 | M6 | |||||||
| R344700901 | M8 | |||||||
| R039171007 | 90 | 70 | ||||||
| CKK-/CKR-090/110; OBB-085; VKK-070; VKK-100; FMS/FMB | R341201002 | - | - | - | - | - | - | |
| CKK-/CKR-145; OBB-085; OBB-120 | R341201102 | |||||||
| CKK-/CKR-200; OBB-085; OBB-120 | R341200902 |
Sliding blocks for lateral mounting on frame
| Size | A | E | G |
| mm | mm | mm | |
| OBB-055 | 5 | 10 | 12 |
| OBB-085 | 6 | 12 | 14 |
| OBB-120 | 8 | 16 | 18 |

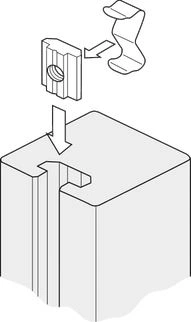

Mounting
Ordering codes
Material numbers
| Size | Part number | Type | Suitable for | CAD data | Buy |
| OBB | R039171038 | Sliding block | - | ||
| CKK-/CKR-090/110; OBB; VKK-070; FMS/FMB | R344701401 | Sliding block | Spring R341201002 | ||
| CKK-/CKR-090/110; OBB; VKK-070 | R344701501 | Sliding block | Spring R341201002 | ||
| R039171009 | Sliding block | - | |||
| CKK-/CKR-145; OBB; VKK-100 | R344701701 | Sliding block | CKK/CKR; OBB: Spring R341201102 VKK: Spring R341201002 | ||
| R344701801 | Sliding block | CKK/CKR; OBB: Spring R341201102 VKK: Spring R341201002 | |||
| R344701901 | Sliding block | CKK/CKR; OBB: Spring R341201102 VKK: Spring R341201002 | |||
| CKK-/CKR-145; OBB | R344702001 | Sliding block | Spring R341201102 | ||
| CKK-/CKR-145; OBB; VKK-100 | R039171008 | Sliding block | - | ||
| CKK-/CKR-200; OBB | R344701201 | Sliding block | Spring R341200902 | ||
| R344701101 | Sliding block | Spring R341200902 | |||
| R344701001 | Sliding block | Spring R341200902 | |||
| R344700901 | Sliding block | Spring R341200902 | |||
| R039171007 | Sliding block | - | |||
| CKK-/CKR-090/110; OBB-085; VKK-070; VKK-100; FMS/FMB | R341201002 | Spring | Sliding blocks for CKK/CKR; OBB and VKK: R344701401 R344701501 Additionally with VKK: R344701701 R344701801 R344701901 Sliding blocks for FMS/FMB: R344701401 | ||
| CKK-/CKR-145; OBB-085; OBB-120 | R341201102 | Spring | Sliding blocks: R344701701 R344701801 R344701901 R344702001 | ||
| CKK-/CKR-200; OBB-085; OBB-120 | R341200902 | Spring | Sliding blocks: R344701201 R344701101 R344701001 R344700901 |
