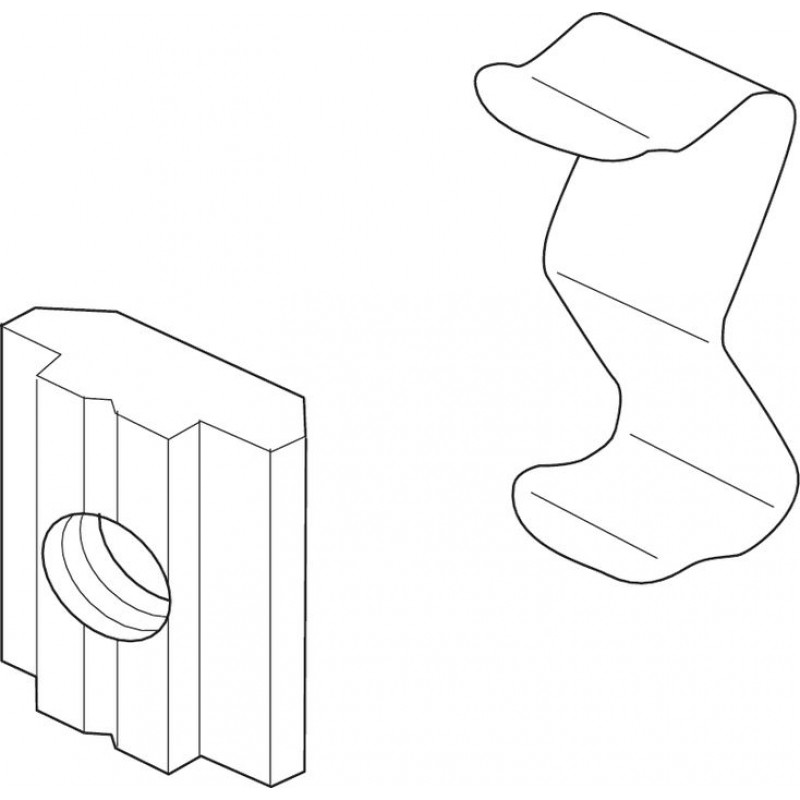

Sliding blocks and springs for Compact Modules
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Product description
Recommended number at the sliding blocks: with one thread, six pieces per meter and side
Technical data
Technische Daten
| Size | Part number | MA 1) |
| Nm | ||
| CKK-/CKR-070 | R037521020 | 2.7 |
| R037521021 | ||
| CKK-/CKR-090/110; OBB; VKK-070; FMS/FMB | R344701401 | |
| CKK-/CKR-090/110; OBB; VKK-070 | R039171009 | 5.5 |
| R344701501 | ||
| CKK-/CKR-145; OBB; VKK-100 | R344701701 | 2.7 |
| R344701801 | 5.5 | |
| R344701901 | 9.5 | |
| R039171008 | ||
| CKK-/CKR-145; OBB | R344702001 | 23 |
| CKK-/CKR-200; OBB | R344701201 | 2.7 |
| R344701101 | 5.5 | |
| R344701001 | 9.5 | |
| R344700901 | 23 | |
| R039171007 | ||
| CKK-/CKR-090/110; OBB-085; VKK-070; VKK-100; FMS/FMB | R341201002 | - |
| CKK-/CKR-145; OBB-085; OBB-120 | R341201102 | |
| CKK-/CKR-200; OBB-085; OBB-120 | R341200902 |
| 1) | for friction factor 0.125, as per strength class 8.8 |
Legend
| Symbol | Description | Unit |
| MA | Tightening torques of fastening screws | Nm |
Dimensions
Dimensions
| Size | Part number | A | B | C | D | E | F1 | Thread |
| mm | mm | mm | mm | mm | mm | |||
| CKK-/CKR-070 | R037521020 | 4 | 7.8 | 3.9 | 0.4 | 10 | - | M4 |
| R037521021 | 19 | 10 | ||||||
| CKK-/CKR-090/110; OBB; VKK-070; FMS/FMB | R344701401 | 6 | 11.5 | 4 | 1 | 12 | - | |
| CKK-/CKR-090/110; OBB; VKK-070 | R039171009 | 45 | 30 | M5 | ||||
| R344701501 | 12 | - | ||||||
| CKK-/CKR-145; OBB; VKK-100 | R344701701 | 8 | 16 | 6 | 2 | 16 | M4 | |
| R344701801 | M5 | |||||||
| R344701901 | M6 | |||||||
| R039171008 | 50 | 36 | ||||||
| CKK-/CKR-145; OBB | R344702001 | 16 | - | M8 | ||||
| CKK-/CKR-200; OBB | R344701201 | 10 | 19.5 | 10.5 | 5 | 20 | M4 | |
| R344701101 | M5 | |||||||
| R344701001 | M6 | |||||||
| R344700901 | M8 | |||||||
| R039171007 | 90 | 70 | ||||||
| CKK-/CKR-090/110; OBB-085; VKK-070; VKK-100; FMS/FMB | R341201002 | - | - | - | - | - | - | |
| CKK-/CKR-145; OBB-085; OBB-120 | R341201102 | |||||||
| CKK-/CKR-200; OBB-085; OBB-120 | R341200902 |
Mounting
For fastening attachments on the connection plate.
The spring serves as a mounting and positioning aid.
Ordering codes
Material numbers
| Size | Part number | Type | Suitable for | CAD data | Buy |
| CKK-/CKR-070 | R037521020 | Sliding block | - | ||
| R037521021 | Sliding block | - | |||
| CKK-/CKR-090/110; OBB; VKK-070; FMS/FMB | R344701401 | Sliding block | Spring R341201002 | ||
| CKK-/CKR-090/110; OBB; VKK-070 | R039171009 | Sliding block | - | ||
| R344701501 | Sliding block | Spring R341201002 | |||
| CKK-/CKR-145; OBB; VKK-100 | R344701701 | Sliding block | CKK/CKR; OBB: Spring R341201102 VKK: Spring R341201002 | ||
| R344701801 | Sliding block | CKK/CKR; OBB: Spring R341201102 VKK: Spring R341201002 | |||
| R344701901 | Sliding block | CKK/CKR; OBB: Spring R341201102 VKK: Spring R341201002 | |||
| R039171008 | Sliding block | - | |||
| CKK-/CKR-145; OBB | R344702001 | Sliding block | Spring R341201102 | ||
| CKK-/CKR-200; OBB | R344701201 | Sliding block | Spring R341200902 | ||
| R344701101 | Sliding block | Spring R341200902 | |||
| R344701001 | Sliding block | Spring R341200902 | |||
| R344700901 | Sliding block | Spring R341200902 | |||
| R039171007 | Sliding block | - | |||
| CKK-/CKR-090/110; OBB-085; VKK-070; VKK-100; FMS/FMB | R341201002 | Spring | Sliding blocks for CKK/CKR; OBB and VKK: R344701401 R344701501 Additionally with VKK: R344701701 R344701801 R344701901 Sliding blocks for FMS/FMB: R344701401 | ||
| CKK-/CKR-145; OBB-085; OBB-120 | R341201102 | Spring | Sliding blocks: R344701701 R344701801 R344701901 R344702001 | ||
| CKK-/CKR-200; OBB-085; OBB-120 | R341200902 | Spring | Sliding blocks: R344701201 R344701101 R344701001 R344700901 |
