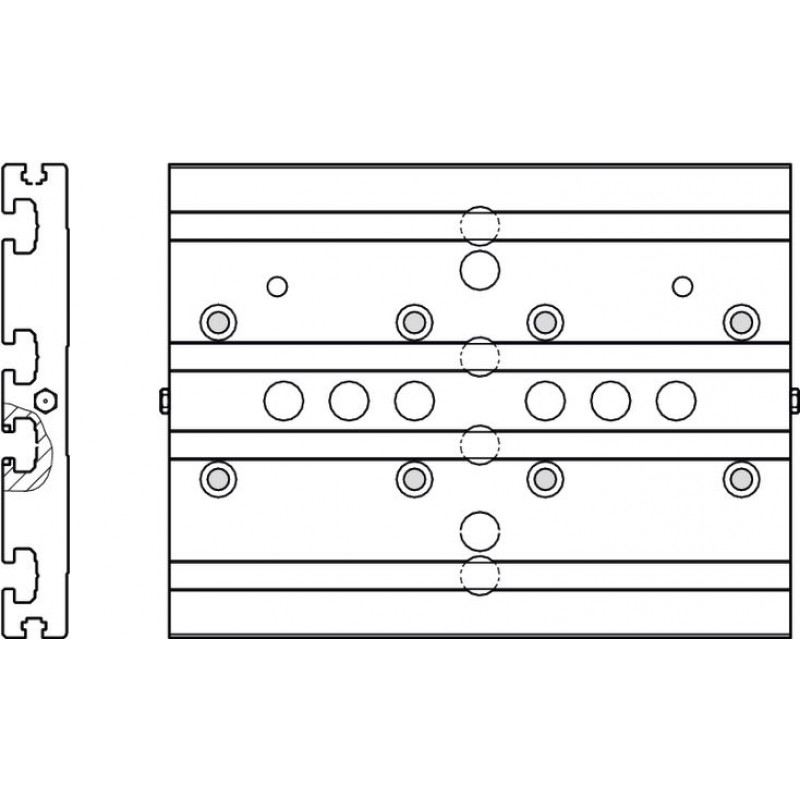

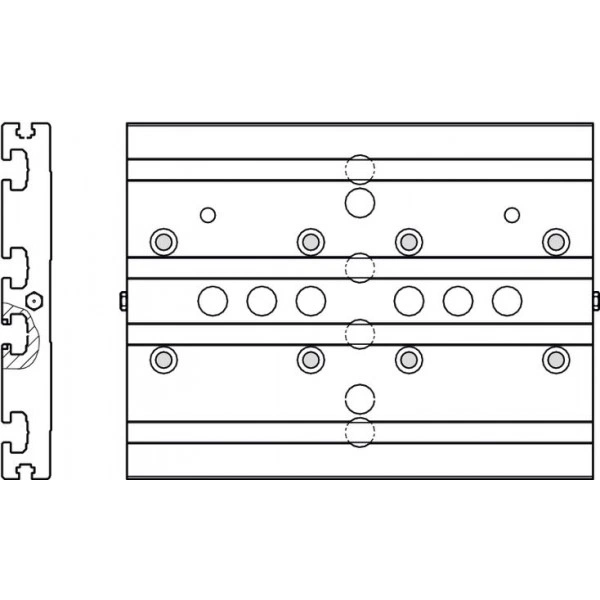

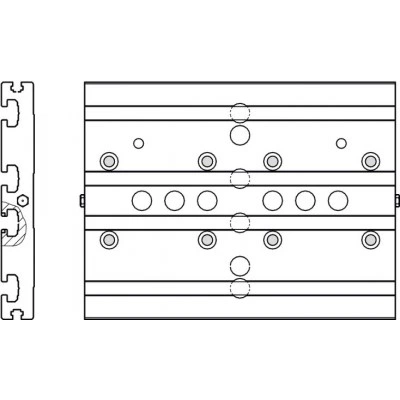

Connection plates for CKR 090 … 200, R0375...11
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Product description
The unit consists of:
- Connection plate
- Mounting accessories for fastening to the carriages
Technical data
Technische Daten
| Size | Lubrication type | m |
| kg | ||
| 90 | LSS, LPG | 0.37 |
| 110 | 0.58 | |
| 145 | 1.15 | |
| 200 | 3.6 |
Legend
| Symbol | Description | Unit |
| m | Mass | kg |

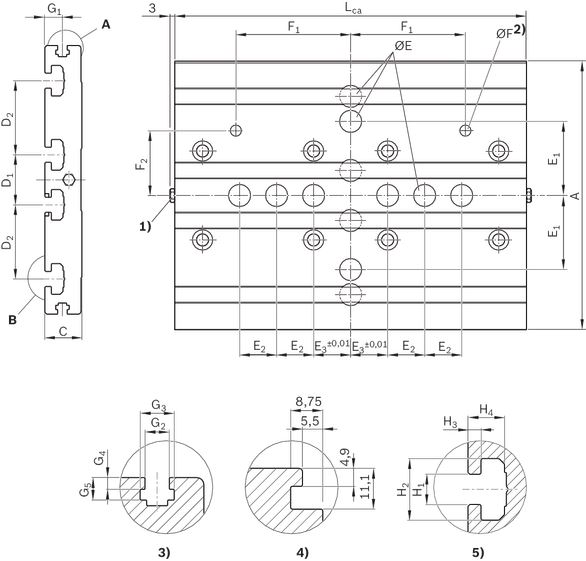

Dimensions
The connection plates differ in appearance in the representation. Shown here is the connection plate for CKK-145.
| 1) | Funnel-type lube nipple AM8 x 1 for lube version LSS/LPG; lubrication possible from two sides (central lubrication only necessary with grease press on one of the two sides). |
| 2) | for customer's attachment |
| 3) | Detail A, size 90, 110 and 145 |
| 4) | Detail A, size 200 |
| 5) | Detail B |
Dimensions
| Size | A | C | D1 | D2 | ØE | E1 | Tolerance for E1 | E2 | Tolerance for E2 | E3 | Tolerance for E3 | ØF | F1 | Tolerance for F1 | F2 | Tolerance for F2 | G1 | G2 | G3 | G4 | G5 | H1 | H2 | H3 | H4 | Carriage length Lca |
| H7 | H7 | |||||||||||||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| 90 | 90 | 16 | 20 | 20 | 9 ‒ 2.1 mm deep | - | - | 10 | ± 0.01 | 20 | ± 0.01 | 4 ‒ 6 mm deep | 38 | ± 0.01 | 20 | ± 0.01 | 7.6 | 4.2 | 7.3 | 2 | 4.3 | 6 | 12 | 3.5 | 7.7 | 125 |
| 110 | 110 | 5 ‒ 6.5 mm deep | 46 | 42 | 9.5 | 5.2 | 2.5 | 4.8 | 155 | |||||||||||||||||
| 145 | 145 | 20 | 27 | 40 | 12 ‒ 2.1 mm deep | 40 | ± 0.01 | 20 | 6 ‒ 12 mm deep | 62 | 35 | 8 | 16.5 | 9.8 | 190 | |||||||||||
| 200 | 200 | 27 | 40 | 16 ‒ 3.1 mm deep | - | - | 8 ‒ 16 mm deep | 59.5 | 41 | - | - | - | - | - | 10 | 20.1 | 6 | 12.5 | 305 |
Connection dimensions for switching cam (size 200)
| 1) | M4 - 6 deep |

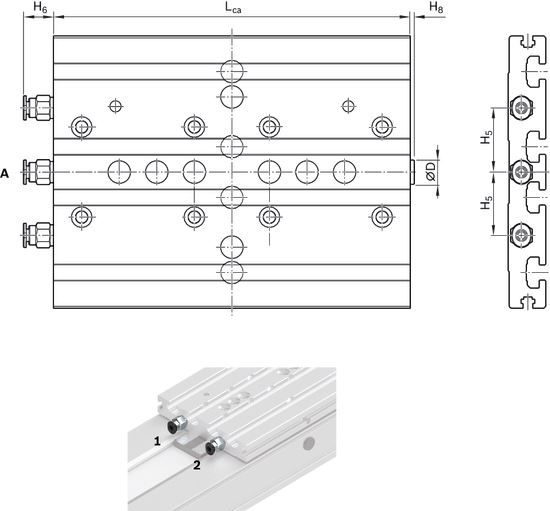

For lube version LCF/LCO
The connection plates differ in appearance in the representation. Shown here is the connection plate for CKK-145.
A Drive side
| 1 | Lube connection, Runner Block left |
| 2 | Lube connection, Runner Block right |
Dimensions
| Size | D | H5 | H6 | H8 | Carriage length Lca |
| mm | mm | mm | mm | mm | |
| 90 | 8.5 | 19 | 12.5 | 3 | 125 |
| 110 | 40 | 155 | |||
| 145 | - | 42 | - | 190 | |
| 200 | 55 | 305 |
Mounting
Mounting orientation
| 1) | Drive journal |
| 2) | Bores ØF |
Delivery notes
Sliding blocks are not included with delivery.
Ordering codes
Material numbers
| Size | Part number | Lubrication type | CAD data | Buy |
| 90 | R037530011 | LSS, LPG | ||
| 110 | R037540011 | LSS, LPG | ||
| 145 | R037550011 | LSS, LPG | ||
| 200 | R037560011 | LSS, LPG |
