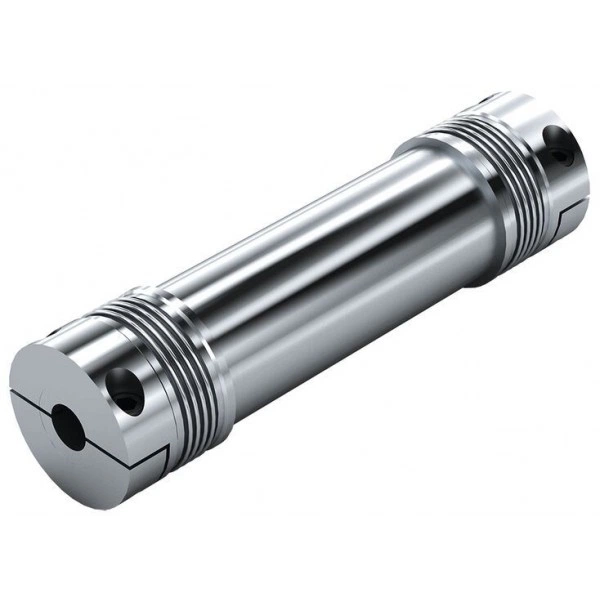

Connecting shafts with membrane coupling for Linear Modules MKR 040, 065, 080, 110
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
Technical data
Technische Daten
| Size | Torque | m | Mass moment of inertia |
| Nm | kg | 10–6 kgm2 | |
| -110 | 150 | 2,00 + 0,00318 x (Lcs – 160) | 2000 + 4,5 x (Lcs – 160) |
| -080 | 60 | 0,85 + 0,00145 x (Lcs – 120) | 510 + 1,18 x (Lcs – 120) |
| -065 | 25 | 0,62 + 0,0012 x (Lcs – 120) | 245 + 0,663 x (Lcs – 120) |
| -040 | 12.5 | 0,12 + 0,00054 x (Lcs – 80) | 30 + 0,09 x (Lcs – 80) |
Legend
| Symbol | Description | Unit |
| Lcs | Overall length of the connecting shaft | mm |
| m | Mass | kg |
Diagrams/characteristic curves

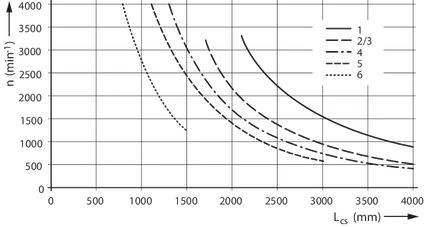

Bending-critical rotary speed depending on the overall length
| 1) | Lcs = overall length of the connecting shaft (mm) |
| 2) | n = rotary speed (min-1) |
Dimensions

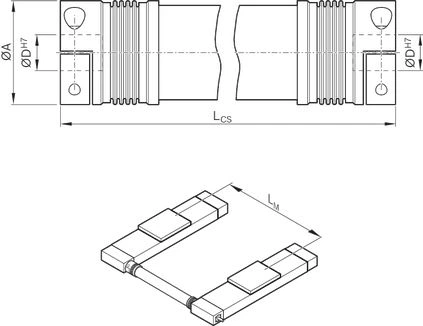

Dimensions
| Size | A | D | Lcs | Lcs | Lcs |
| min. | max. | ||||
| mm | mm | mm | mm | mm | |
| -110 | 81 | 18 | LM – 155 mm | 200 | 4000 |
| -080 | 66 | LM – 144 mm | 171 | ||
| -065 | 55 | 16 | LM – 105 mm | 148 | 3000 |
| -040 | 32 | 10 | LM – 55 mm | 101 | 1500 |
Legend
| Symbol | Description | Unit |
| Lcs | Overall length of the connecting shaft | mm |
| LM | Centerline-to-centerline distance of the linear module | mm |
Mounting
Notes for horizontal installation positions (vertical installation positions on request)
Subject to alternative version with unchanged technical data.
Information
Protect rotating parts from contact during operation!
Comply with the Equipment Safety Act and machinery safety regulations!
Ordering codes
Order
Please state the part number and length L when orderingcs .
Subject to alternative version with unchanged technical data.
Material numbers
| Size | Part number | Shaft | CAD data | Buy |
| -110 | R039151013 | 3 | ||
| -080 | R039151014 | 4 | ||
| -065 | R039151015 | 5 | ||
| -040 | R039151021 | 6 |
